3/4 inch offset Contemporary Bottom Pivot Set, right hand out-swing, left hand in-swing - Brushed / Satin Chrome US26D
Part Number: 380087 Price: $399.95Dor-O-Matic Contemporary Bottom Pivot set for metal or wood doors.
This pivot set will work on Right Hand Out-swing OR Left Hand In-swing doors only.
Used on interior or exterior doors.
Measurements:
Weight Limit: 450 pounds
Max door height: 8 feet
Max door width: 4 feet

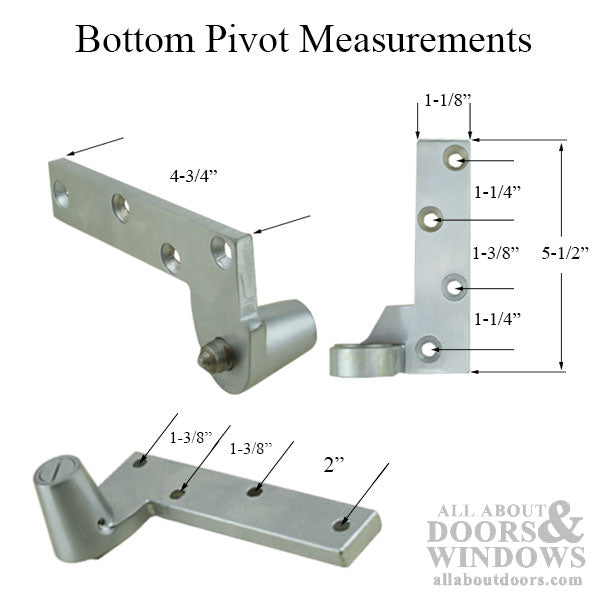

Jamb Pivot Bracket - Width: 1-1/8\", Length: 4-3/4\"
Door Pivot Bracket - Width: 1-1/8\", Length: 5-1/2\"
See additional images for screw hole measurements.
Contents:

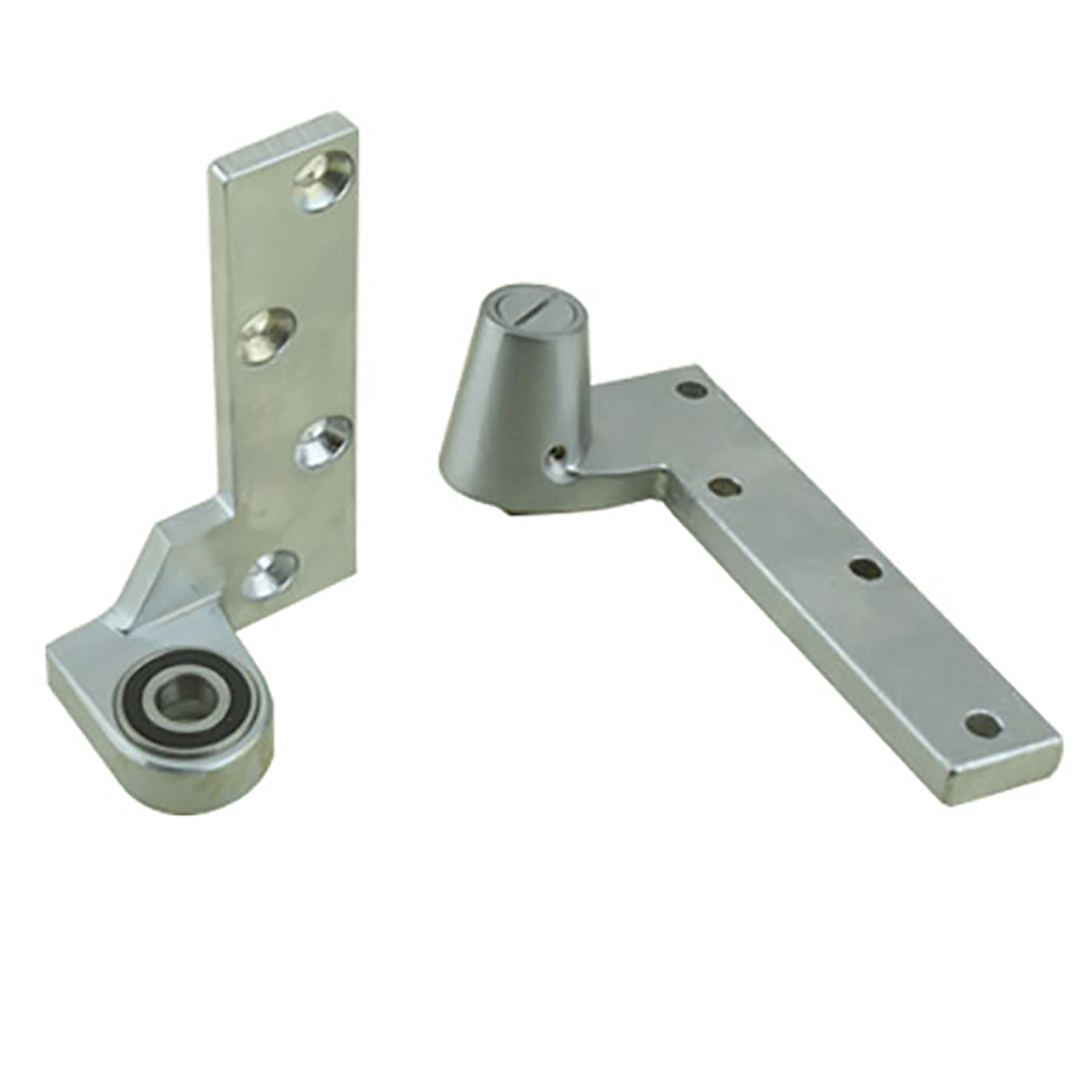

2 bottom Pivots (mounted to side jamb and door)

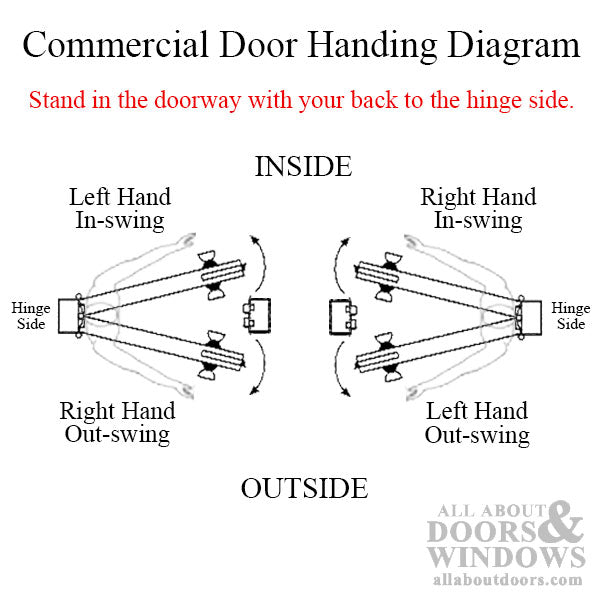

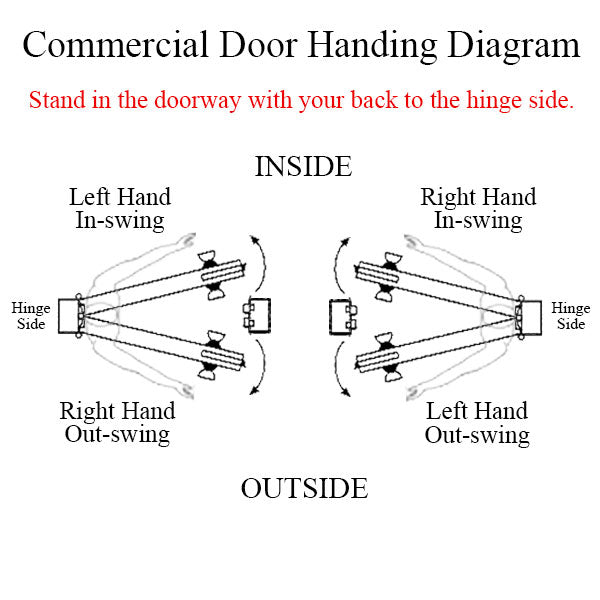

Handing:

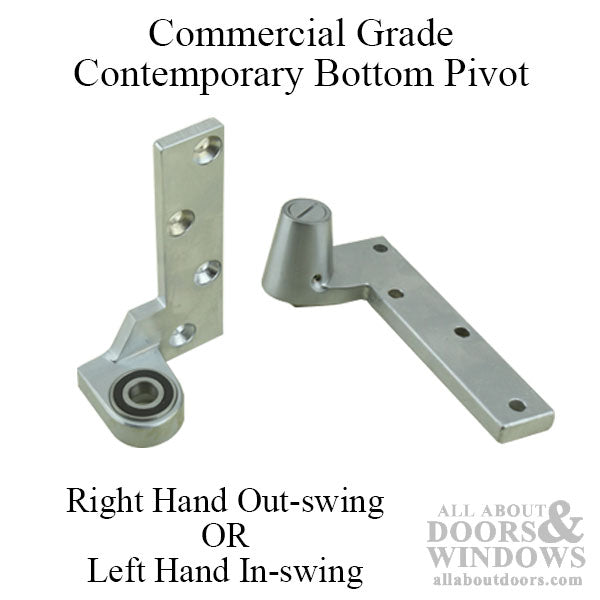

Right Hand Out-swing OR Left Hand In-swing shown.
For opposite handing please see 380086
Note: This is a 2 piece set of commercial grade bottom pivots.
Priced and sold as a set.
Please ensure you are ordering the correct handing for your door.
No returns, refunds or exchanges on this item.
Related Parts:
380083 - 3/4\" offset Top Pivot
380085 - 3/4\" offset Intermediate Pivot
This pivot set will work on Right Hand Out-swing OR Left Hand In-swing doors only.
Used on interior or exterior doors.
Measurements:
Weight Limit: 450 pounds
Max door height: 8 feet
Max door width: 4 feet
Jamb Pivot Bracket - Width: 1-1/8\", Length: 4-3/4\"
Door Pivot Bracket - Width: 1-1/8\", Length: 5-1/2\"
See additional images for screw hole measurements.
Contents:
2 bottom Pivots (mounted to side jamb and door)
Handing:
Right Hand Out-swing OR Left Hand In-swing shown.
For opposite handing please see 380086
Note: This is a 2 piece set of commercial grade bottom pivots.
Priced and sold as a set.
Please ensure you are ordering the correct handing for your door.
No returns, refunds or exchanges on this item.
Related Parts:
380083 - 3/4\" offset Top Pivot
380085 - 3/4\" offset Intermediate Pivot
