3/8 Inch Spiral Tilt-In Window Balance Rod with Green Bearing and Double Pins

Part Number: 83300-MC10-AL Price: $9.95
COLOR: - Aluminum / 10
LENGTH OF METAL CHANNEL: - Aluminum / 10

3/8 inch Spiral Tilt-In Window Balance Rod with Red Bearing and Double Pins.

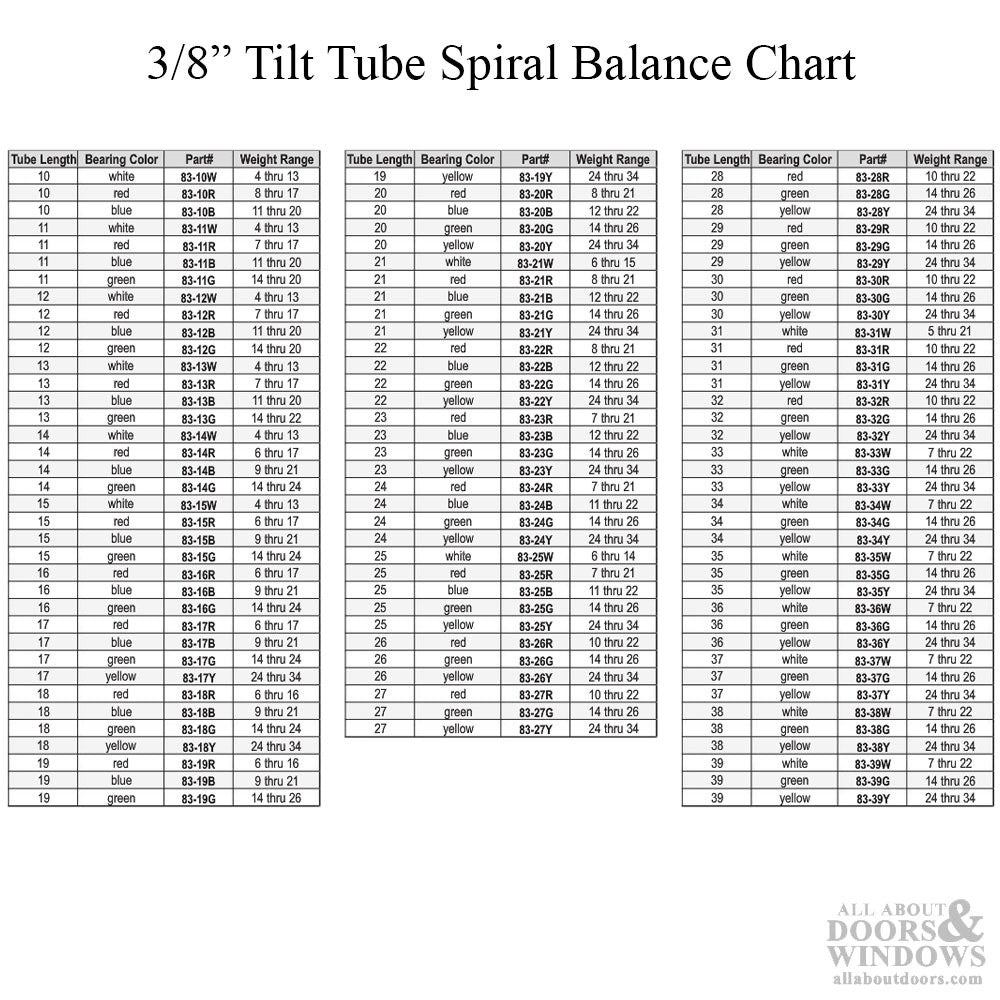

The colored bearing denotes rod strength. (See 4th Image)

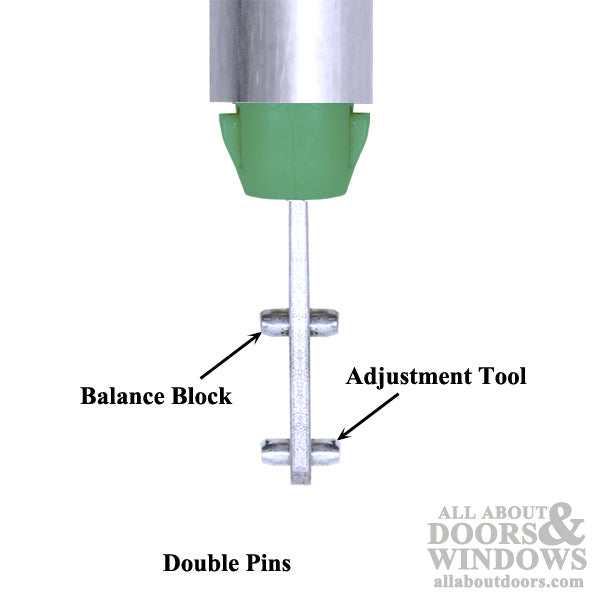

Balance has double end pins, one locks into the balance shoe and one is for adjustment.

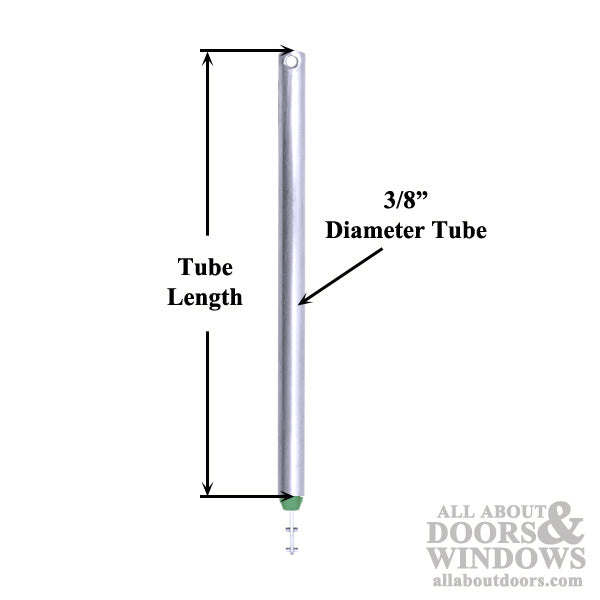

Specify length of Metal Channel (measure rod length from end to end of metal tube).



Rod Length: Varies - Choose Your Length
Rod Weight: Varies Per Length, 30 - 40 pounds
Rod Diameter: 3/8 Inch

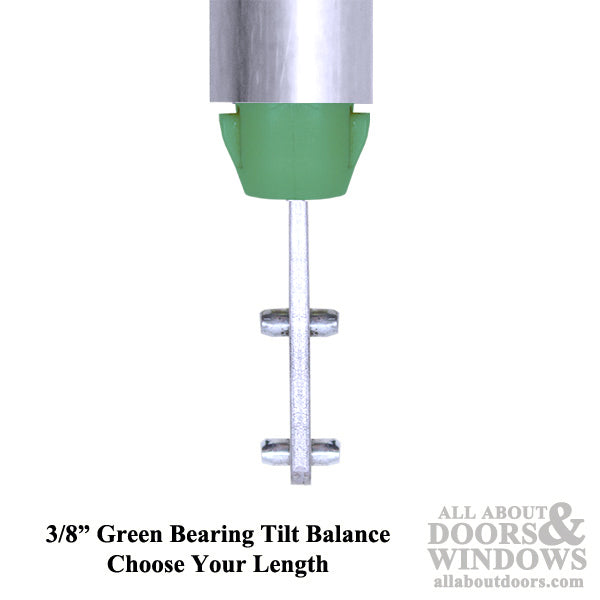

Green Bearing
Application: Tilt-In Window

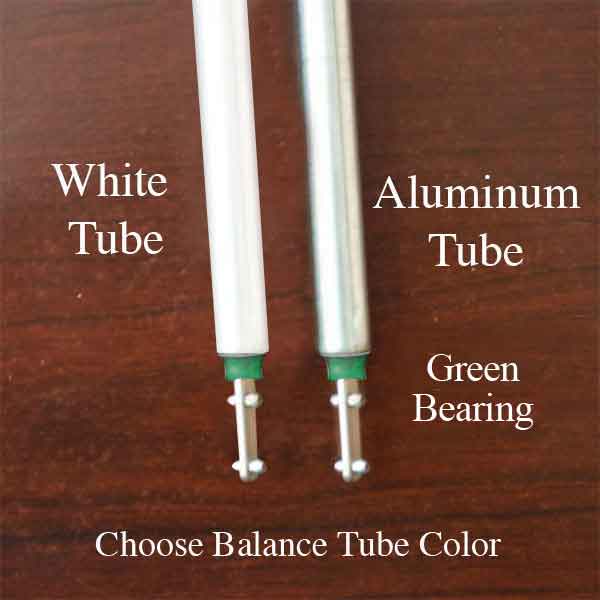

Tube Color Options:
Aluminum: sizes 10-39
White: sizes 10-39 (4-6 week lead time)

Please measure rod length from end to end of the metal tube and specify the needed length.

Resources:
Guide: HOW TO ADJUST A SPIRAL BALANCE ROD
Video: HOW TO REPLACE A SPIRAL BALANCE
