31.5/ 45.5 CES 90 Profile C-Knob

Part Number:413145020 Price: $171.59

This item is discontinued and limited to existing inventory.

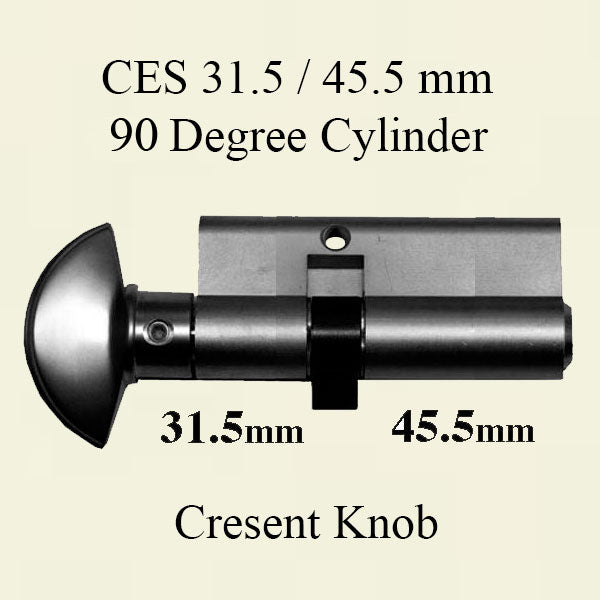

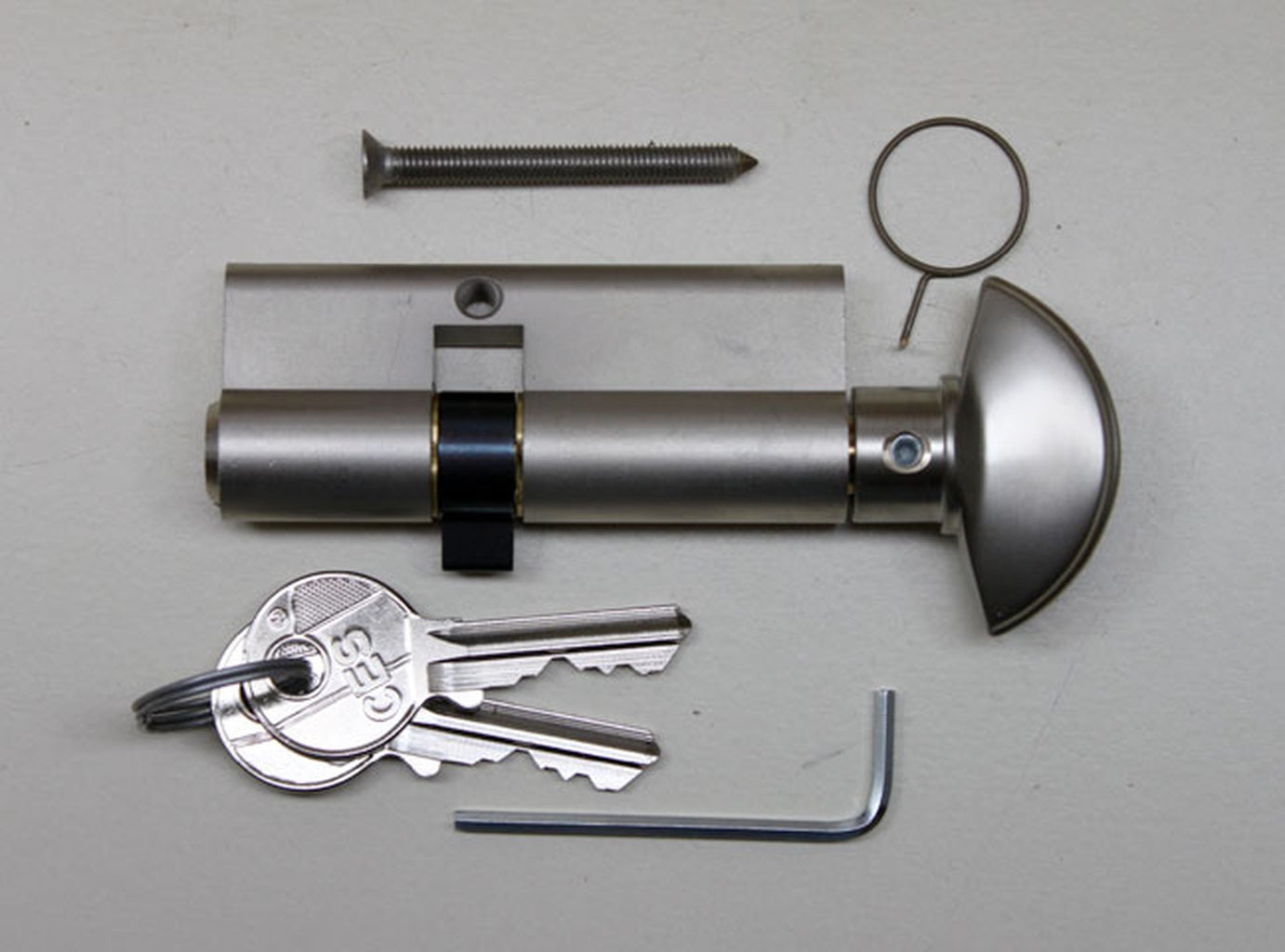

CES 90 active 31.5/45.5 mm keyed cylinder in oil rubbed brass.

This cylinder is normally for a 1-3/4 inch thick door when a multipoint lock is installed in the center of stile.

Used on many brands of doors including Essve, Truth, Marvin, Hoppe, Fuhr, Roto and others.

Keyed Cylinder: 5 pin Schlage SC1 Keyway

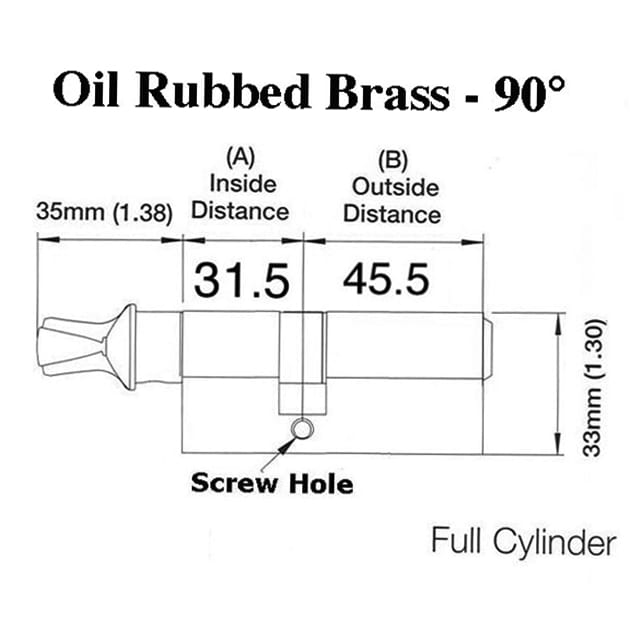

Cylinder Length: 77 mm ( 3 -1/16 inches)
Inside Cylinder Interior Length - A: 31.5 mm ( 1-1/4 inches)
Outside Cylinder Exterior Length -B: 45.5 mm ( 1-3/4 inches)

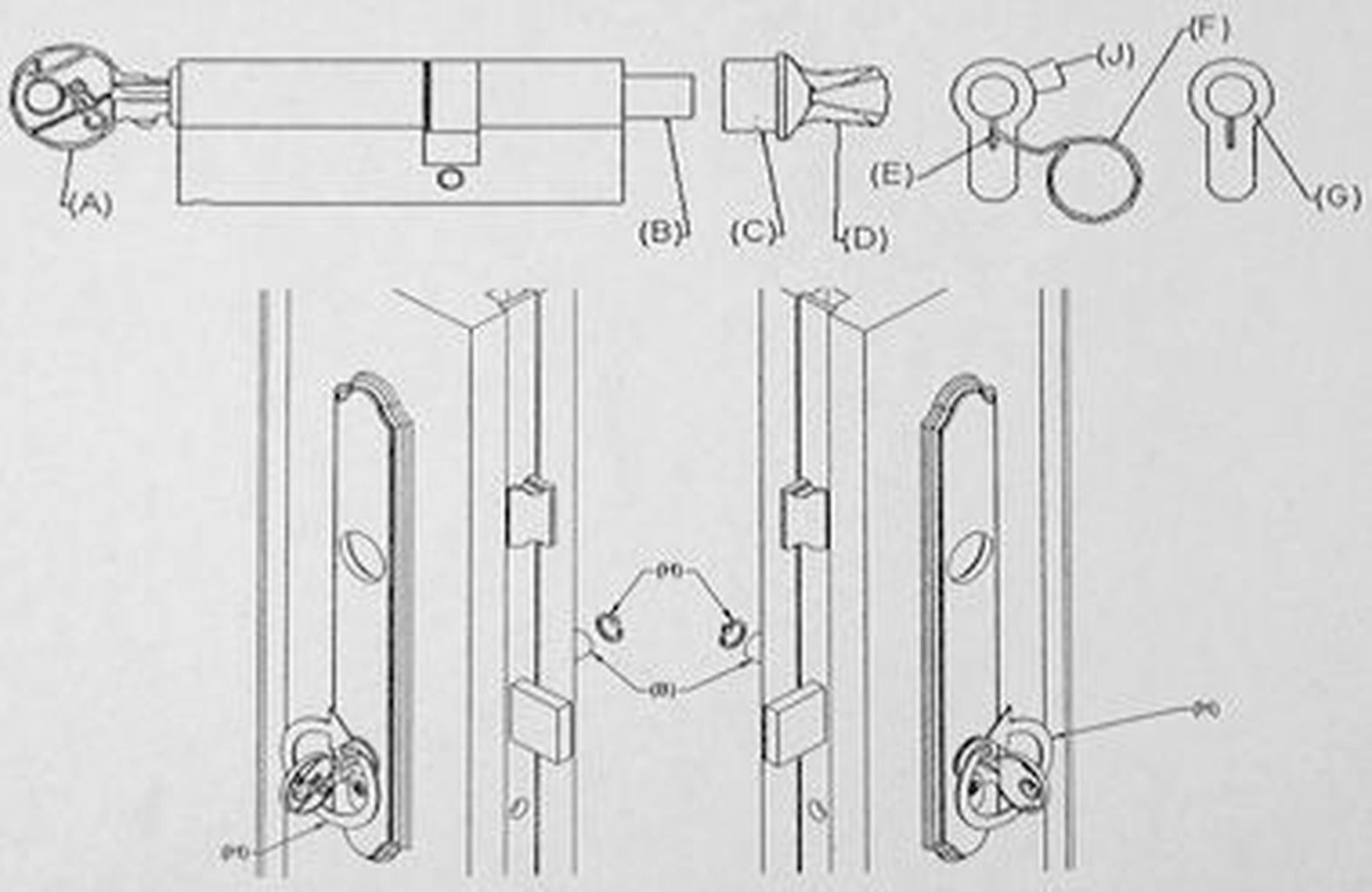

Installation Instructions:
1. Remove thumb turn
2. Insert Aux. Tool and pull down on release tab
3. Turn cam and insert or remove from mortise lock body.
4. Replace thumb turn.
5. Check operation of door lock before closing door

Priced and sold each.

Article: Hoppe Oil Rubbed Brass Living Finish Details

Guides:
Installing a 90 Degree Cylinder
HOPPE Cylinder Installation and Rekeying
Converting a HOPPE 90 Degree Cylinder into a 360 Degree Cylinder
