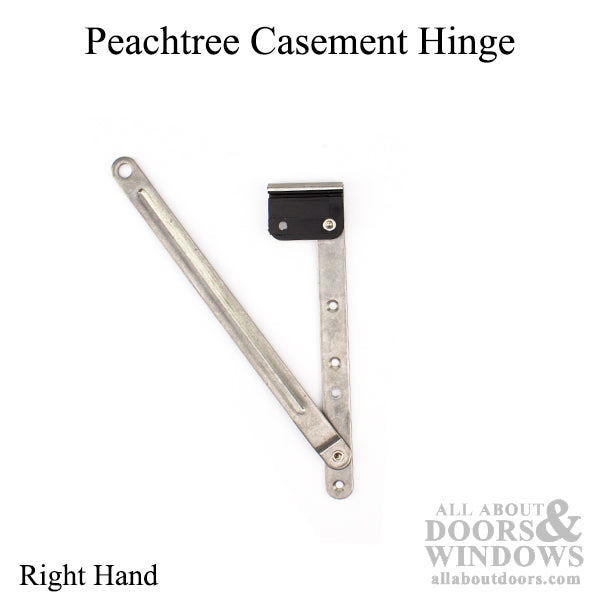

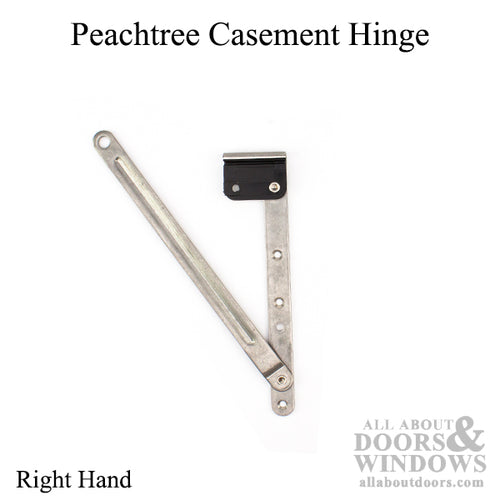

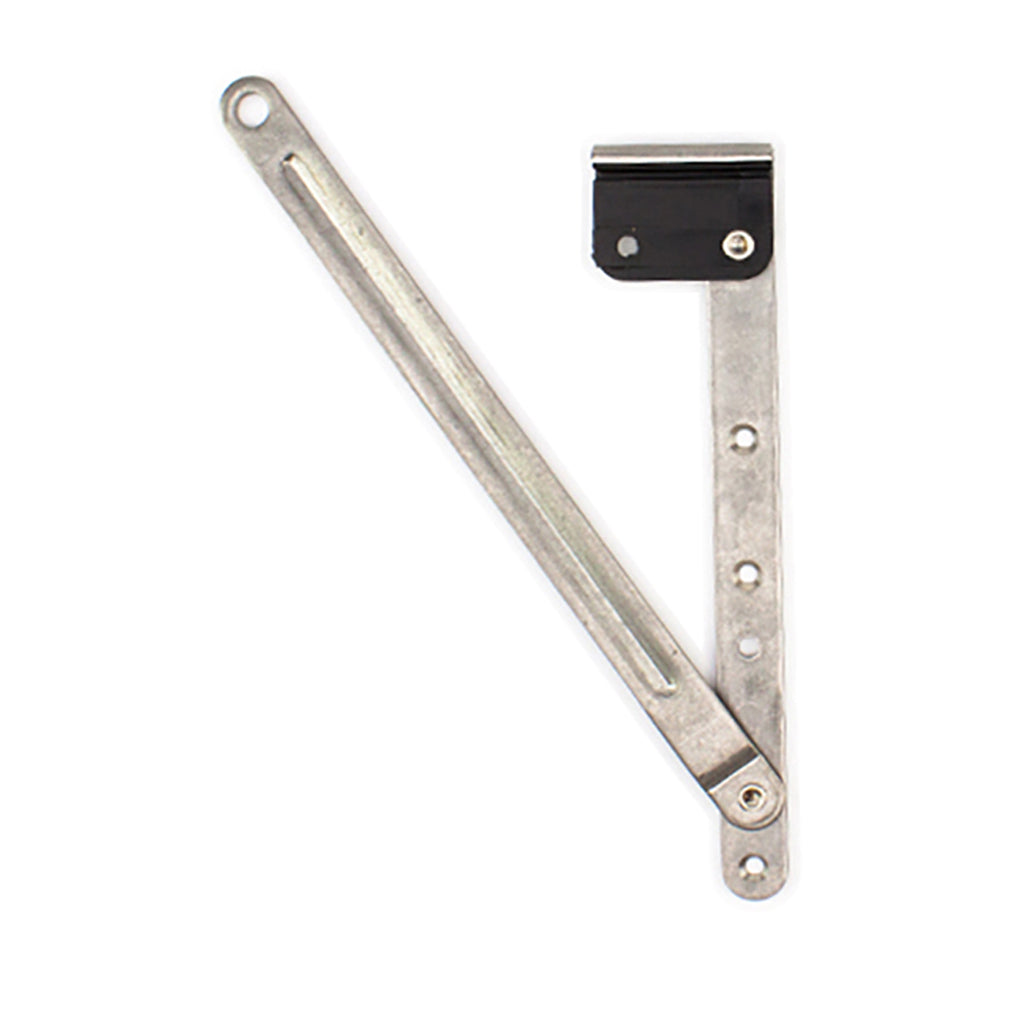

Peachtree Casement Hinge, Top , Type B, RH
Use the arrows or swipe left to view all images for this product
Peachtree Casement Hinge, Top , Type B, RH
Part Number: $83.39Peachtree Casement Hinge
Type BE
Right Hand

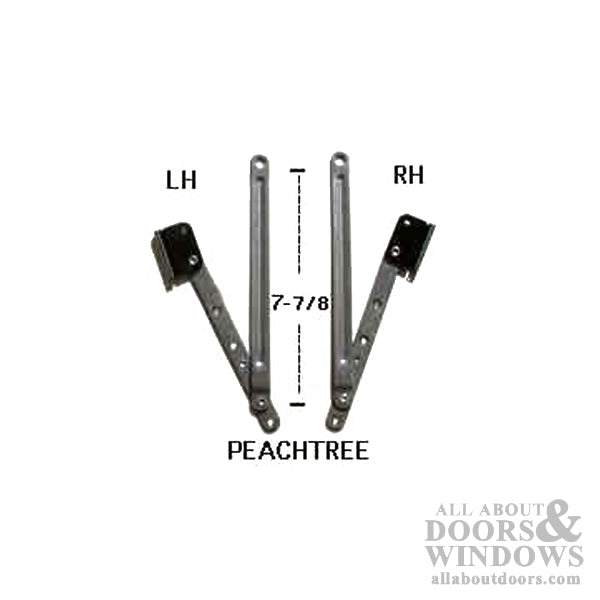

Long arm measures 7-7/8 inches from center of rivet/hole. E
Short arm with Plastic shoe measures 5-1/16 inch to center of rivets.E
Sold each - NOT sold in pairs
Left Hand # 35170100
Right hand 35170200.

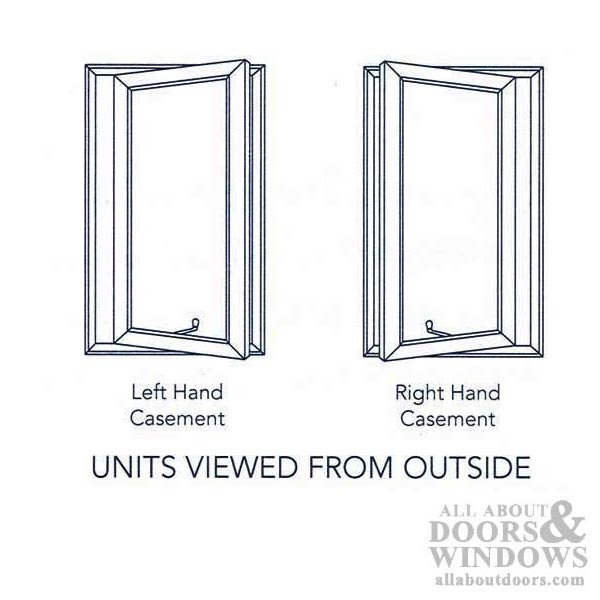

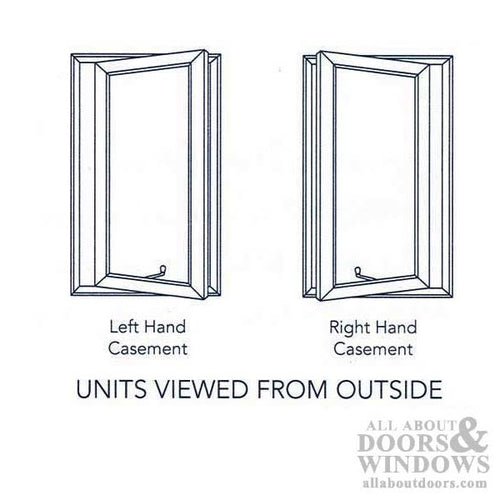

NOTE: Windows are viewed from OUTSIDE
Type BE
Right Hand
Long arm measures 7-7/8 inches from center of rivet/hole. E
Short arm with Plastic shoe measures 5-1/16 inch to center of rivets.E
Sold each - NOT sold in pairs
Left Hand # 35170100
Right hand 35170200.
NOTE: Windows are viewed from OUTSIDE
This product is similar to or the same as the following part numbers in these brands:
Strybuc Industries: 28-81RH
