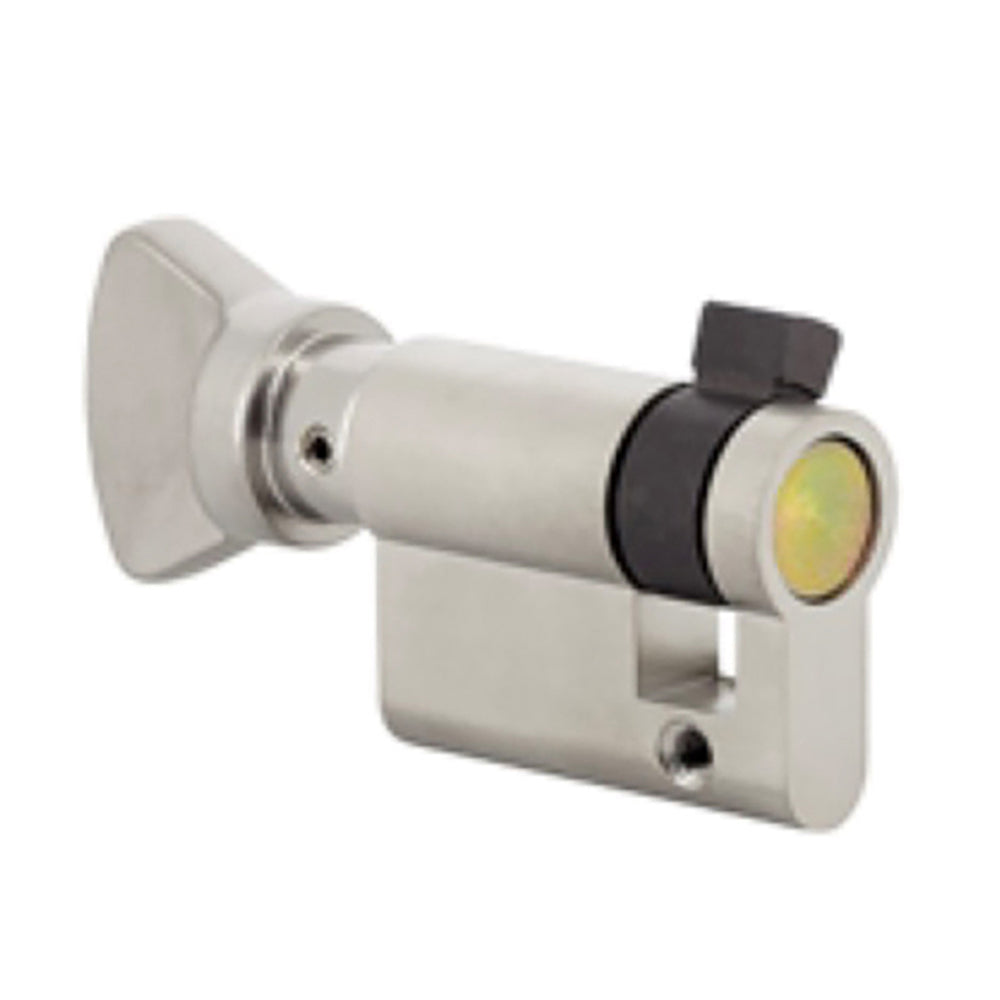

40/10 Euro profile half cylinder with 90° turn - Choose Color
Use the arrows or swipe left to view all images for this product
40/10 Euro profile half cylinder with 90° turn - Choose Color
Part Number: $113.26 to $163.96New Style 90 degree HOPPE non-keyed profile cylinder with V-Knob
Used on doors that are 2-1/4" thick
Overall housing Length: 40.5mm / 10mm (2 inch)
The New Style 90 degree allows homeowner to look at thumb turn and know if door is locked or unlocked.
This is a Non-keyed cylinder and typically used on inactive / passive doors.
This cylinder can be converted to a 360 degree cylinder.

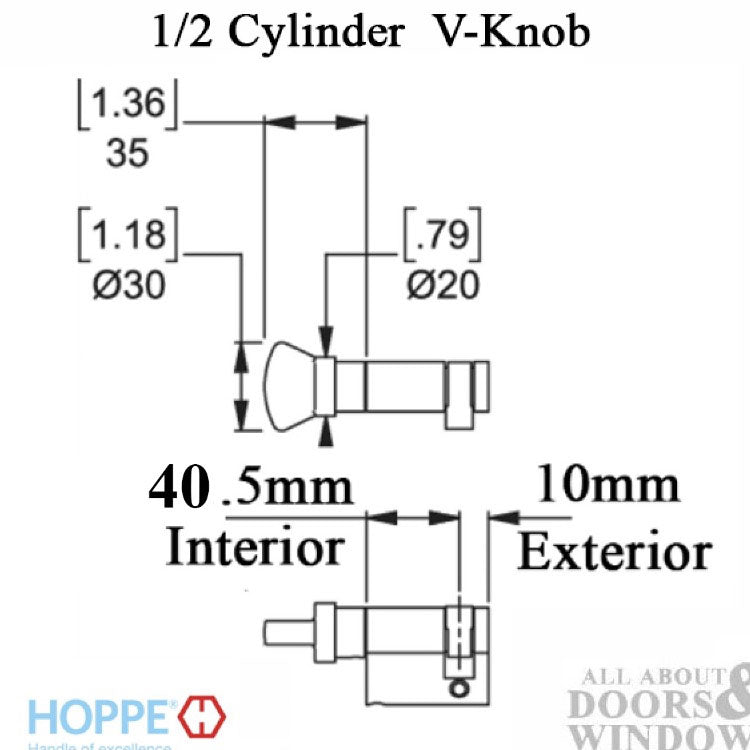

Measurements:
Inside Distance = 1-5/8 inch (40.5mm)
Outside Distance = 3/8 inch (10mm)
Overall (inside + outside) = 2 inches (50.5mm)
Installation Instructions:
1. Remove Thumb Turn
2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert into lock.
4. Replace Thumb turn.

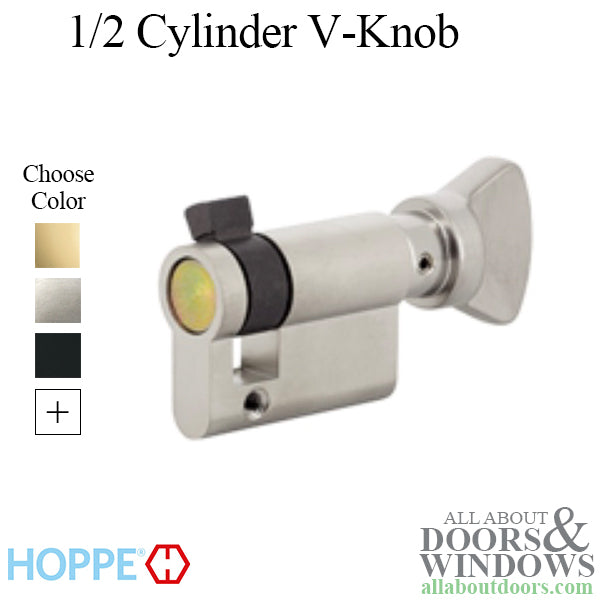

Color / Finish Options:
Matte Black
Satin Nickel
Rustic Umber
Dark Bronze
Polished Brass
Priced and sold each.
