499130013

Part Number: 499130013-BB
COLOR: - Bright Brass

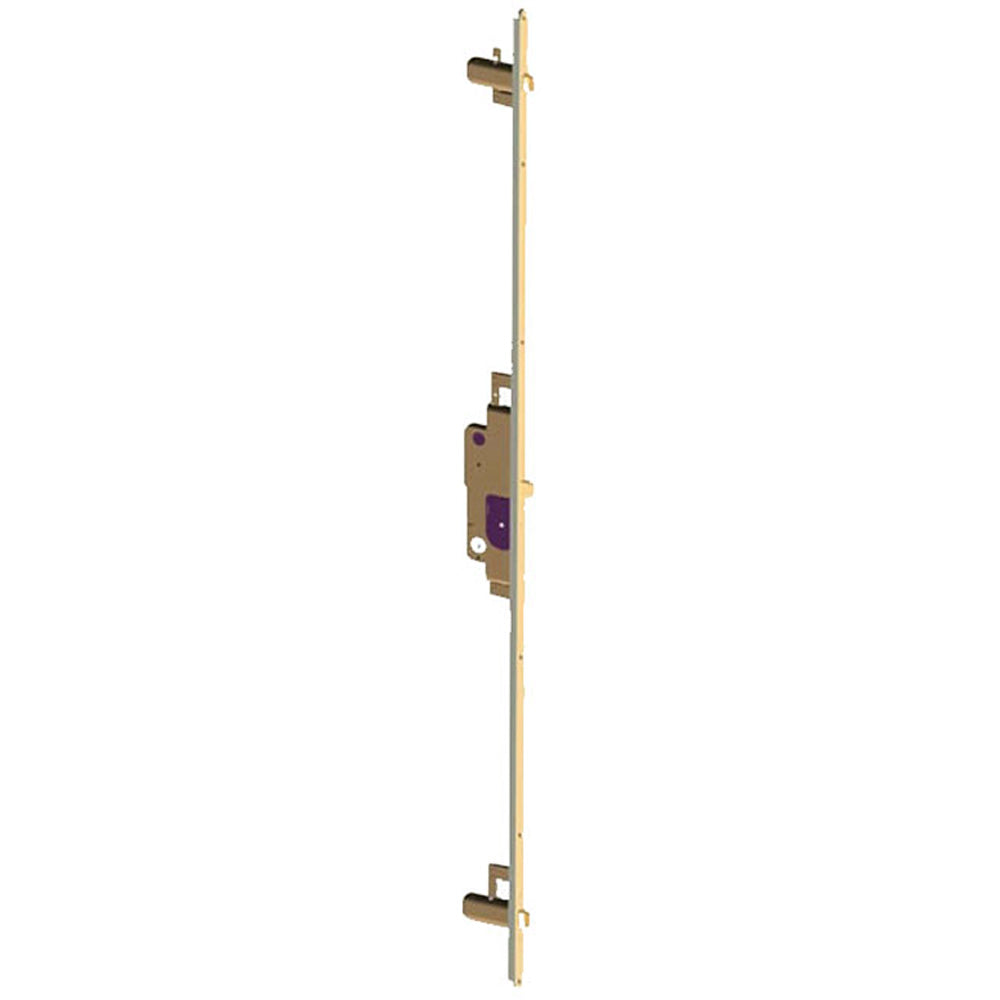

Trilennium 3000 series Multi-Point Lock with looking Latch Bolts - Multi-point lock with Strike Plates

IMPORTANT - all locks are set up for INSWING doors. If you have an OUTSWING the Panic function needs to be checked before installation.

Strike kit and accessories are included

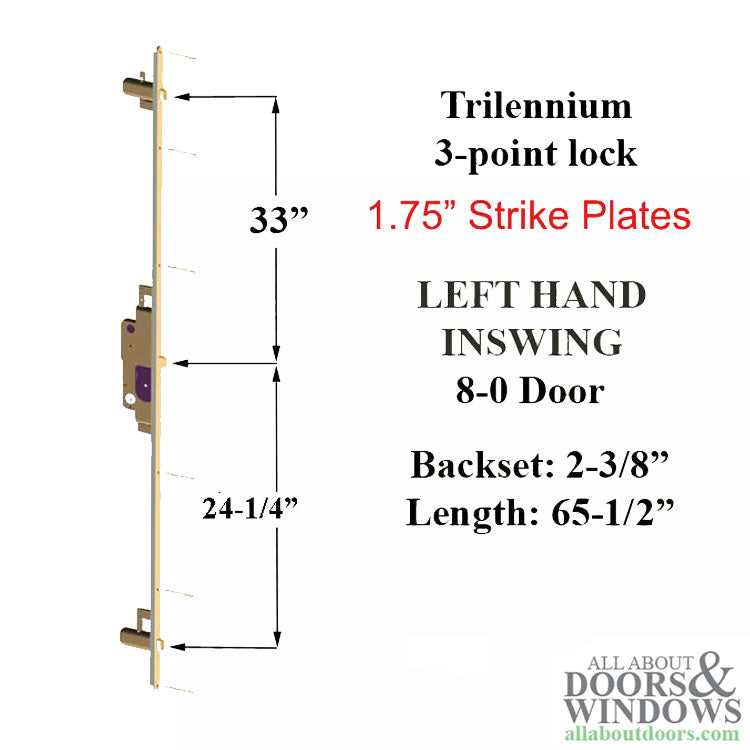

Lock Measurements:
Backset: 2-3/8 (60 mm)
Faceplate Width: 1 inch (25.4 mm)
Faceplate Length: 65-1/2 inch (1410 mm) Radius ends
Faceplate Color: 3 Finishes; Polished Brass, Victorian Bronze, Stainless Steel
Deadbolt Throw: 15/16 inch
Top Latching Bolt: 33 inch (measured from center bolt)
Bottom Latching Bolt: 24-1/4 inch (measured from center bolt)
Spindle Diameter: 1/4 inch ( 7 mm)
Cylinder Type: American with Flat tail piece, Not included
Country of Origin: Made in USA
Priced and sold each, Lock assembly only, no additional hardware

Handed: Left-hand inswing door
Handing As viewed from outside, hinge determines handing - If hinge is on left, it is left hand door.

Operation:
Handle moves down only
To lock - Use key or thumb turn - Extends Latch to Deadbolt function
To unlock - Use Key Outside or Thumb Turn / Lever Inside
Panic Release: Yes, Pressing down on inside handle will unlock door

HARDWARE NOTE:
Standard Trilennium Cross Bore: 2-1/8 inch ( use Pinnacle, Eclipse & Grip Hardware)
Optional Crossbore: 1-11/16 ( use Europa, Horizon & Emtek hardware)
The Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8 inch crossbore used on Pella and other doors with larger holes
