Trilennium 3000 series Multi-Point Lock with looking Latch Bolts - Multi-point lock with Strike Plates
IMPORTANT - all locks are set up for INSWING doors. If you have an OUTSWING the Panic function needs to be checked before installation. Strike kit and accessories are included
Lock Measurements: Backset: 2-3/8 (60 mm) Faceplate Width: 1 inch (25.4 mm) Faceplate Length: 65-1/2 inch (1410 mm) Radius ends Faceplate Color: 3 Finishes; Polished Brass, Victorian Bronze, Stainless Steel Deadbolt Throw: 15/16 inch Top Latching Bolt: 33 inch (measured from center bolt) Bottom Latching Bolt: 24-1/4 inch (measured from center bolt) Spindle Diameter: 1/4 inch ( 7 mm) Cylinder Type: American with Flat tail piece, Not included Country of Origin: Made in USA Priced and sold each, Lock assembly only, no additional hardware
Handed: Right-hand inswing door Handing As viewed from outside, hinge determines handing - If hinge is on left, it is left hand door.
Operation: Handle moves down only To lock - Use key or thumb turn - Extends Latch to Deadbolt function To unlock - Use Key Outside or Thumb Turn / Lever Inside Panic Release: Yes, Pressing down on inside handle will unlock door
HARDWARE NOTE: Standard Trilennium Cross Bore: 2-1/8 inch (use Pinnacle, Eclipse & Grip Hardware) Optional Crossbore: 1-11/16 (use Europa, Horizon & Emtek hardware) The Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8 inch crossbore used on Pella and other doors with larger holes
Trilennium 3000 series Multi-Point Lock with looking Latch Bolts - Multi-point lock with Strike Plates
<br>
<br>
IMPORTANT - all locks are set up for INSWING doors. If you have an OUTSWING the Panic function needs to be checked before installation.
<br>
Strike kit and accessories are included
<br>
<br>
<b>Lock Measurements:</b>
<br>
Backset: 2-3/8 (60 mm)
<br>
Faceplate Width: 1 inch (25.4 mm)
<br>
Faceplate Length: 65-1/2 inch (1410 mm) Radius ends
<br>
Faceplate Color: 3 Finishes; Polished Brass, Victorian Bronze, Stainless Steel
<br>
Deadbolt Throw: 15/16 inch
<br>

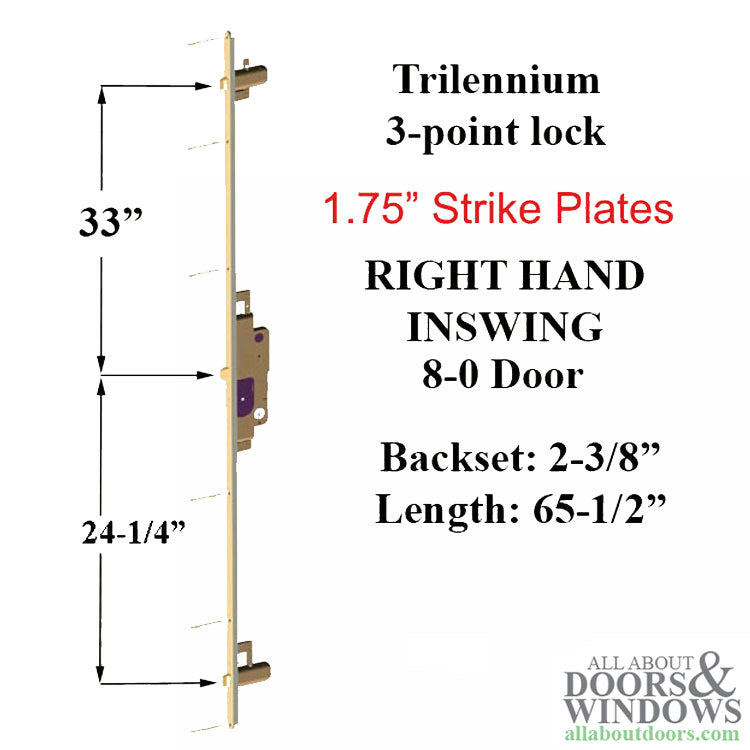

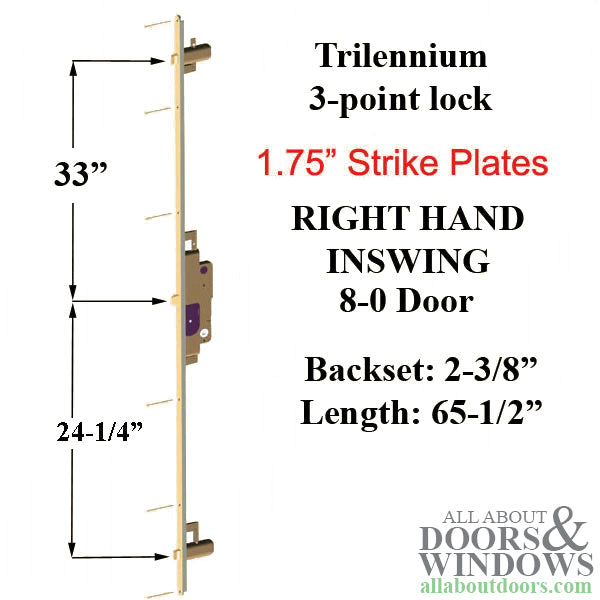

Top Latching Bolt: 33 inch (measured from center bolt)
<br>
Bottom Latching Bolt: 24-1/4 inch (measured from center bolt)
<br>
Spindle Diameter: 1/4 inch ( 7 mm)
<br>
Cylinder Type: American with Flat tail piece, Not included
<br>
Country of Origin: Made in USA
<br>
Priced and sold each, Lock assembly only, no additional hardware
<br>
<br>
Handed: Right-hand inswing door
<br>
Handing As viewed from outside, hinge determines handing - If hinge is on left, it is left hand door.
<br>
<br>
Operation:
<br>
Handle moves down only
<br>
To lock - Use key or thumb turn - Extends Latch to Deadbolt function
<br>
To unlock - Use Key Outside or Thumb Turn / Lever Inside
<br>
Panic Release: Yes, Pressing down on inside handle will unlock door
<br>
<br>
HARDWARE NOTE:
<br>
Standard Trilennium Cross Bore: 2-1/8 inch (use Pinnacle, Eclipse & Grip Hardware)
<br>
Optional Crossbore: 1-11/16 (use Europa, Horizon & Emtek hardware)
<br>
The Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8 inch crossbore used on Pella and other doors with larger holes
<br>
<br>
<iframe width="360" height="210" src="https://www.youtube.com/embed/3ZEoE1Z2778" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" allowfullscreen></iframe>
Add to Card
Trilennium 3000, 65-9/16, 8-0 door, RHIS, with 1.75 Strike
