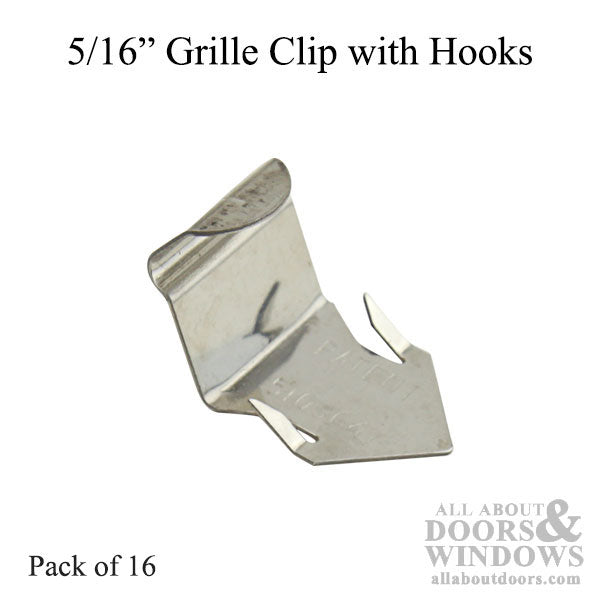

Metal Grille Clip for wood grids
5/16" grille clip used on Patio Doors, casement, awning, or double hung windows.
Used by Vetter, SNE, Weather Shield and others
This is a concealed clip, the point slides between the glass and wood and the wood grid snaps over it.

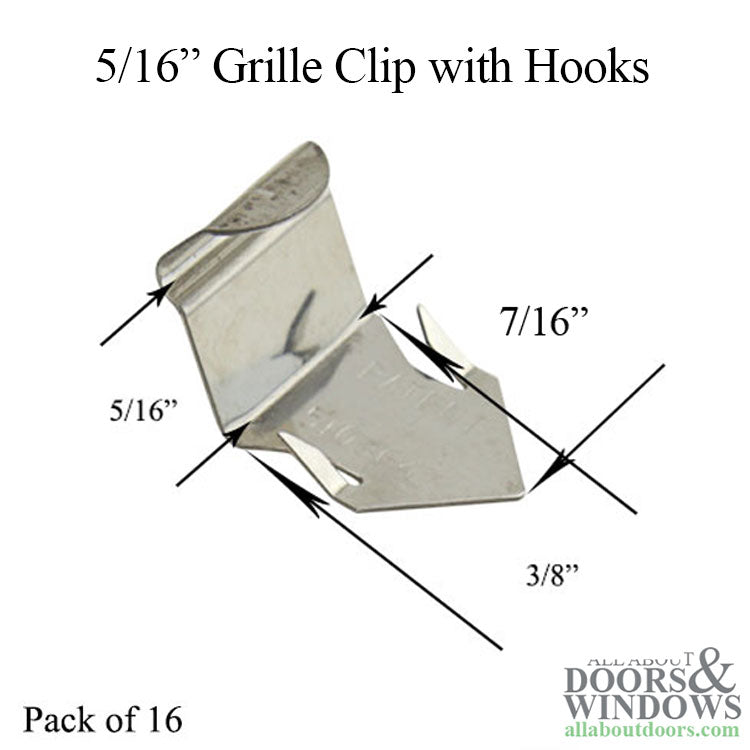

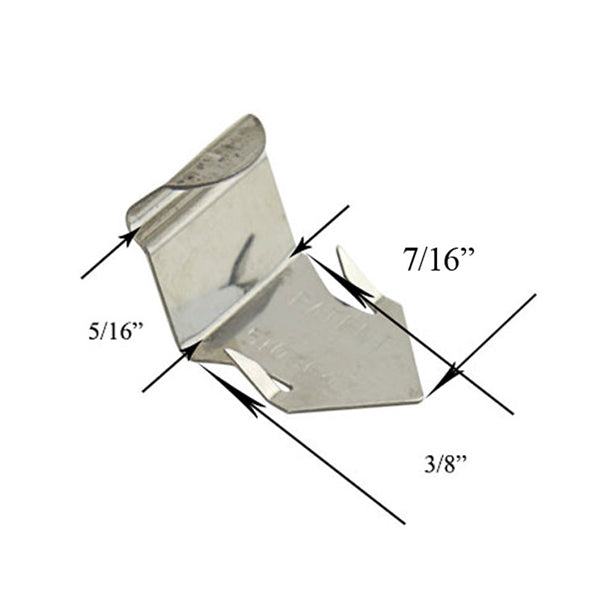

Measurements:
Height (from base to apex of the folded tab): 5/16 inch
Projection of pointed tip: 7/16 inch
Width: 3/8 inch
GRILLE CLIP INSTALLATION INSTRUCTIONS
Sold in packs of 16
No returns, refunds, or exchanges.
