Keller Single Hung Aluminum Window. Keller is out of business, but we have repair/replacement parts!

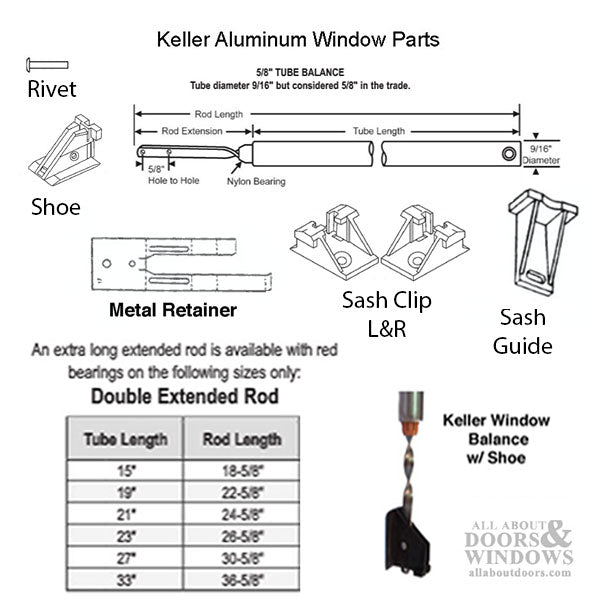

Window Balance Rods come in 6 standard lengths; 15, 19, 21, 23, 27, 33 inch
Comes with Black plastic shoe attached

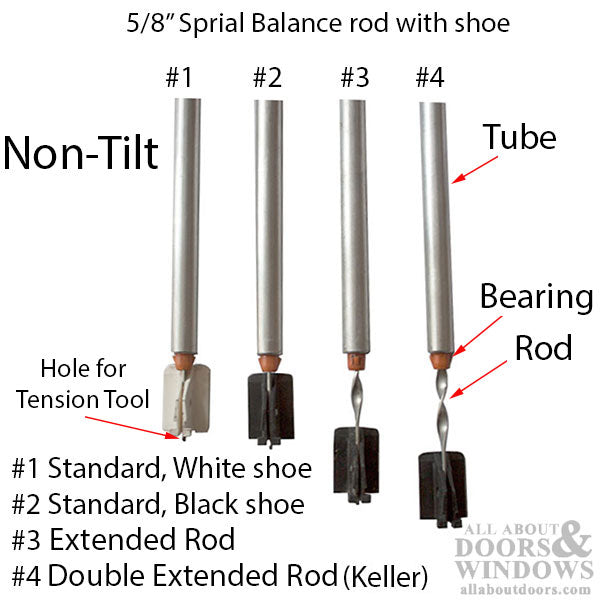

72 Series balances come in 3 rod extension lengths: standard, extended and double-extended.
Double-Extended rod is 2" longer than standard rod length and 1" longer than extended rod length.
Please note: Double-Extended works as a replacement for ALL THREE LENGTHS.

*We CAN get the regular and extended if needed, but only double-extended is likely to possibly be in stock.

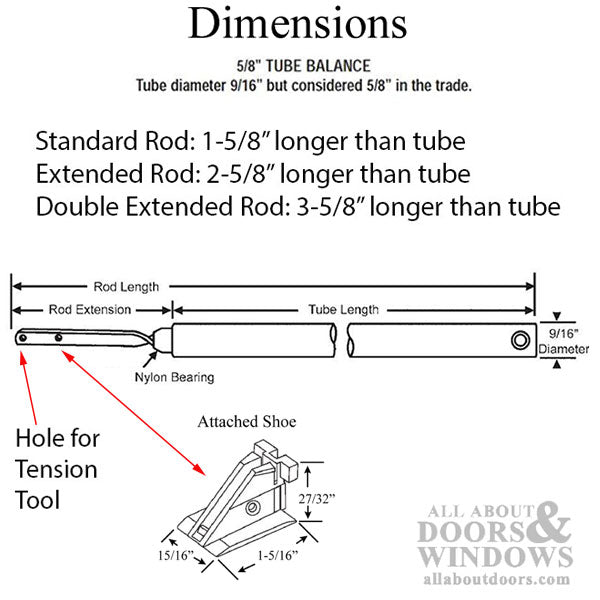

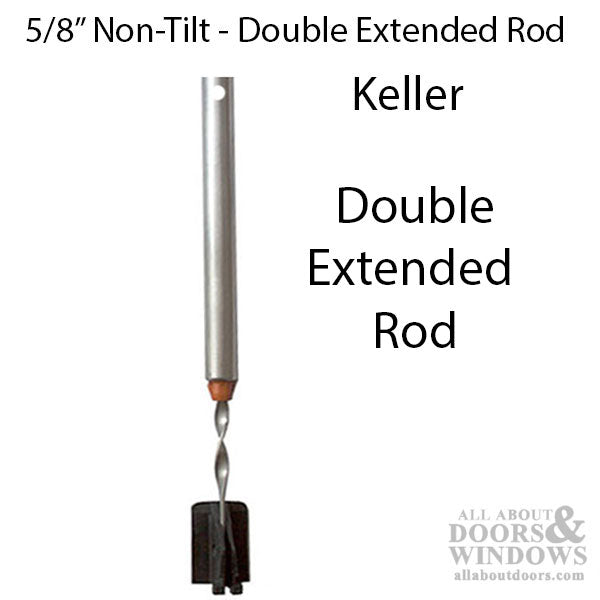

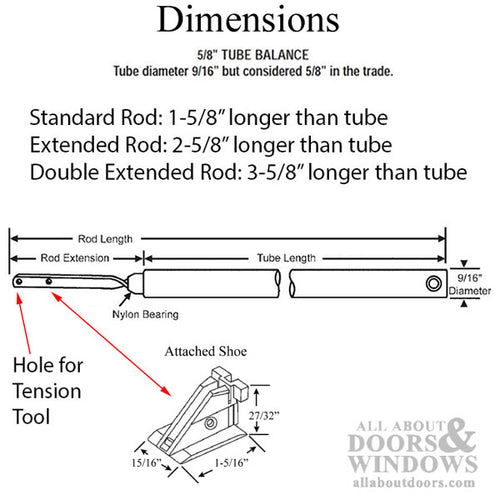

Double-Extended rod extension is 3-5/8" (see 2nd image)

Tube Diameter: 9/16 inch
Tube Length: 15, 19, 21, 23, 27, 33 inch with Double Extended Tip
Bearing Color: Red Bearing,
Show Color: Black nylon shoe, sometimes White
Used Primarily with 72 Series Keller Windows

Ordering information:
Measure metal tube length. Do not include nylon bushing. Select length from drop-down.

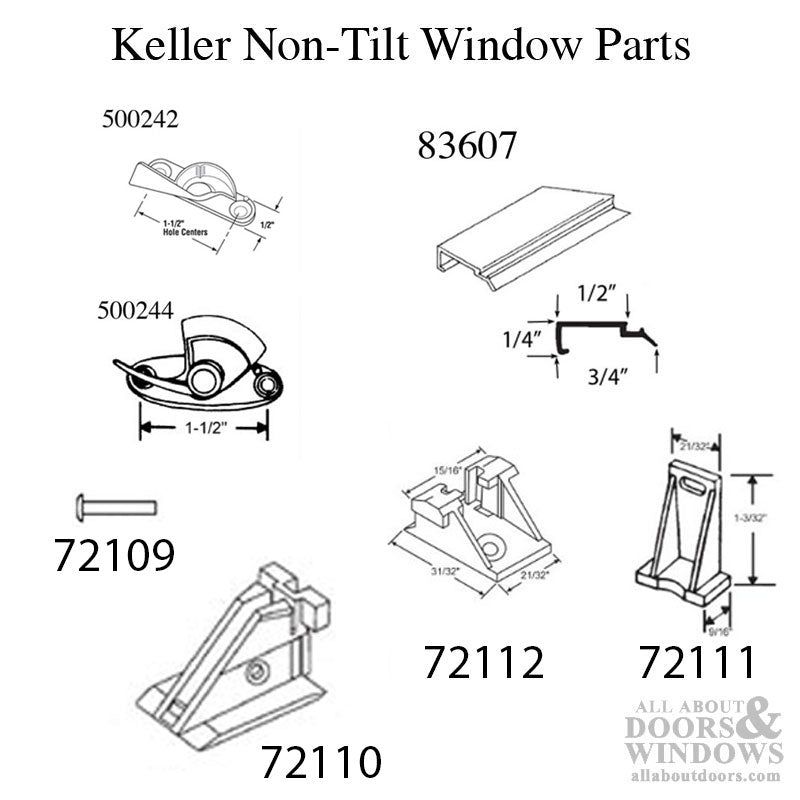

Related Keller Window Parts:
72109 - 3/8 inch Rivet
72110 - Plastic Carrier Shoe - Black
72111 - Top Sash Guide, Non Handed
72112 - Bottom Sash Guide - Handed left and Right
72113 - Balance Dust Cap
72114 - Metal Retainer - Discontinued Item
53200 - Balance tool, Adjusting Tension

Other Keller Window Related Items:
68601 - Glazing Bead, Black or White
50048 - Old Style Sash Lock, Sweep Style
50055 - New Style Sash Lock, Sweep Style

Resources:
Guide: HOW TO ADJUST A SPIRAL BALANCE ROD
Video: HOW TO REPLACE A SPIRAL BALANCE
