5/8 Inch Spiral Tilt-In Window Balance Rod w/ Black Bearing

Part Number:85300 Price: $9.95 to $40.88
LENGTH OF METAL CHANNEL: - 40
Please note, this product has been discontinued.

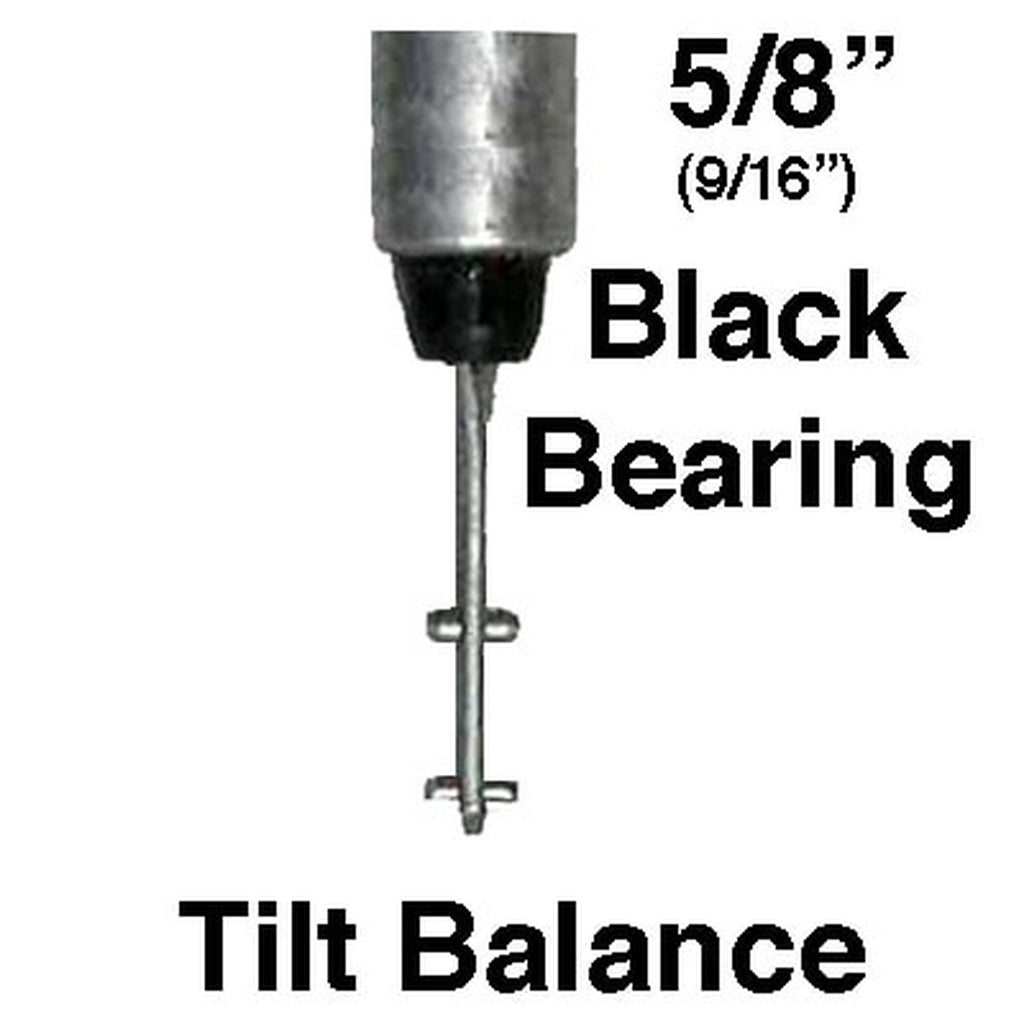

5/8 Inch Tilt-In Spiral Window Balance Rod w/ Black Bearing

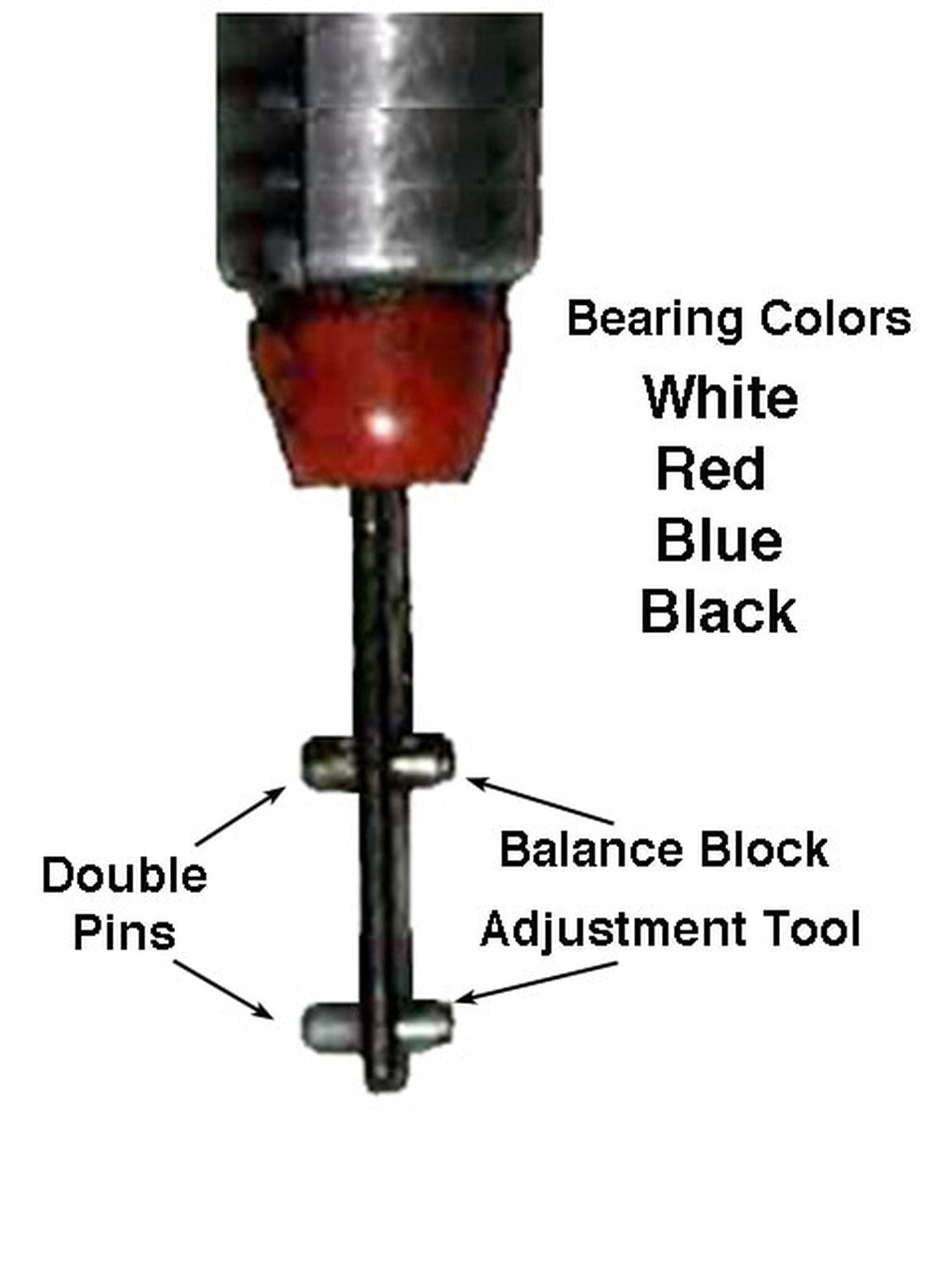

Bearing color denotes rod stength.
Type: Tilt In window
Tube Diameter: 9/16 inch
Bearing Color: BLACK
Has double end pins: one locks into the balance shoe and one for adjustment.

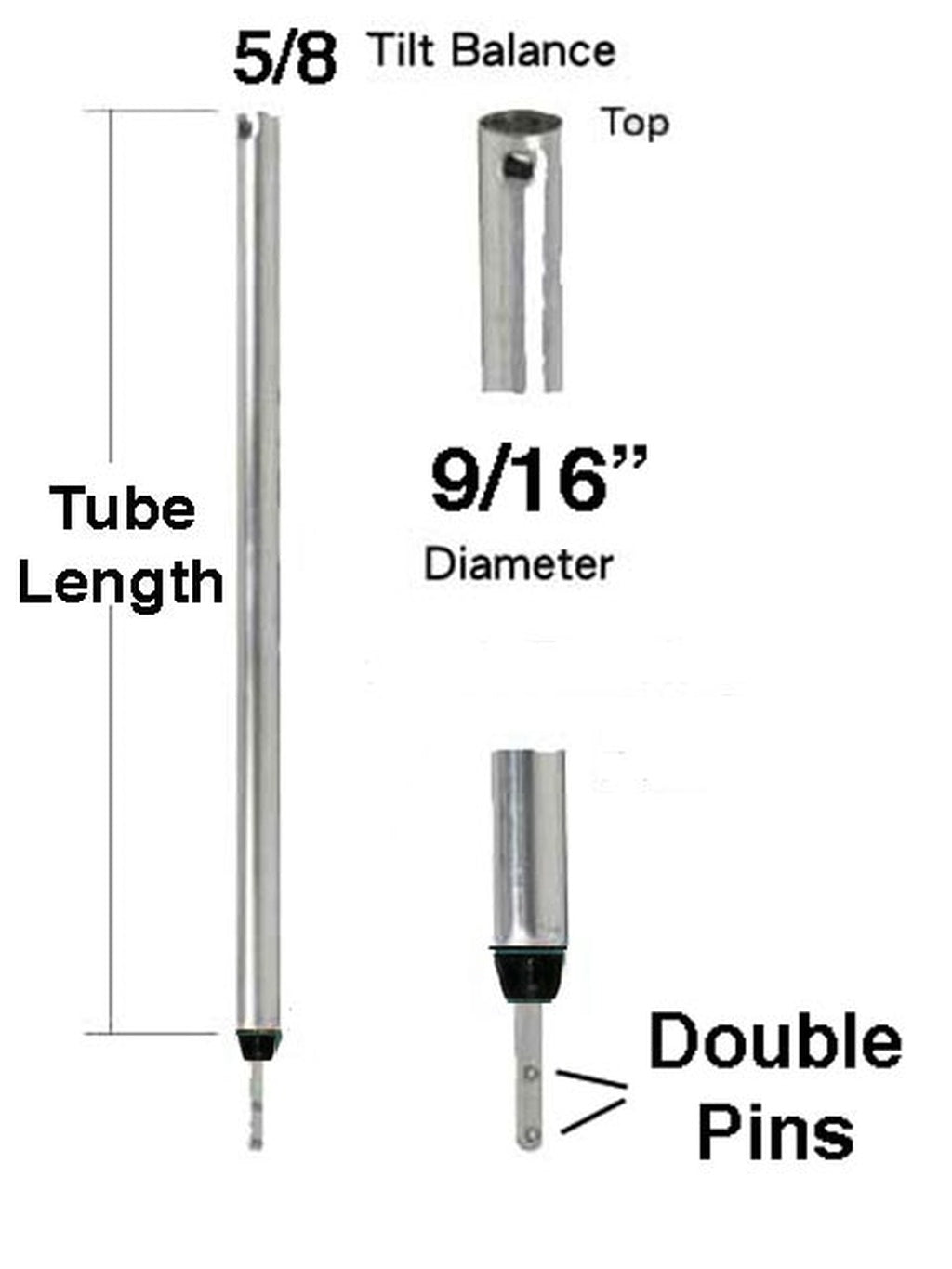

Specify rod length in order

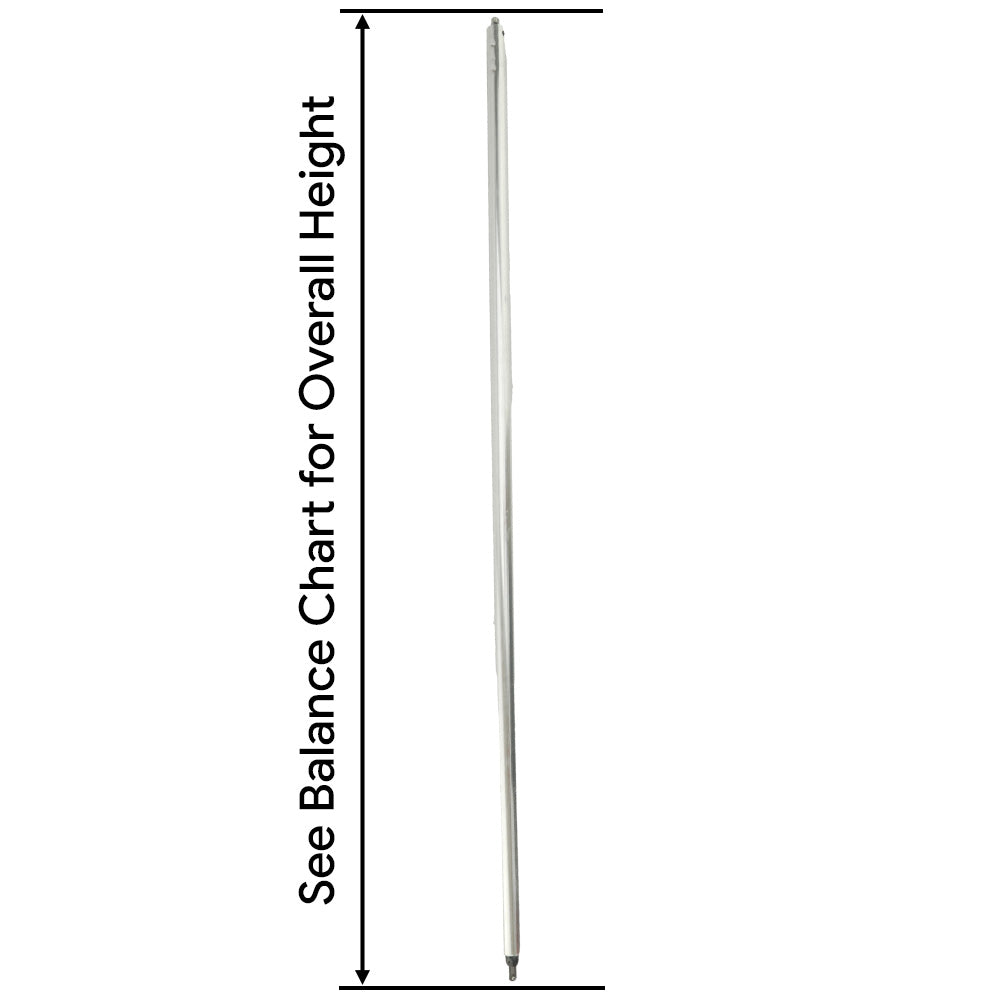

(measure rod length from end to end of metal tube).

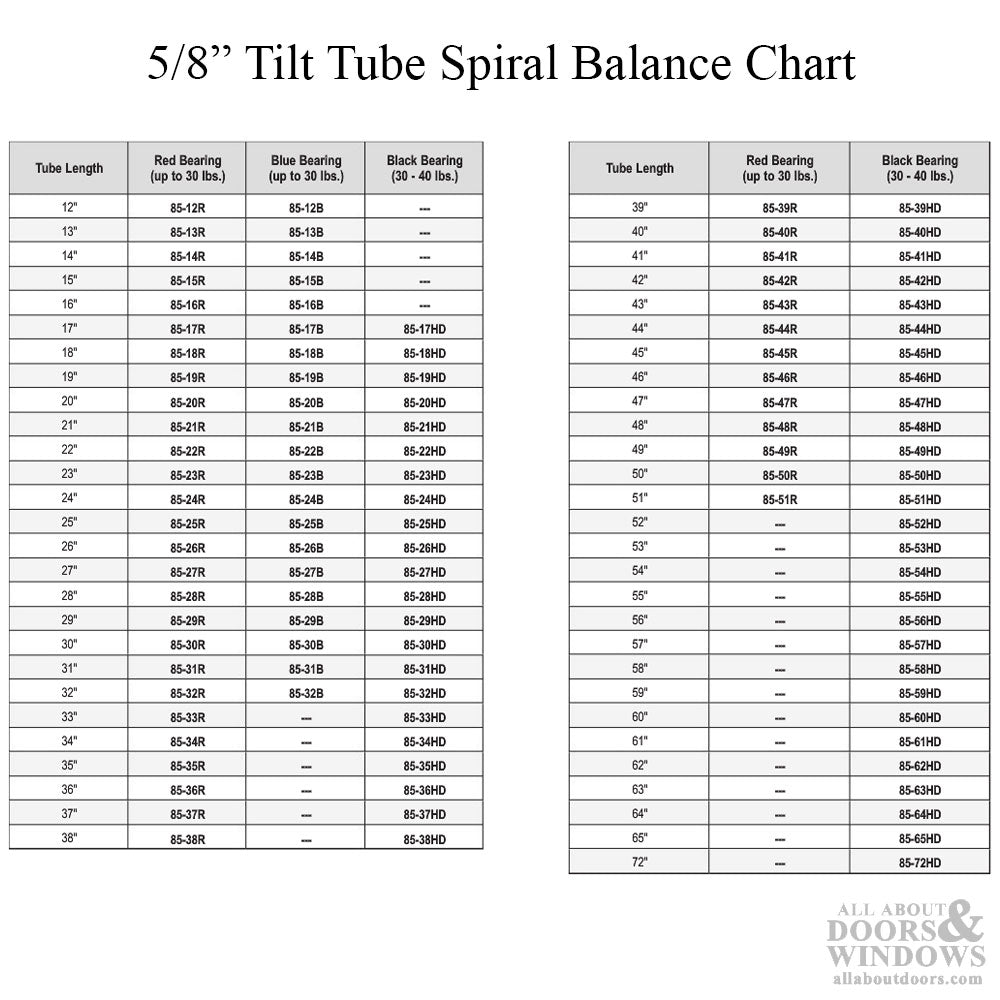

Shorter than 20" tube length - Replace with 85100

Resources:
Guide: HOW TO ADJUST A SPIRAL BALANCE ROD
Video: HOW TO REPLACE A SPIRAL BALANCE
