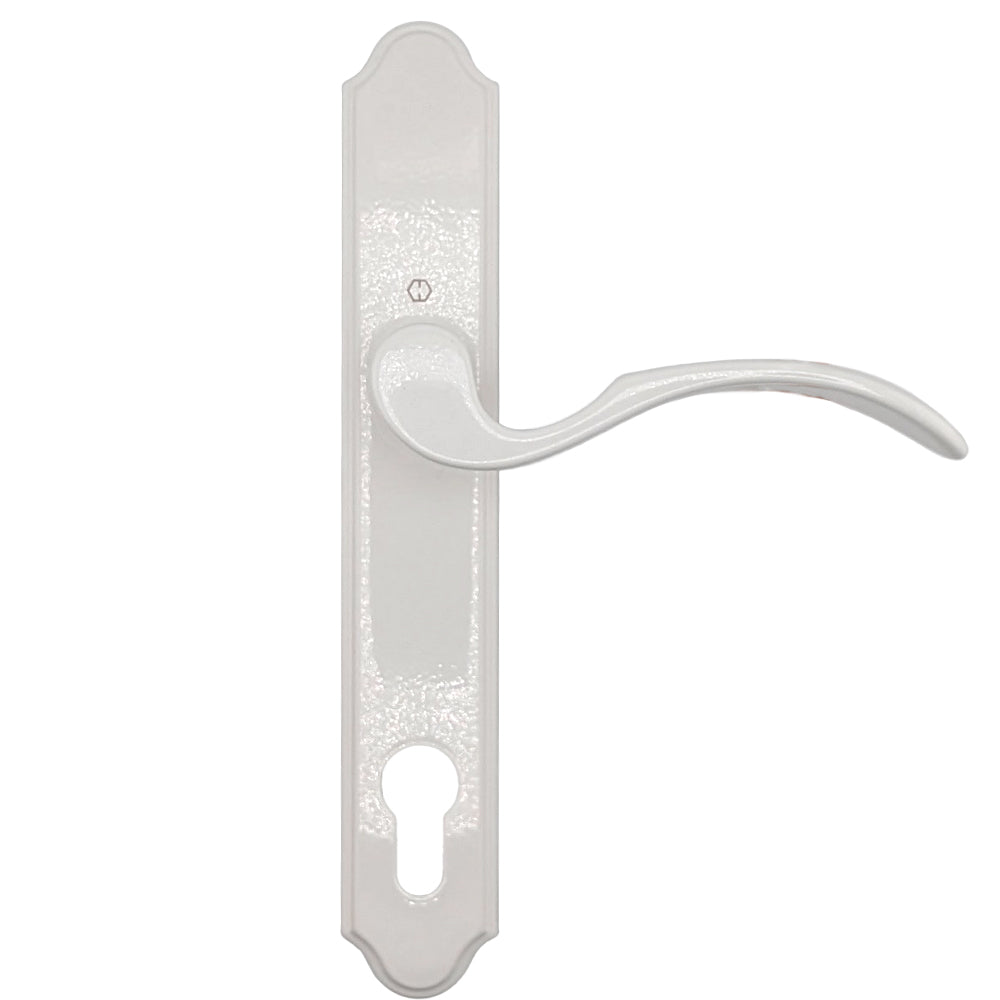

Hoppe HLS9000 Munchen Traditional Handleset Trim Only

Left & Right M112PL Levers / Interior & Exterior M374N Backplates

For HLS9000 multipoint or single point locks on 1-3/4" thick door. This handle trim set may be used with doors of a different thickness, but will require an appropriate length of screws, spindle, and cylinder. Our Customer Service team would be happy to guide you to the correct parts for your application.

Cylinder is sold separately. For the full handleset kit or to purchase a suitable cylinder, please see Related Items below or browse our other offerings.

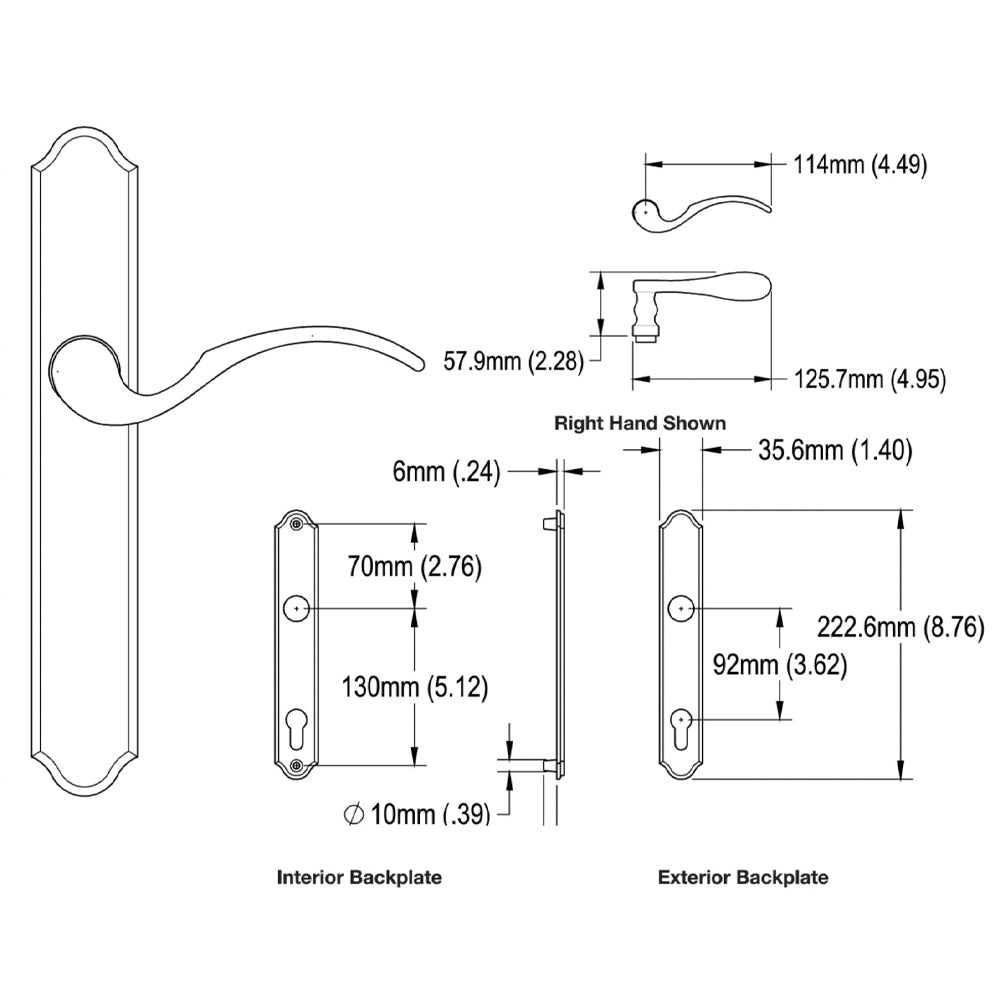

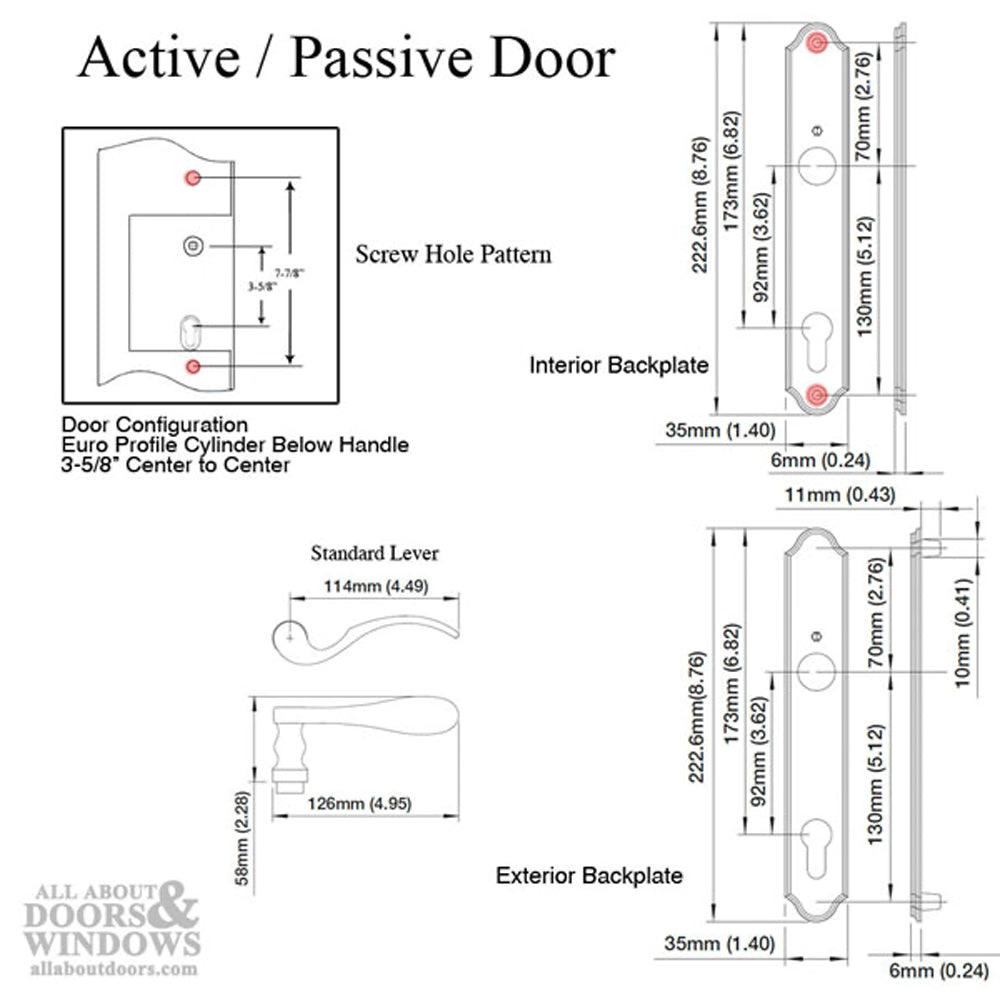

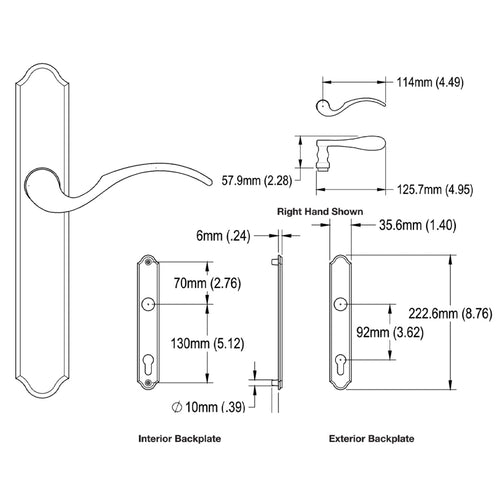

Specifications:

• Screw Hole Spacing:  200 mm (7-7/8 inches)
• PZ (Distance from center-of-spindle to center-of-cylinder):  92 mm (3-5/8 inches)
• Escutcheon Dimensions:  35 mm × 222.6 mm (1-3/8 × 8-3/4 inches)
• Material:  Solid Brass
• Color/Finish:  Pure White (RAL 9010)

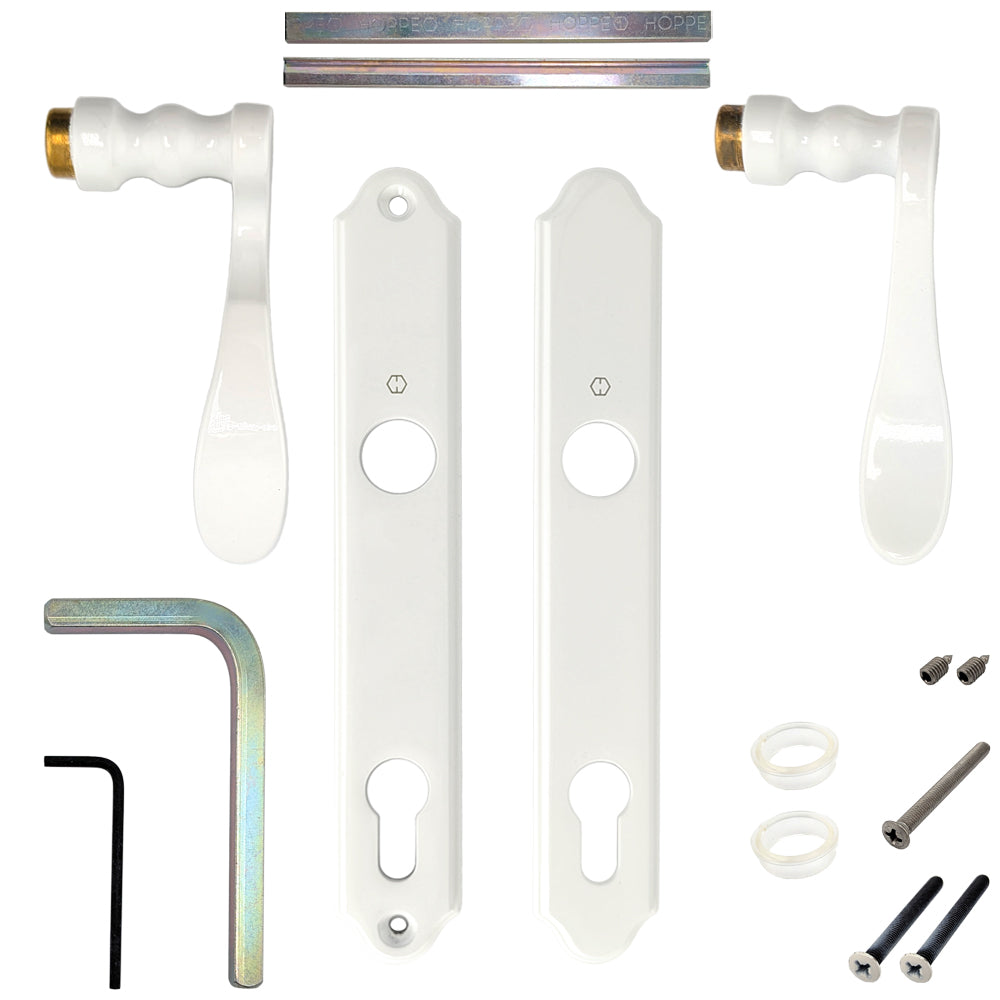

Package Includes:

• Munchen M112PL Lever - White - Left
• Munchen M112PL Lever - White - Right
• Traditional M374N Backplate - White - Interior
• Traditional M374N Backplate - White - Exterior
• 2 – Black Foam Gaskets for Interior/Exterior backplates
• 1 – 8 mm × 120 mm Two-piece Split-Shaft Profile Spindle
• 2 – M6 × 12 mm Stainless Steel Lever Handle Set Screw
• 2 – Clear Plastic Handle Bushing
• 1 – 2-Inch Phillips Head Cylinder Screw
• 2 – 2-Inch Phillips Head Brass Screws - White
• 3mm Hex Wrench
• Construction Handle

See Related Items below for individual components, cylinder options, tools, accessories, and full handlesets with cylinders.
