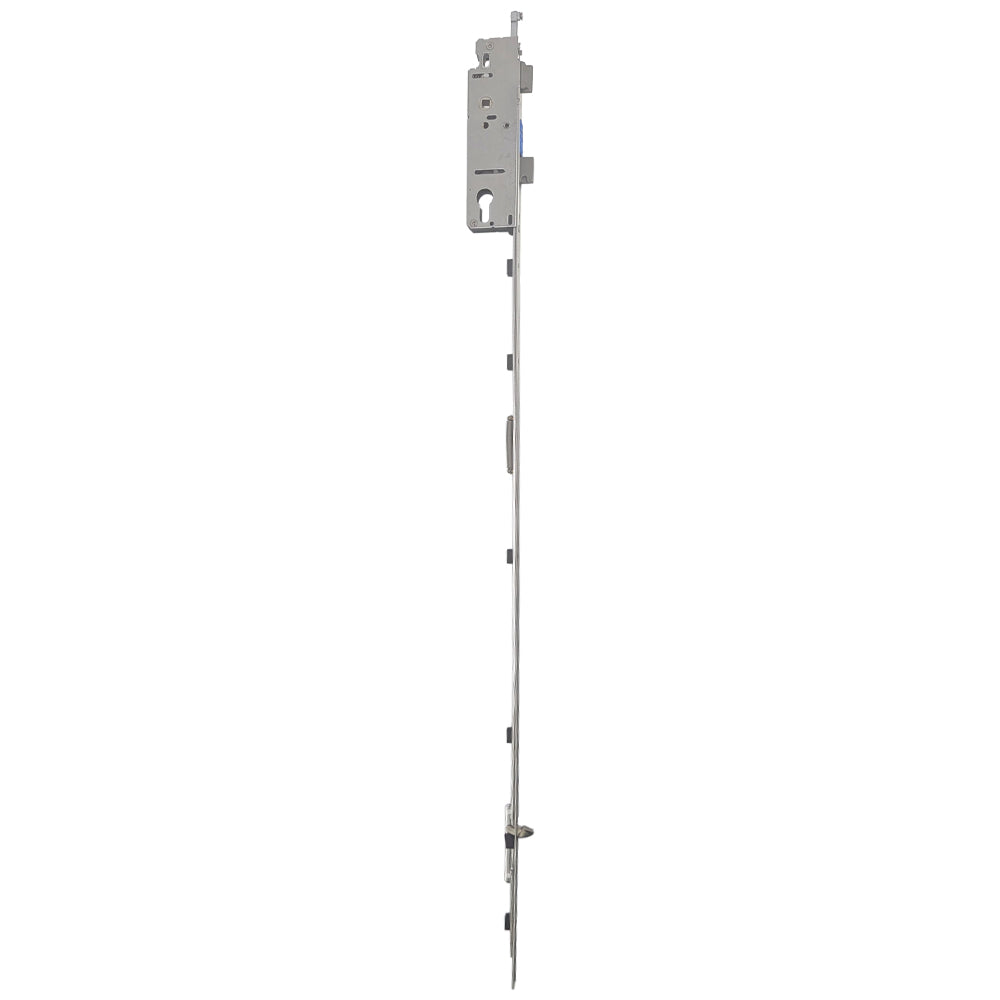

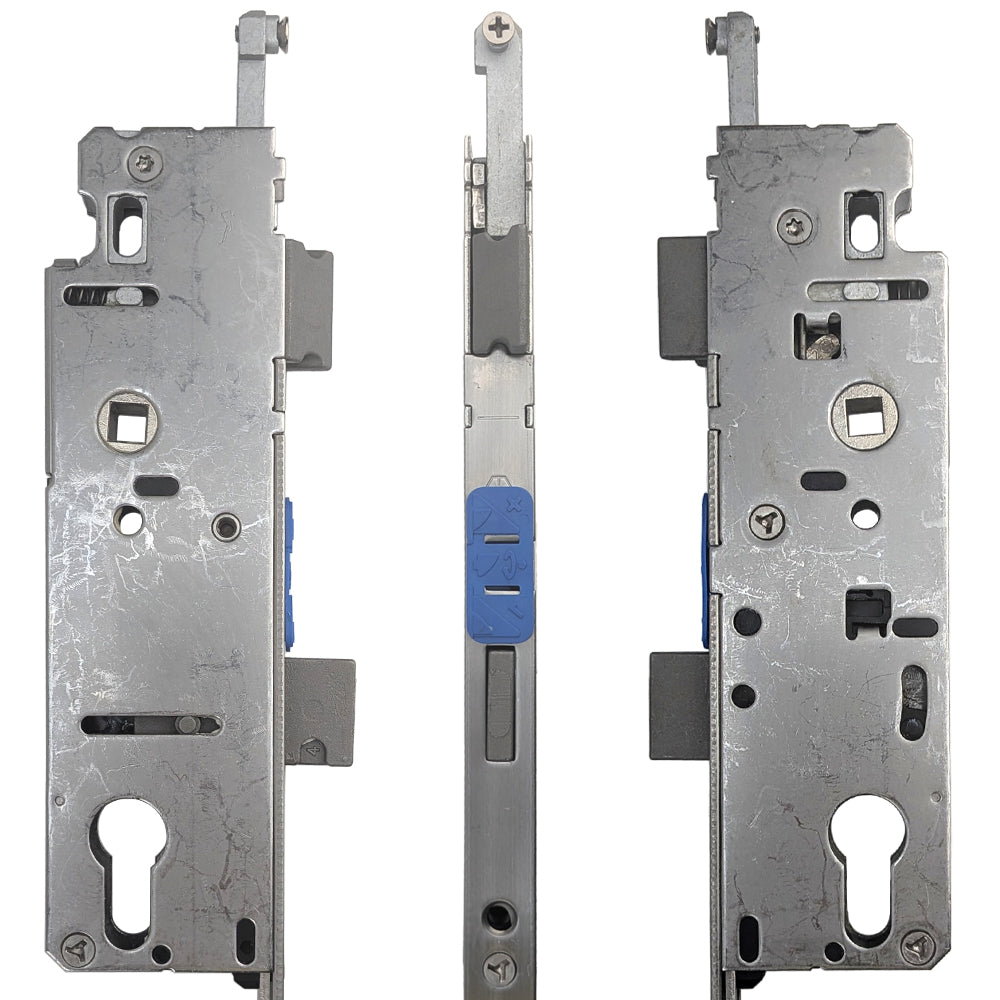

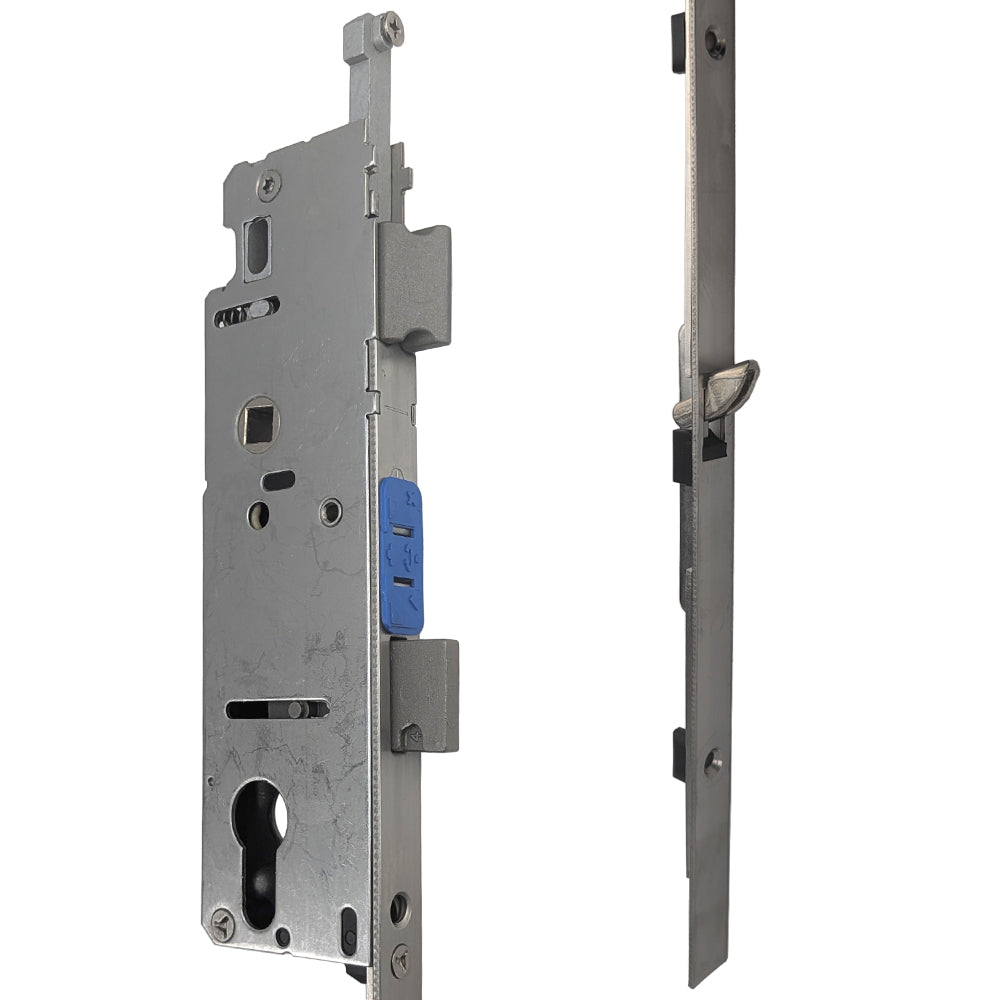

HLS9000 Automatic Locking Multi-Point Lock

Bottom Gear for Active Door - Tongue Version

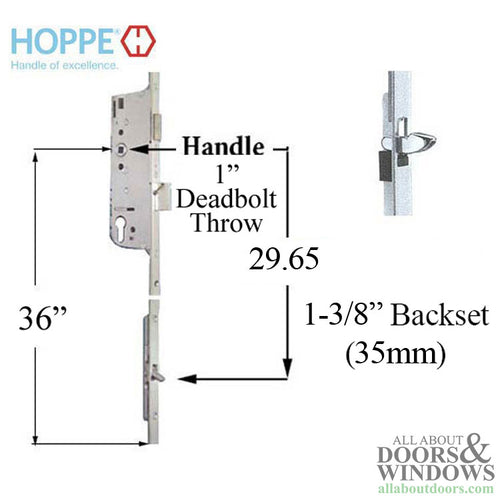

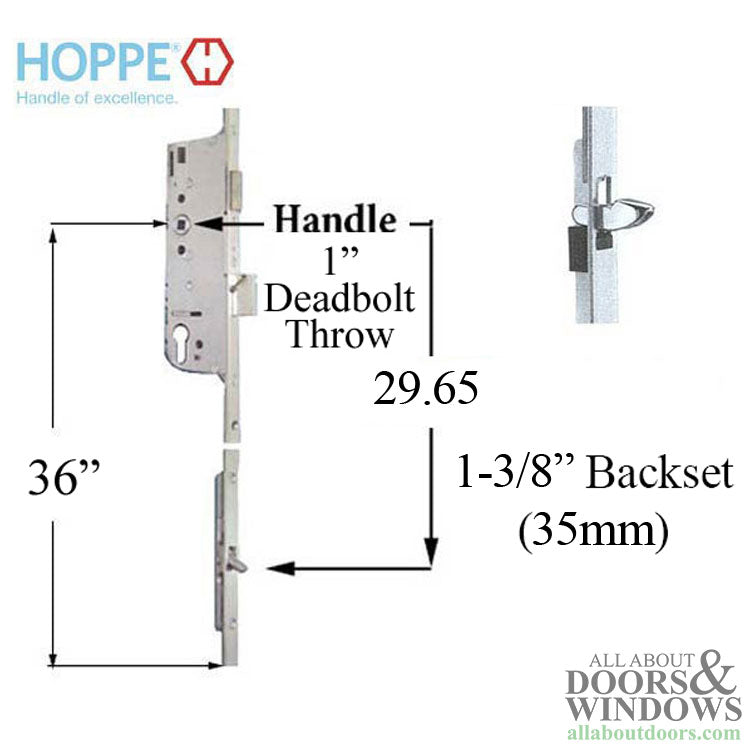

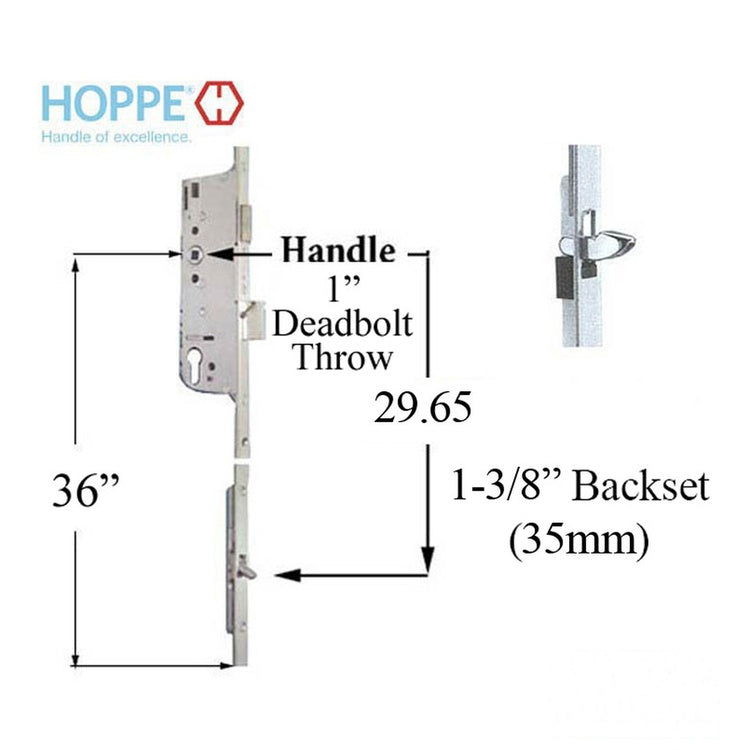

Specifications:

• Locking Function:  Automatic
• Faceplate Width:  16 mm (5/8 inch)
• Faceplate Finish:  Stainless Steel
• Backset:  35 mm (1-3/8 inch)
• PZ (Distance from center-of-spindle to center-of-cylinder):  92 mm (3-5/8 inches)
• Deadbolt Throw:  14 mm (9/16 inch)
• Handle Height:  914 mm (36 inches)
• Bottom Tongue Position:  753 mm (29-5/8 inches)
• Maximum Cutoff:  30 mm (1-3/16)
• Screws:  5
