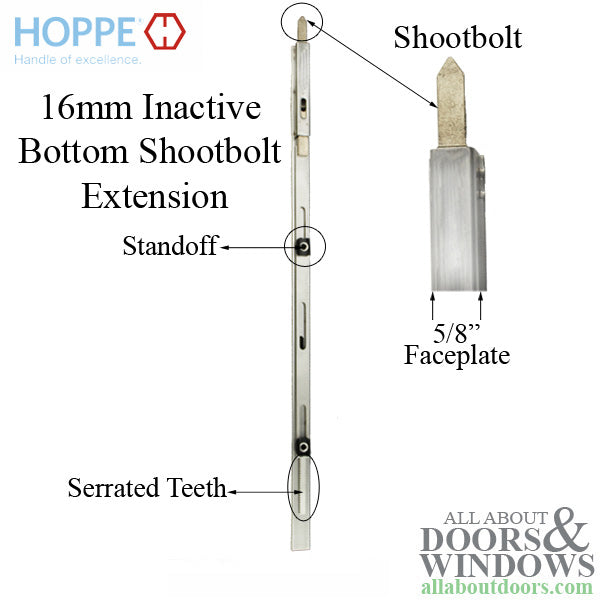

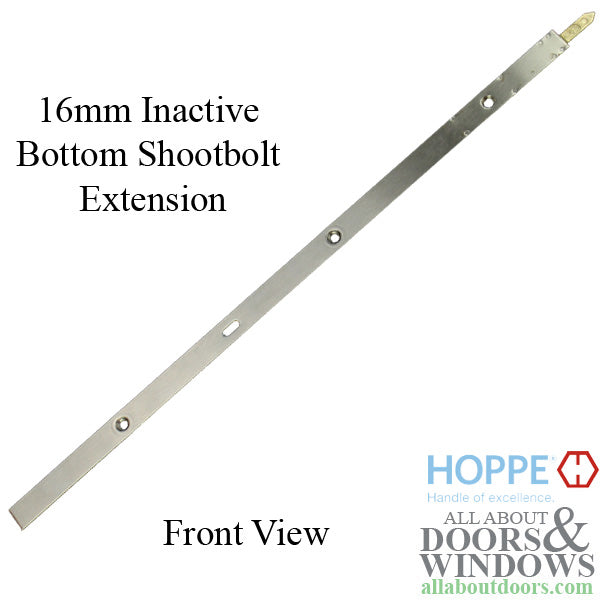

16mm Inactive Bottom Shootbolt Extension, 25mm Throw, 17.09"
Use the arrows or swipe left to view all images for this product
16mm Inactive Bottom Shootbolt Extension, 25mm Throw, 17.09"
Part Number: $69.75In-Active Top Shootbolt Extension, used on 3 piece Inactive Version Shootbolts
Overall Length w/ 36 handle Height: 67.64-71.58 Doors (if used as top extension)

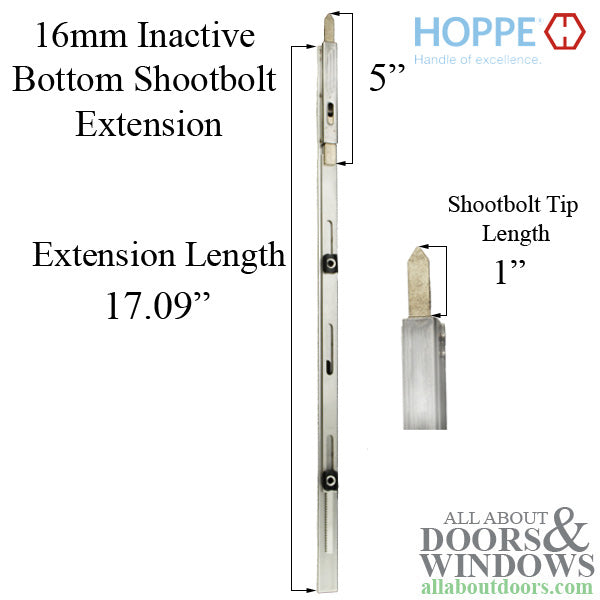

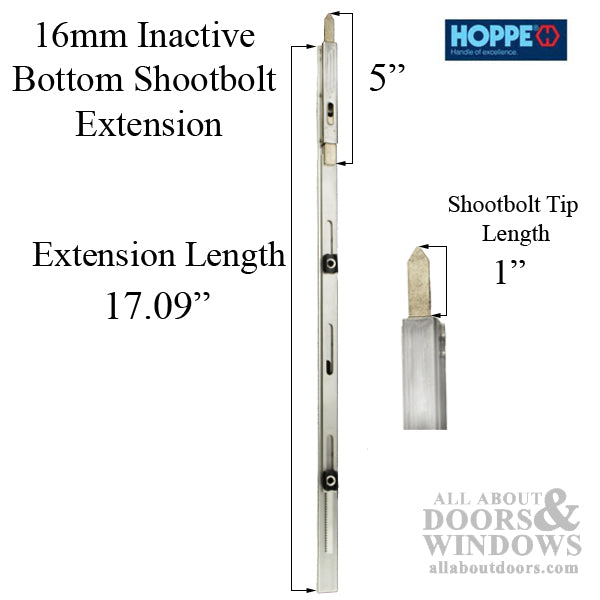

Extension Length: 17.09
Maximum Cutoff: .59 (17mm)
Number of Screws: 3
NOTE:
This is also used on the adjustable handle height active shootbolt # 3664566 (35/92)
Use Inactive (IA) Top or Bottom Shootbolt extension for Adjustable Handle Height versions
Overall Length w/ 36 handle Height: 67.64-71.58 Doors (if used as top extension)
Extension Length: 17.09
Maximum Cutoff: .59 (17mm)
Number of Screws: 3
NOTE:
This is also used on the adjustable handle height active shootbolt # 3664566 (35/92)
Use Inactive (IA) Top or Bottom Shootbolt extension for Adjustable Handle Height versions
