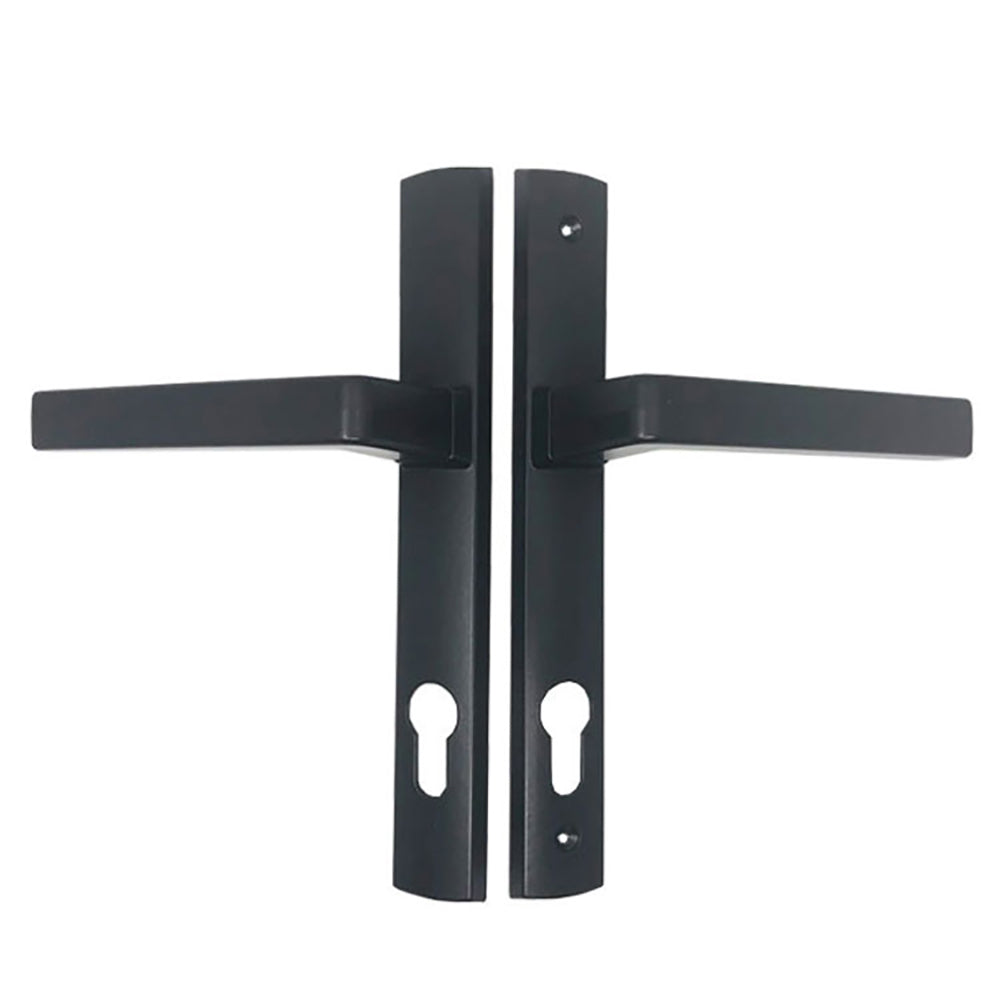

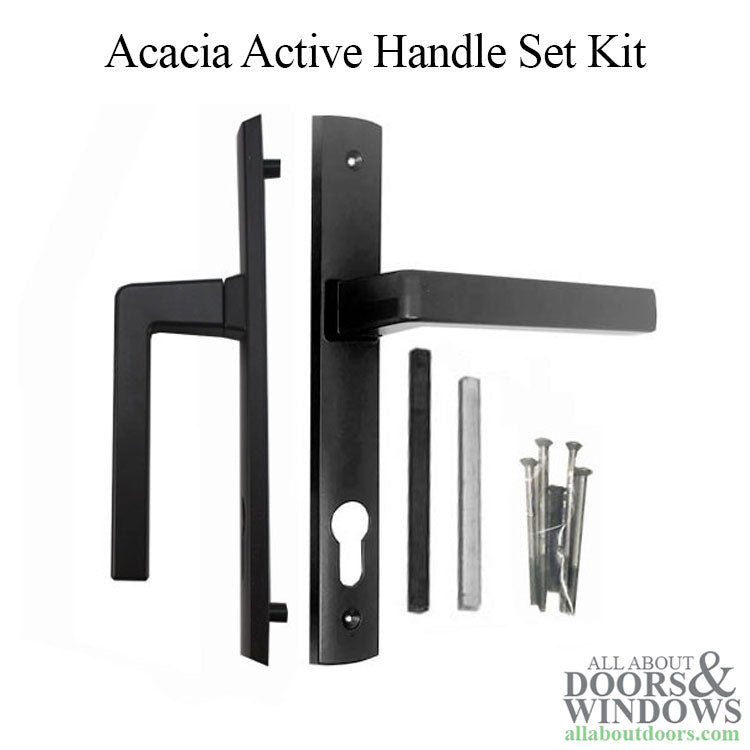

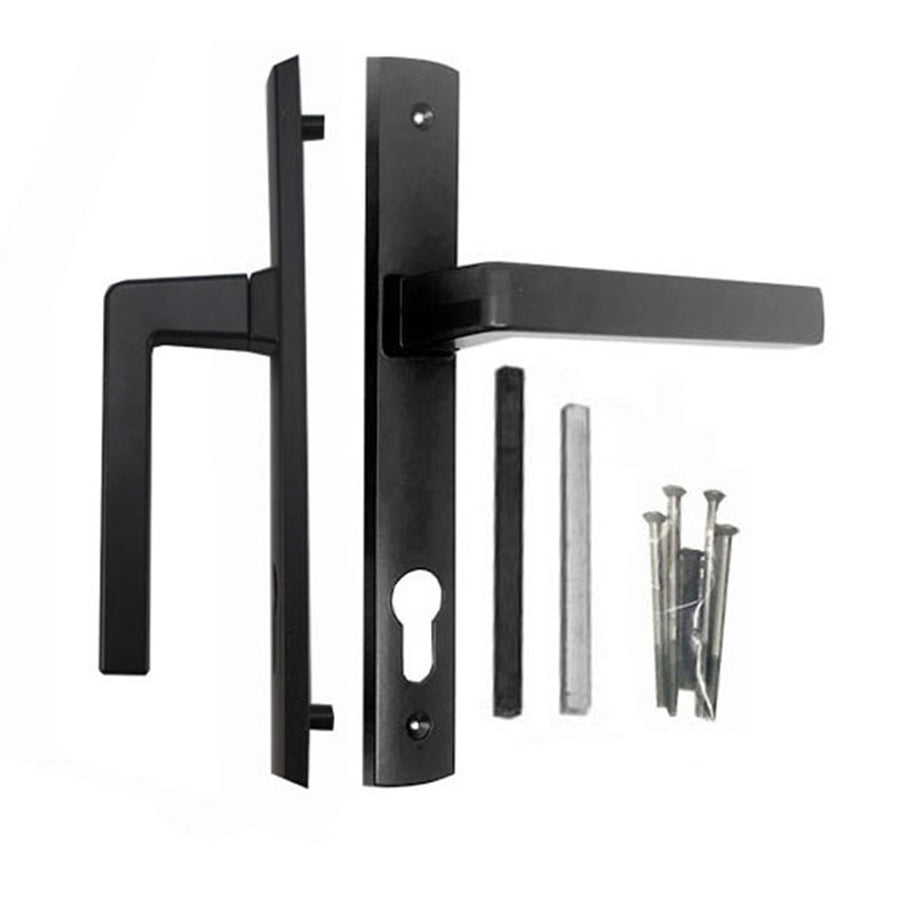

Acacia Active Handle Kit for 1-3/4" and 2-1/4" Doors
Use the arrows or swipe left to view all images for this product
Acacia Active Handle Kit for 1-3/4" and 2-1/4" Doors
Part Number: $171.65Acacia Active Handle Kit for 1-3/4" and 2-1/4" Doors
Non-handed and designed to be compatible with the INTERLOCK(R) lever compression lock, our handles complete the ideal multi-point locking solution for aluminum and vinyl swing door applications.
Specifications:
- Door Thickness: Minimum 32mm (1.25 Inch) and Maximum 45mm (1.77 Inch)
- Plate Dimensions: 222mm(H) x 30mm(W) x 5mm(D) (8.74 in. X 1.18 in. X 0.19 in.)
- Lever Length: 122mm (4.80 Inch)
- Projection: 56mm (2.20 Inch)
- Finger Clearance: 41mm (1.61 Inch)
- Single-Motion handle activation of deadbolt and all remote locking points
- Zinc alloy composition with nickel plating
- Handle to Cylinder PZ: 3-11/32 inch (85mm) 3.346
- Screw Hole Spacing: 7-1/8 inch (181mm)
- Plate Width: 1-3/16 inch (30mm)
- Plate length: 8-3/4 inch (222mm)
- Plate thickness: 3/8 inch (10mm)
- Handed: no, fits left or right hand doors
- Color: G2 White, Black, Bronze, Silver, Brushed Chrome
Non-handed and designed to be compatible with the INTERLOCK® lever compression lock, our handles complete the ideal multi-point locking solution for aluminum and vinyl swing door applications.
Door Thickness
Minimum 32mm (1.25 Inch)
Maximum 45mm (1.77 Inch)

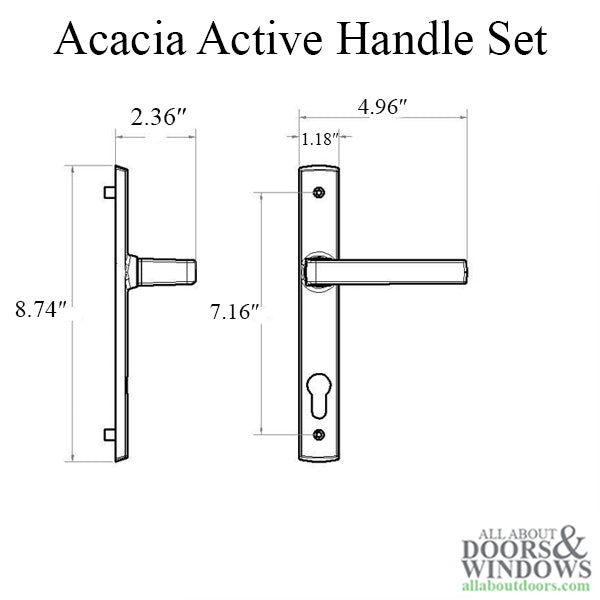

Plate Dimensions
222mm(H) x 30mm(W) x 5mm(D) (8.74 in. X 1.18 in. X 0.19 in.)
Lever Dimensions
Length 122mm (4.80 Inch)
Projection 56mm (2.20 Inch)
Finger clearance 41mm (1.61 Inch)
Features
Single-Motion handle activation of deadbolt and all remote locking points
Zinc alloy composition with nickel plating
