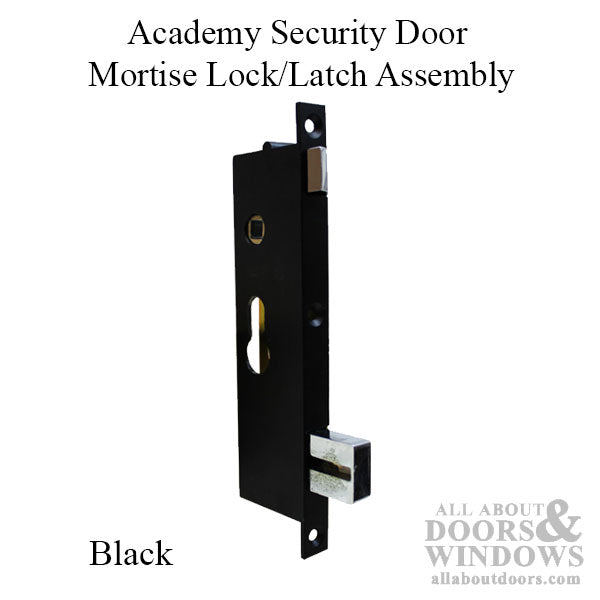

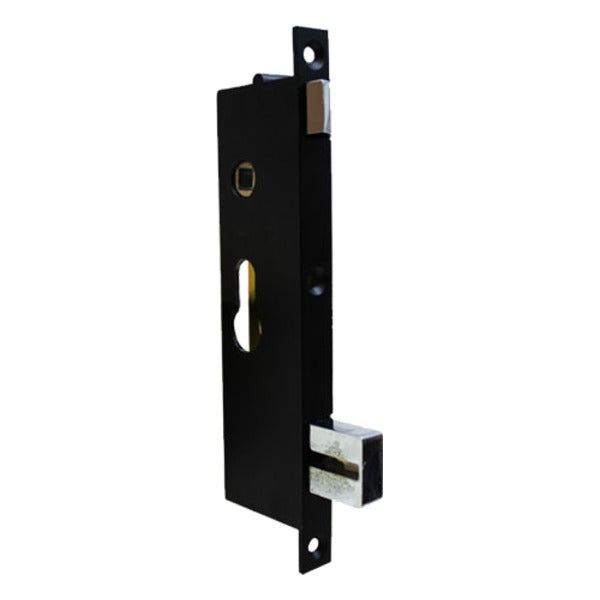

Academy Security Door Mortise Lock / Latch Assembly in Black

Non-handed heavy duty diecast mortise lock insert with reverse latchbolt for left or right hand application.

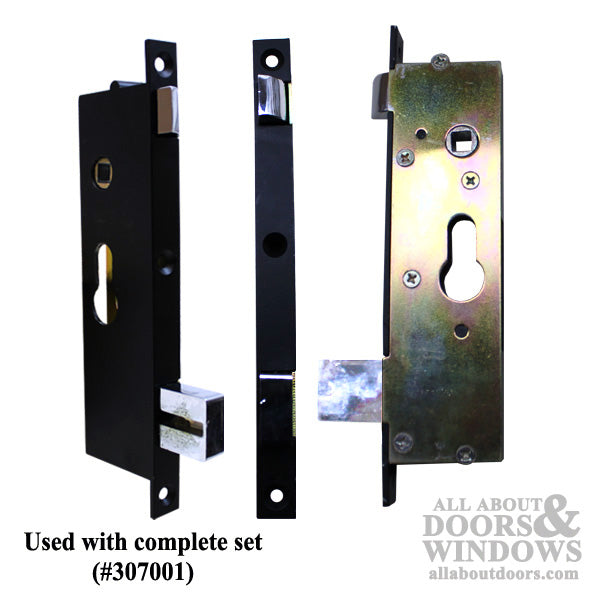

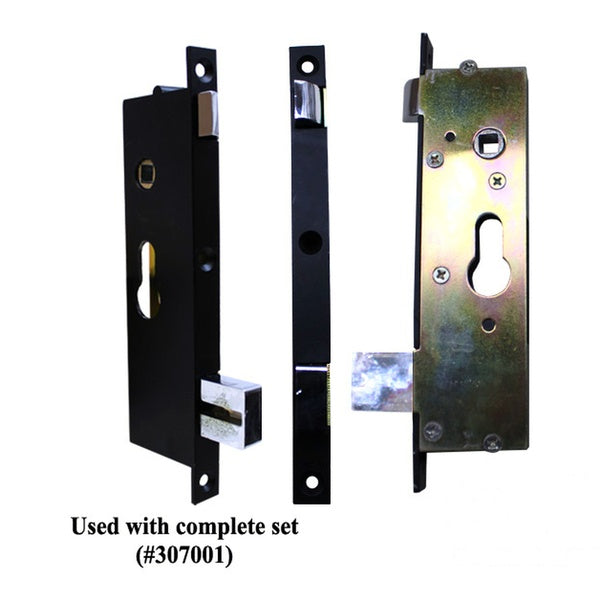

Used with 307001 complete set.
Markings on some Locks: Star Die Casting, Inc. Patent No 4.573.967

Color: Black

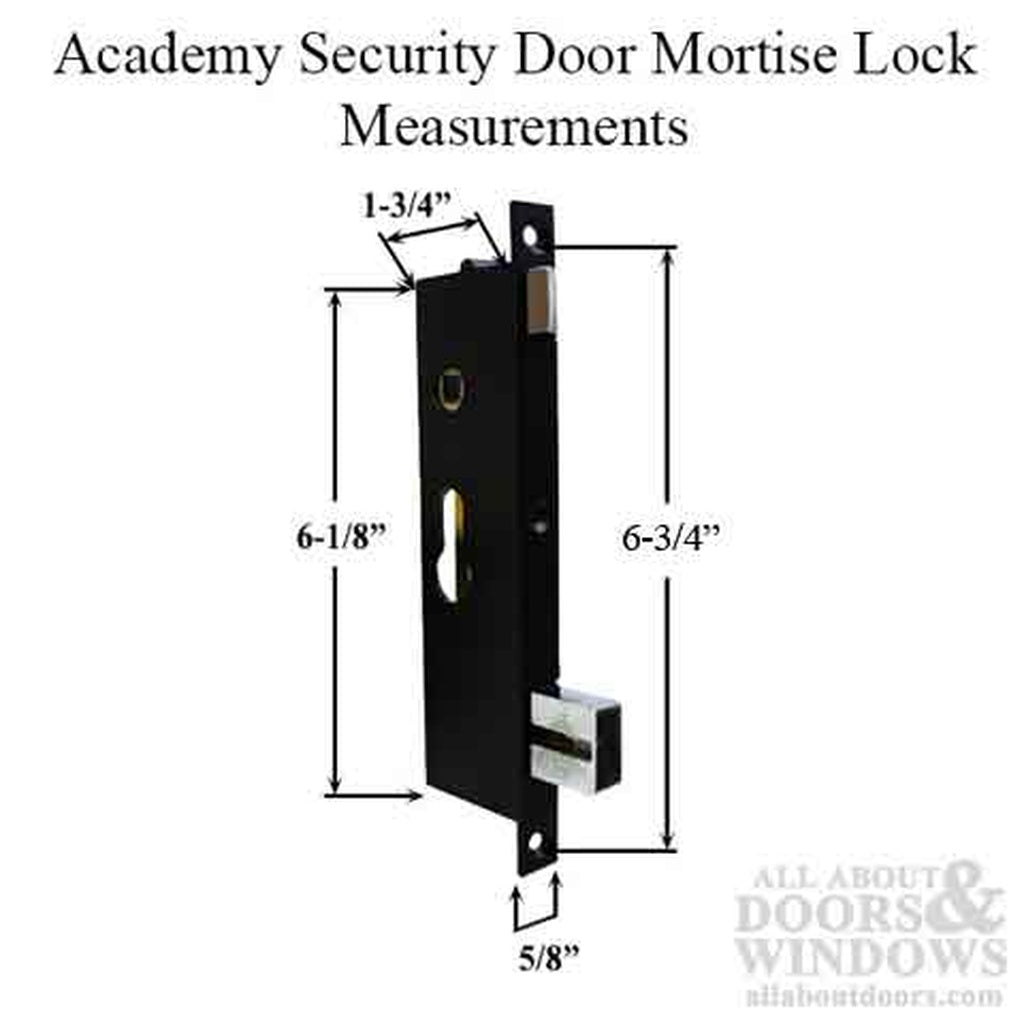

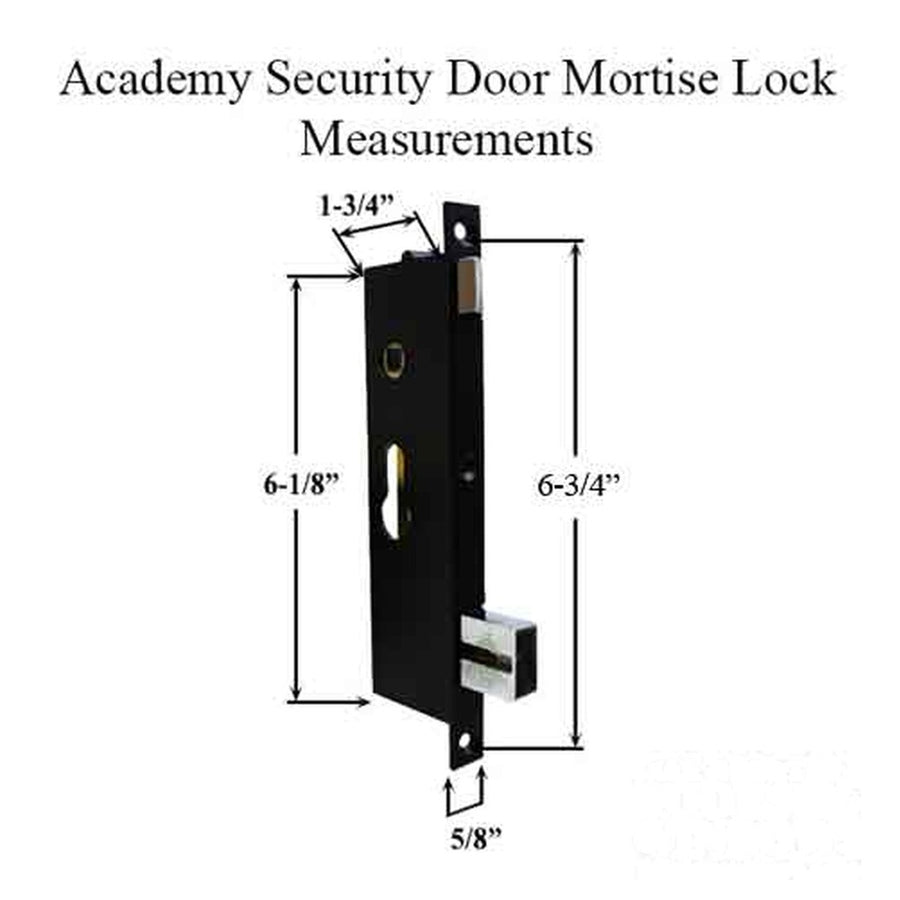

Length: 6-1/8 Inches
Screw Center Length: 6-3/4 Inches
Width: 1-3/4 Inches
Depth: 5/8 Inch

NOTE: To change handing on new style lock.
1. Loosen screw located below handle
2. Insert spindle / handle and retract latch and remove screw
3. Release pressure on latch, remove and reverse
4. Re-install latch and apply pressure to retract latch
5. With latch retracted install screw and tighten
6. Latch reversal complete; Check lock before installing. Note: do not over tighten screw, puts latch in a bind.

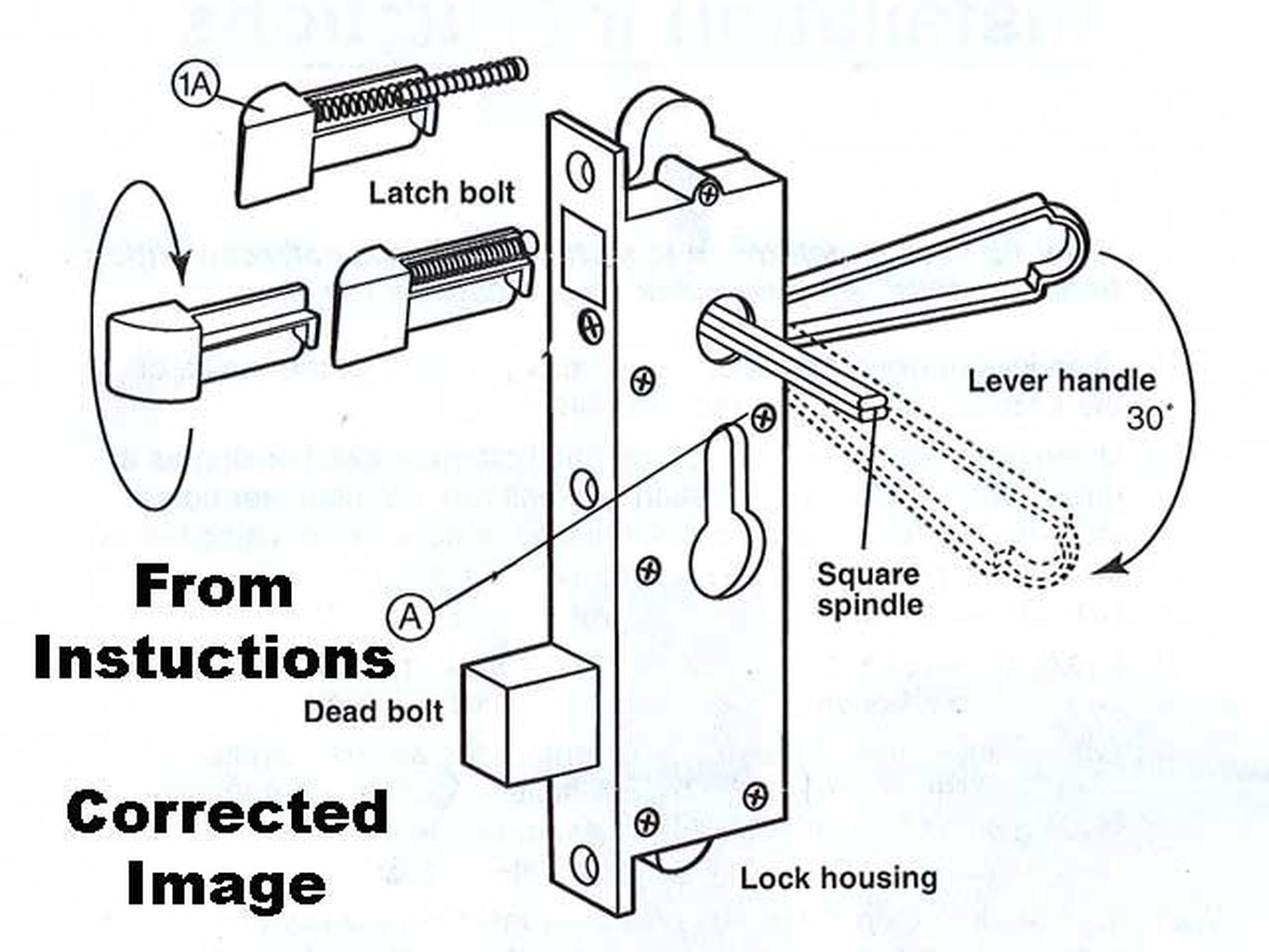

(Diagram Shown Here)

Installing Your Security Door Lock

Priced and Sold Each.
