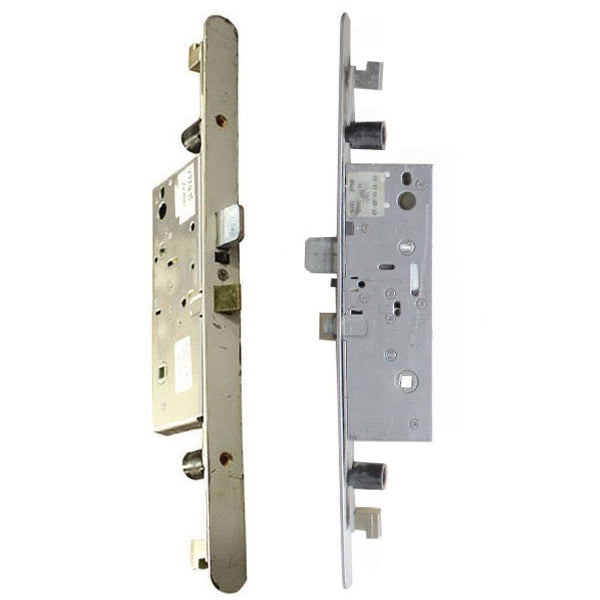

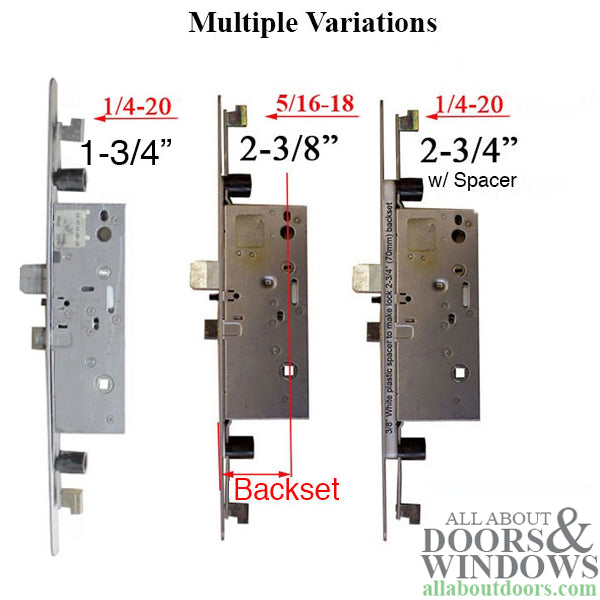

Active Concealed Rod 45/92 , 1-1/16" x 16" Radius Faceplate

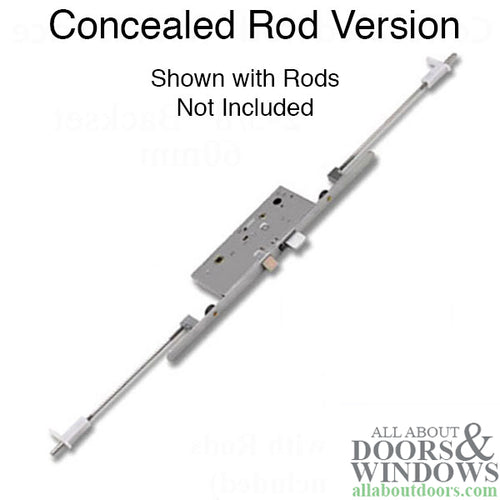

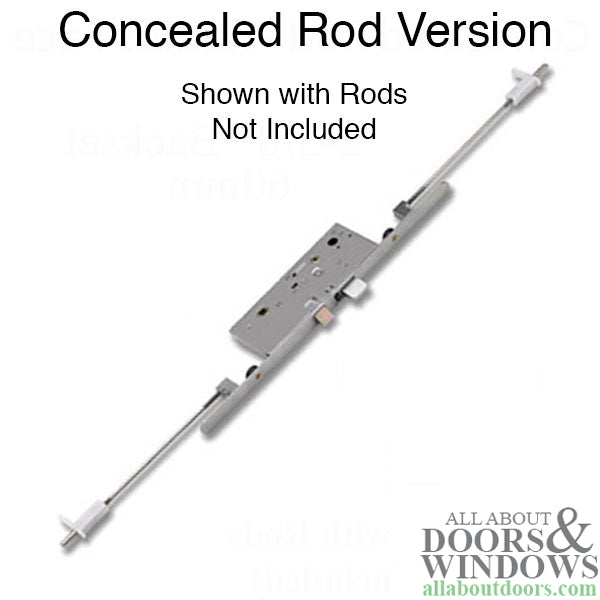

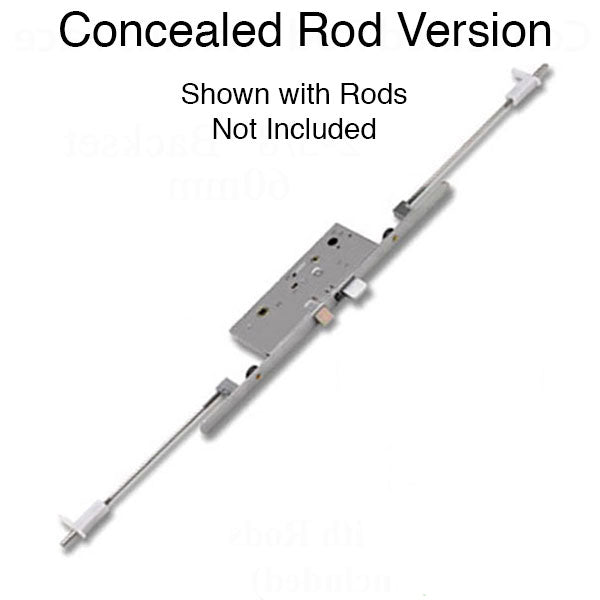

Ashland active multipoint lock with Concealed Shootbolt rods at top and bottom of door panel.

Faceplate Attached - Radius Ends

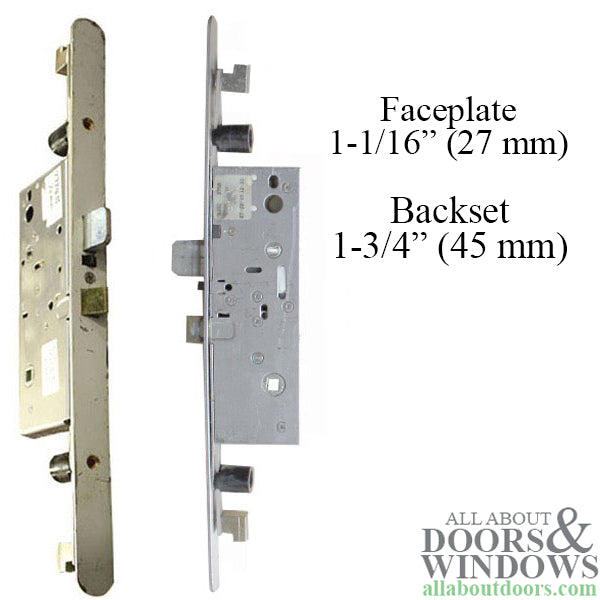

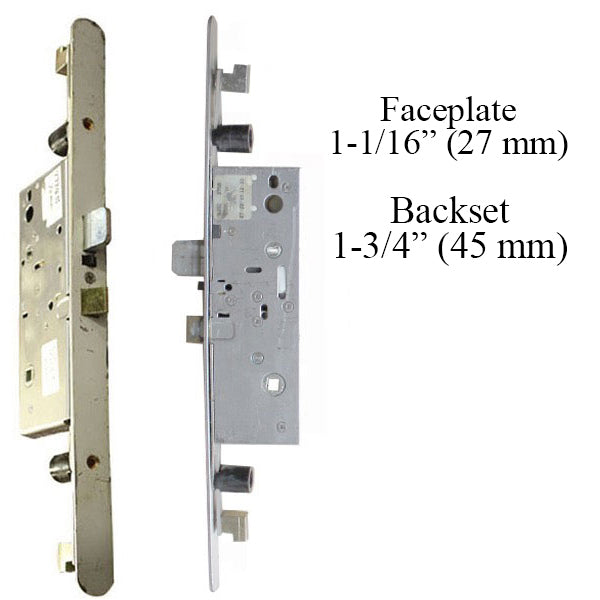

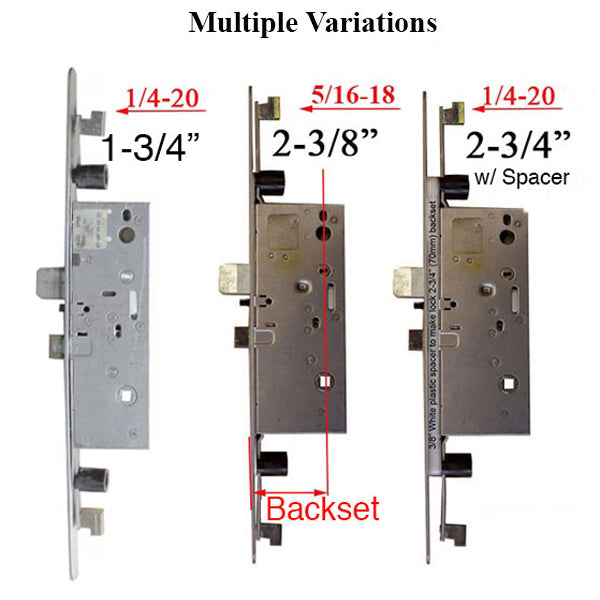

Backset: 1-3/4 inch (45 mm)
Faceplate Width: 1-1/16 inch (27 mm)
Faceplate Length: 15-15/16 inch (405 mm)
Faceplate Corners: Radius

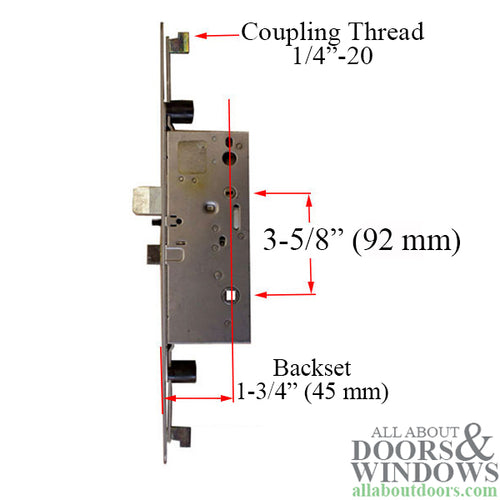

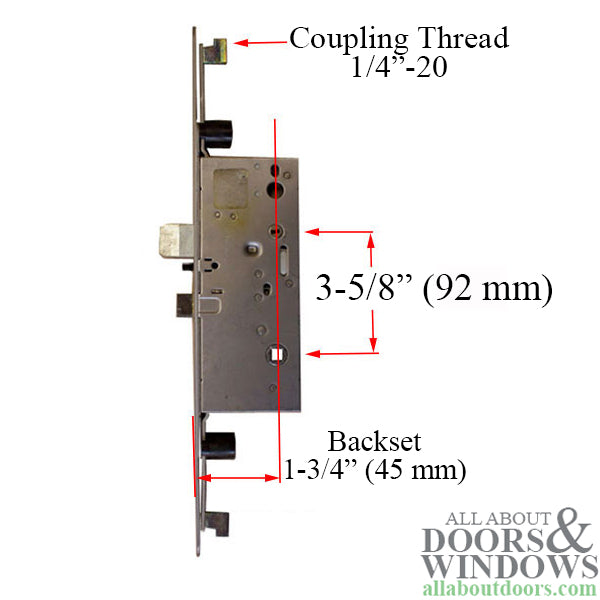

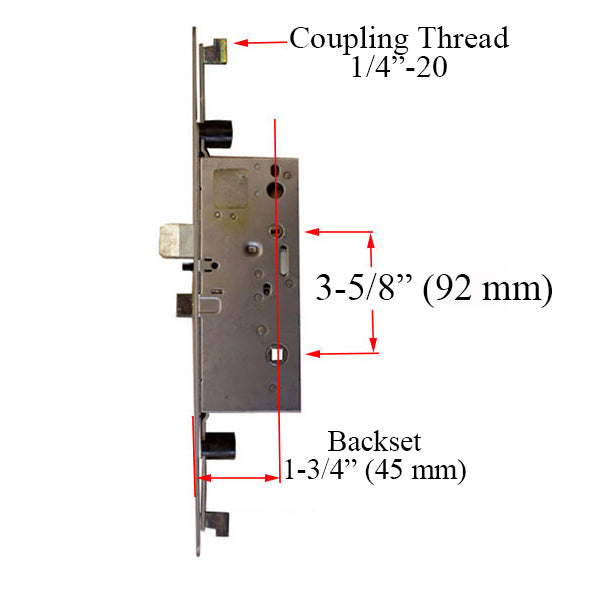

Rod Connection Thread: 1/4-20
Markings: Patent NO. 6,209,931
Priced and sold each, No Screws, No Rods

NOTES:

Does not include the rods, this is the Gear box only
The faceplate is riveted to lock case

Operation:

1. Lift handle to Extend Rods
2. Turn Key or Thumbturn to extend deadbolt

NOTE: The deadbolt may be extended with or without the rods being engaged

Change Handing:

1. Insert screwdriver into slot behind latch
2. Pull down on handing release, latch pops out
3. Rotate latch and push back into lock case

ALWAYS Check Function of lock before closing door

NOTE: Lock Removal

The Rods have a guide bracket at top and bottom of door that need to be removed to get rods out. The rods have a Hex shape that allows an extended socket to fit if you remove the top bracket and top rod the lock body may be removed with the bottom rod still attached. May also reinstall new lock body the same way, with one (1) rod attached


How to Rehand an Ashland Multipoint Lock (Marvin Doors)


Rehanding Ashland Multipoint Locks
