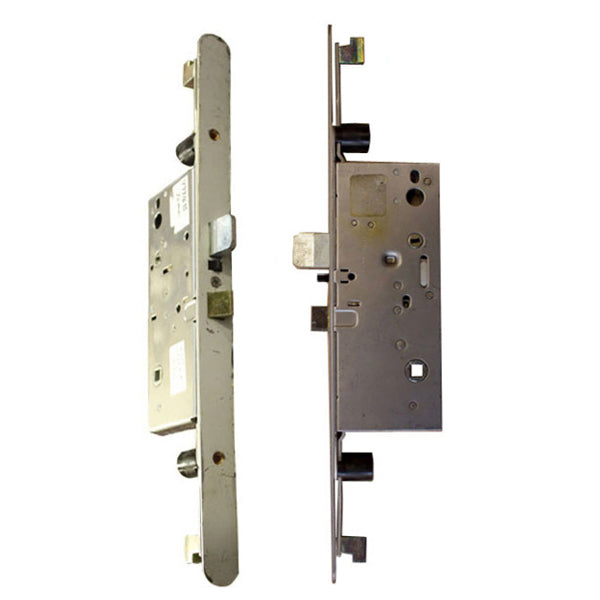

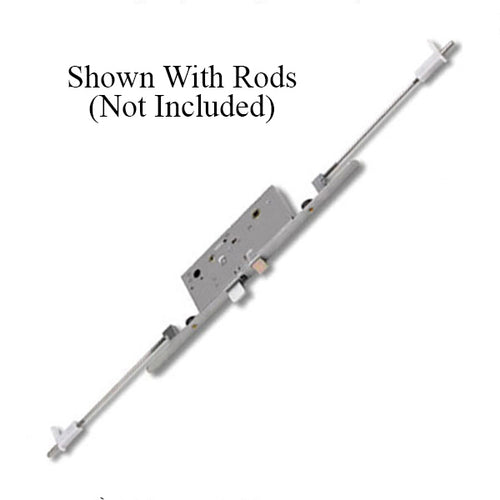

Active multipoint lock with Concealed Shootbolt rods at top and bottom of door panel.

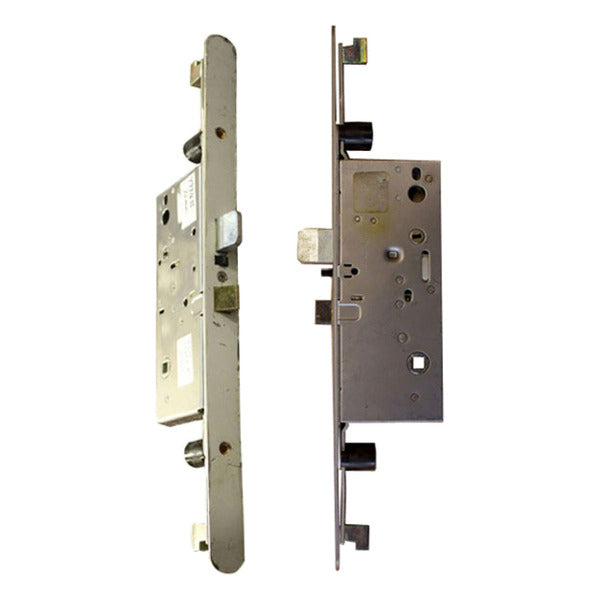

Faceplate Attached - Radius Ends
Used by several companies

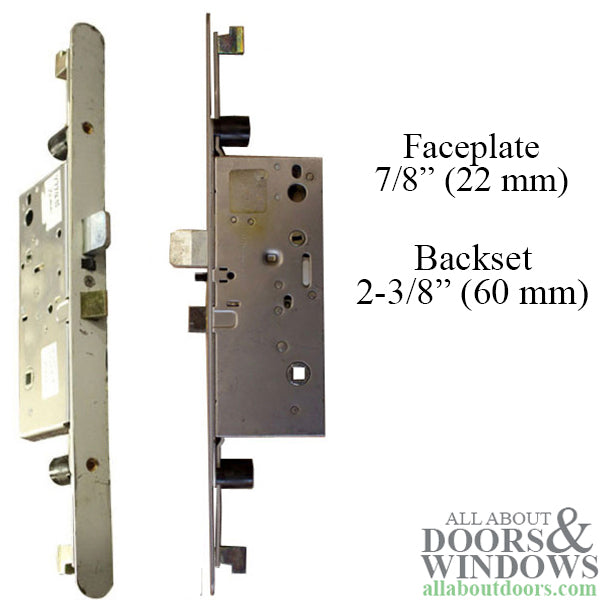

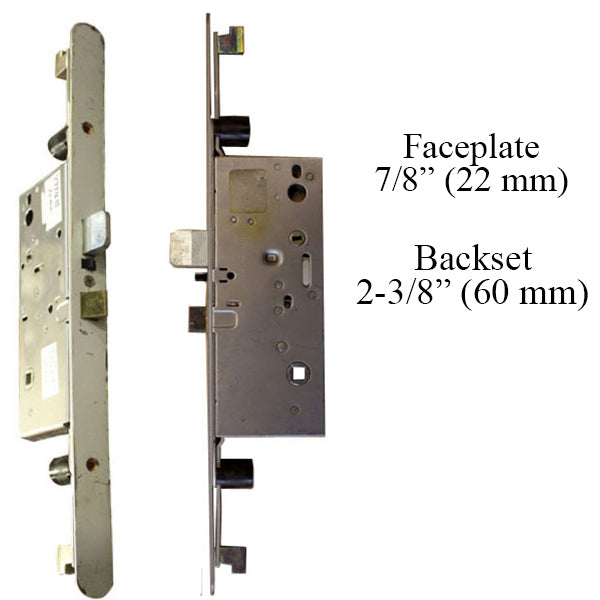

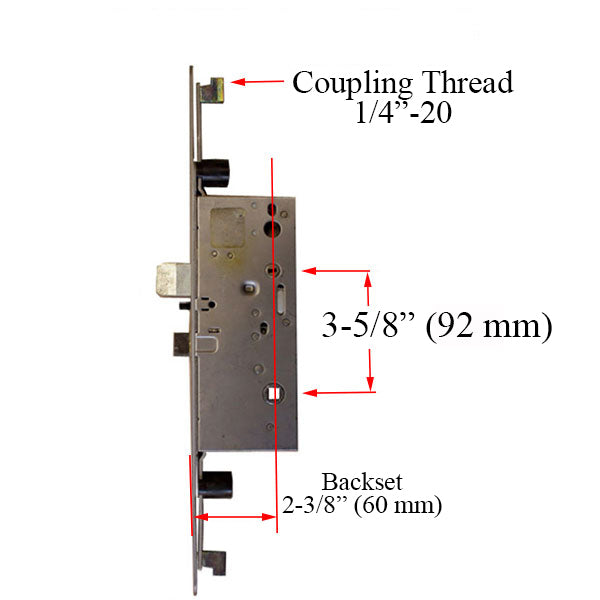

Faceplate Width: 7/8 inch (22 mm)
Backset: 2-3/8 inch (60 mm)
Faceplate Length: 16 inch (405 mm)
Faceplate Corners: Radius

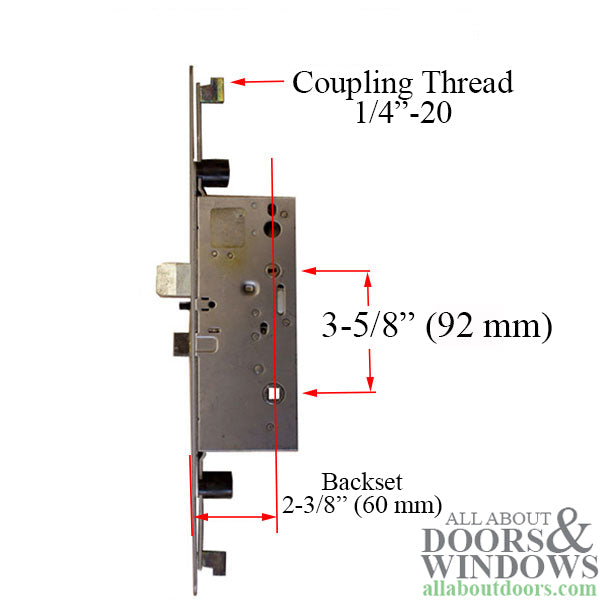

Rod Connection Thread: 1/4-20 ( PGT has 5/16-18 thread)
Markings: Patent NO. 6,209,931

NOTES:
Does Not Fit Marvin or Peachtree Doors

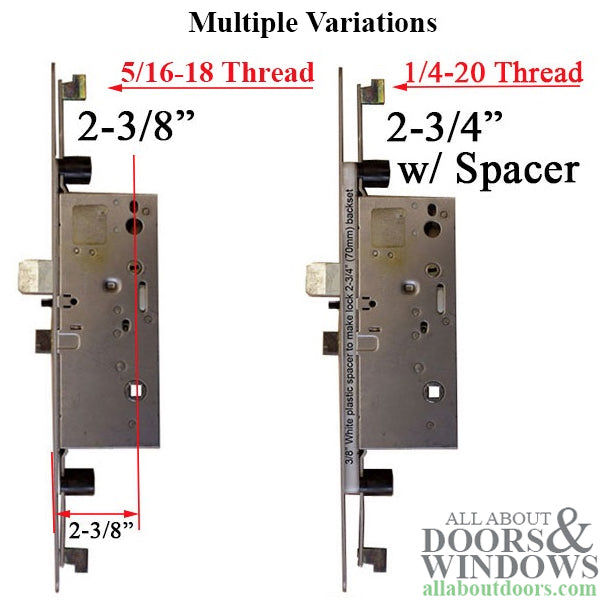

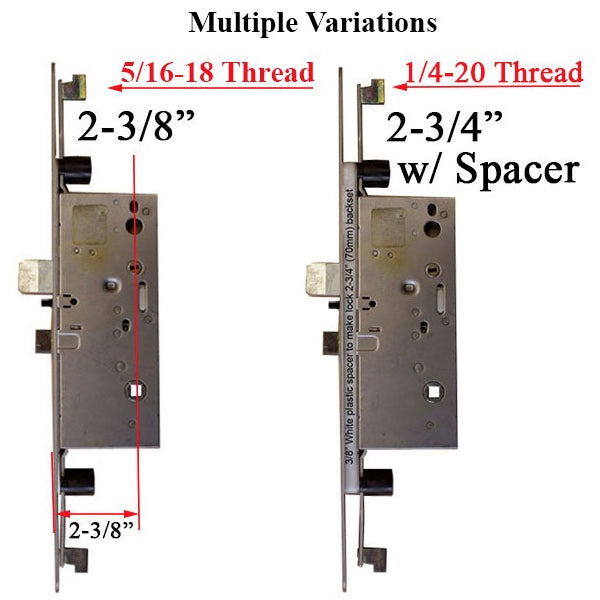

Available Backsets: 2-3/8 or 2-3/4 inch
Faceplates have either square or radius corners

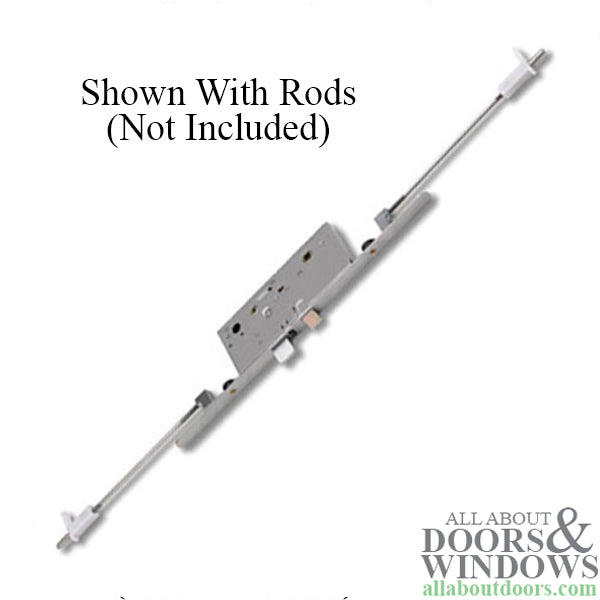

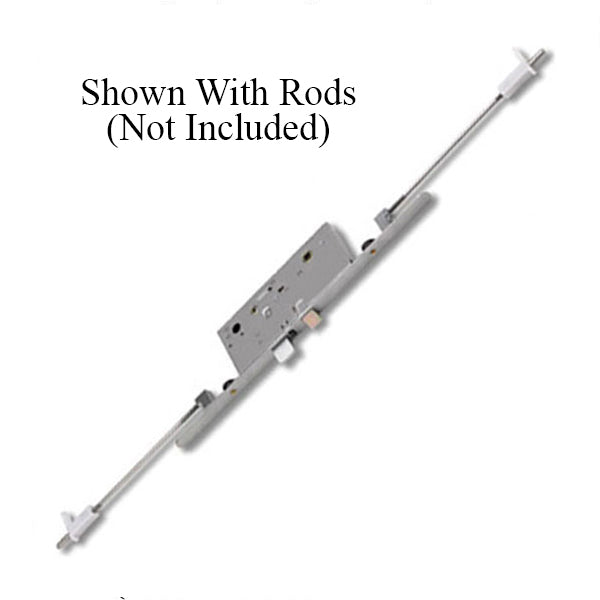

Does not include the rods, this is the Gearbox only
The faceplate is riveted to lock case

Operation:
1. Lift handle to Extend Rods
2. Turn Key or Thumbturn to extend deadbolt

Change Handing:
1. Insert screwdriver into slot behind latch
2. Pull down on handing release, latch pops out
3. Rotate latch and push back into lock case
Always check function of lock before closing door

NOTE: Lock Removal
The Rods have a guide bracket at top and bottom of door that need to be removed to get rods out.
The rods have a Hex shape that allows an extended socket to fit.
If you remove the top bracket and top rod the lock body may be removed with the bottom rod still attached.

Priced and sold each.
