800-A Series multipoint lock trim in polished brass with a Euro cylinder.

Will work with many multipoint locks by Amesbury, as well as most multipoint lock brands.
Handles can be used in the traditional American orientation with the thumbturn above the handle OR the inverted European style.
Easily rekeyed.
Simple installation.

Lever: 800
Plate: A
Color: Black
Handing: Left Hand shown, but this trim is NON-HANDED (see HANDING INFO below)

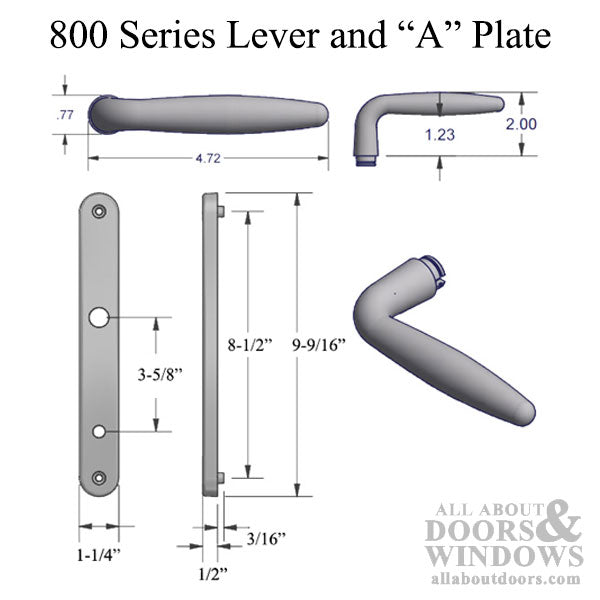

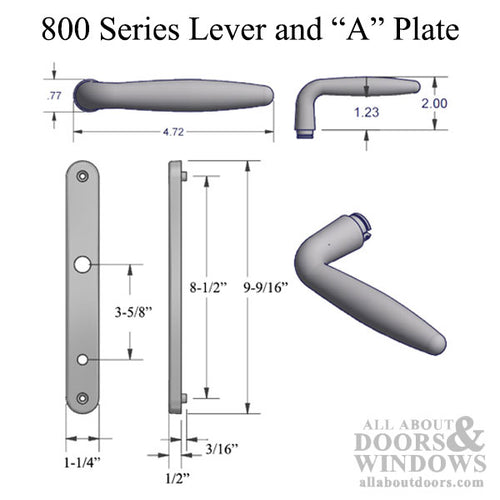

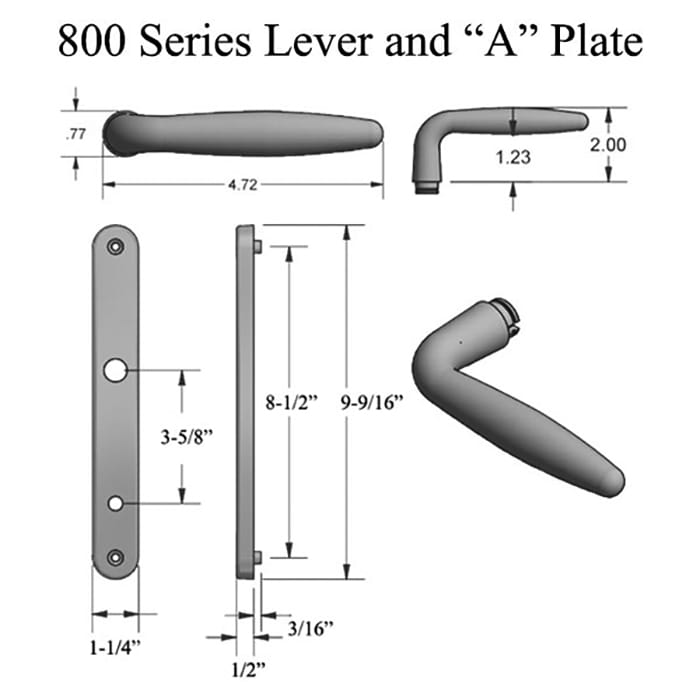

Measurements:
Handle center to cylinder center: 3-5/8 inches
Screw hole centers: 8-7/16 inches
Plate length: 9-5/8 inches
Plate width: 1-1/4 inch
Plate depth: 1/2 inch
Spindle Diameter: 5/16 inch (8mm) Square

HANDING INFO
Handing is determined from the exterior and by which side the hinges are found.
The lever points towards the hinges.
Hinges on left, left hand trim needed.
Hinges on right, right hand trim needed.
( Can be used for Key above or Key below applications )
