IMPORTANT NOTE: Non-Stock handle sets have a 90 day lead time.
Call the office for availability prior to placing your order.

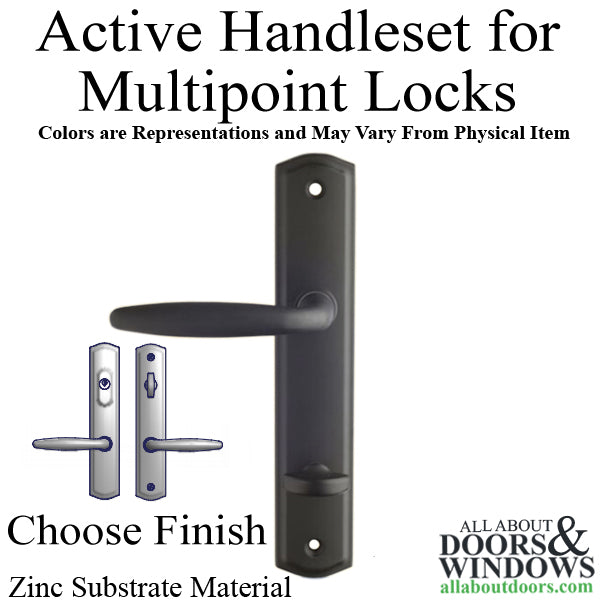

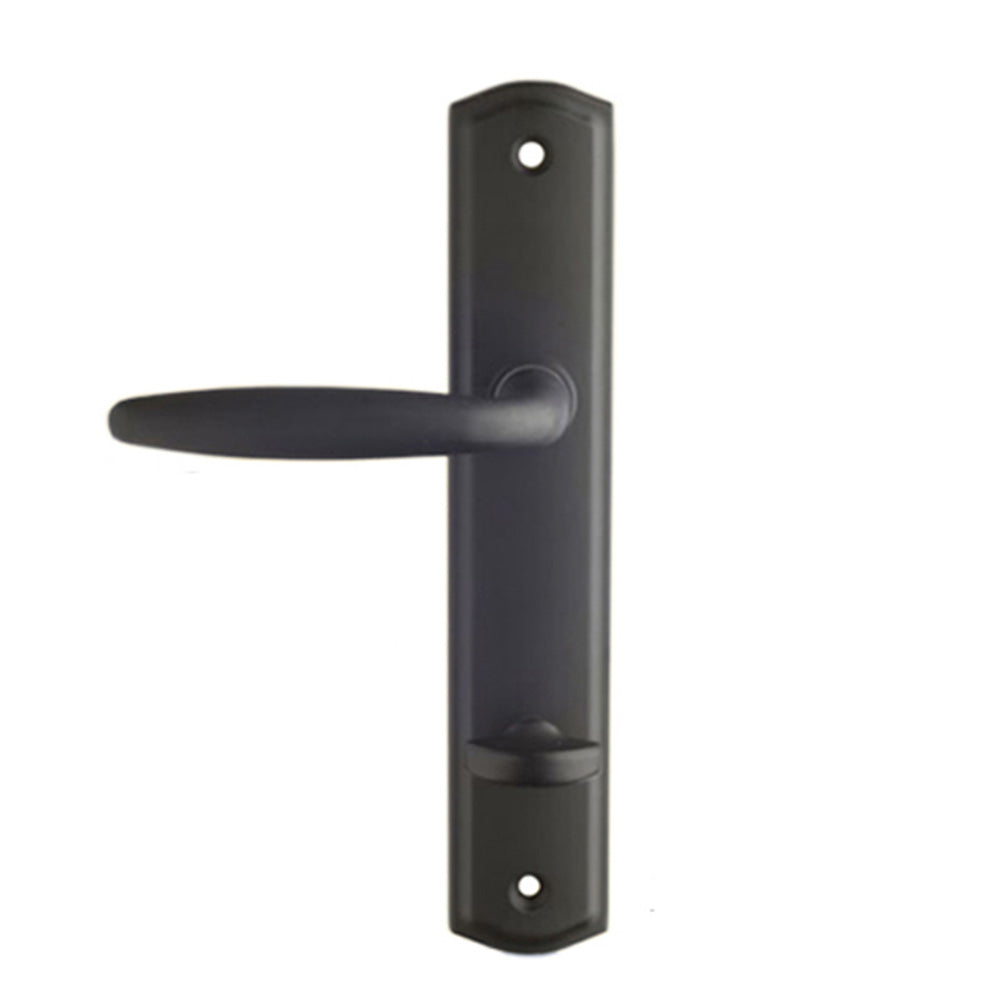

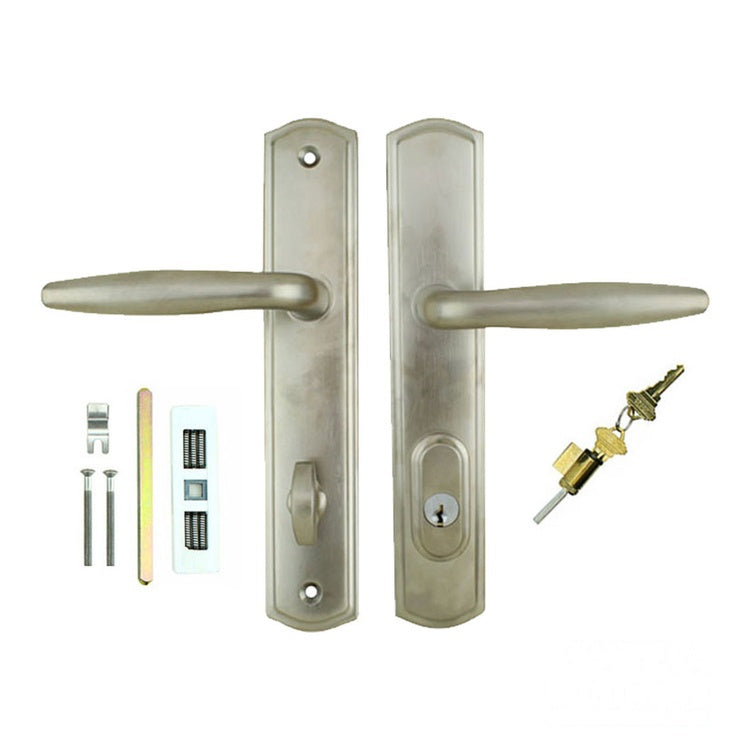

Amesbury keyed hardware for primary active door with multi-point lock.
The lock trim replaces Integrity by Marvin, Milgard, G-U / Ferco, and other American version multi-point locks
Amesbury 800 C Regency series with straight lever and slight arched top escutcheon plate.
Application: Keyed primary door with thumbturn works with most multi-point locks
Handed: No (Doesn't matter what side of the door the handle is on)

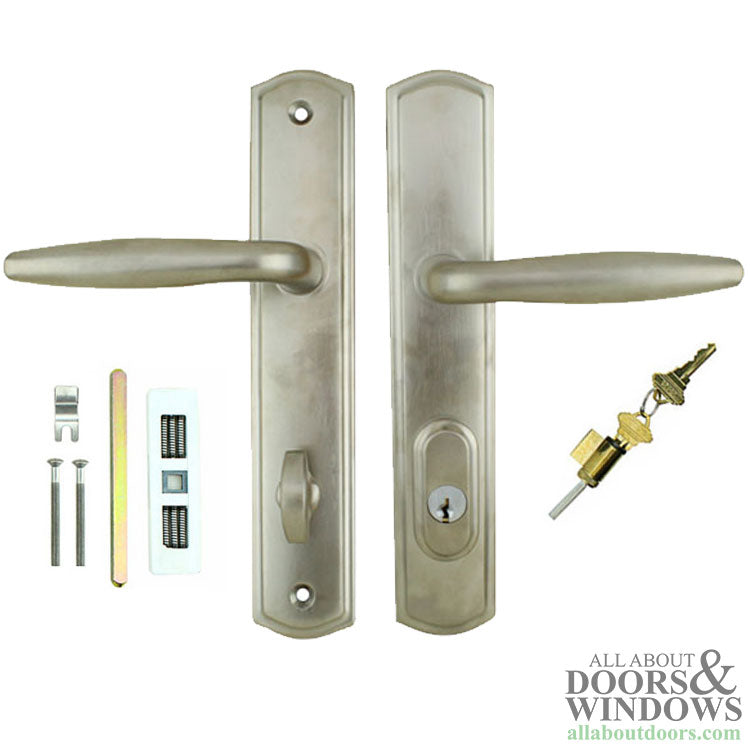

Handle set uses a spring loaded cassette for added lever action.
Base Material: Brass substrate with PVD finish for coastal areas or Zinc
Door Thickness: 1-3/4 Inch

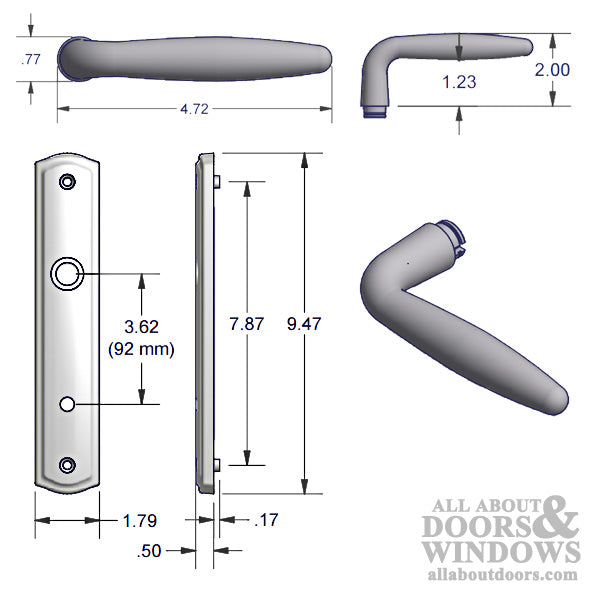

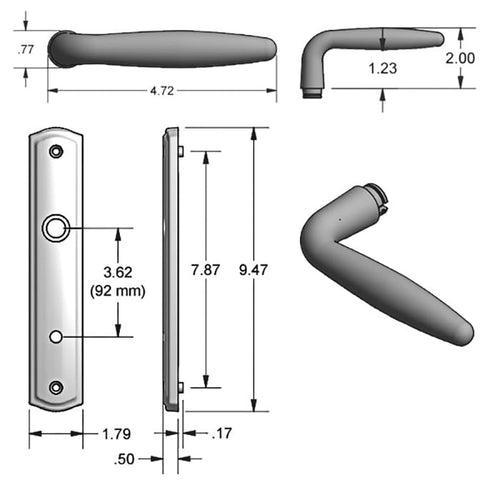

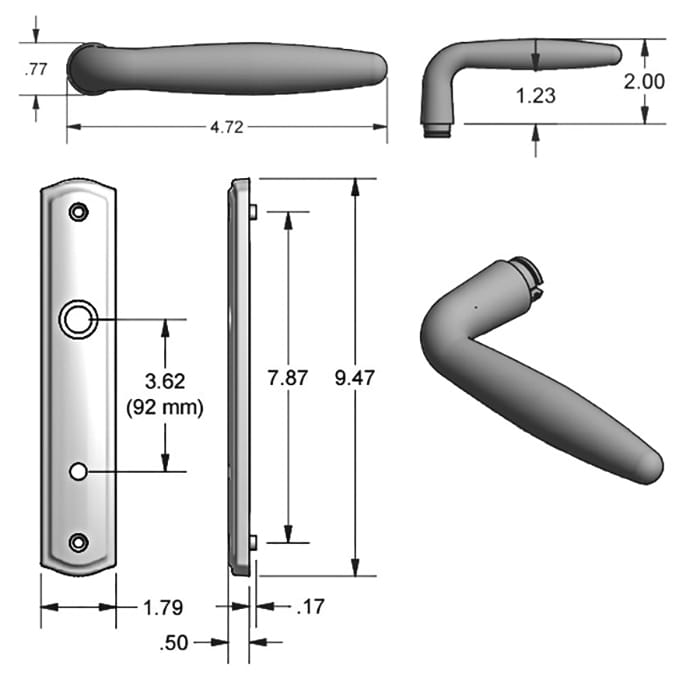

Escutcheon Plate: C Style - Slight Arch Top
Actual Plate Width: 1.79 Inch
Actual Overall Plate Height: 9.47 Inch
Escutcheon Plate Screw Hole Spacing: 7.87 Inch or 7-7/8 Inch (199.9 mm)
Handle to Cylinder: 3.62 Inch or 3-5/8 Inch (92 mm)
Cylinder Type: American with flat tail piece
Keyway: Schlage 5 pin, SC1 key blank
Optional Keyway: Kwikset - Weiser composite keyway
Handle Projection: 1.23 Inch
Handle Clearance: 2.00 Inch
Handle Length: 4.72 Inch
Colors / Finishes: Satin Nickel, Wet White, Vision Tan, Pebble, Dark Oil Rubbed Bronze, Brown Oil Rubbed Bronze, Faux Oil Rubbed Bronze, Black, Brushed Chrome, Polished Brass PVD, Satin Nickel PVD, Polished Chrome PVD, Oil Rubbed Bronze PVD
*PVD is a high performance finish that resists tarnishing and discoloration; recommended for coastal areas

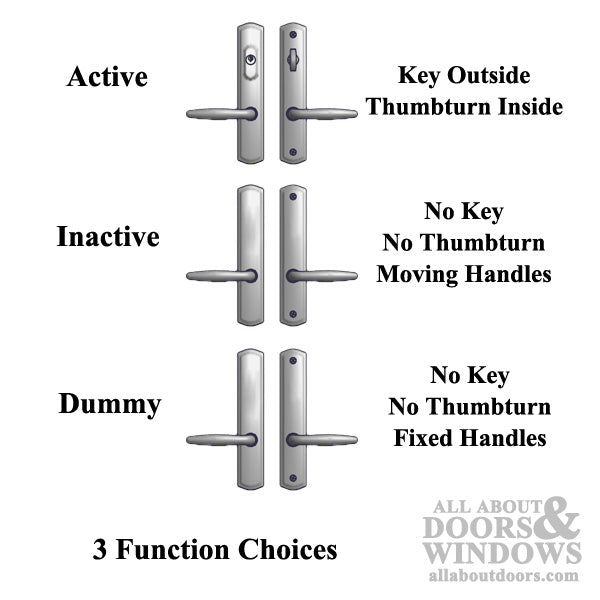

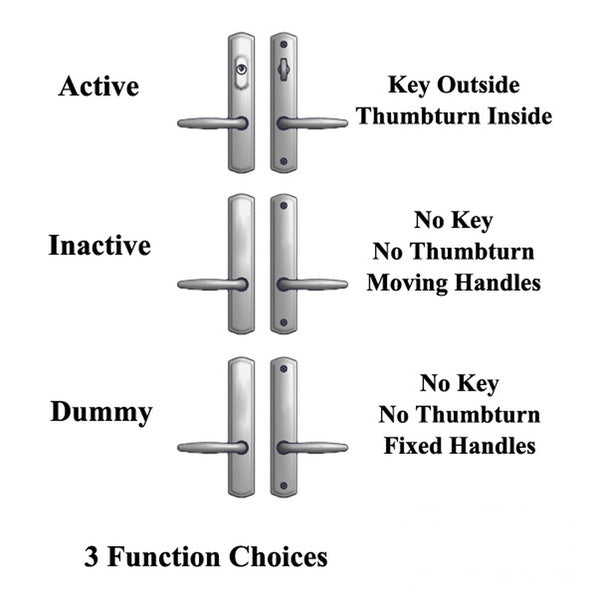

Function: Active - Keyed Outside, Thumbturn Inside (Can be used for key above handle or key below handle applications)
Other Available Functions (Can be used for key above handle or key below handle applications):
Inactive / Passive - No Key, No Thumbturn, Moving Handles
Dummy - No Key, No Thumbturn, Fixed Handles
How to Order:
Single Door = 1 Active Keyed
Double French Door = 1 Active Keyed and 1 Inactive or 1 Dummy
Same Handleset, Different Materials/Functions:
Active Handleset in Solid Brass: 395220B
Inactive Handleset in Zinc: 395221Z
Inactive Handleset in Solid Brass: 395221B
Dummy Handleset in Zinc: 395222Z
Dummy Handleset in Solid Brass: 395222B
