Active Pella / G-U 3-point Multipoint Lock Kit w/ Shootbolts 50/92 - Choose Finish

Part Number: 4990330-KIT $581.72 to $628.90
Color: Black

Review our shipping information and returns policy.

Request a Quote

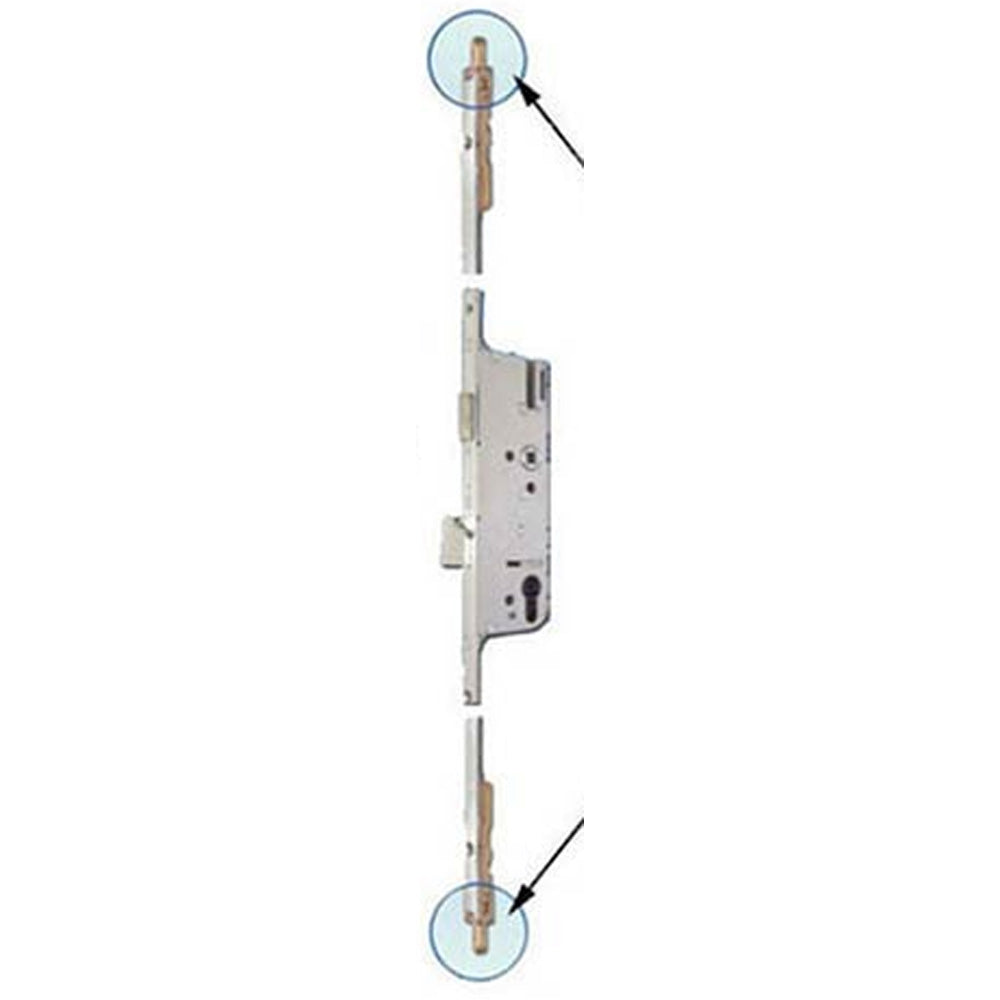

Active Pella / G-U 3-point Multipoint Lock Kit w/ Shootbolts 50/92

INSTALLATION NOTES:

  • Minor modifications may be required.
  • Shootbolt Version - Replacement Hardware for Active Door only
  • This is a 2 piece, 3-Point lock with 50/92 Multipoint Lock configuration.

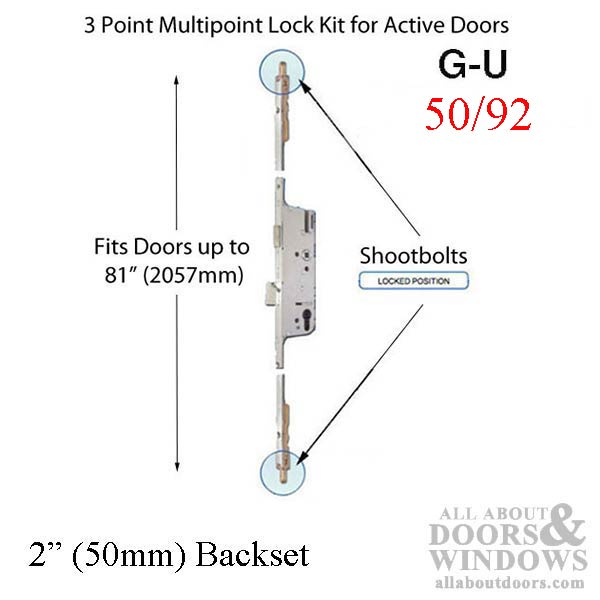

  • Includes Top and Bottom Shoot Bolts will fit doors up to 81 inches (2057mm)
  • Extension Available for taller doors.

Specifications:

NOTE 1: This Lock Case uses a Standard 5-Pin keyed American Lock Cylinder.
This is a KIT that includes, gear, top and bottom shoot bolts.
You will be able to reuse your handles / trim.

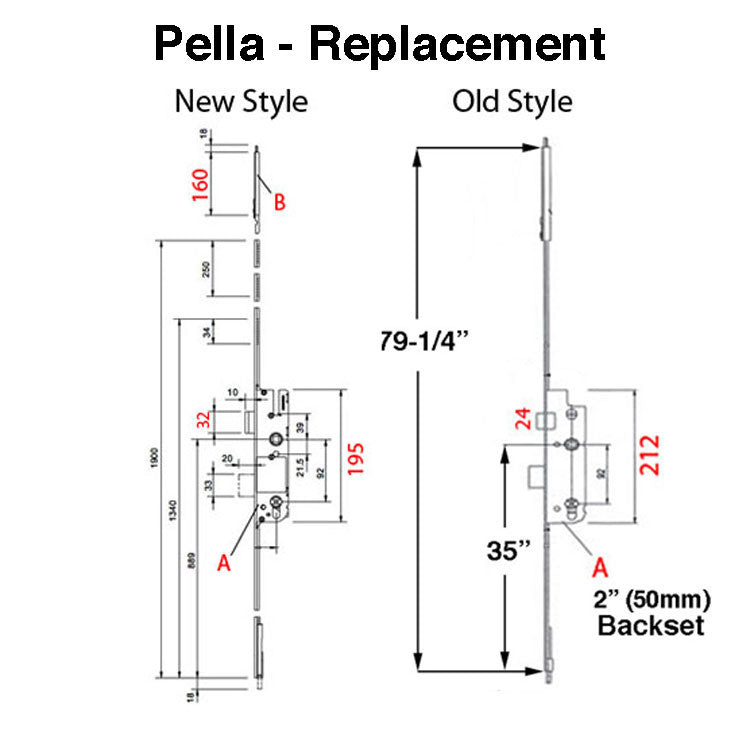

NOTE 2 : Replacement doors may be different heights - minor modifications required.
If Door panel height: 77-1/4 inch; remove 4 inches from new one when in unlocked position.

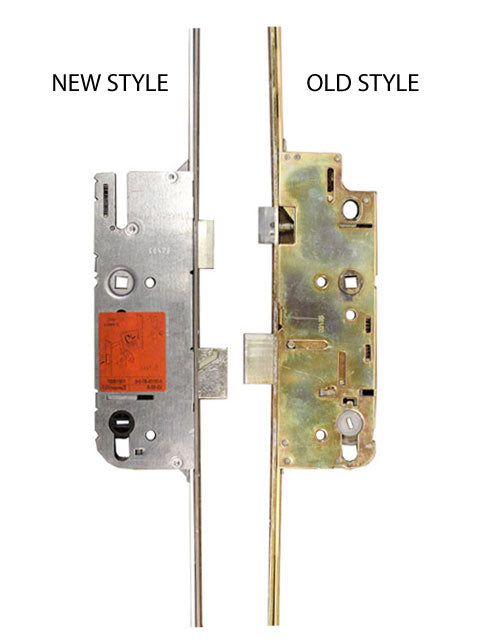

Replacement latch and deadbolt are in slightly different positions.
File hole in bottom of strike 1/8-3/8 inch on both latch and deadbolt, we do not recommend moving strike, better to enlarge the hole.

RELATED PELLA REPLACEMENT PARTS:
4990330-KIT - Shootbolt Kit Pella 50/92 Cremona - Complete Lock
40325 - Middle Extension only, Doors over 81 inches
G-16798-00-0 - Top Shootbolt Tip only

Articles:
Replacing Multipoint Lock in Pella Door

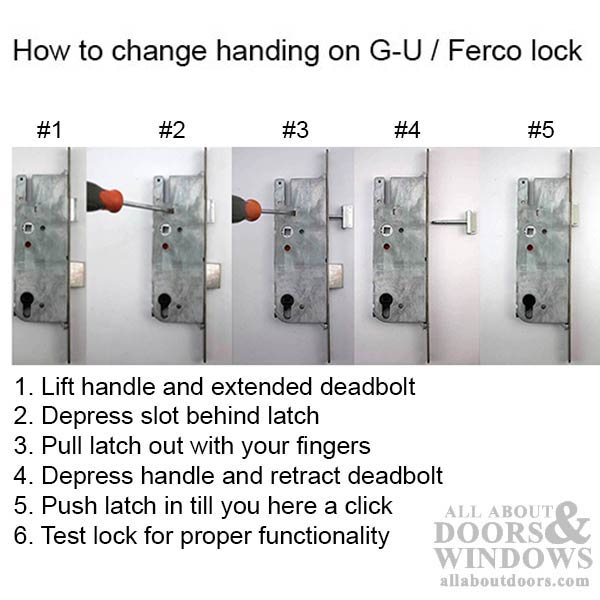

How to rehand GU-Ferco multipoint lock (change direction of springlatch)
