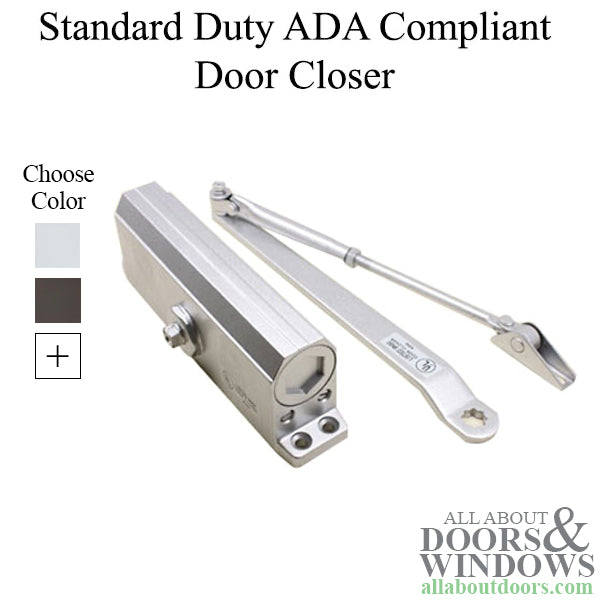

ADA Compliant Economical Door Closer - Dual Valve - Standard Duty - Choose Color

Part Number: 381010-AL Price: $59.33
COLOR: - Aluminum

Standard Duty Door Closer - Dual Valve - Adjustable spring power sizes # 2-5
Grade 3 - Standard Duty
Size: # 2-5 Adjustable Strength for Exterior Doors
Adjustment Values: 2 - Speed and Back Check (Sweep & Latching)

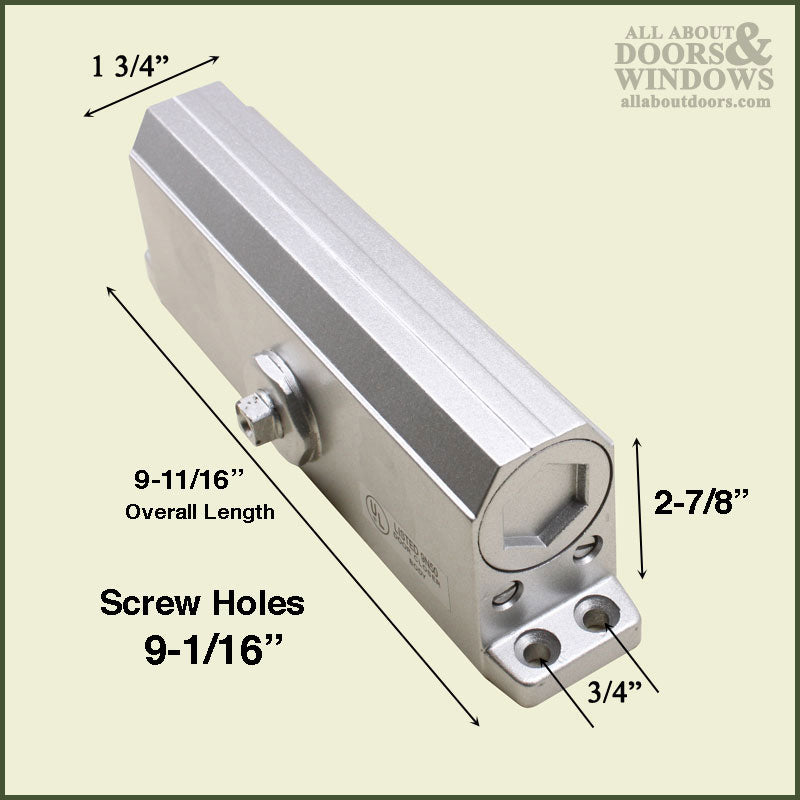

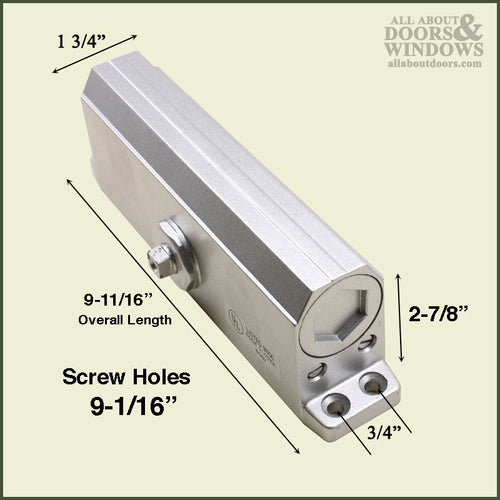

Screw Holes Width: 9-1/16 inch
Screw Holes Height: 3/4 inch

Includes one closer and all necessary hardware for Regular or Top Jamb Installation

NOTE:
All other accessories are sold seperately.

Economical UL Listed Closer
Dual valves to control closing and latching speeds.
Cast aluminum body in painted finishes.
Rack and pinion operation.
Non-handed, Non-Hold Open Closer for standard, top-jamb or parallel arm installation.
Hydraulic fluid for any climate operation and constant lubrication.
Mounts to most glass and aluminum doors without special adapters.
Heavy duty threaded adjustable arm with lock nut.

NOTE:
Parallel Arm Installation requires mounting Plate 381035 - Not Included
Hold open applications require a Hold Open Arm and Bracket - Not Included

Related Accessories:
381027 - Wide Drop Plate
381028 - Narrow Drop Plate
381032 - Hold Open Arm
381031 - Regular Arm
381034 - Top Jamb Extender
381035 - Parallel Arm Bracket
381036 - Hold Open Parallel Arm Bracket
381030 - Thru Bolts
