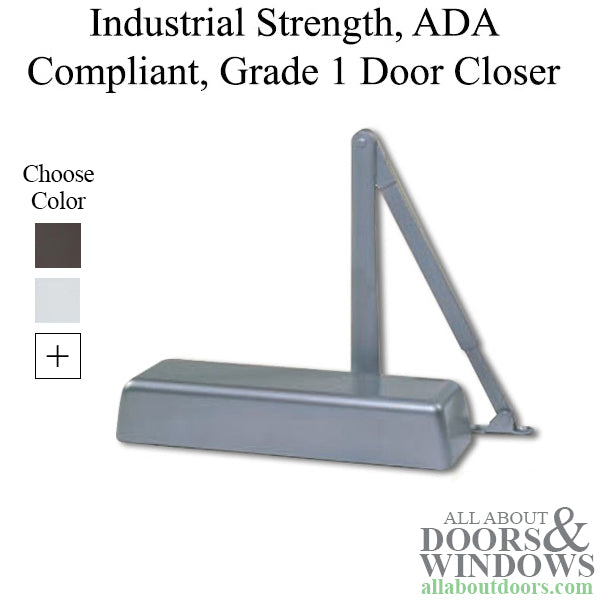

This is a grade one, triple valve, industrial strength heavy duty commercial door closer with a regular arm and an aluminum alloy shell.
This model is ideal for use on heavy duty commercial, architectural and institutional applications.
It features a non-hold open arm that is UL listed for \''A\'' label fire doors.
Includes:
1 Closer Body with regular arm with a full cover.
All necessary hardware for regular or top jamb installation.
NOTE: All other accessories are sold separately.
Measurements:
CTC Hole Pattern Length: 1\'' x 3\'' x 1\''
CTC Hole Pattern Width: 2-1/4\''
Maximum Door Size: 60\'' Interior / 48\'' Exterior
Adjustable Spring Size: 1-6
Available Finishes:
Aluminum
Bronze
Related Accessories:
Drop Plate, narrow transom bars - 381066
Drop Plate, pull side, mounted on door - 381067
Drop Plate, top jamb mounting - 381068
Drop Plate, parallel arm - 381069
Parallel Arm Bracket - 381065
Thru Bolts - 381030
