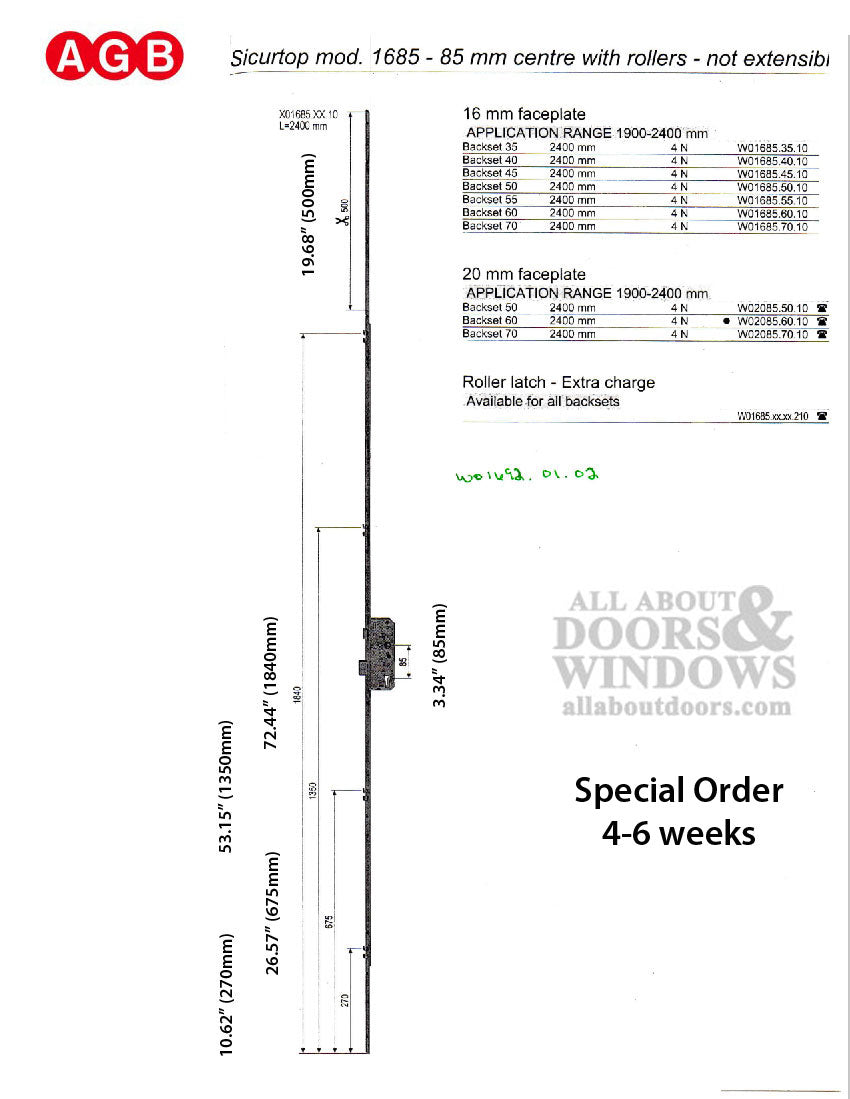

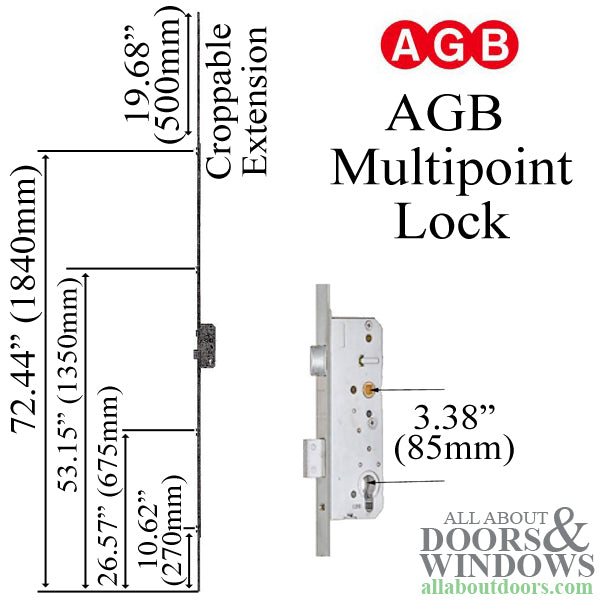

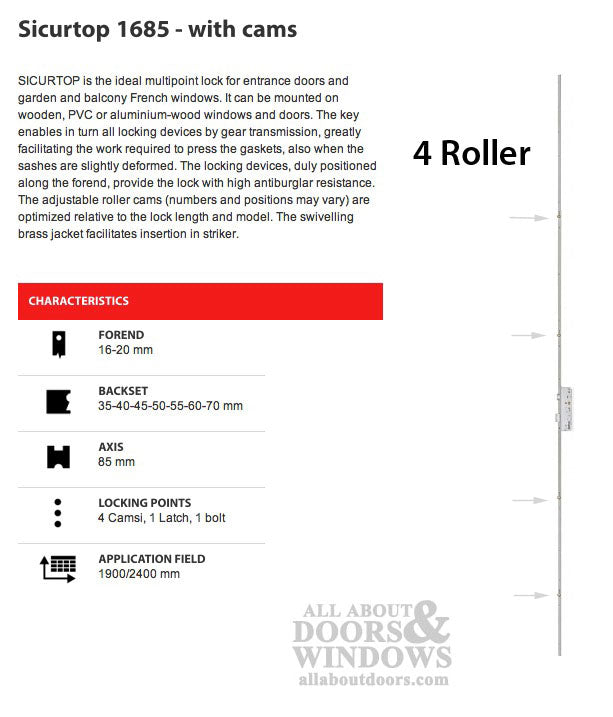

AGB Manual version Multipoint Lock with 4 roller cams

Type: 4 Roller with Deadbolt
Backset: 2-3/16 inch ( 55mm)
Deadbolt Throw: 13/16 inch ( 20mm)
Faceplate Width: 5/8 (16mm)
Faceplate Length: 93 inches (2362mm)
Markings on face: AGB ( in circles)
Handle Height:

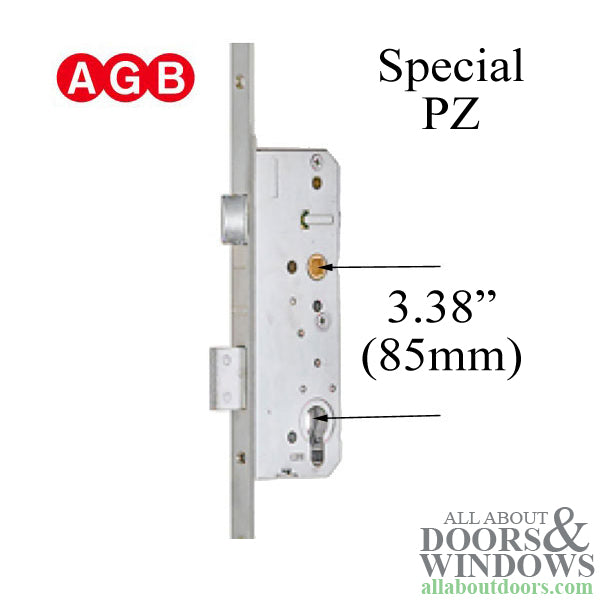

Handle PZ: 3-3/8 inch (85mm) Center of spindle to center of thumbturn

Existing roller placement: from spindle center-line. ( locked or unlocked ?)
Top Rollers: 12" and 31" up
Bottom Rollers: 14-3/4" and 31" down

Cylinder: Euro - - engaged by repeatedly turning the key or thumbturn through several full turns, each turn extending the deadbolt and rollers further, to a max of 3/4"
This type of lock requires a 360 degree euro cylinder

NON-STOCK, Special Order 8-10 weeks from Europe
