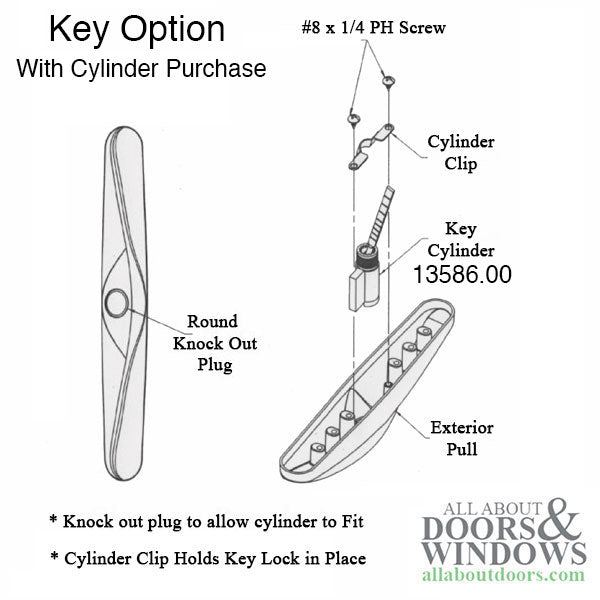

Amesbury Truth Allure sliding patio door handle set with Exterior Pull that can be used as Non-Keyed or the Plug can be knocked out and key cylinder installed. ( key cylinder 13586.00)
Used by Weather Shield on their Visions Vinyl Patio Sliding Door.
Fits: Silverline, American Craftsman and other 1-1/4 to 1-3/4 thick sliding patio glass doors
Note: If knocking out cylinder plug, this only works with the key lock centered in handle, will NOT work for off centered key locks
Door Thickness: 1-1/4 to 1-3/4 inch, will fit other thickness with different screws
Installation Screw Length: 3 set of Screws: 2 - 1-3/4", 2-1/16", 2- 2-1/2"

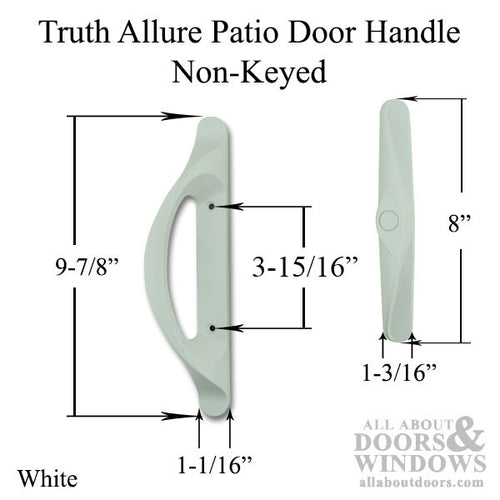

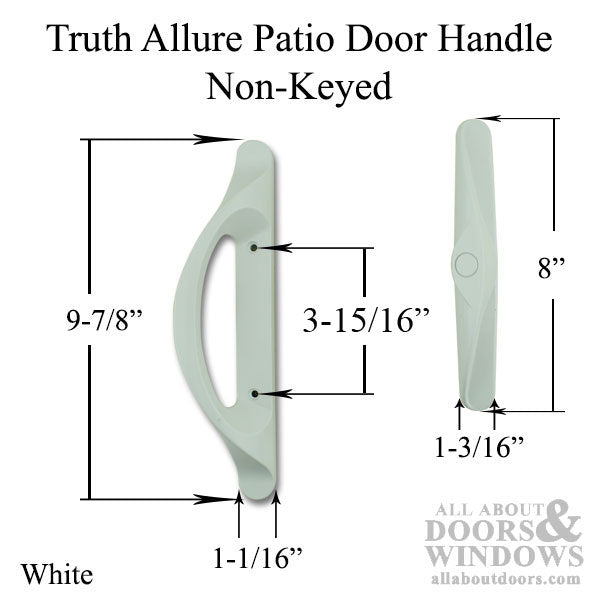

Screw Hole Spacing: 3-15/16
Escutcheon Plate Thickness: 7/16 inch
Handed: No, Fits Left or Right hand doors
Thumb Latch: fits under handle and works with offset or centered thumb

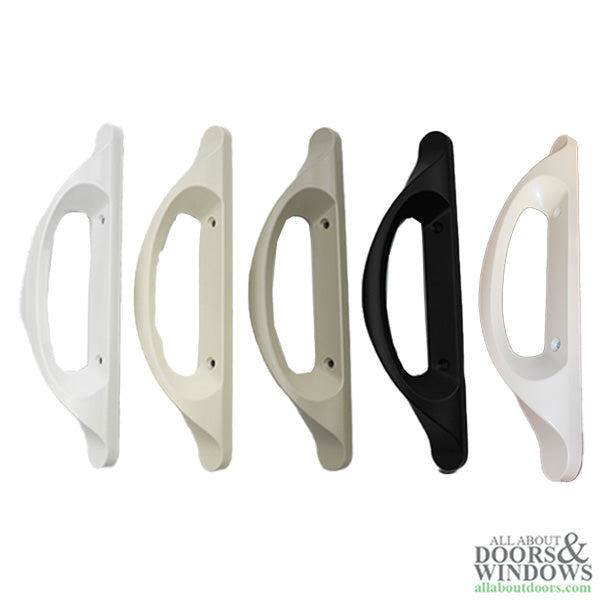

Color: Split Finish - White Inside, Black outside

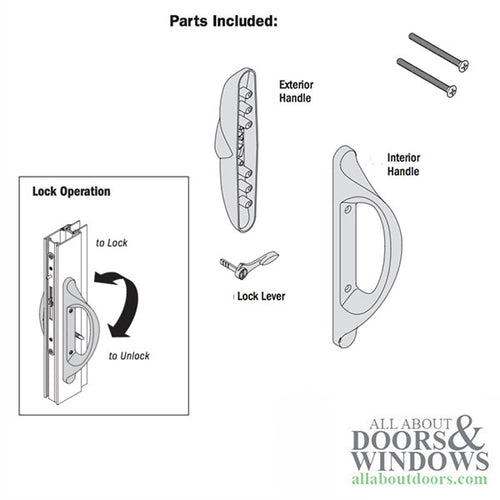

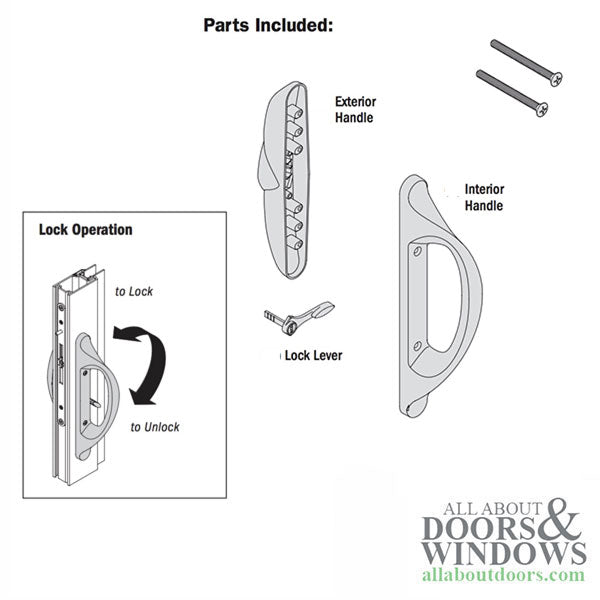

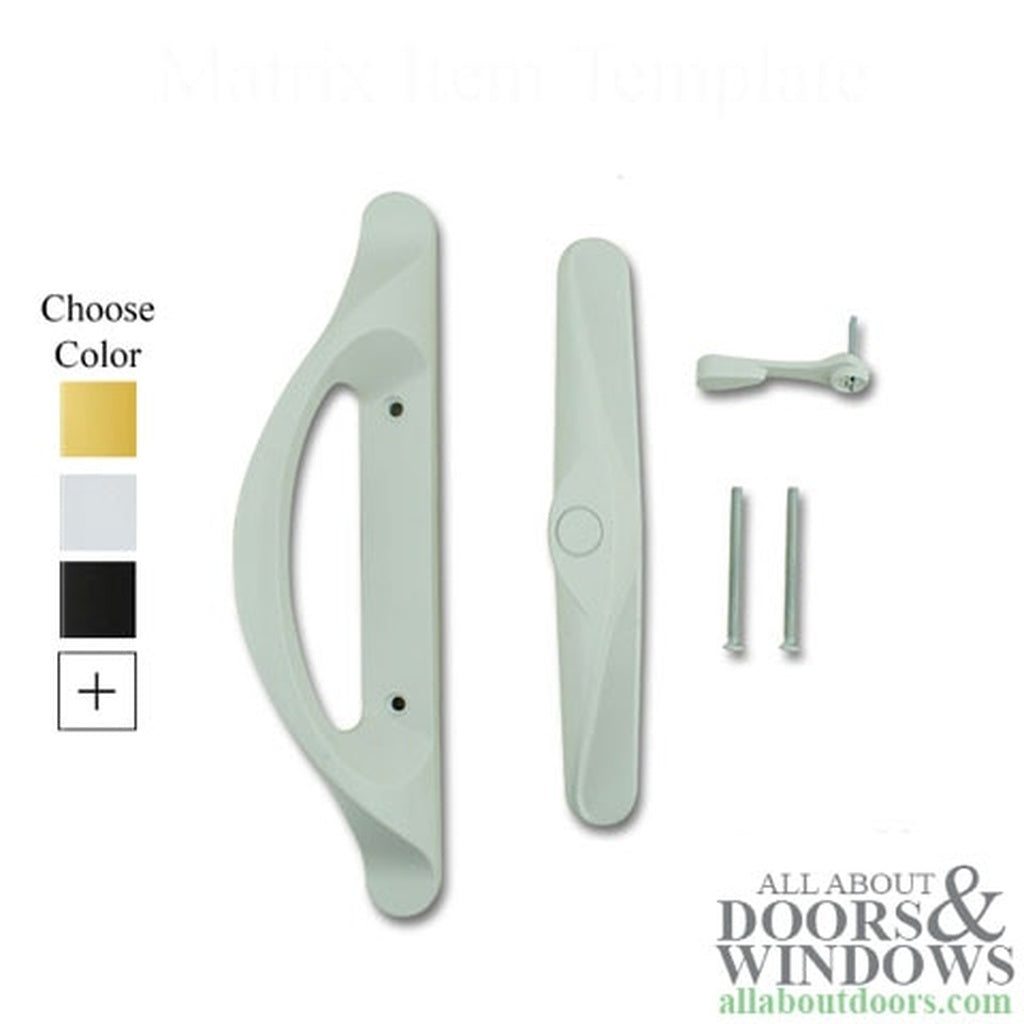

Includes: Inside/ Outside pulls, thumb latch and two installation screws
NOTE: Price is limited to existing inventory
The Allure Series can be used on inactive configurations for OX or XO patio doors.
The low profile handle helps to minimize interference with screens and other door treatments such as curtains and blinds.
This unique non-handed handle design adapts to stile thicknesses ranging from 1.25" - 2.25"
The narrow 1" escutcheon adapts nicely to any size door stile and the extended bosses on the inside and outside of the escutcheon enhances the stability of the entire system.
