Amesbury Truth Signature Series Handle Set with Arch Top for Sliding Patio Doors
Use the arrows or swipe left to view all images for this product
Amesbury Truth Signature Series Handle Set with Arch Top for Sliding Patio Doors
Part Number: $99.99

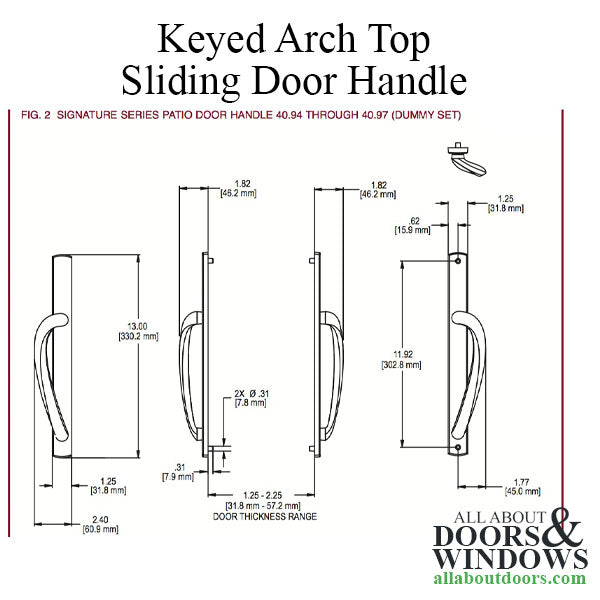

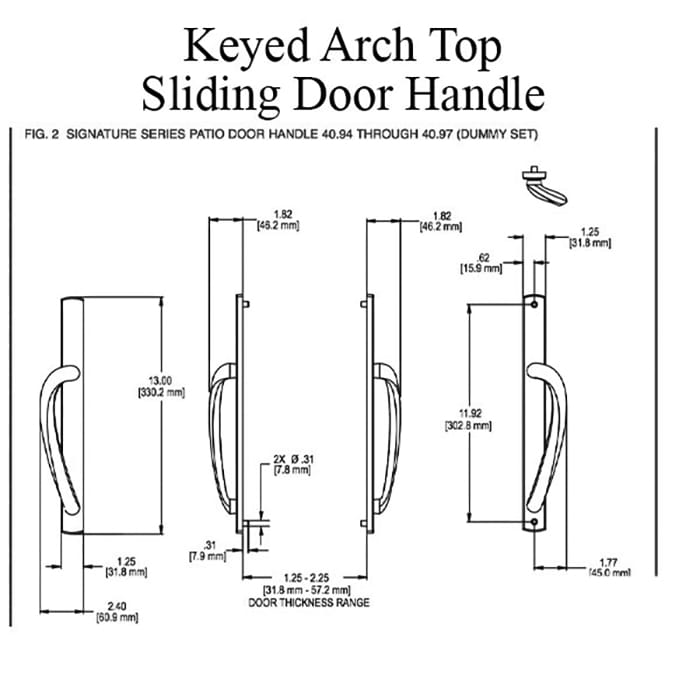

Amesbury Truth 40.95 Signature Series Sliding Patio Door Handle, Arch Top Escutcheon Plate
Escutcheon Plate Width: 1-1/4 inch (31.8mm) 1.25
Escutcheon Plate Length: 13 inches (330.2mm) 13.00
Screw Hole Spacing: 11-15/16 inch ( 302.8mm) 11.92
Thumb Turn: 2 inches (50mm) 1.97 Down from top Screw hole
Mounting Screws: 2 x #8x32 Phillips Oval Head Machine

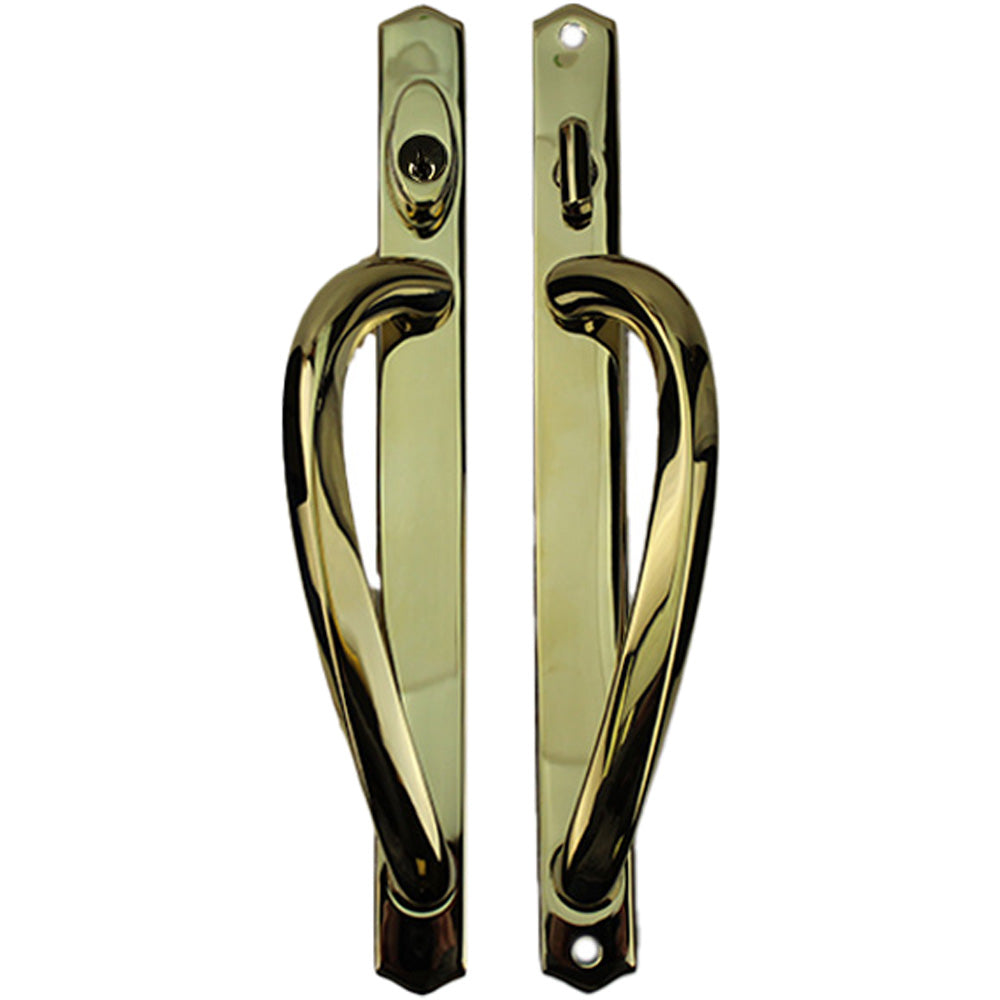

Color/Finish: Polished Brass US3
Amesbury Truth 40.95 Signature series sliding patio door handle with arch top escutcheon plate.
Escutcheon Plate Width: 1-1/4 inch (31.8mm) 1.25
Escutcheon Plate Length: 13 inches (330.2mm) 13.00
Screw Hole Spacing: 11-15/16 inch ( 302.8mm) 11.92
Thumb Turn: 2 inches (50mm) 1.97 Down from top Screw hole
Mounting Screws: 2 x #8x32 Phillips Oval Head Machine
Color / Finish: Polished Brass US3
