Anderberg 301SS Heavy Duty 4 Bar Window Hinge NO Stop Stainless Steel
Part Number: 301HD-NS-10 Price: $0.00 to $32.99Anderberg 301SS Heavy Duty Commercial 4 Bar Casement Window Hinge
NOTE: This hinge is designed for casement windows only.

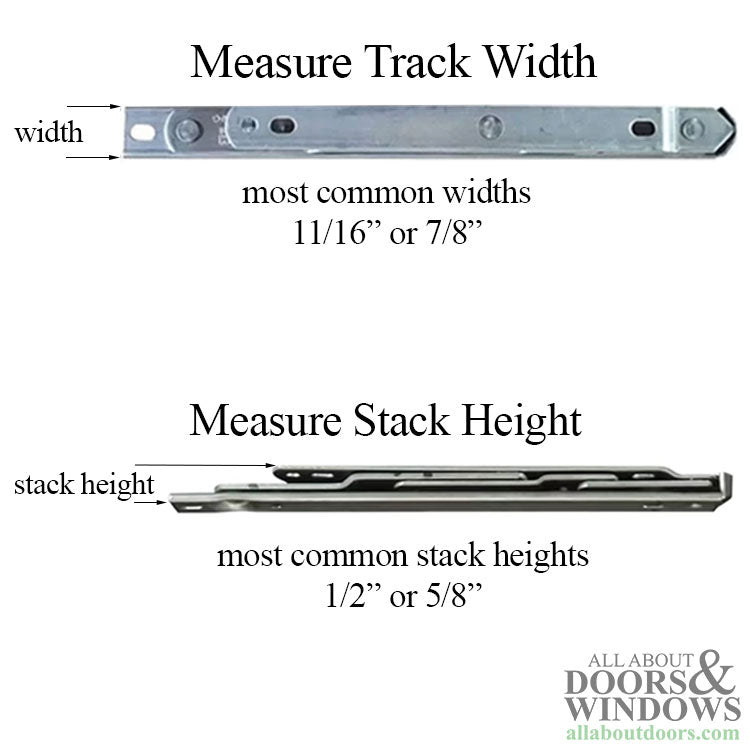

IMPORTANT MEASUREMENTS (when replacing your old hinge)
Track Width: 7/8" (0.875)
Track Stack Height: 5/8" (0.625)

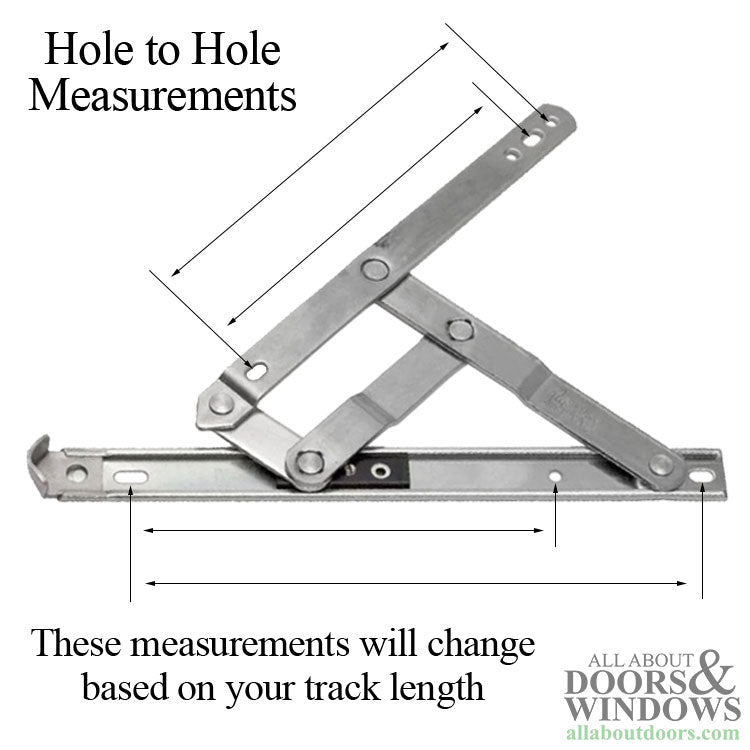

See additional images for how to measure these features of your hinge.
If your measurements do not match these then you may need a different hinge. (see related items below)
Track Width: 7/8" (0.875)
Track Stack Height: 5/8" (0.625)

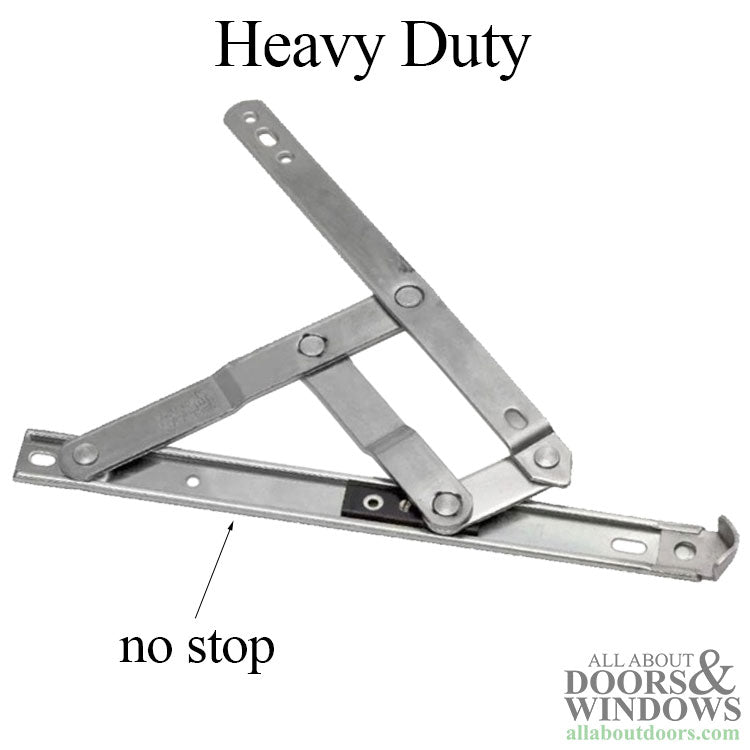

Stop: NO (designed for casement windows only)
Handing: Left or Right Hand (reversible)
Shim: None (not included) If you need a shim for your replacement please contact our office for ordering information.
NOTE: These hinges are priced and sold each.
When replacing hinges it is best practice to replace them in pairs.

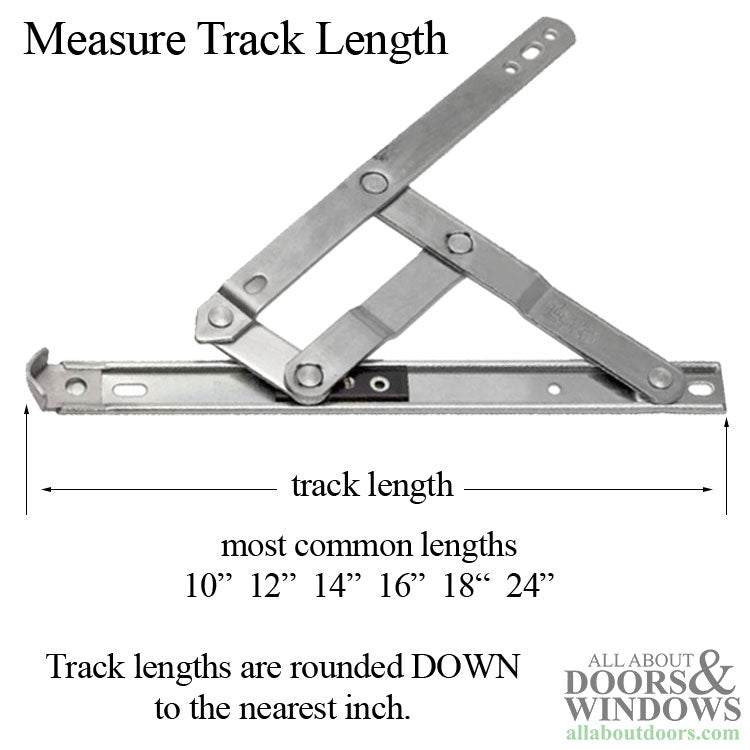

Available Track Lengths: (rounded DOWN nearest to one of the following lengths)
10"
12"
14"
16"
18"
24"
IMPORTANT NOTE (new construction projects)
Use the following chart to account for Window Weight and Width
10" Track Length - Supports up to 100 lbs at a width of 36"
12" Track Length - Supports up to 100 lbs at a width of 36"
14" Track Length - Supports up to 100 lbs at a width of 36"
16" Track Length - Supports up to 100 lbs at a width of 36"
18" Track Length - Supports up to 100 lbs at a width of 36"
24" Track Length - Supports up to 100 lbs at a width of 36"
