Anderberg 334SS 4 Bar Heavy Duty Casement Window Egress Hinge with Washability feature and 90A degrees Stop
NOTE: This hinge is designed for casement windows only

IMPORTANT MEASUREMENTS (when replacing your old hinge)
Track Width: 7/8" (0.875)
Track Stack Height: 5/8" (0.625)

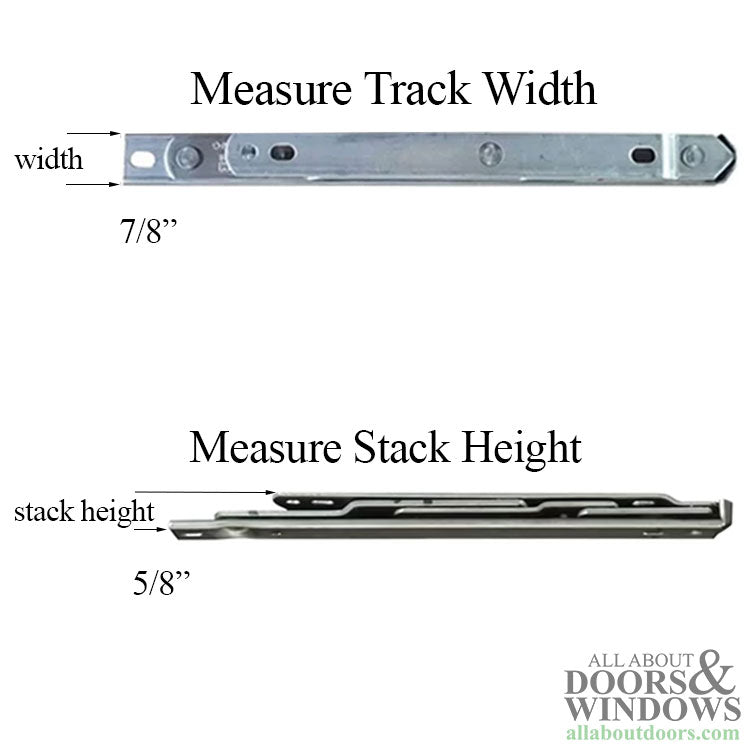

See additional images for how to measure these features of your hinge.
If your measurements do not match these then you may need a different hinge. (see related items below)

Track Width: 7/8" (0.875)
Track Stack Height: 5/8" (0.625)
Track Length: 16-1/8"
Call Size: 16"
Max Weight Support: 158 pounds
Stop: Yes (stops the window from opening too far to insure proper weight support)
Washability: Allows the window to be rotated to the side, providing access to the exterior for cleaning without needing to stand outside.
Handing: Left or Right Hand (reversible)
Shim: None (not included) If you need a shim for your replacement please contact our office for ordering information.

NOTE: These hinges are priced and sold each.
When replacing hinges it is best practice to replace them in pairs.
