Anderberg 401SS Standard Duty 4 Bar Casement Window Hinge

IMPORTANT MEASUREMENTS (when replacing your old hinge)
Track Width: 11/16" (0.687)
Track Stack Height: 1/2" (0.5)
See additional images for how to measure these features of your hinge.
If your measurements do not match these then you may need a different hinge. (see related items below)

Track Width: 11/16" (0.687)
Track Stack Height: 1/2" (0.5)
Hinge Length: 12-3/8" (12.375)
Call Size: 12"
Max Weight Limit: 120 pounds

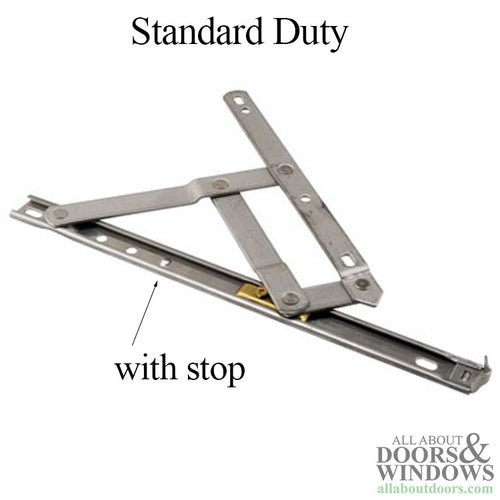

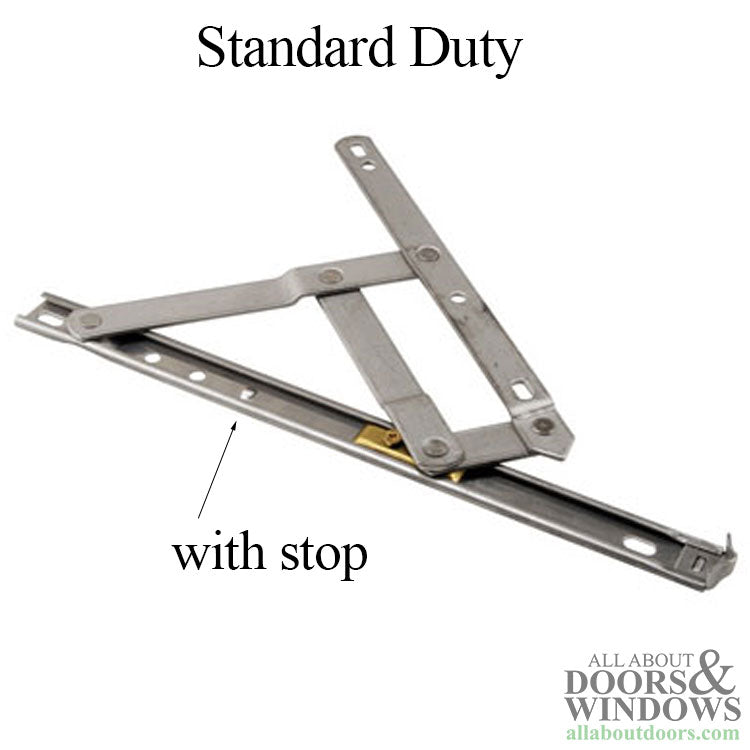

Stop: Yes 90° (stops the window from opening too far to insure proper weight support)
Handing: Left or Right Hand (reversible)
Shim: None (not included) If you need a shim for your replacement please contact our office for ordering information.

Important Note:
The 201SS and the 401SS are very similar. Please double check all measurements.

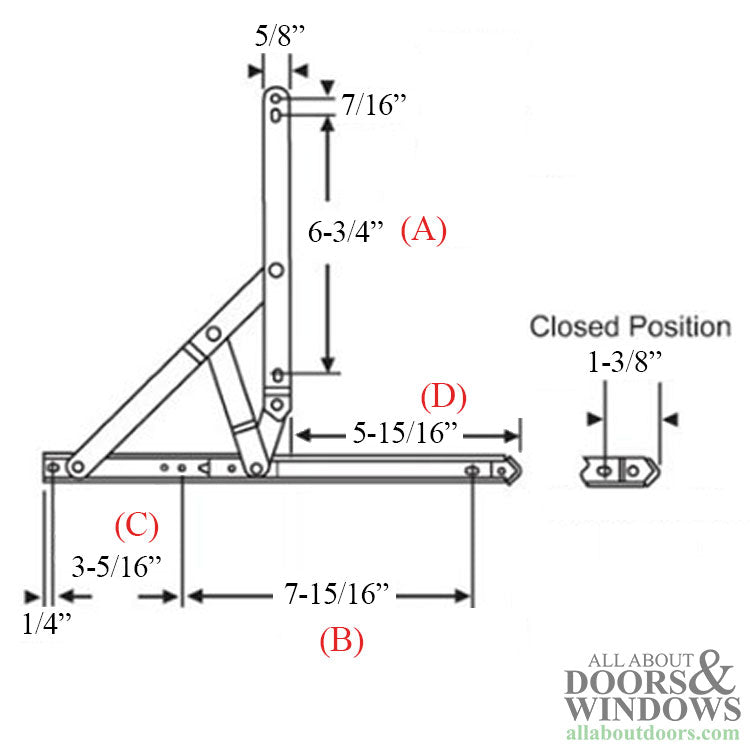

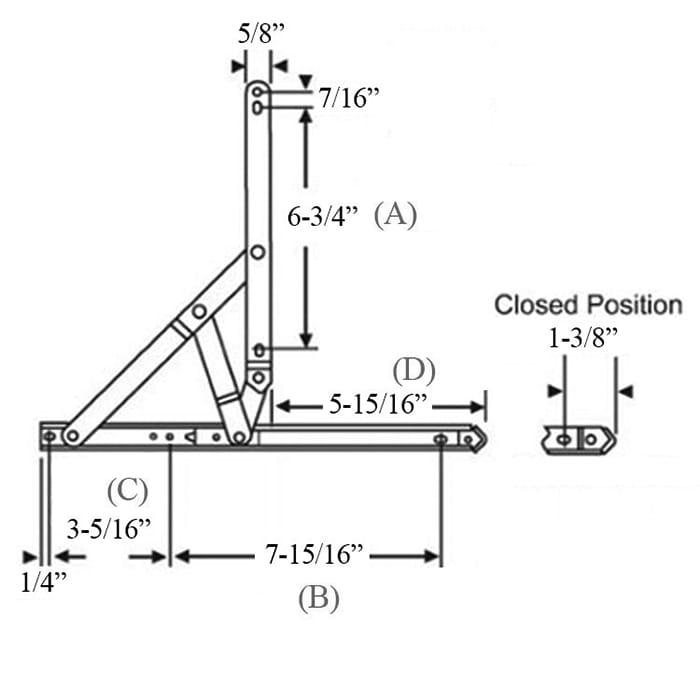

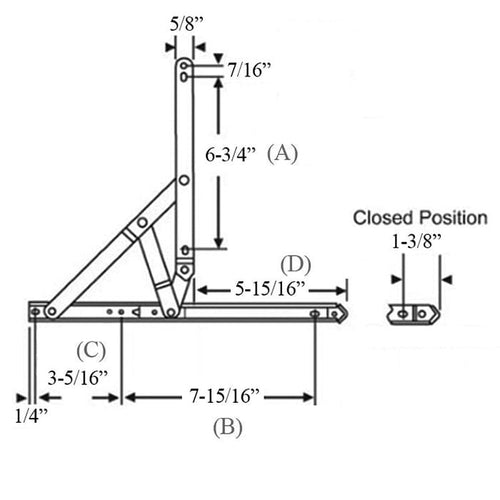

Measurements (see additional images):
A : 6-3/4 inch
B : 7-15/32 inch
C : 3-5/16 inch
D : 5-15/16 inch

NOTE: These hinges are priced and sold each.
When replacing hinges it is best practice to replace them in pairs.

Priced and sold each.
