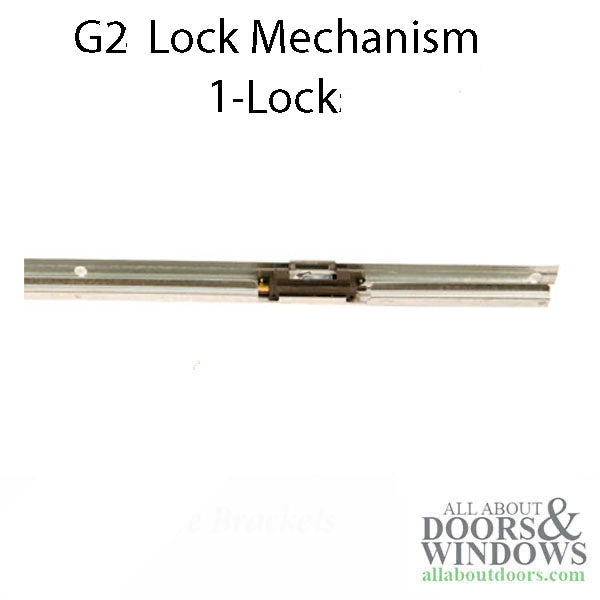

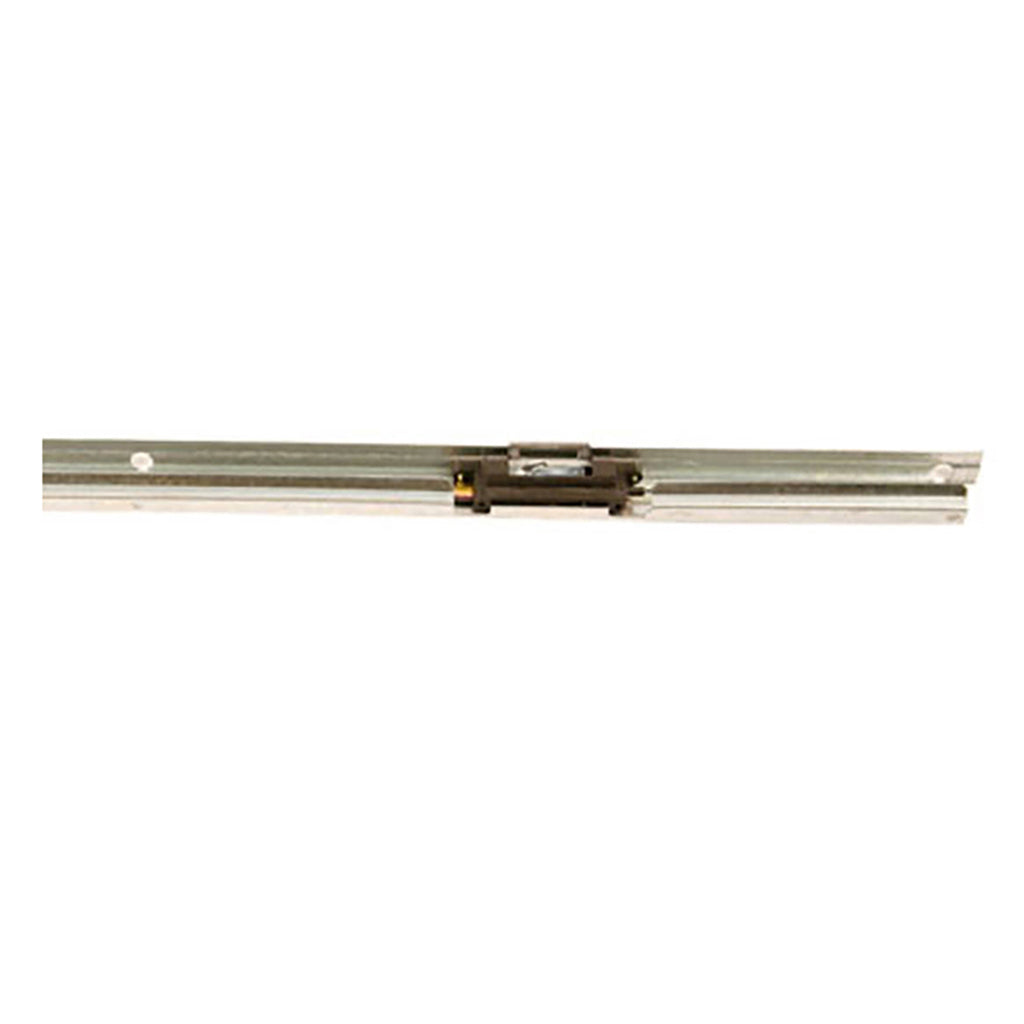

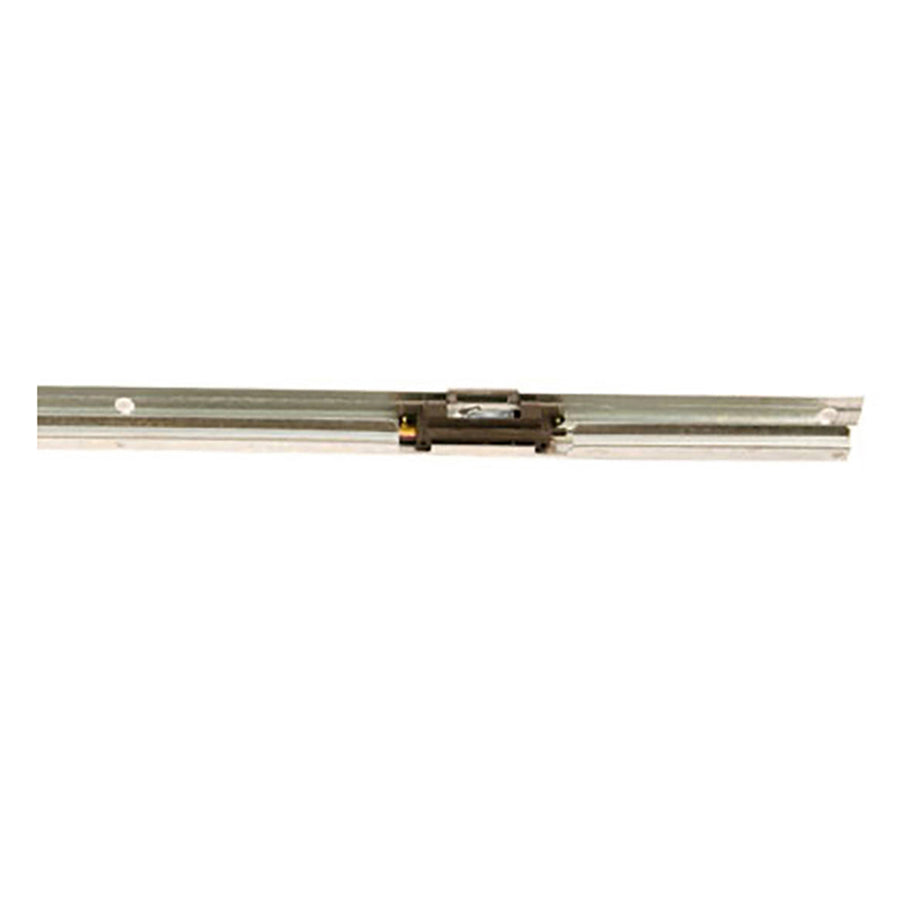

Andersen G2 Lock Mechanism 400 Series for Active Gliding Windows

G2 Lock mechanism for Andersen 400 series gliding window 1991-Present
Works With: 400 Series G2 2-panel sliding window with 1 Lock

G2 Sash Height: 17-25/32 inch
Exposed Glass Height: 14-1/8 inch
Actual Glass Height: 15-3/8 inch

Lock Mechanism & Related Parts

Part # Unit Locks Length
1767930 G2 1 15-3/4"
1767932 G3 2 28-3/4"
1767934 G36 3 34-3/4"
1767936 G4 3 40-3/4"
1767938 G5 3 52-3/4"

1781802 - Top Head Guide
1781804 - Bottom Sill Guide
1768604 - Strike Plate
1767940 - Lock, Center - Used as lower lock on G3 and only lock on a G2.
1767941 - Lock, Upper / Lower
