Andersen 2000 Series Storm Door Hardware, Classical Design, Choose Color

Part Number:306005 Price: $98.44 to $112.50
COLOR: - Brushed Satin Nickel

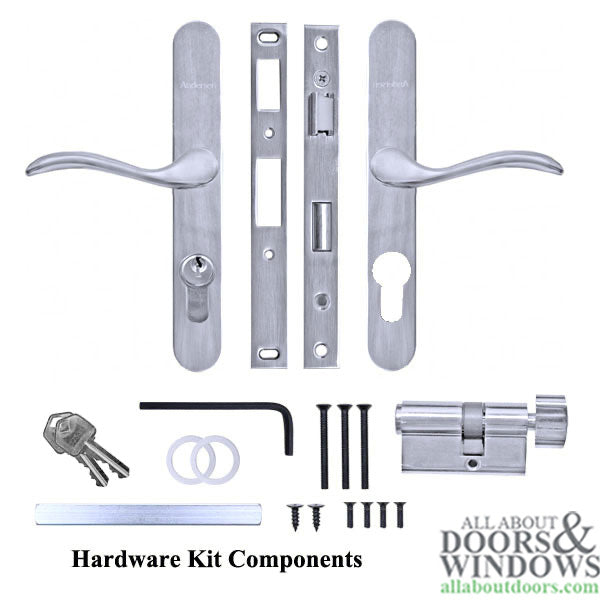

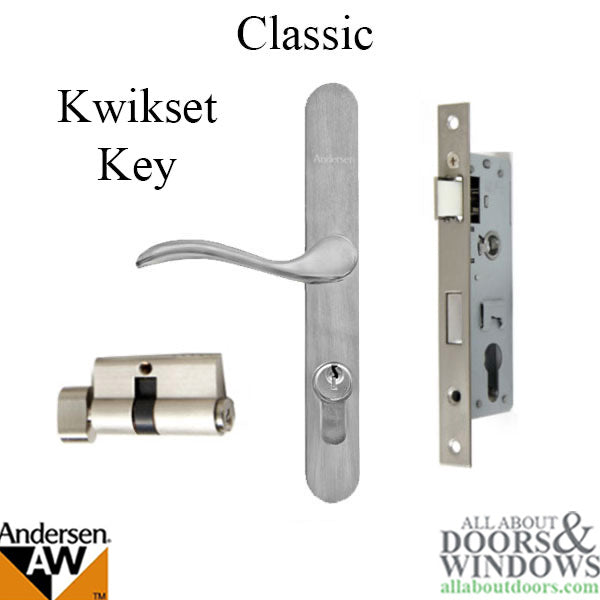

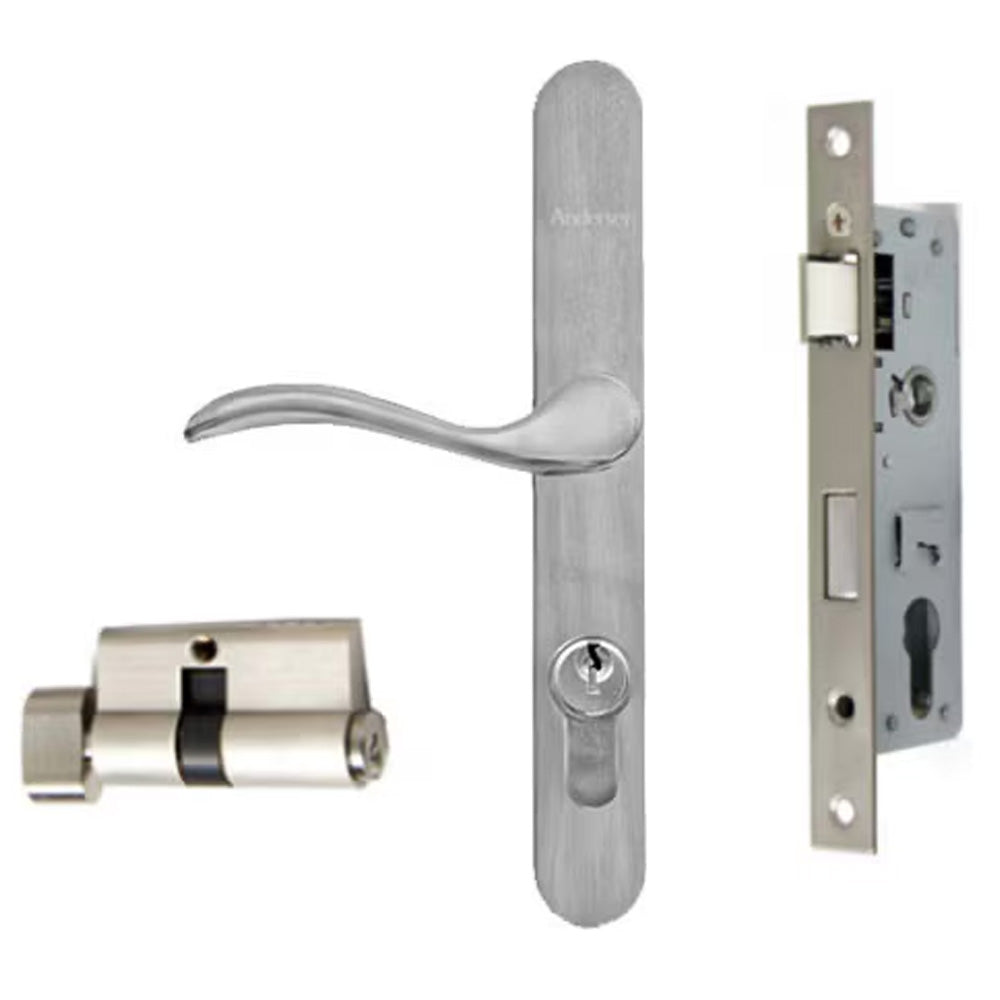

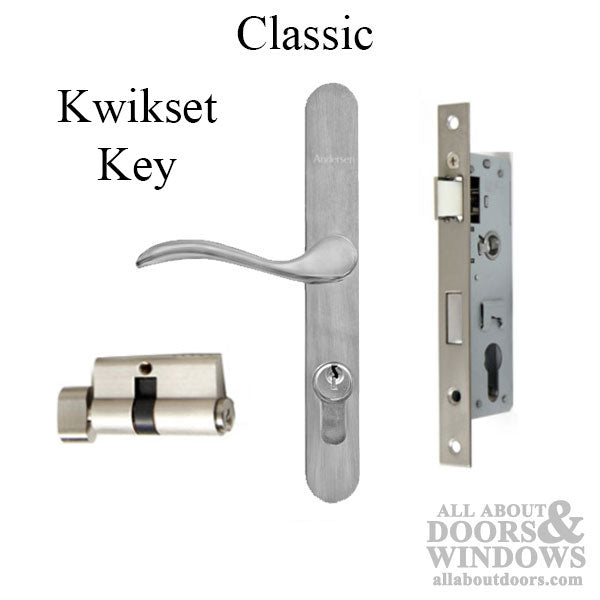

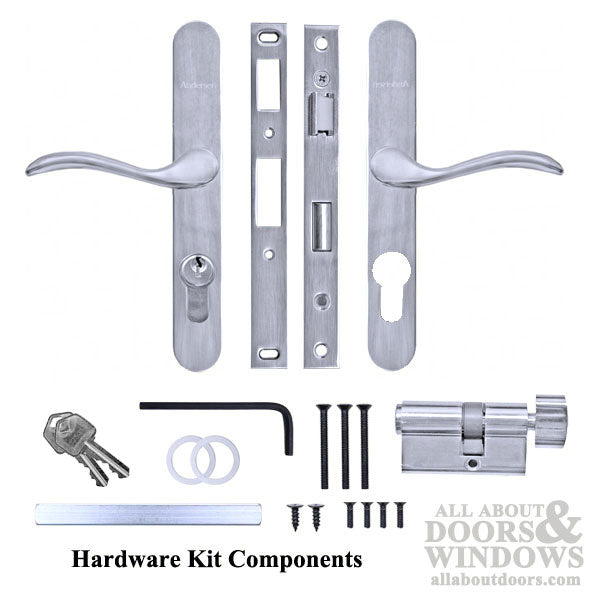

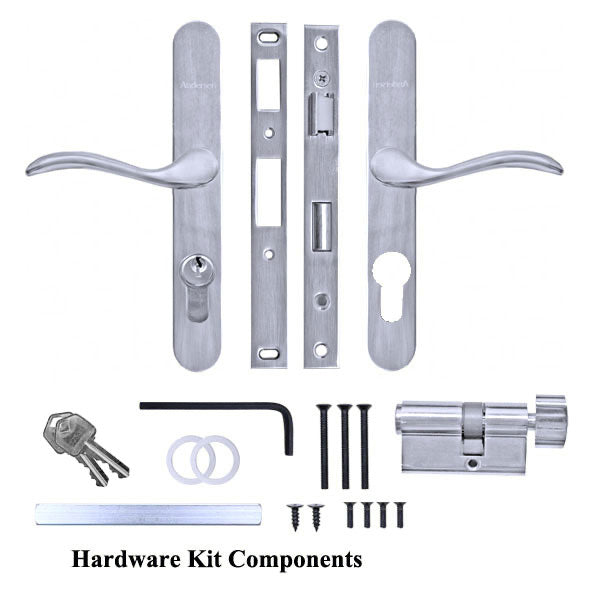

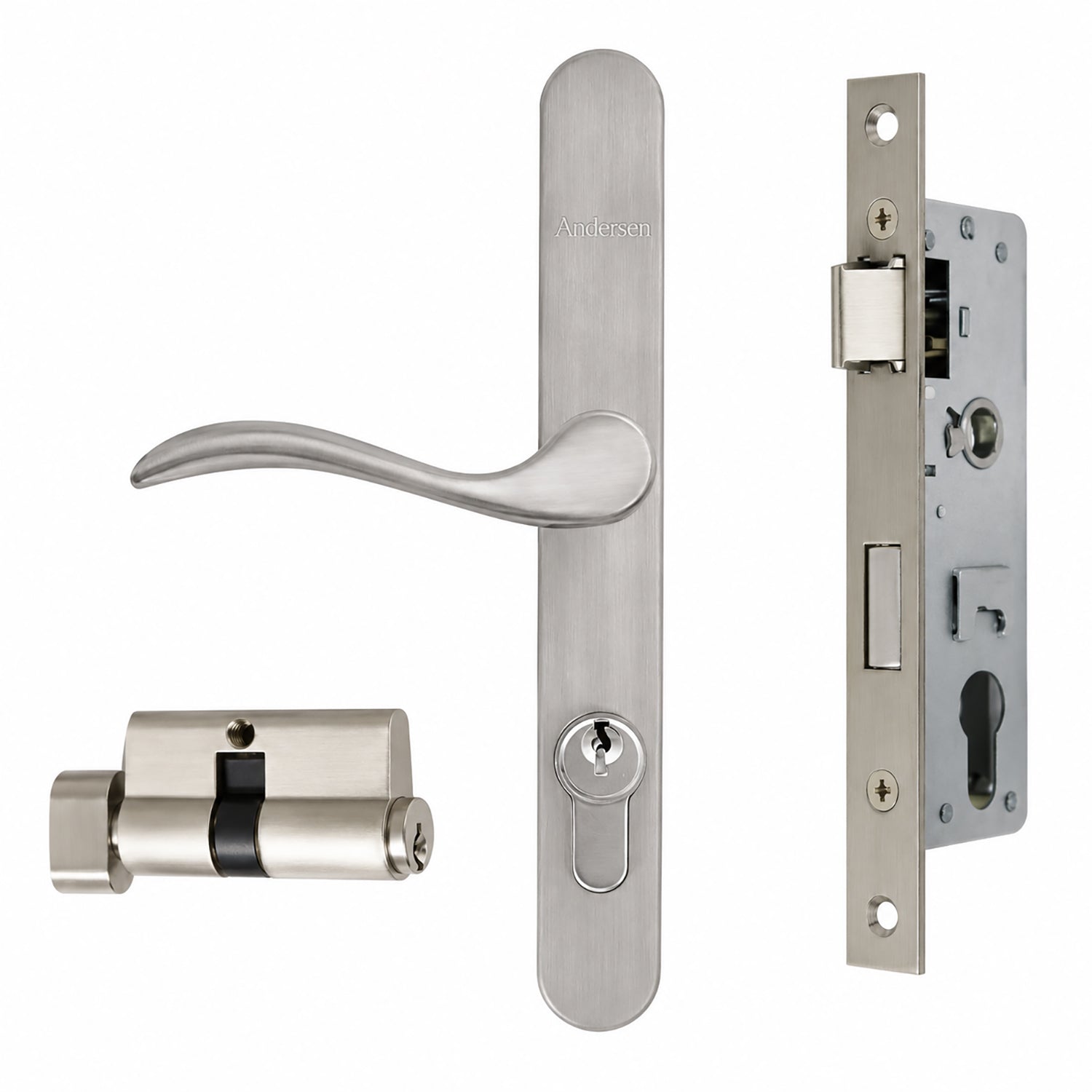

Andersen Classic Storm Door Handleset with 1 inch backset Mortise Lock and off center cylinder
Used on Andersen 2000 Series storm doors with mortise lock.
Euro-Style Profile cylinder: off-center installation screw
Cylinder Type: Euro Profile

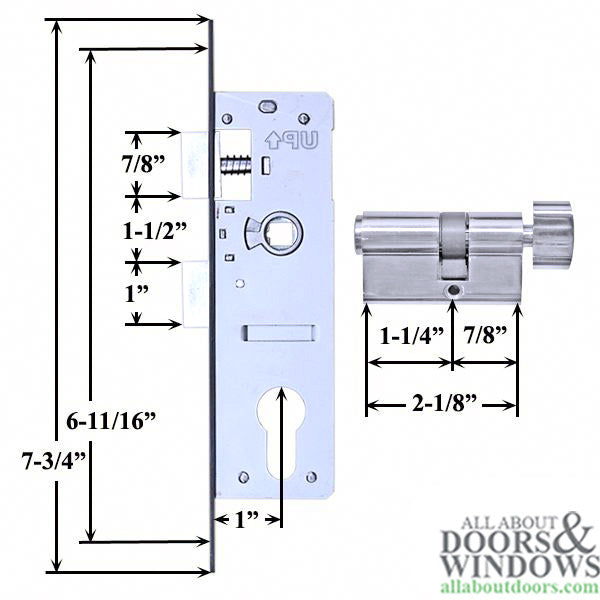

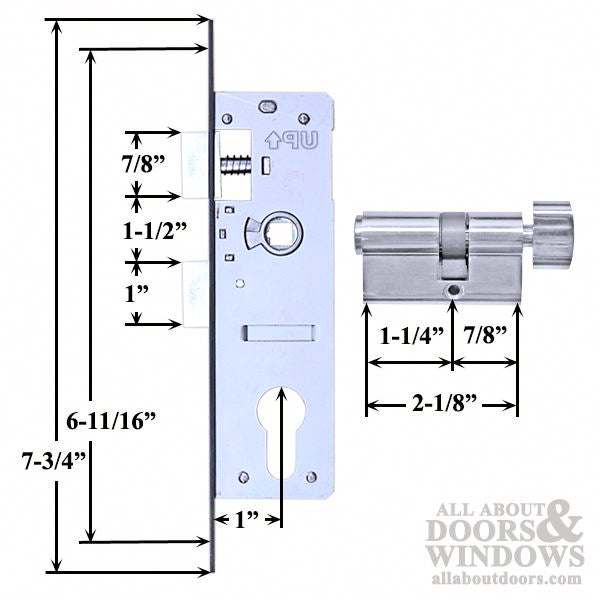

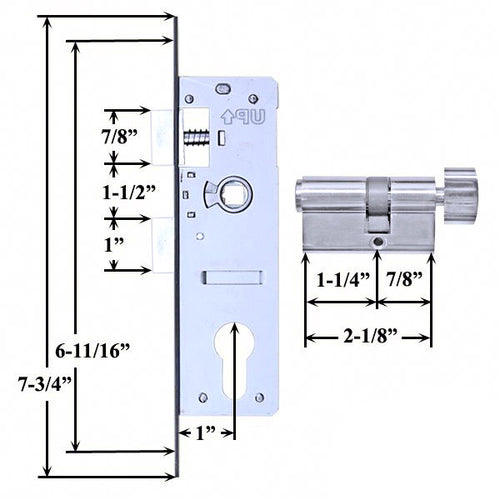

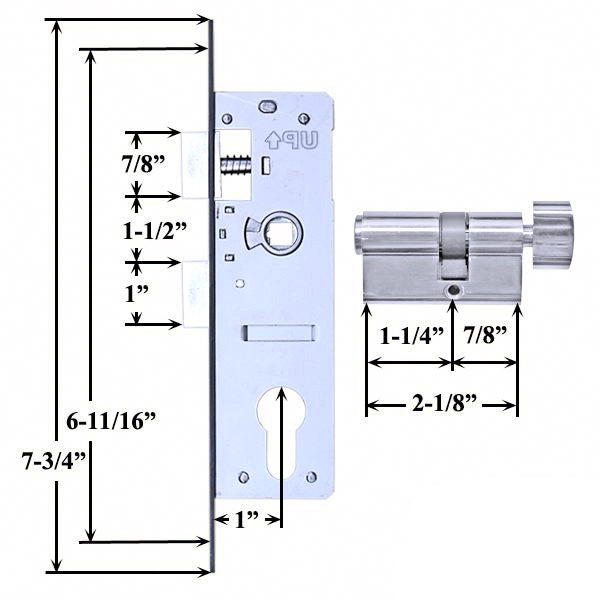

Measurements:
Lock Backset: 1 inch. Mortise lock body (standard is 7/8 inch)
Trim plate mounting screw holes: spaced 6-11/16 inch
Door Thickness: 1-1/4 inch

Overall Cylinder Length: 2-1/8 inch (55mm)
Key Cylinder Inside Measurement: 1-1/4 inch (32mm) to screw hole
Key Cylinder Outside Measurement: 7/8 inch (22mm)
Keyway: Kwikset, 5 pin, KW1
Optional Schlage Cylinder # 302055

Handle Style: Classic
Handle Diameter Hole: 9/16 inch (standard 5/8)
Handle Spindle: 5/16 inch square, 3-1/4 inch length
Color / Finish: Satin Nickel, Polished Brass

SPECIAL NOTE ABOUT SCRATCHES:
These Peachtree Handle Sets are shipped in clear blister pack which can put minor rub marks on the surface.
Some shipping carriers do not handle packages with care, Minor scratches or blemishes that occur in shipping are not defects.

PLEASE NOTE - This Lock will work only on doors with these measurements,
Style might be different than current lock.
Old Style had a round hole for outside plate. (discontinued)
To reverse the handing of the Mortise Lock, simply remove the Faceplate and rotate the Spring Latch 180 degrees, then reconnect the faceplate.

Andersen Classic Storm Door Handle Set&nbsp;<BR>

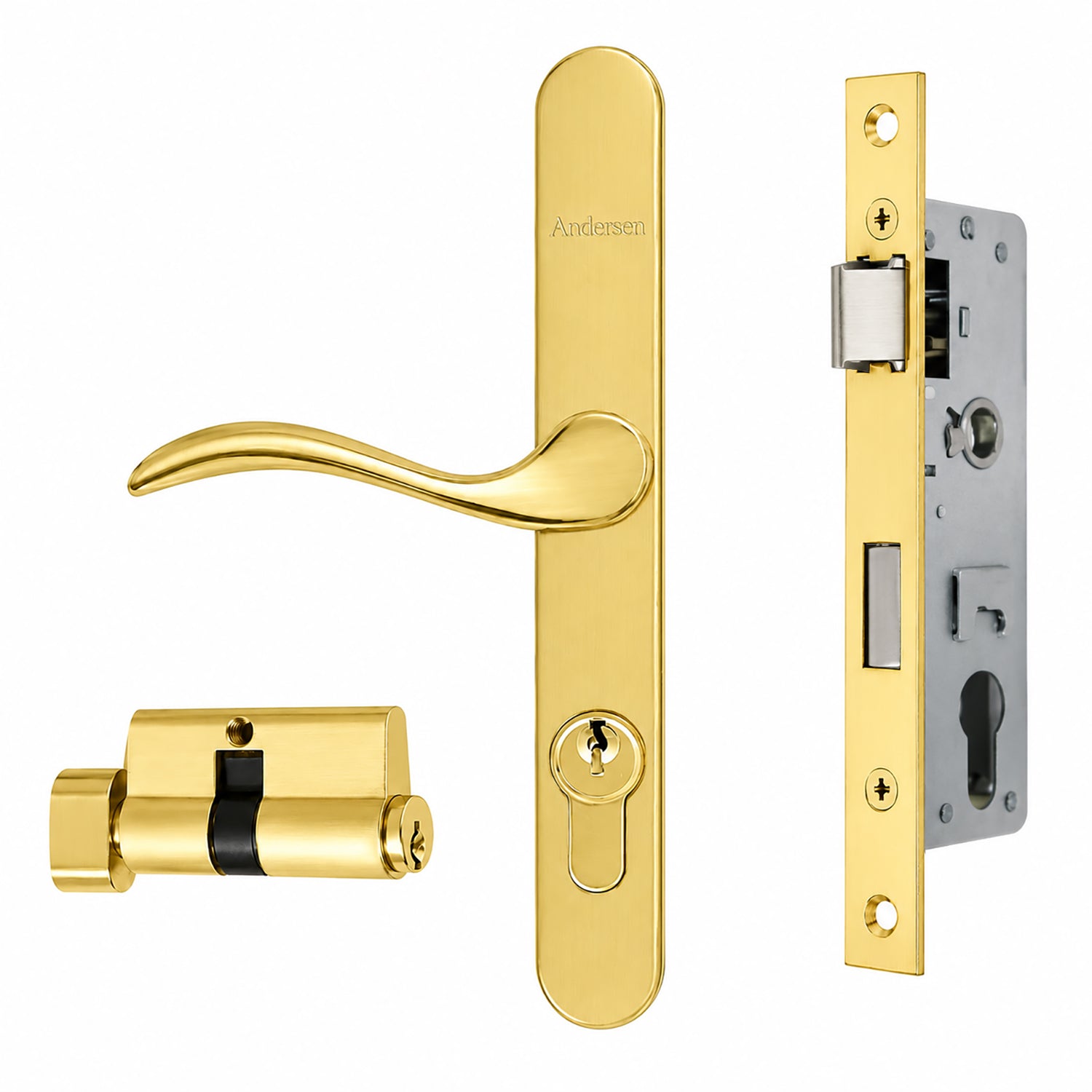

41597 - Polished Brass<BR>
41598 - Satin Nickel&nbsp;
