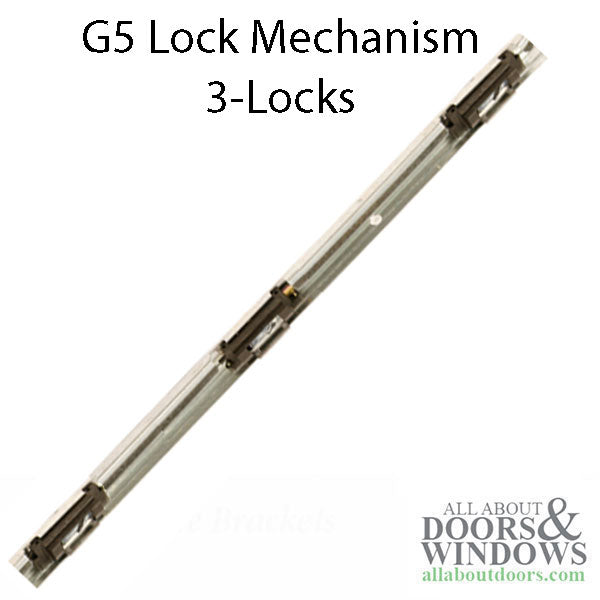

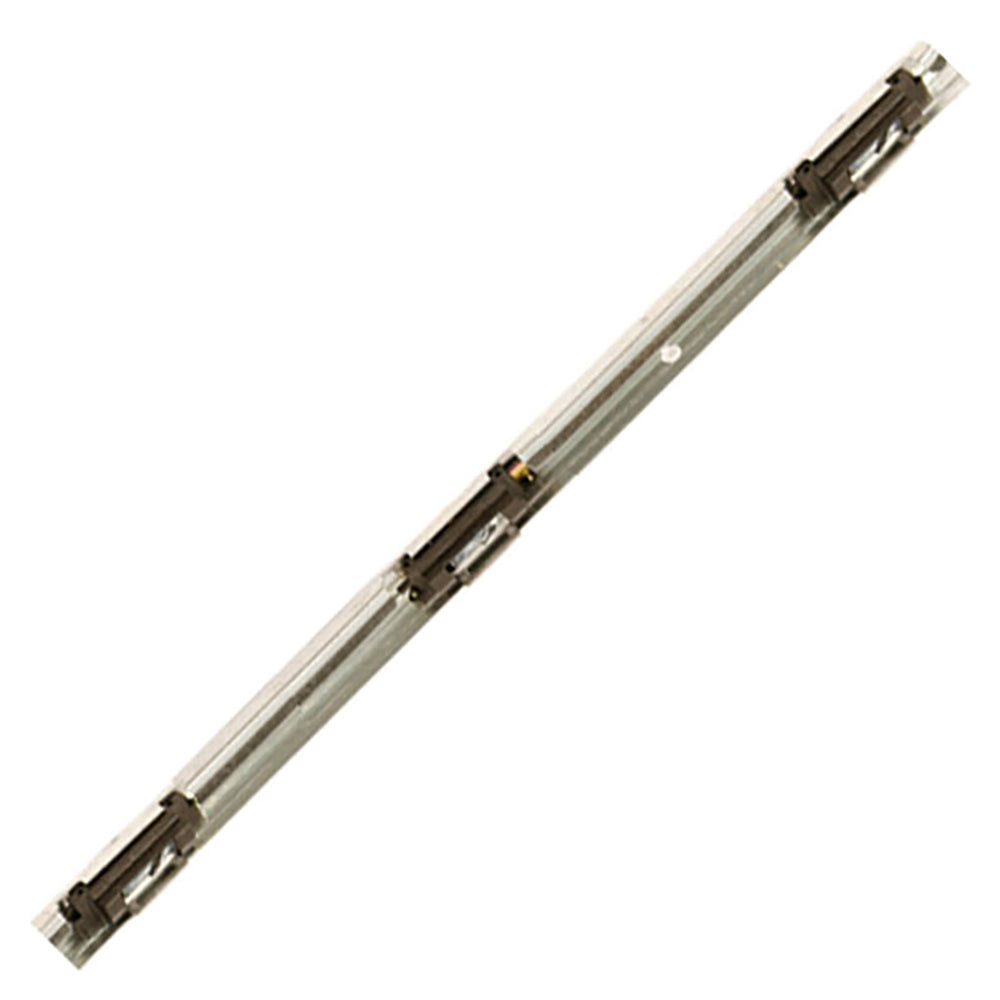

G5 Lock mechanism for Andersen 400 series gliding window 1991-Present
Works With: 400 Series G5 2-panel sliding window with 3 Locks
G5 Sash Height: 54-25/32 inch
Exposed Glass Height: 51-1/8 inch
Actual Glass Height: 52-3/8 inch
Lock Mechanism & Related Parts
Part # Unit Locks Length
1767930 G2 1 15-¾"
1767932 G3 2 28-¾"
1767934 G36 3 34-¾"
1767936 G4 3 40-¾"
1767938 G5 3 52-¾"
1781802 - Top Head Guide
1781804 - Bottom Sill Guide
1768604 - Strike Plate
1767940 - Lock, Center - Used as lower lock on G3 and only lock on a G2.
1767941 - Lock, Upper / Lower
