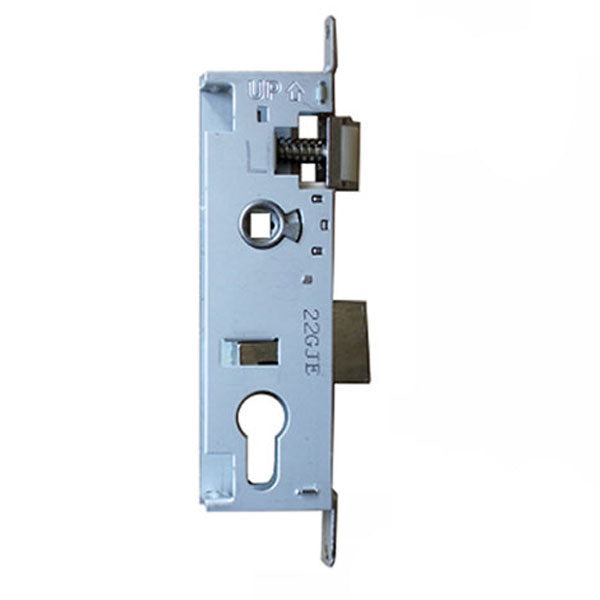

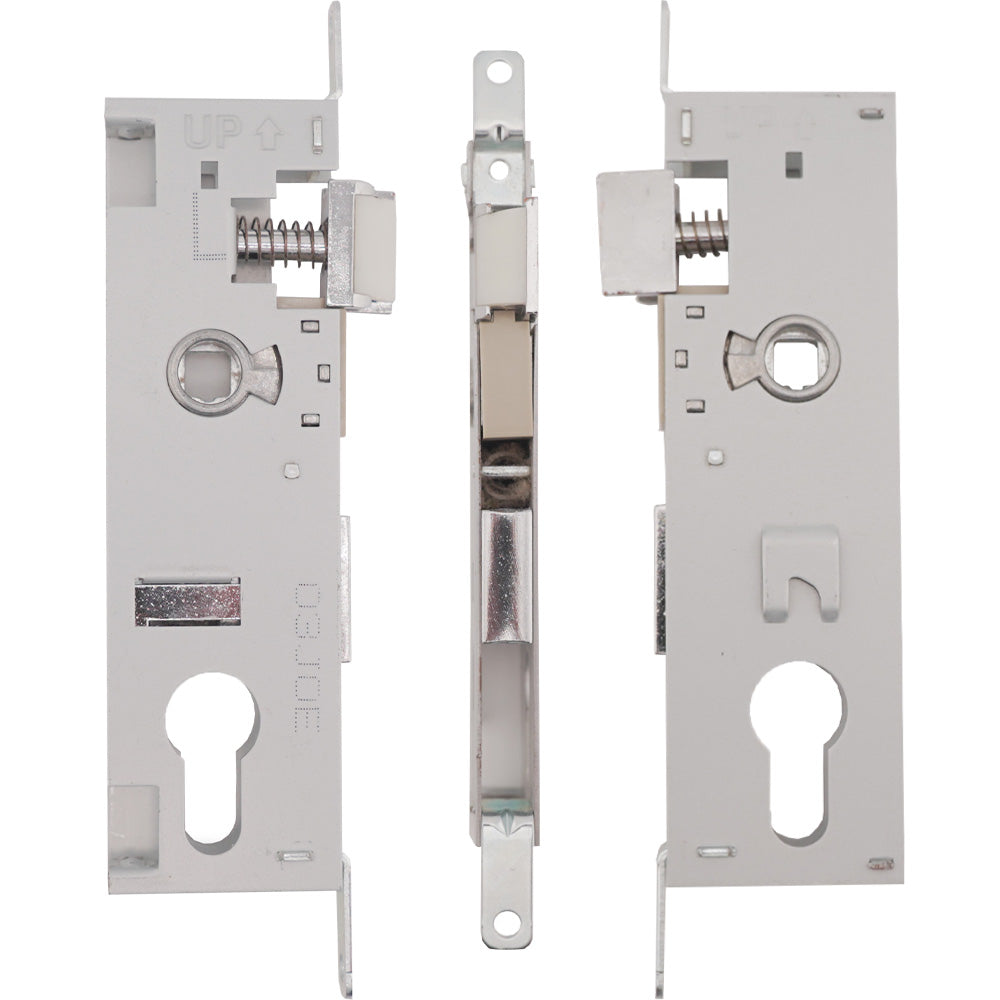

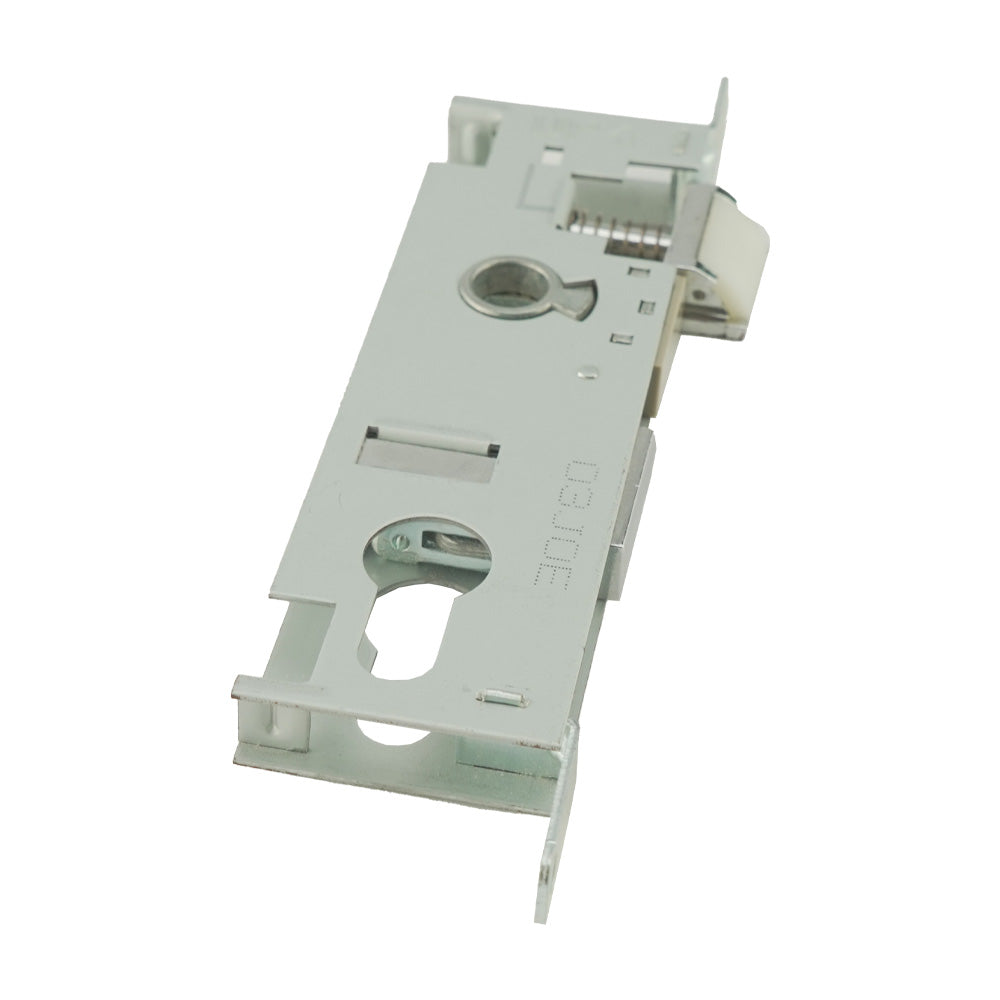

Andersen Storm Door Lock Case Lock Body Only Left Handed 3000 Series Lock
Part Number: $53.73Andersen 3000 Series Storm Door Lock Case, Body Only, No Faceplate, Left Hand
Special, NO faceplate, Andersen / Emco Replacement Mortise lock used with 3000 Series Full view Rapid 45 minute install storm door with clear or decorative glass The 3000 series storm door is a Full View Storm Door using retainer strips to hold the glass or screen in place or Self Storing Full view with roll up screen.
Specifications:
- Lock Series: 3000 Series Storm Door
- Handed: Left Hand
- Markings on Lock Case: Burgundy nylon guide below latch, L or R on metal
- Cylinder Type: Euro Profile
- Backset: 15/16 Inch
- Screw Hole Spacing: 7 Inches
- Deadbolt Throw: 7/16 Inch
- Cylinder to Handle PZ: 2-1/2 Inches
- Contents: Lock Case and Screws, No Faceplate
NOTE: Handing determined from Outside, by location of handle set: handle set on the right is Right Hand - handle set on the left is Left Hand

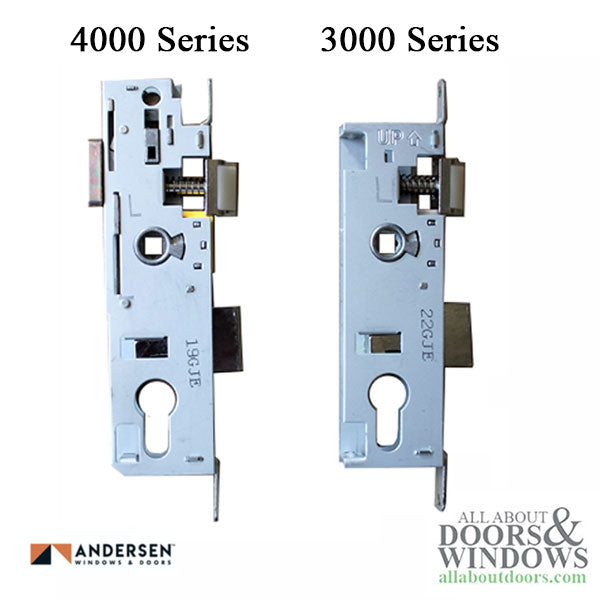

The primary difference between Andersen 3000 and Andersen 4000 storm doors is the glass-to-screen switching mechanism on the interchangeable models.
Andersen 4000 Series uses a premium, tool-free Quick Change System that swaps panels in under a minute via a handle lock
Andersen 3000 Series requires manually snapping plastic retainer strips in and out.
Both feature heavy-duty 1.5-inch aluminum frames.
