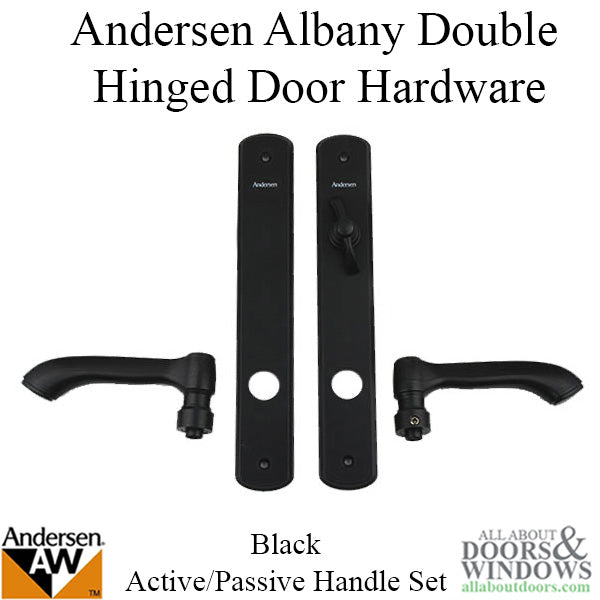

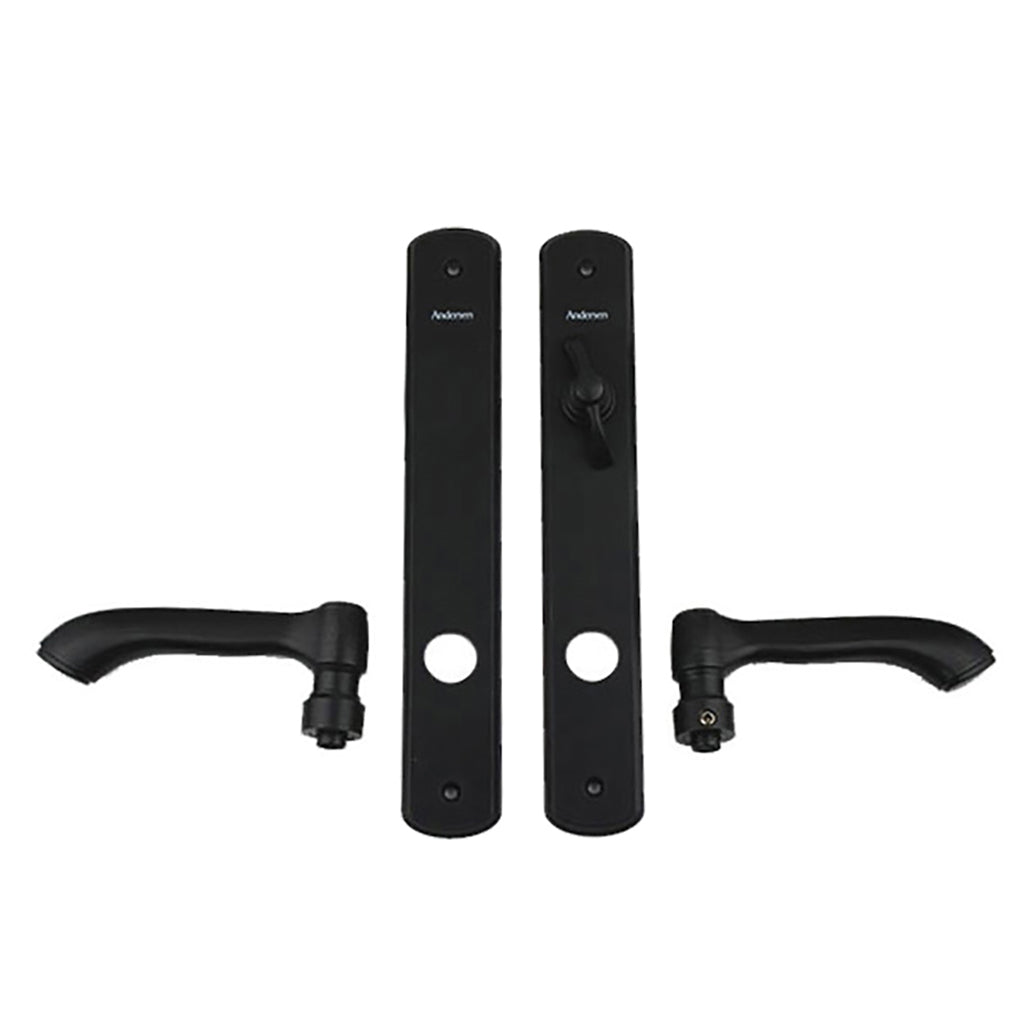

Andersen Albany Style Hinged Door Hardware
Double Active/Passive - Black
Works with 400 Series Frenchwood hinged (in-swing and out-swing) patio doors manufactured from 1988–present.
Andersen hinged patio door hardware set is for a (double active) hinged door in which two doors will open.
Works on active and passive door panels.

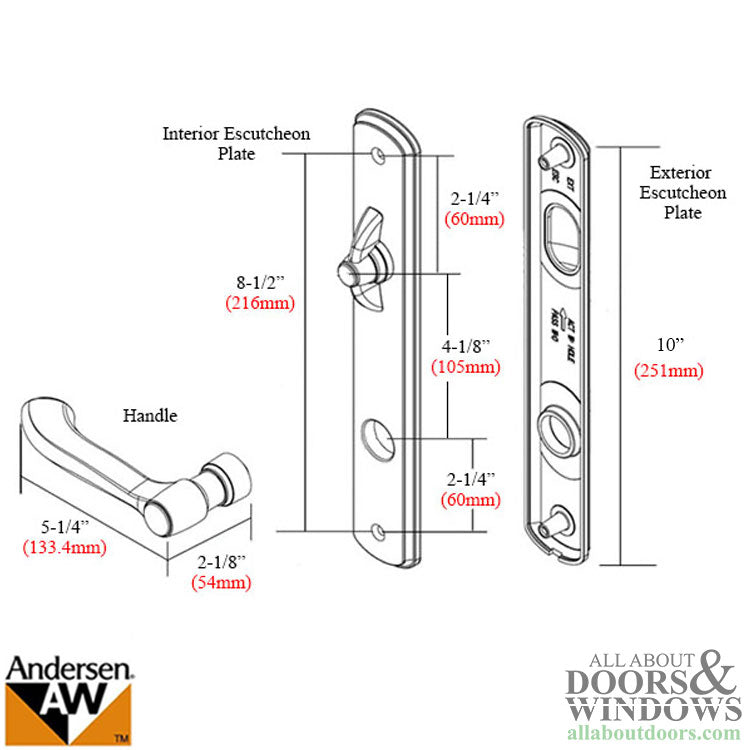

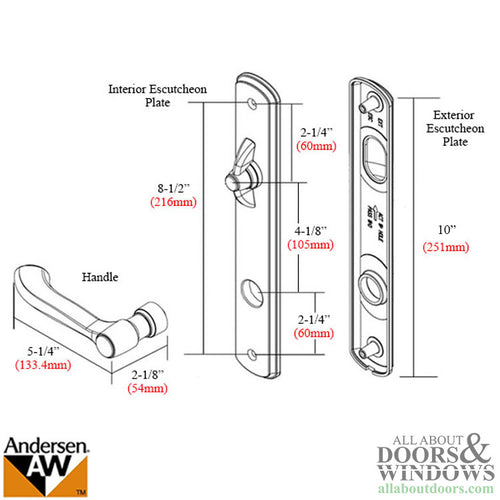

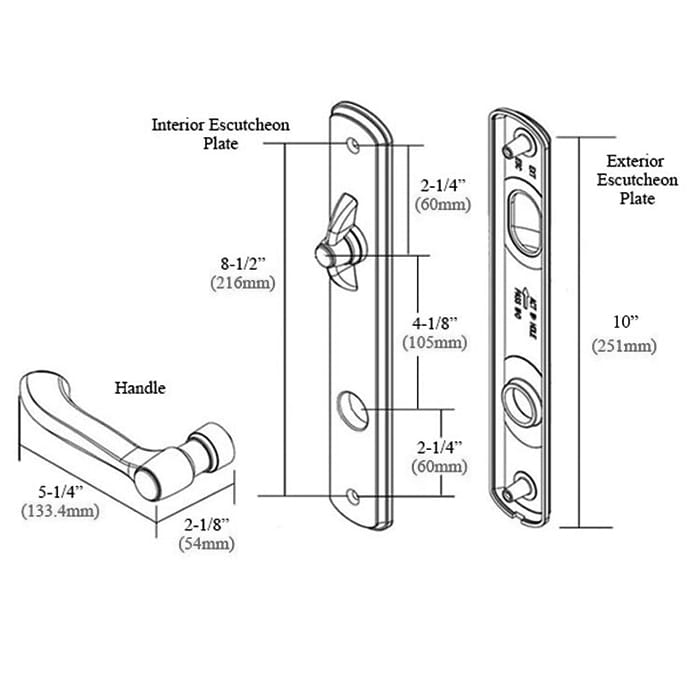

Measurements:
-

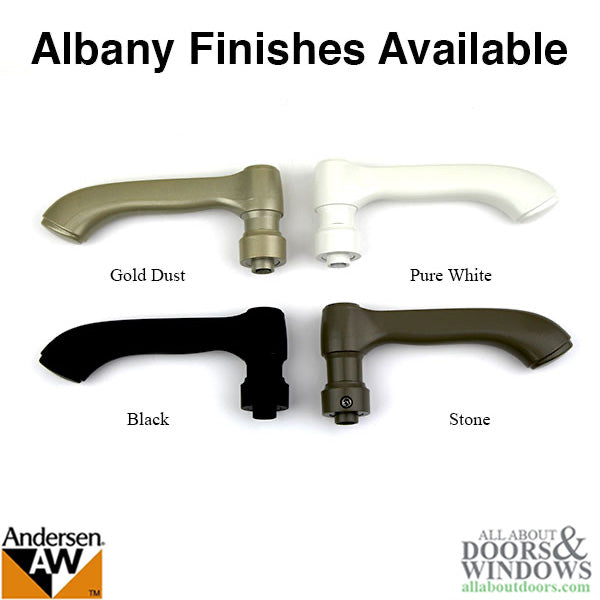

Color/Finish: Black
-
Plate Width: 1-5/8 inch (41.25 mm)
-
Plate Length: 10 inch (254 mm)
-
Handle Neck/Depth: 2-1/8 inch (54 mm)
-
Handle Length: 5-1/4 inch (133.4 mm)
-
PZ (Distance from center-of-cylinder to center-of-spindle): 4-1/8 inch (105 mm)
-
Top screw hole to center-of-cylinder: 2-1/4 inch (57 mm)
-
Bottom screw hole to center-of-spindle: 2-1/4 inch (57 mm)
-
Top screw hole to bottom screw hole: 8-1/2 inch (219 mm)

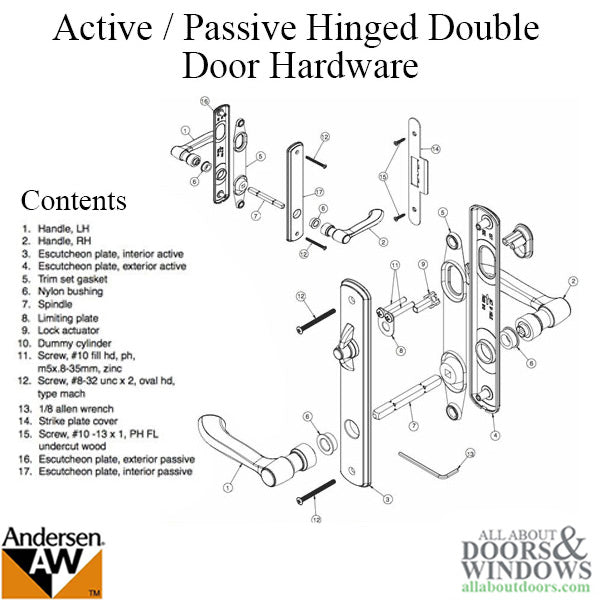

Complete hardware trim set includes:
-
Inside and outside handles
-
Inside and outside escutcheon plates
-
Inside thumb latch lock
-
Mounting studs
-
Mounting bolts
-
Gasket
-
Spindle
-
Set screws
-
Bushings
-
Installation instructions.
Note: Exterior Keyed Lock 9007623 is sold separately. (Lock/unlock the door from outside with a key)
Guide: How to replace an Andersen dummy cylinder with a keyed cylinder.
