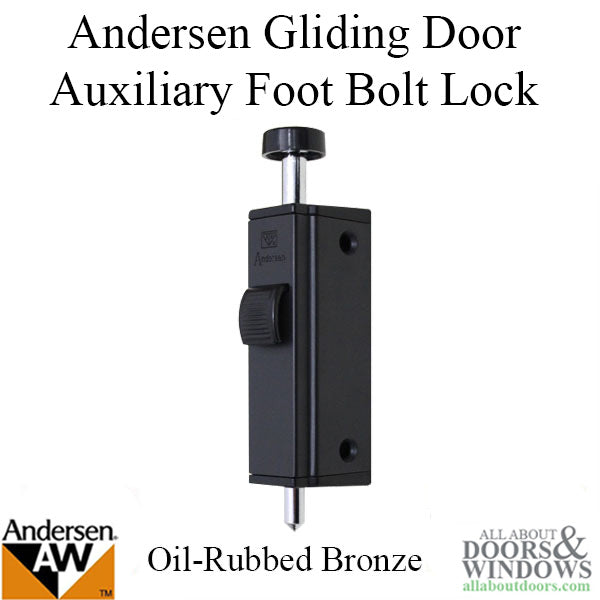

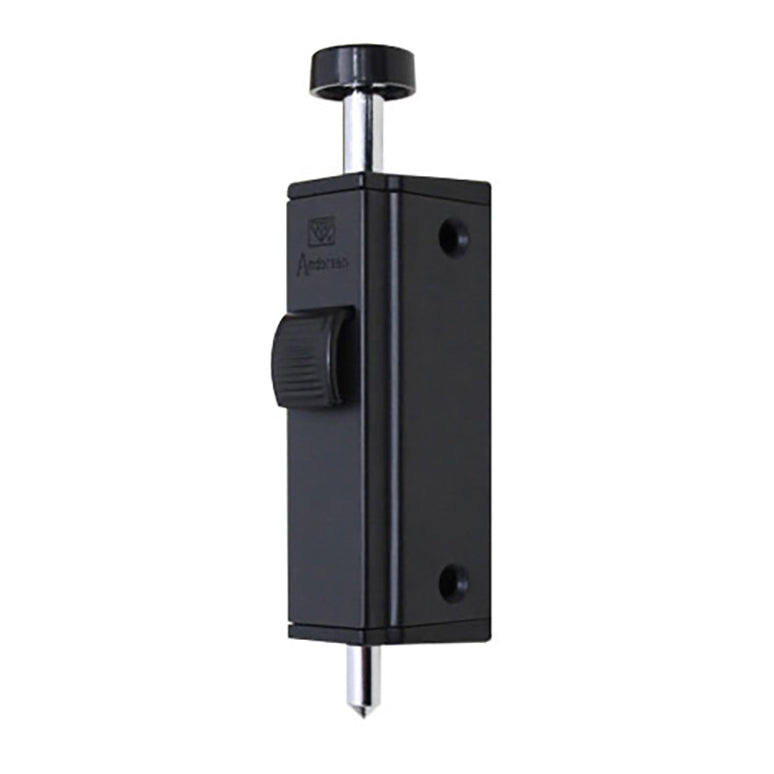

Andersen auxiliary foot bolt lock for frenchwood gliding door in oil rubbed bronze.
This part is commonly referred to as a \'foot\' lock and is installed to the active panel.
When depressed a pin is engaged into the door track allowing for additional security.
This lock mounts to the bottom of the active door panel and allows for partial ventilation when the door is open.

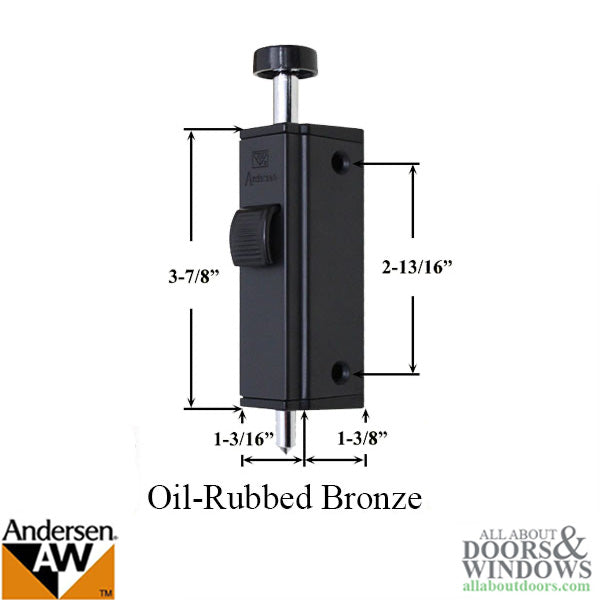

Height: 3-7/8 Inch
Length: 1-3/8 Inch
Width: 1-3/16 Inch
Hole Center: 2-13/16 Inch
Color: Oil Rubbed Bronze

Works With:
200 Series Narroline Gliding
200 Series Perma-Shield Gliding
400 Series Frenchwood Gliding

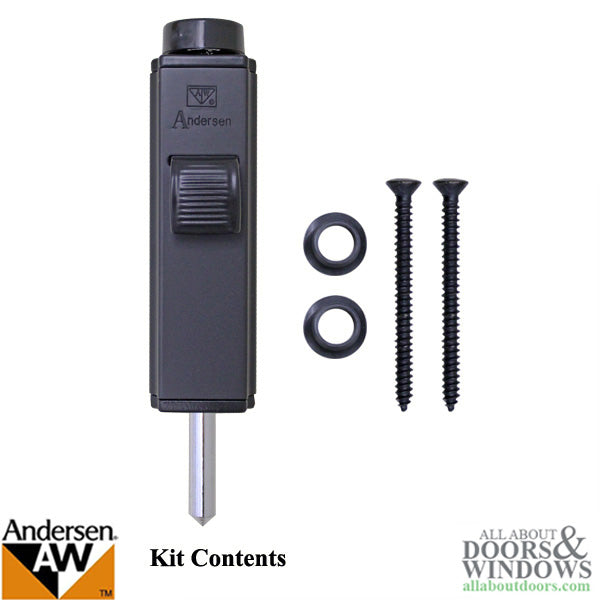

Contents: 1 Foot Bolt, 2 Grommets and 2 Installation Screws

Priced and sold each.

Details on Andersen's Oil Rubbed Bronze and Distressed Bronze Finishes

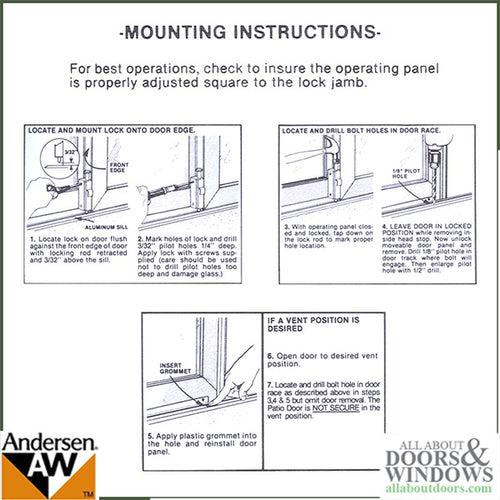

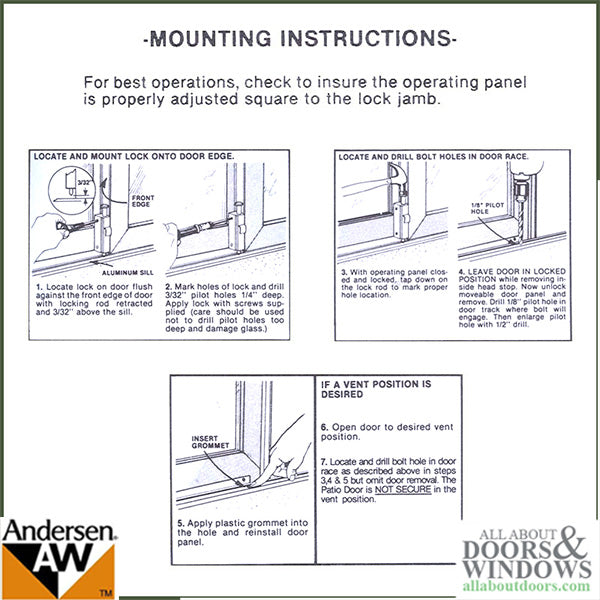

Andersen Footbolt Installation
