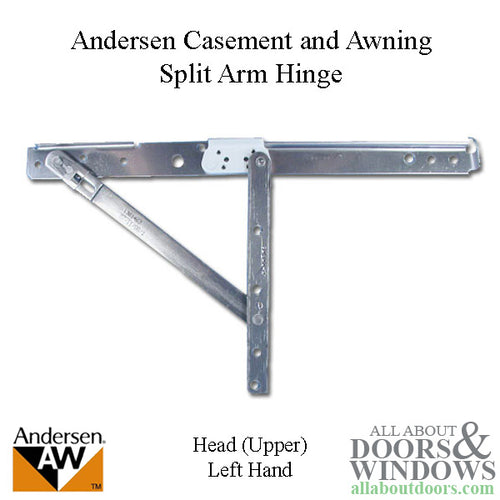

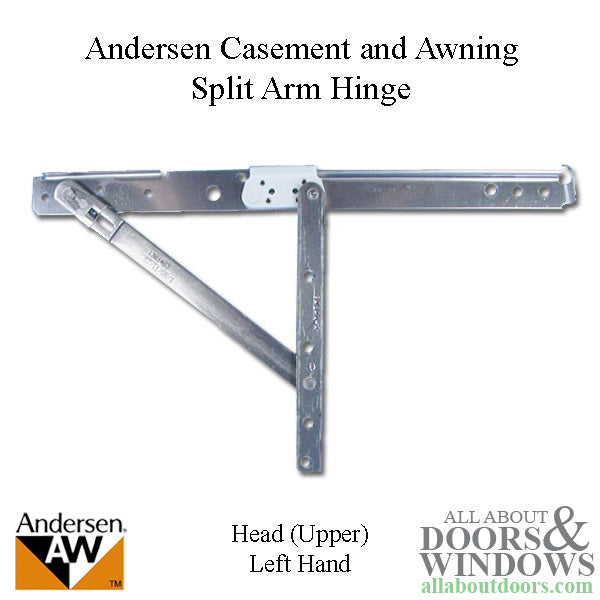

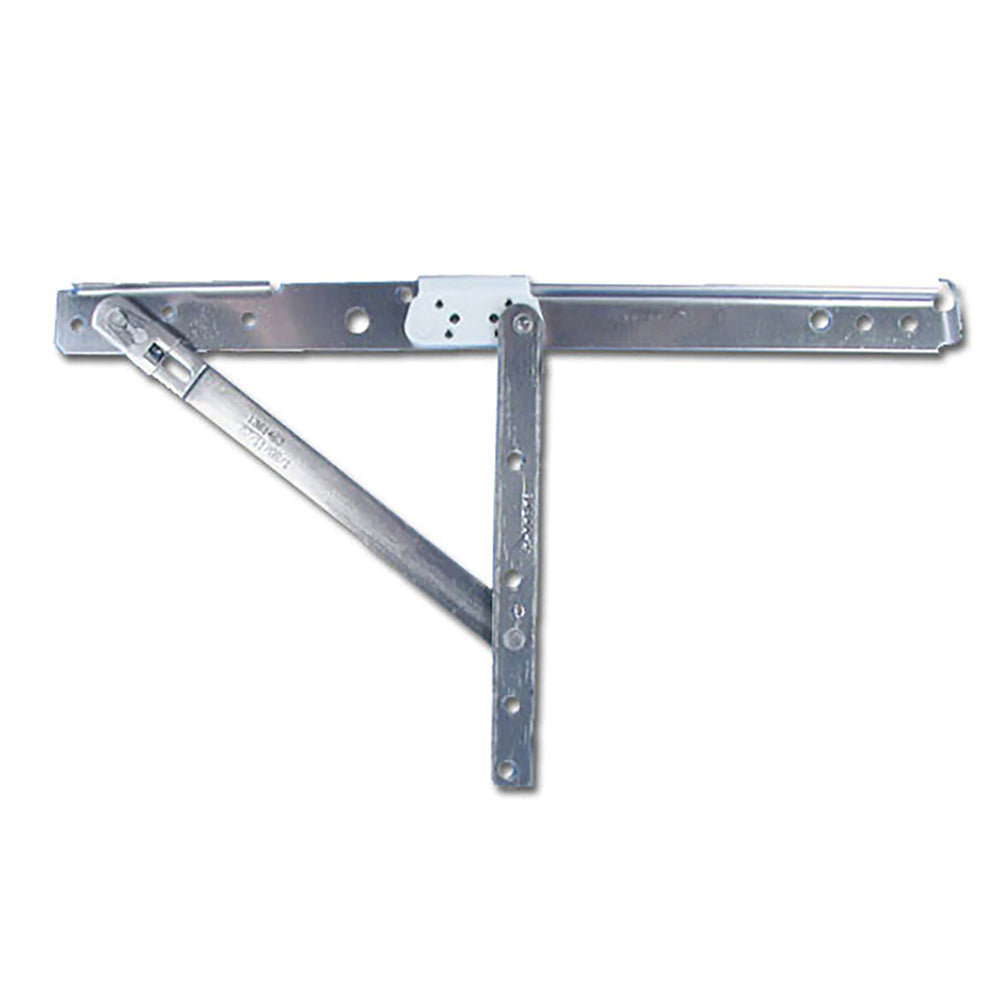

Andersen Awning/Casement Left-Hand Split Arm Head Hinge

Part Number: 1361463 Price: $18.15
Andersen left-handed split arm head (upper) hinge with screws for Andersen Perma-Shield casement and awning windows: CR, CN, C, CW, CX25 - CX6, and CXW2 - CXW45 - All awning sizes 1967 - present (Excluding A335/AX31)

Handing: Left handed; when viewing window from outside the home, the hinge will be located on the left side.

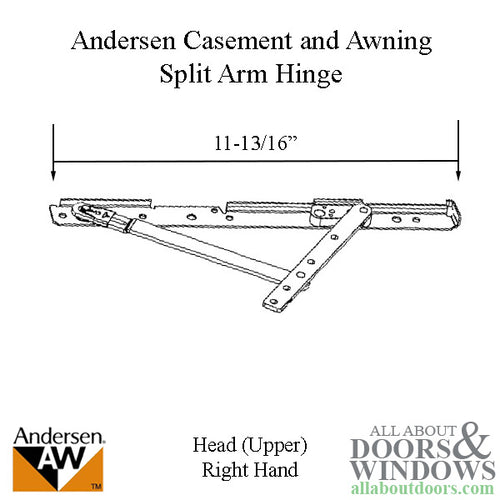

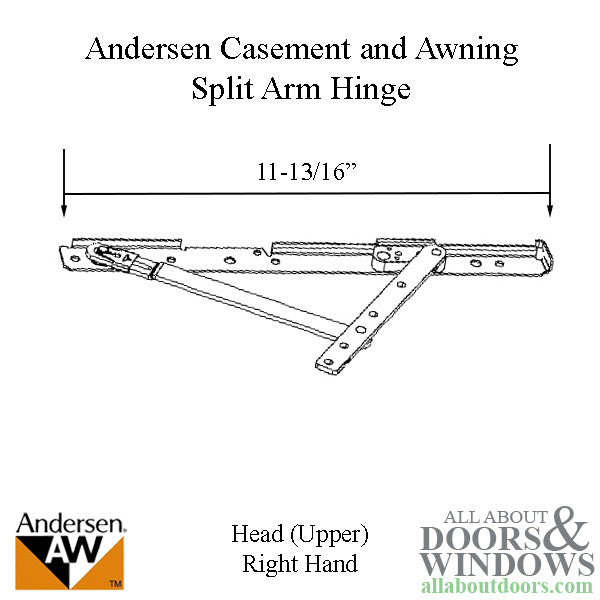

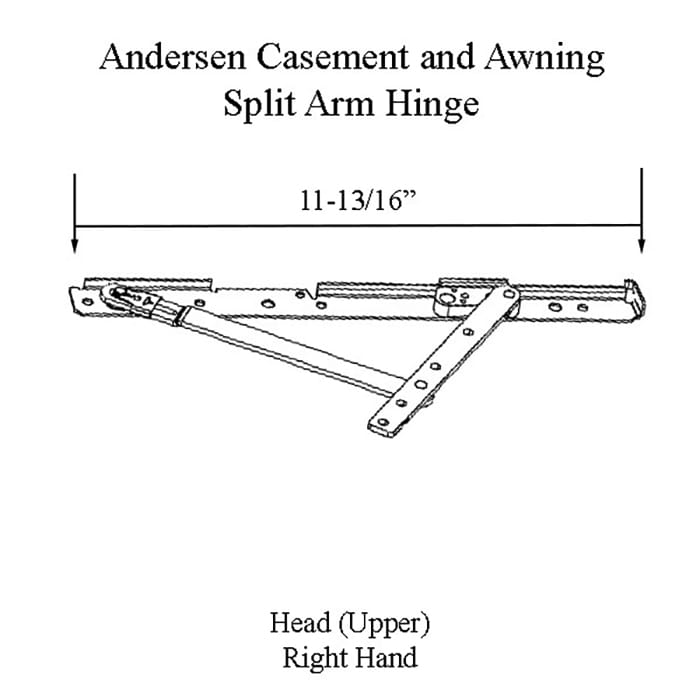

Track length: 11-13/16"
Hinge arm length: 6-9/32"

NOTE: These parts require the Hinge Replacement/Conversion Instruction Guide from Andersen. View instruction guide or watch video here.

If your window was manufactured prior to 1997, you must replace both the upper and lower hinge.

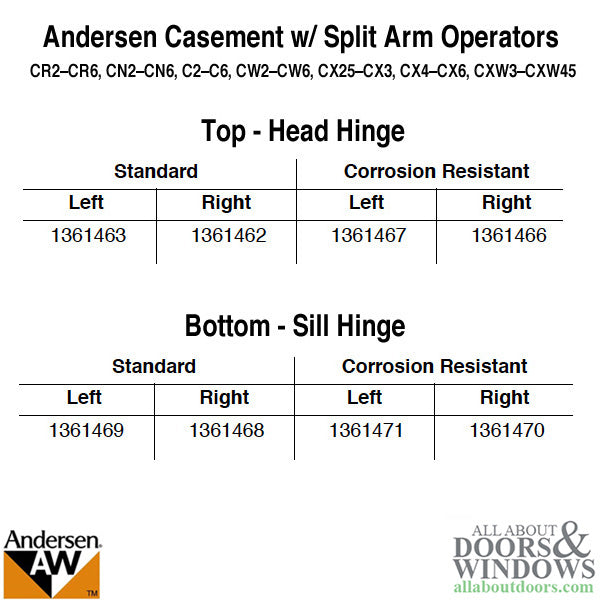

Related Parts:
Head Hinge with White Shoe:

1361462 - Standard Right Head
1361467 - Corrosion Resistant Left Head
1361466 - Corrosion Resistant Right Head

Sill Hinges with Black Shoe:
1361469 - Left Sill, Standard
1361468 - Right Sill, Standard
1361471 - Left Sill, Corrosion Resistant
1361470 - Right Sill, Corrosion Resistant
