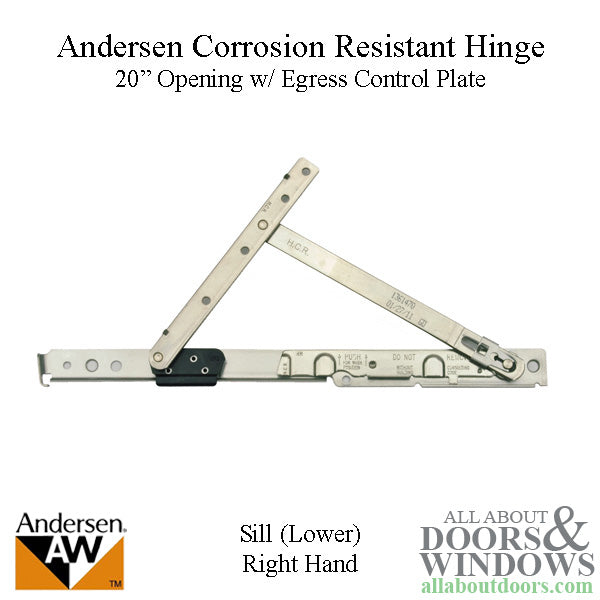

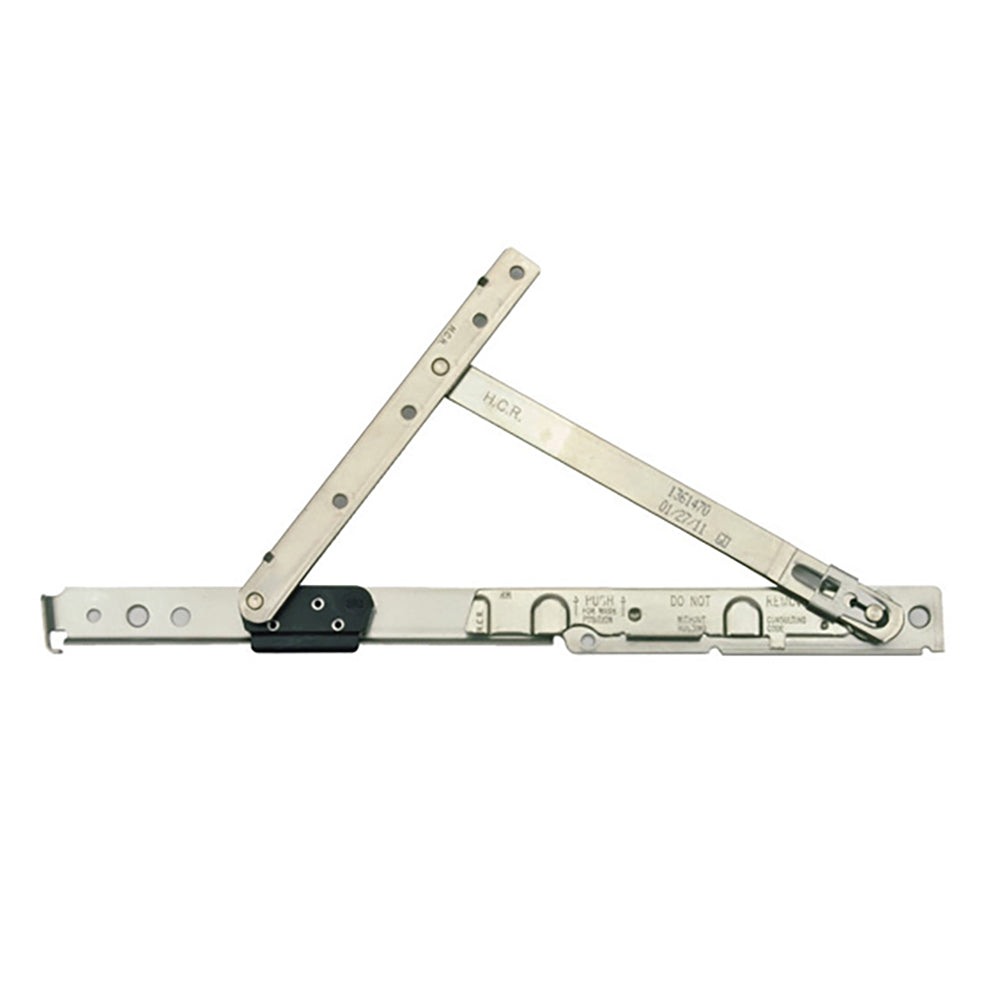

Andersen Corrosion Resistant Right Hand Sill Hinge, 20 Inch Opening

Part Number: 1361470 Price: $63.26
Andersen split arm sill (lower) hinge with screws and egress control plate for right-handed Andersen 400 Series casement windows manufactured 1966 - present. If the window was manufactured prior to 1981, you must replace both the upper and lower hinges (uses standard split arm upper/head hinge). Fits CW35-CW6 and CX35 with a 20 inch opening.

This hinge is corrosion-resistant and is made of high quality stainless steel, which is ideal for harsh and corrosive environment applications such as heavy industrial or coastal areas.

Handing: Right handed; when viewing window from outside the home, the hinge will be located on the right side.
Window Opening Size: 20"
Track length: 11-7/8"

NOTE: These parts require the Hinge Replacement/Conversion Instruction Guide from Andersen. View instruction guide or watch video here.

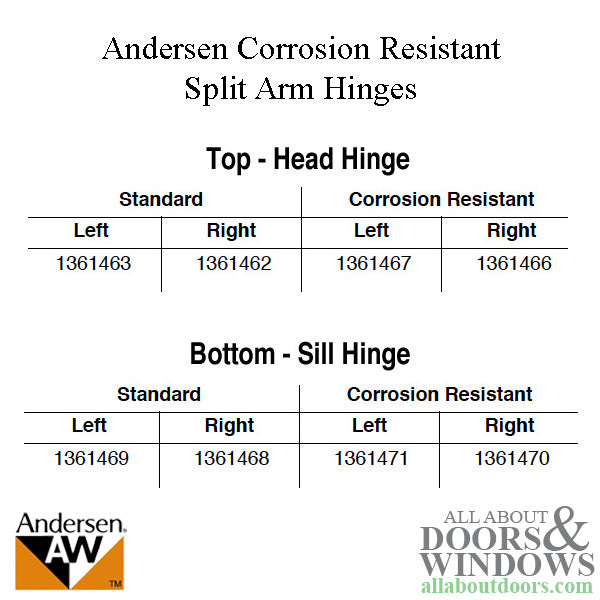

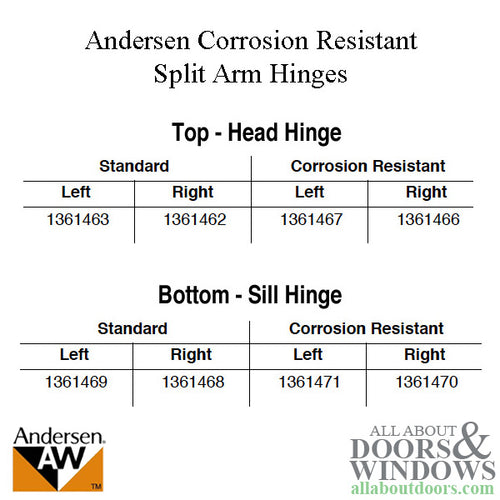

Related Parts

Head Hinges:
1361463 - Left Head, Standard
1361462 - Right Head, Standard
1361467 - Left Head, Corrosion Resistant
1361466 - Right Head, Corrosion Resistant

Sill Hinges:
1361469 - Left Sill, Standard
1361468 - Right Sill, Standard
1361471 - Left Sill, Corrosion Resistant
1361470 - Right Sill, Corrosion Resistant
