Andersen / EMCO Storm Door Handleset with Lock Bar Slide Button, Choose Color
Part Number: 306019-AB Price: $59.95Andersen EMCO Quick Change Traditional Handleset with Lock Bar used on 1-1/2 in. thick storm doors.
This design is used with a mortise lock that has a Lock Bar Connector on the lockcase, 306201 NOT INCLUDED.
Handle Style: Traditional
Handle Hole Diameter: 9/16 in. (standard is 5/8 in.)
Handle Spindle: 5/16 in. square, 3-1/4" length

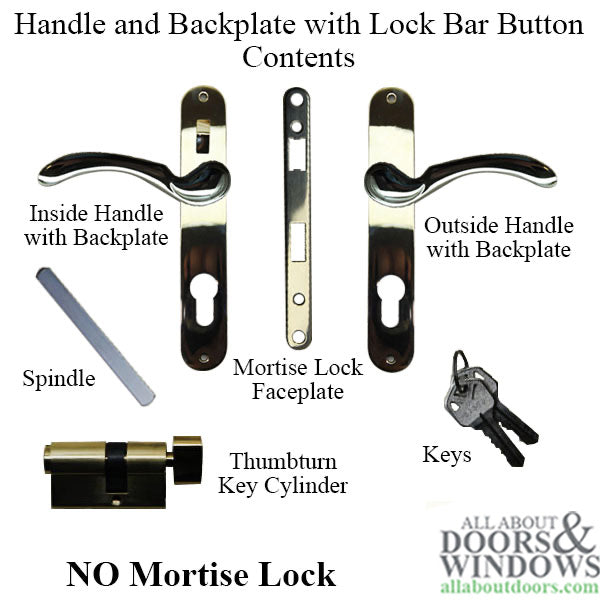

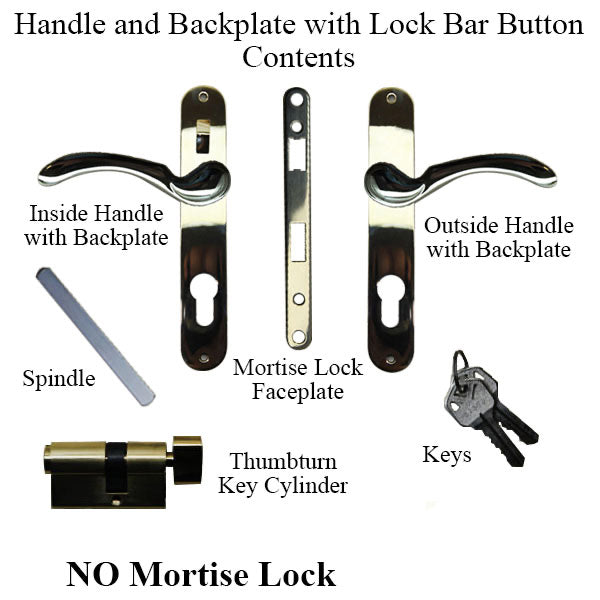

Set Includes:
1 outside handle with back plate

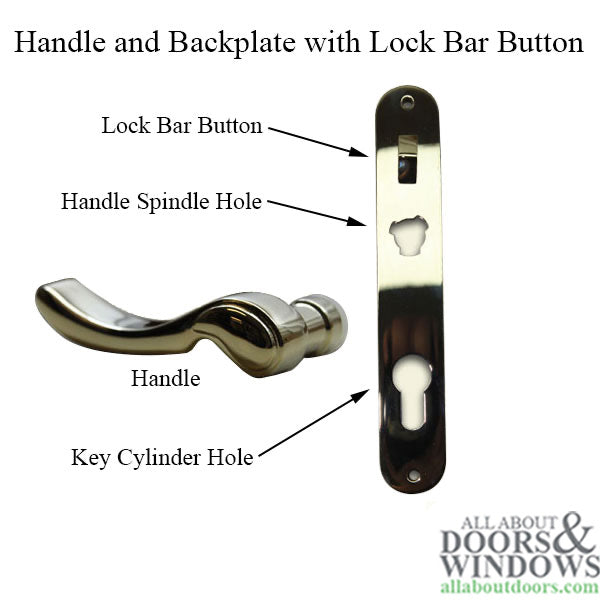

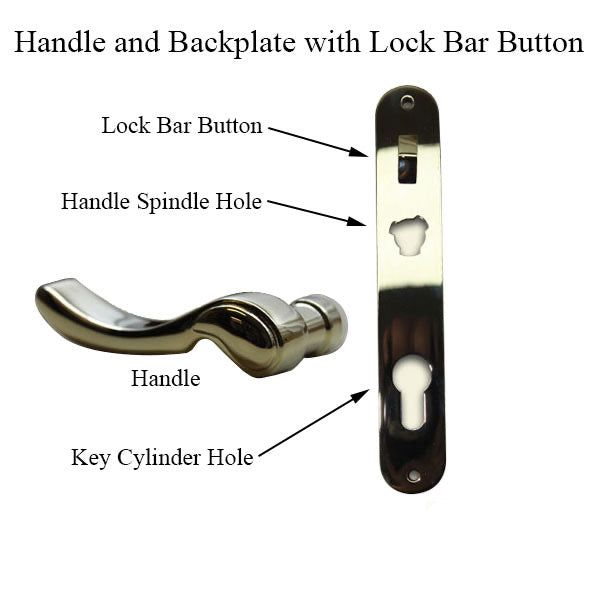

1 inside handle with back plate and Lock Bar Slide Button
1 handle spindle
1 Euro Profile Thumbturn w/keys
1 Single-point Mortise Lock Faceplate - see notes
2 #8 x 1-1/2 in. screws
1 #10 x 1-1/2 in. screw
1 #10 x 5/8 in. screw
Handle Installation Guide

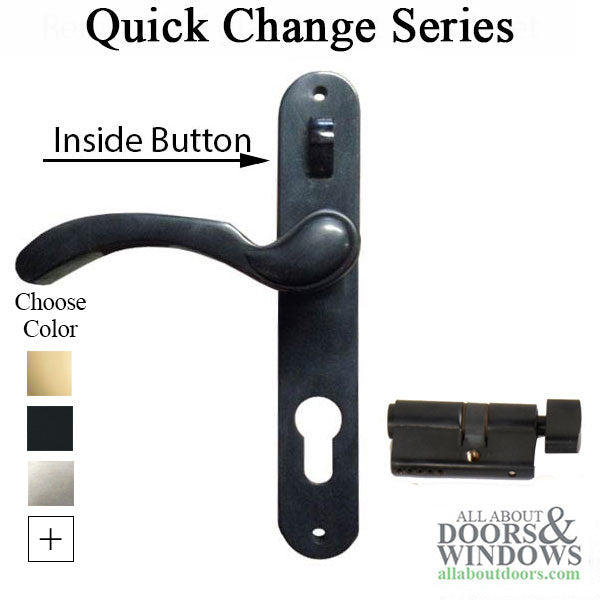

Available in 5 Colors:
Brushed/Satin Nickel
Polished Brass
Oil Rubbed Bronze
Antique Brass
Matte Black
Related Andersen Storm Door Hardware:
306019 - Traditional Style "Quick Change" trim only
302047 - Contemporary Style "Quick Change" trim with mortise lock
For a complete handleset with mortise lock, seeÊ302047
NOTE:
This handleset will only work on doors with the above measurements.
The single-point mortise lock used with this handleset is 306200 NOT INCLUDED.
The Mortise Lock faceplate that is included in this kit is a new style replacement for the purpose of matching your new color/finish.
If you have not changed colors/finishes and do not wish to change to a new style of faceplate, you can leave the old faceplate on.
The new style has round ends and the old style has square ends.
To replace with the new style, simply remove the old faceplate from the mortise lock and secure the new one in its place.
To purchase this kit WITH the Single Point Mortise Lock see here - 306019
Details on Andersen's Oil Rubbed Bronze and Distressed Bronze Finishes
This design is used with a mortise lock that has a Lock Bar Connector on the lockcase, 306201 NOT INCLUDED.
Handle Style: Traditional
Handle Hole Diameter: 9/16 in. (standard is 5/8 in.)
Handle Spindle: 5/16 in. square, 3-1/4" length
Set Includes:
1 outside handle with back plate
1 inside handle with back plate and Lock Bar Slide Button
1 handle spindle
1 Euro Profile Thumbturn w/keys
1 Single-point Mortise Lock Faceplate - see notes
2 #8 x 1-1/2 in. screws
1 #10 x 1-1/2 in. screw
1 #10 x 5/8 in. screw
Handle Installation Guide
Available in 5 Colors:
Brushed/Satin Nickel
Polished Brass
Oil Rubbed Bronze
Antique Brass
Matte Black
Related Andersen Storm Door Hardware:
306019 - Traditional Style "Quick Change" trim only
302047 - Contemporary Style "Quick Change" trim with mortise lock
For a complete handleset with mortise lock, seeÊ302047
NOTE:
This handleset will only work on doors with the above measurements.
The single-point mortise lock used with this handleset is 306200 NOT INCLUDED.
The Mortise Lock faceplate that is included in this kit is a new style replacement for the purpose of matching your new color/finish.
If you have not changed colors/finishes and do not wish to change to a new style of faceplate, you can leave the old faceplate on.
The new style has round ends and the old style has square ends.
To replace with the new style, simply remove the old faceplate from the mortise lock and secure the new one in its place.
To purchase this kit WITH the Single Point Mortise Lock see here - 306019
Details on Andersen's Oil Rubbed Bronze and Distressed Bronze Finishes
