Andersen exterior gear and keyed lock parts replacement kit for gliding patio doors manufactured 1982 to present. This kit will rebuild one Andersen exterior lock. Priced and sold as a kit.

Works With:
200 Series Narroline Gliding Doors
200 Series Perma-Shield Gliding Patio Doors
400 Series Frenchwood Gliding Doors

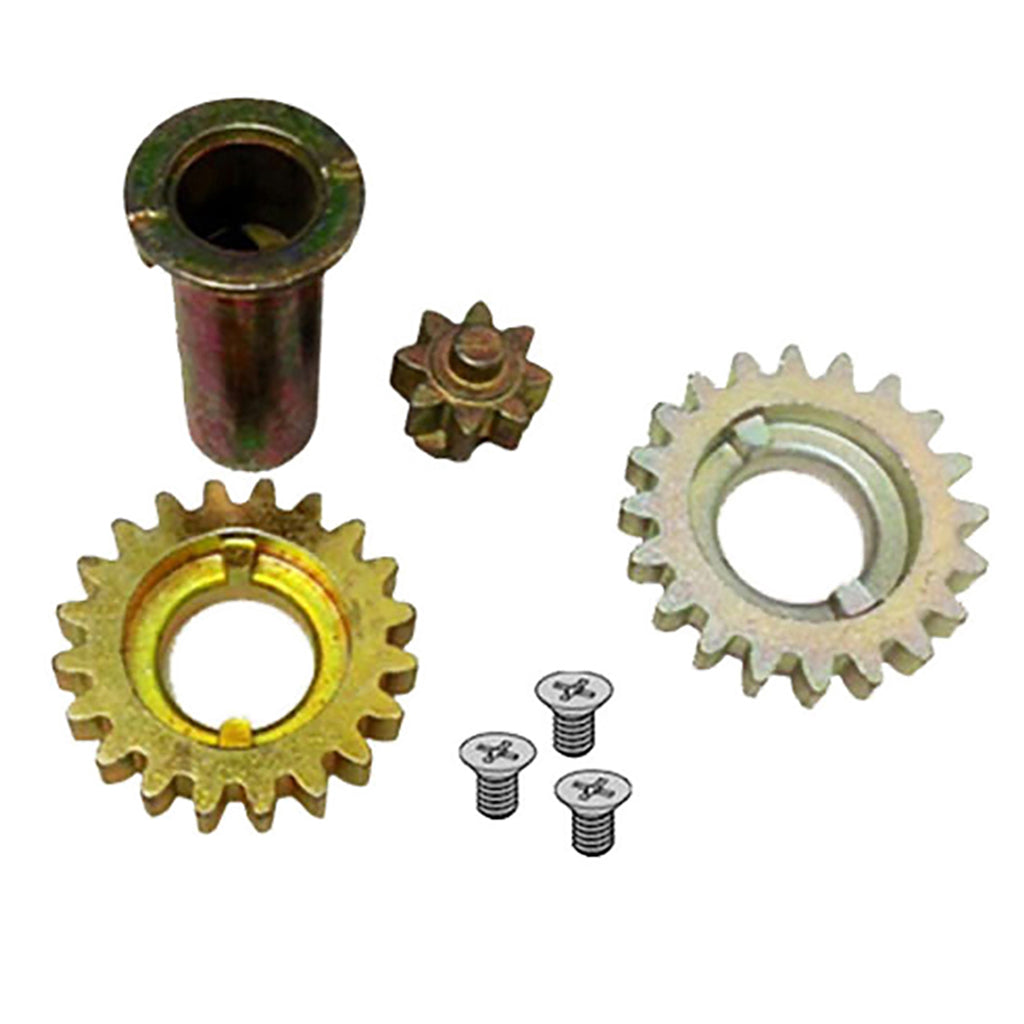

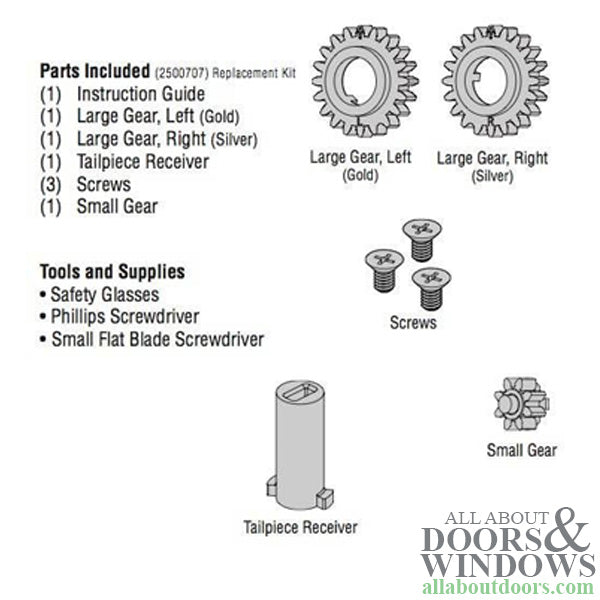

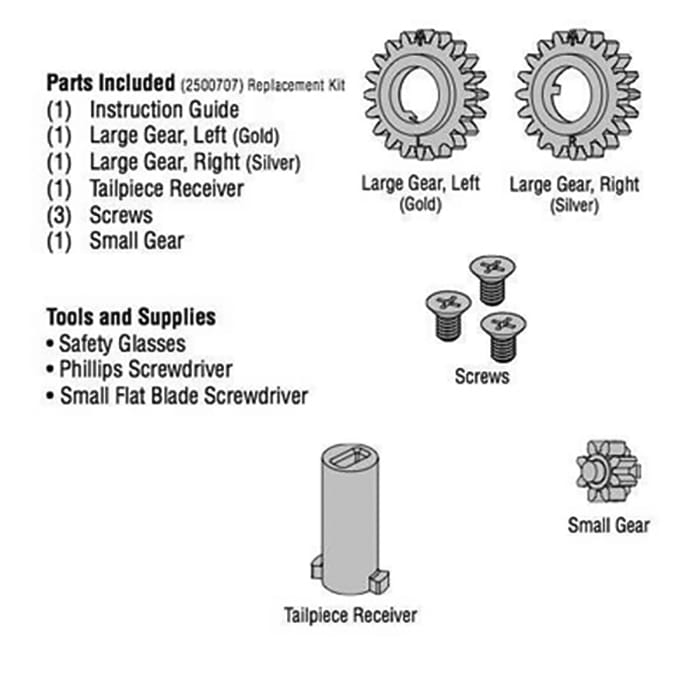

Includes:
Large silver & gold gears
Tailpiece
Small gear
Screws
Instructions

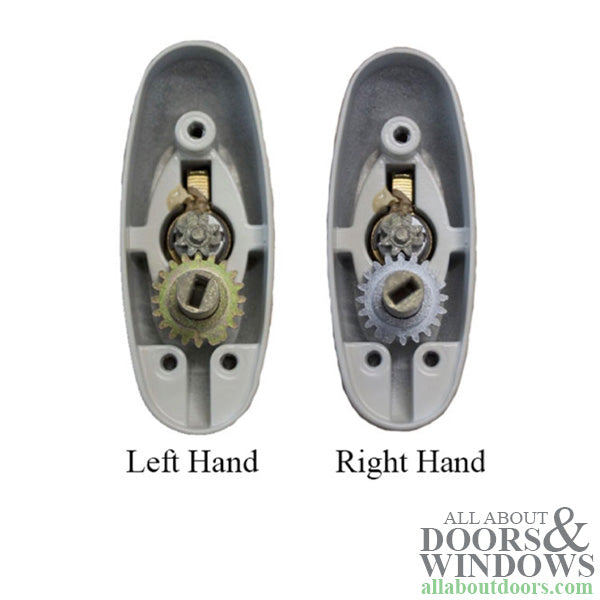

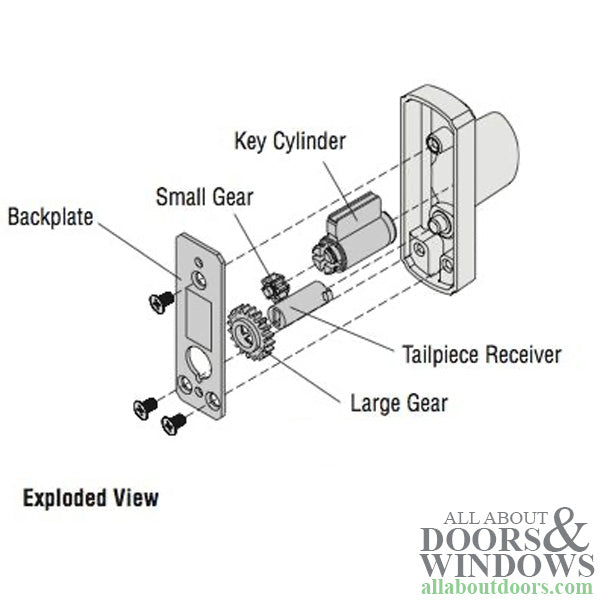

NOTE: Does not include back cover plate, key cylinder, or lock housing. The large Silver gear is for right-handed doors, Gold gear is for left-handed doors. There is a timing mark on the gear. The arrow points to the 12 o'clock position, the R or L is at the 6 o'clock position. When assembled you should be able to see the L or R below the tail piece. (notch in cover plate)

Tools Required:
Phillips screwdriver
Small flat blade screwdriver
Safety glasses

Related Parts:
2573526 - Lock Cylinder w/Keys - 6 pin - Multiple Colors
2573648 - Bolt for Keyed Lock - Tribeca - Lock Housing/Exterior - Stone
2565715 - Lock Cylinder w/Gears and Keys - Reachout/No Tail - Silver
