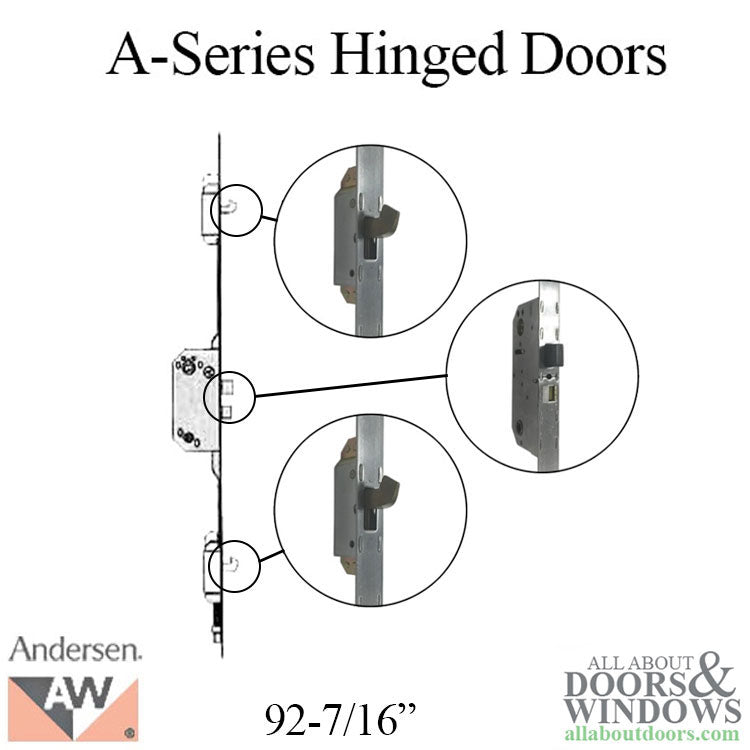

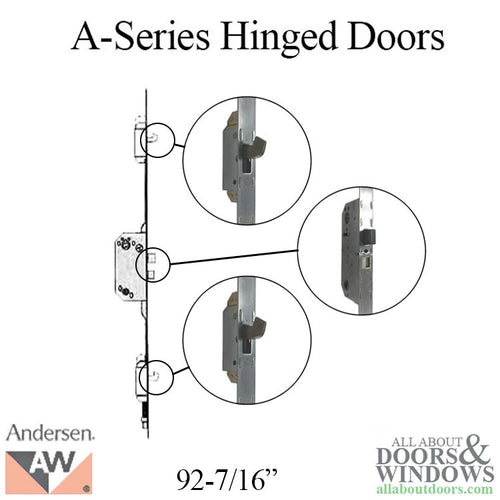

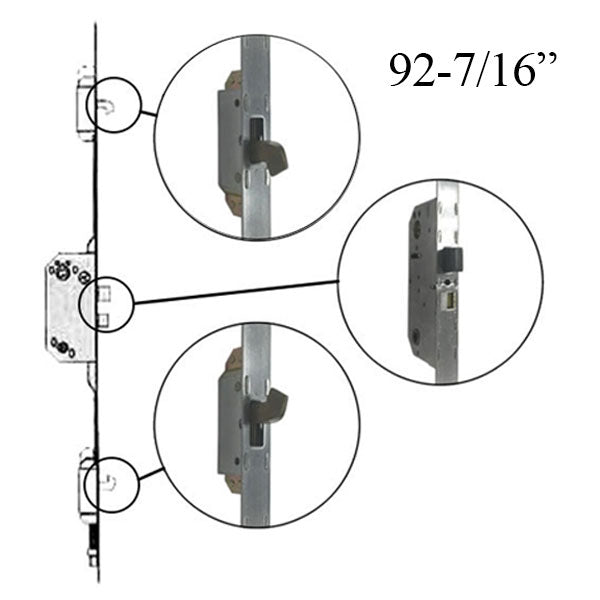

A-Series Hinged, Inswing & Outswing, Door Active Panel 3-Point Lock Mechanism 9014689

Active Lock Mechanism FWHID80 Unit Number (2008 to present)
Andersen® lock mechanism for A-Series Hinged Patio Doors
Manufactured for doors from 2008 to present
For door unit number FWHID80 - lock is 92-7/16 inches long

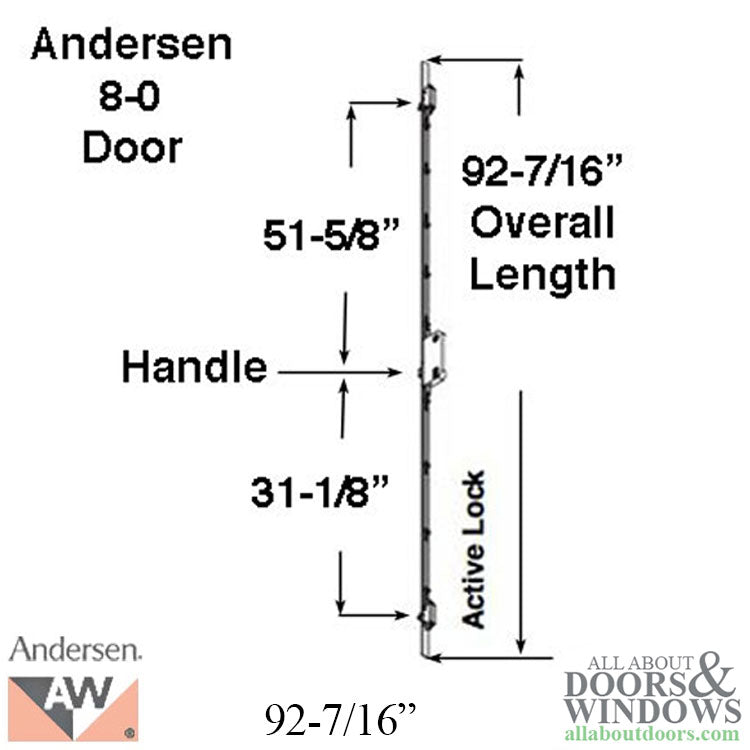

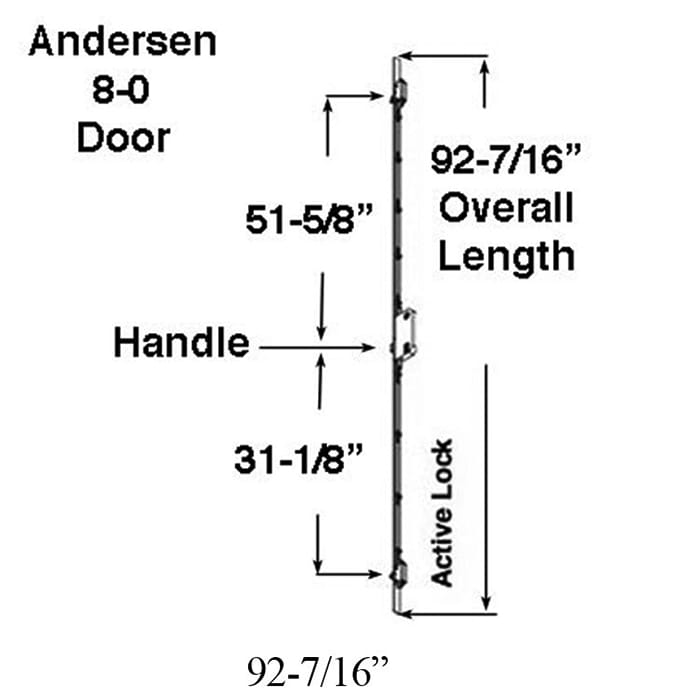

Overall Length: 92-7/16 Inches.
Faceplate Width: 7/8 Inch.
Backset: 2 inch
Center of handle, to center of Lock: 4-3/16
Center of Deadbolt to Center of Spring latch: 1-3/8 inch
Handle Height: 36 inch
Bottom Hook: 31-1/8 Inches (center of Handle to center of hook)
Top Hook:  51-1/2 inches (center of Handle to center of hook)
Center of both hooks: 82-5/8 inches

Related Parts
9014687 - FWHID68, Active Lock Mechanism 3 point
9014688 - FWHID611, Active Lock Mechanism 3 point
9014689 - FWHID80, Active Lock Mechanism 3 point
2579777 - FWHID68, Passive Lock Mechanism, Shootbolts
2579778 - FWHID611, Passive Lock Mechanism, Shootbolts
2579779 - FWHID80, Passive Lock Mechanism, Shootbolts
