Andersen Active 6-11 Multipoint Lock 79-3/8 French Wood Hinged Patio Doors Stainless Steel
Use the arrows or swipe left to view all images for this product

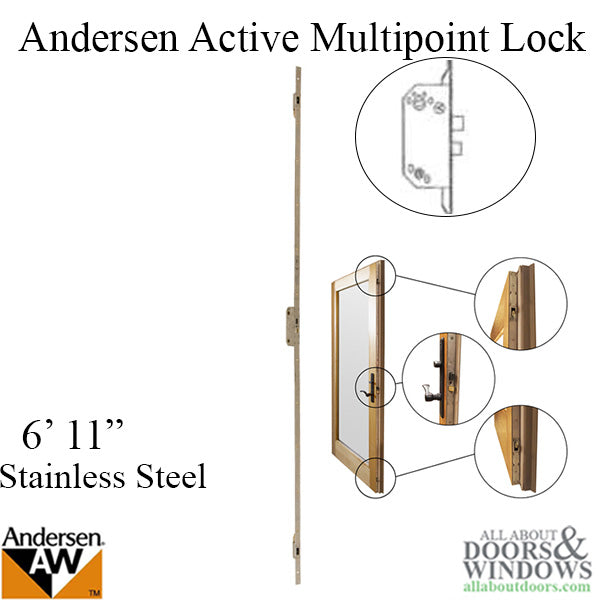

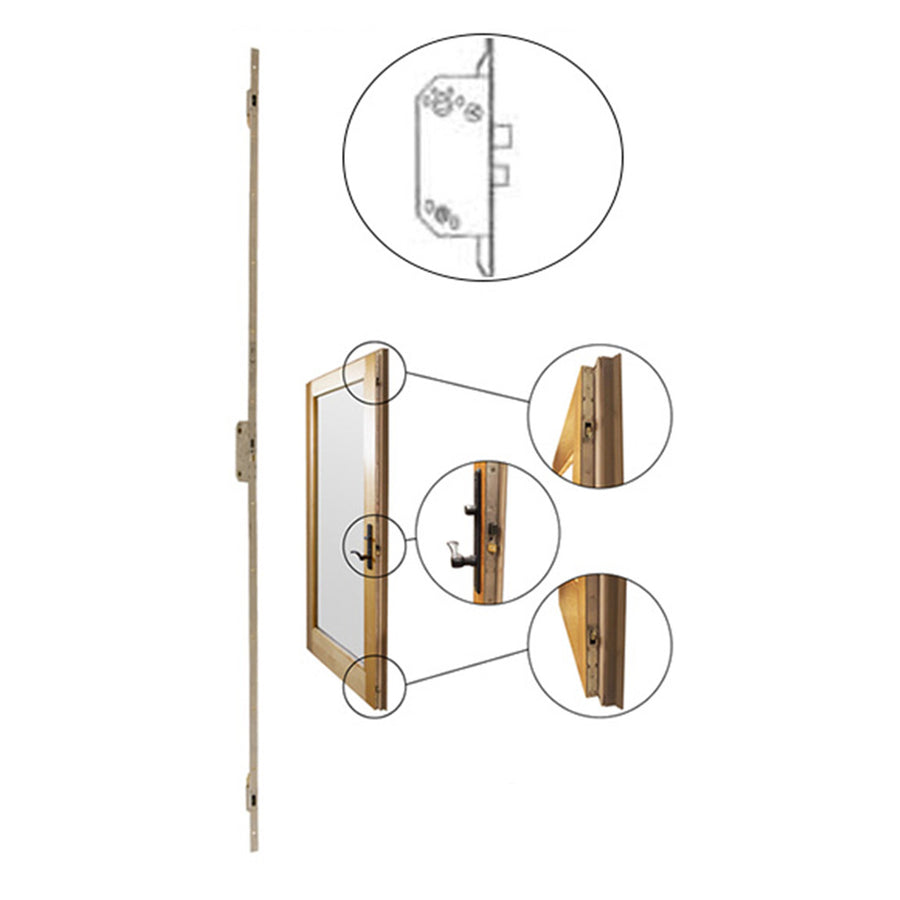

Andersen Multipoint Lock, FWH611 Active Door - Stainless Steel
Frenchwood hinged patio door with Locking Hooks on top and bottom and a stainless steel mechanism. This lock fits: Andersen Frenchwood Hinged 6 foot 11 inch doors built from March 2003-present

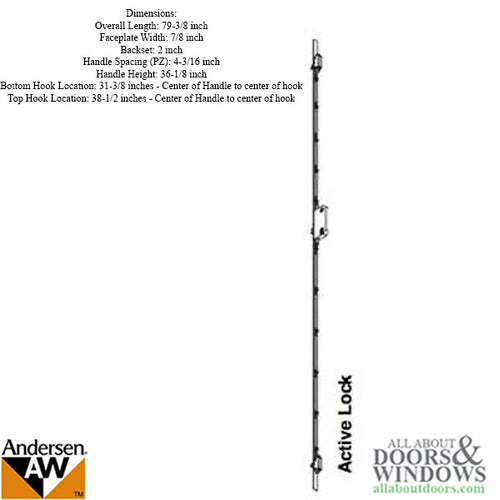

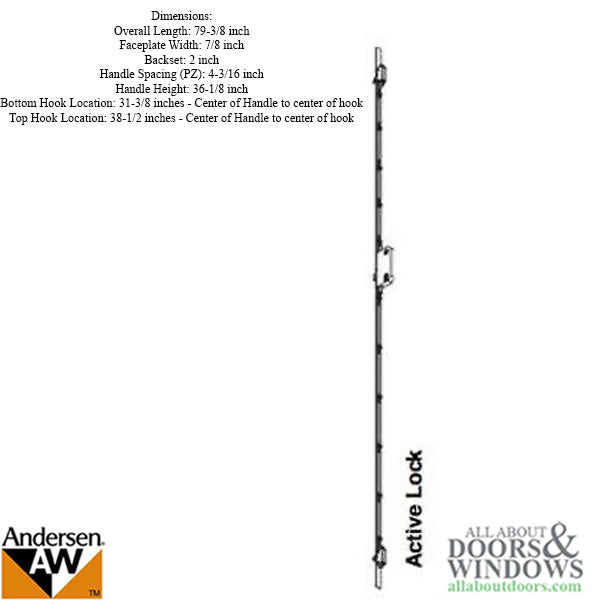

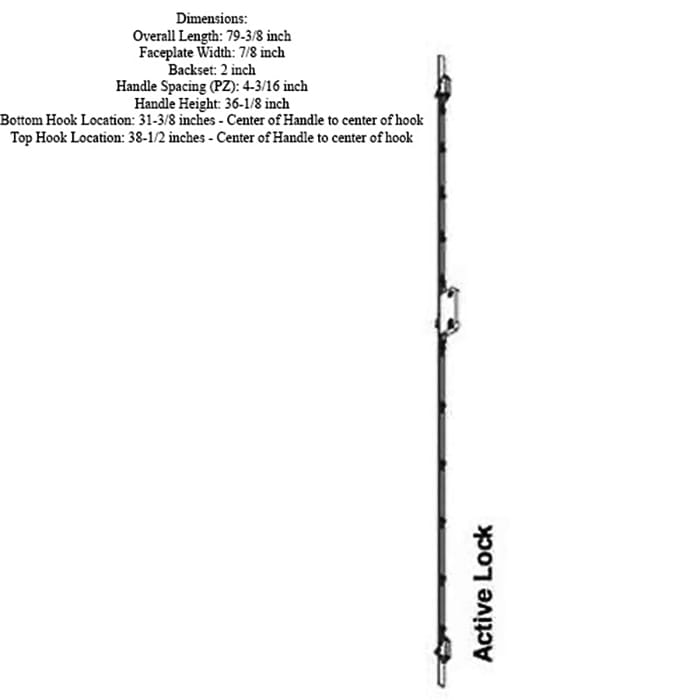

- Overall Length: 79-3/8 Inches
- Faceplate Width: 7/8 Inch
- Backset: 2 Inch
- Handle Spacing (PZ): 4-3/16 Inches
- Handle Height: 36-1/8 Inches
- Bottom Hook Location: 31-3/8 Inches - Center of Handle to center of hook
- Top Hook Location: 38-1/2 Inches - Center of Handle to center of hook
NOTE:
This lock is interchangeable with the older zinc dichromate (gold colored) active models, which are no longer available
Resources:
- Article: How to Change Handing of Andersen Multipoint Locks
- Manufacturer's Guide: How to Replace an a Multipoint Lock in an Andersen Door

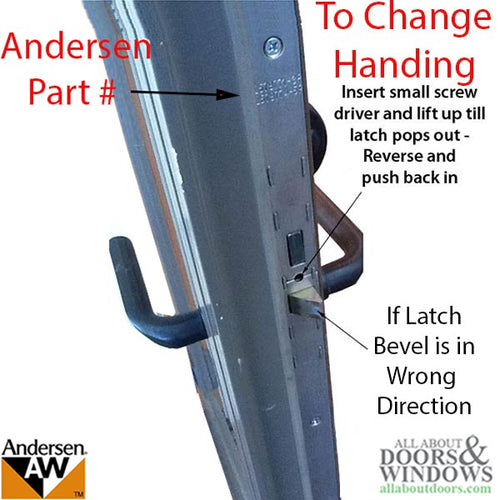

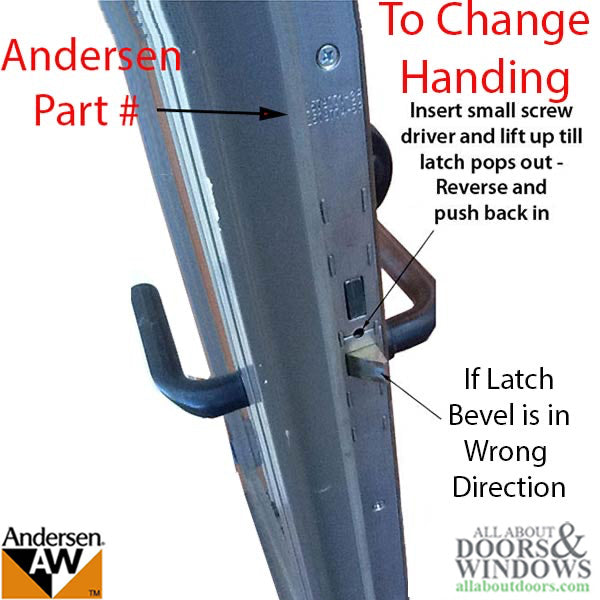

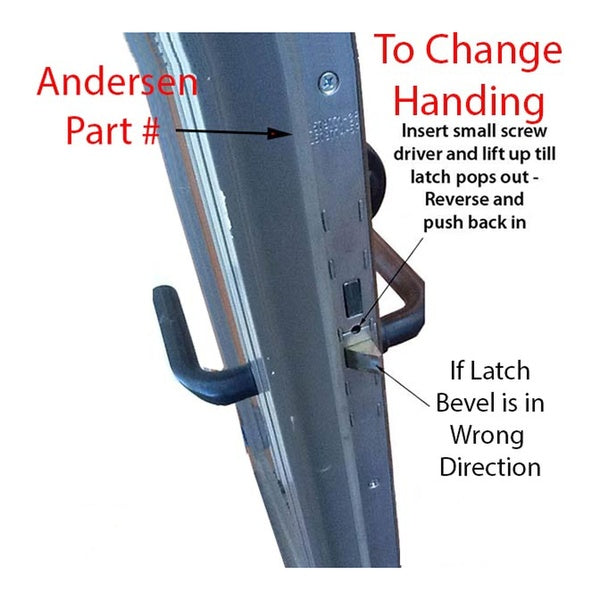

Rehanding an Andersen Multipoint Lock
Also known as: 2579772-3p

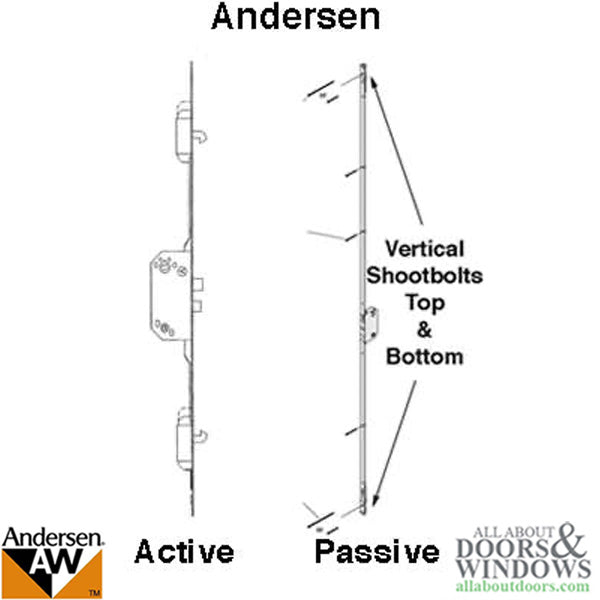

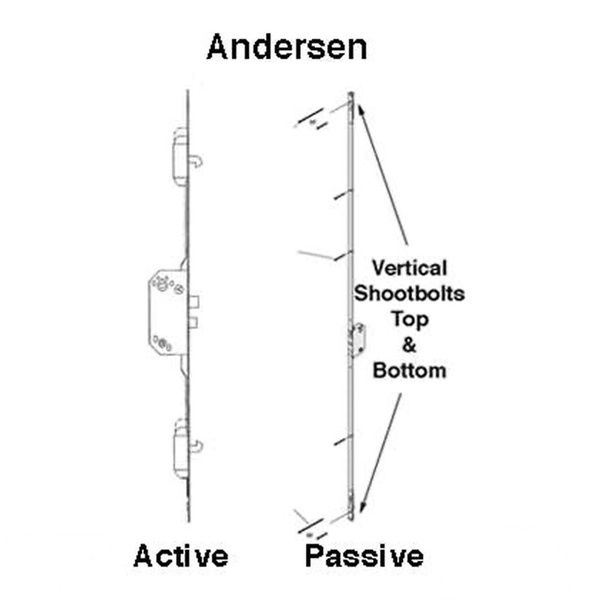

Andersen ACTIVE 3 - Point Lock Mechanism.
FRENCHWOOD HINGED PATIO DOOR with LOCKING HOOKS at top and bottom.
Stainless Steel mechanism
This lock fits: Andersen Frenchwood Hinged 6 foot 11 inch doors built from March 2003-present
Overall Length: 79-3/8 inch
Faceplate Width: 7/8 inch
Backset: 2 inch
Handle Spacing (PZ): 4-3/16
Handle Height: 36-1/8 inch
Bottom Hook Location: 31-3/8 inches - Center of Handle to center of hook
Top Hook Location: 38-1/2 inches - Center of Handle to center of hook
NOTE:
This lock is interchangeable with the older zinc dichromate (gold colored) active models, which are no longer available
Resources:
Article: How to Change Handing of Andersen Multipoint Locks
Manufacturer's Guide: How to Replace an a Multipoint Lock in an Andersen Door
Rehanding an Andersen Multipoint Lock
