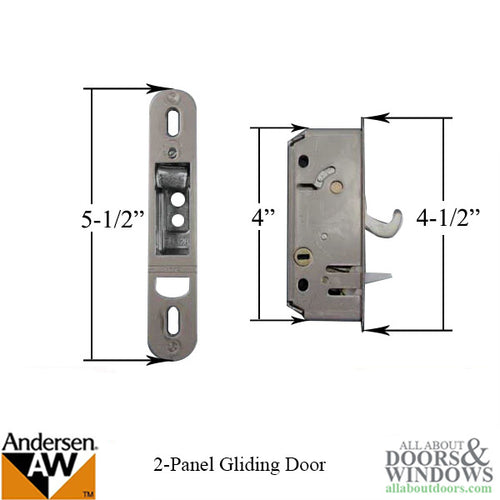

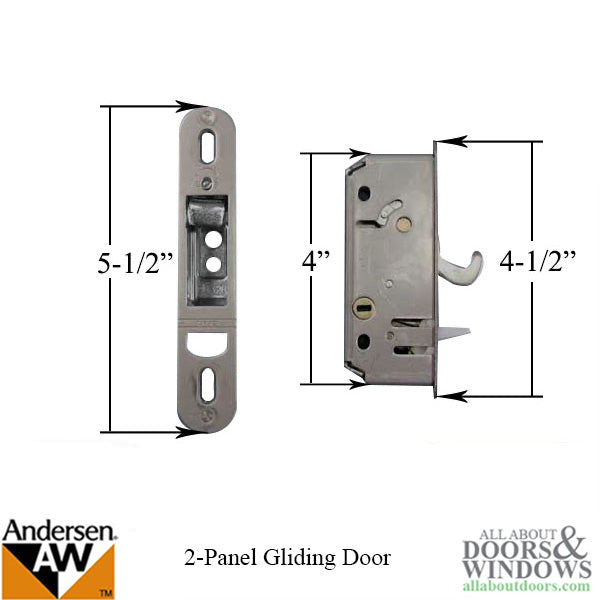

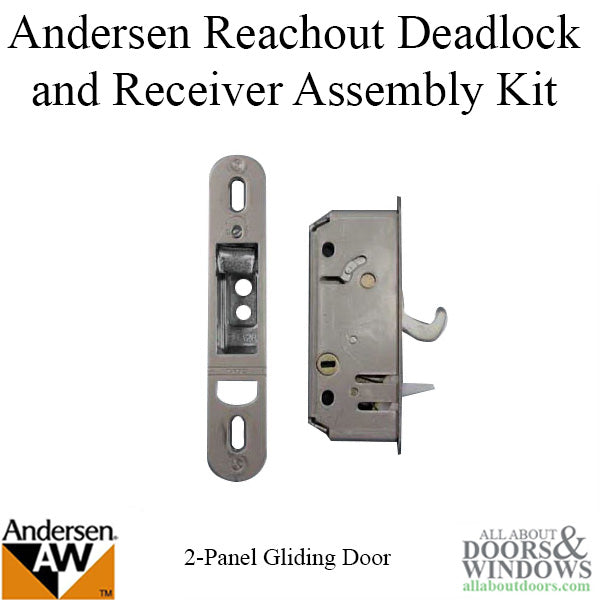

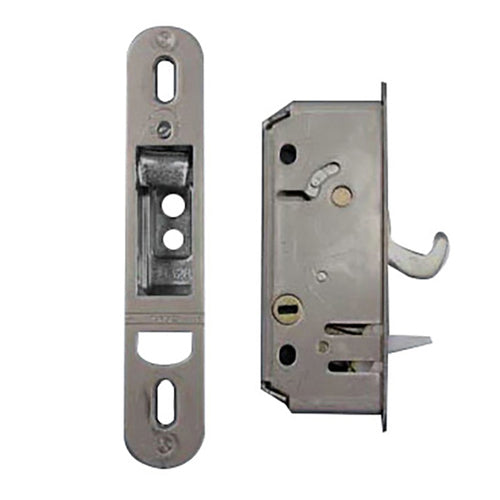

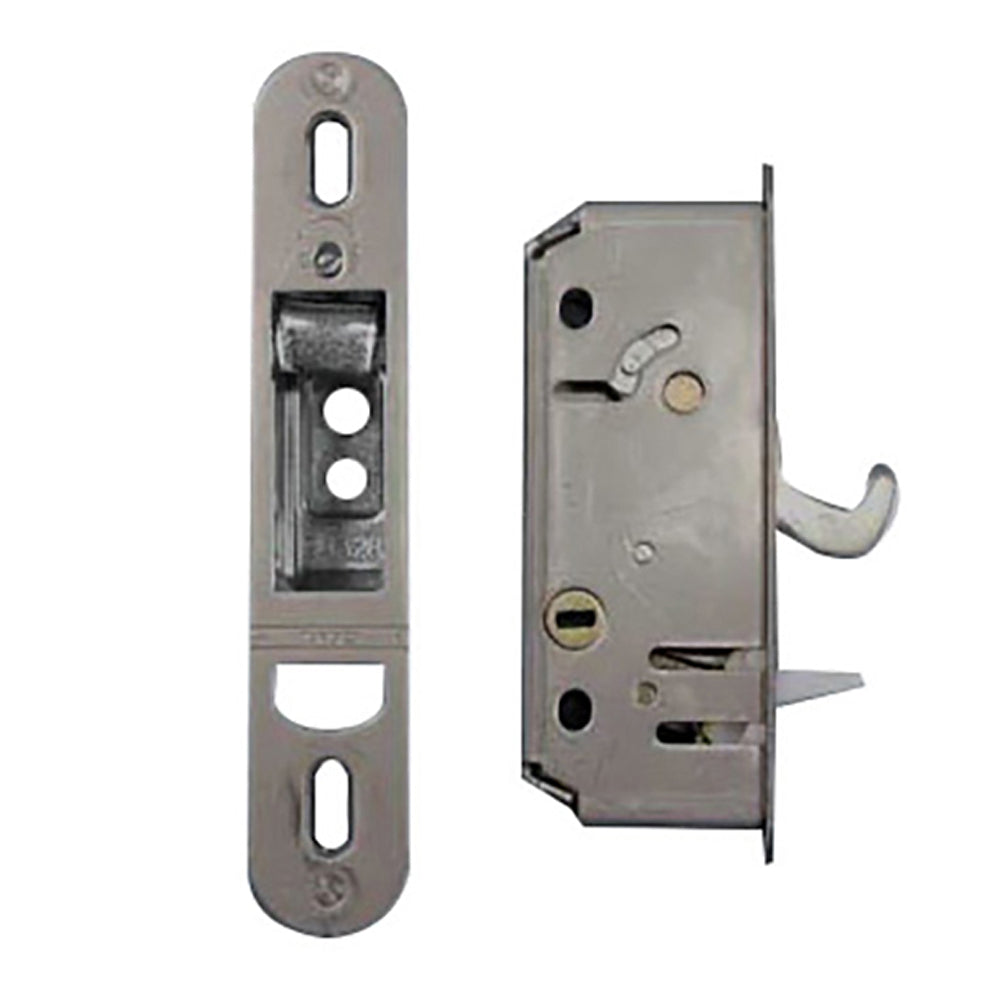

Andersen Frenchwood 2 panel gliding door reach out lock assembly and latch receiver assembly kit.

For doors manufactured 1994 to present.
Installs into the door panel and hooks into the receiver installed on the door jamb, pulls the door closed and locks the door
This kit is used on all 2 panel doors with reachout hardware regardless of the finish of the other hardware parts.

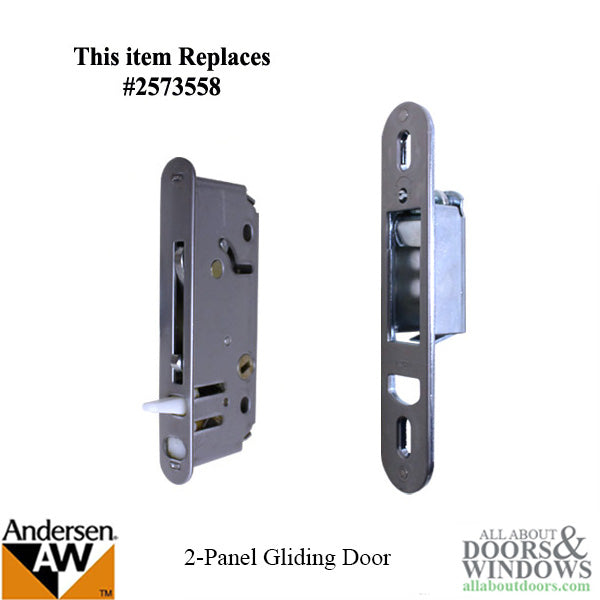

This kit will replace previous vintages reach out lock and receiver part number 2573558 and 2573562.

Sold as a kit with screws and instructions.
Includes reach out lock assembly, latch receiver, and installation screws/ bolts.
Note: Lock assembly is often referred to as dead bolt, and latch receiver is often referred to as strike plate.

Works With following doors:
200 Series Narroline Gliding
200 Series Perma-Shield Gliding
400 Series Frenchwood Gliding

Related Andersen Sliding door Locks:
2562124 - Conversion Kit 4 panel Door

For replacement help, read Replacing Andersen Gliding Door Handleset and Lock

To check the Lock Adjustment
1. Open the door and operate the lock from inside with the thumb turn - it should move smoothly
2. Close the door and lock - Does the thumb latch still work smoothly ? If Not, the lock or strike may need adjustment

Pre-Reach Out Locks
The older Andersen locks had the adjustment in the face of the lock. When the screw is turned it would move the latch in or out for better adjustment
If the lock thumb latch is hard to turn - extend the latch, if the door has to much movement - retract
Turn clockwise to retract latch
Turn counter-clockwise to extend

Reach Out Locks
Same idea as above, except Andersen moved the adjustment to the Strike plate on door jamb

Some doors may have adjustment on Lock and strike.
