Andersen Lock Cylinder Fits French Wood Sliding Door Reachout Lock Gears and Keys
Use the arrows or swipe left to view all images for this product

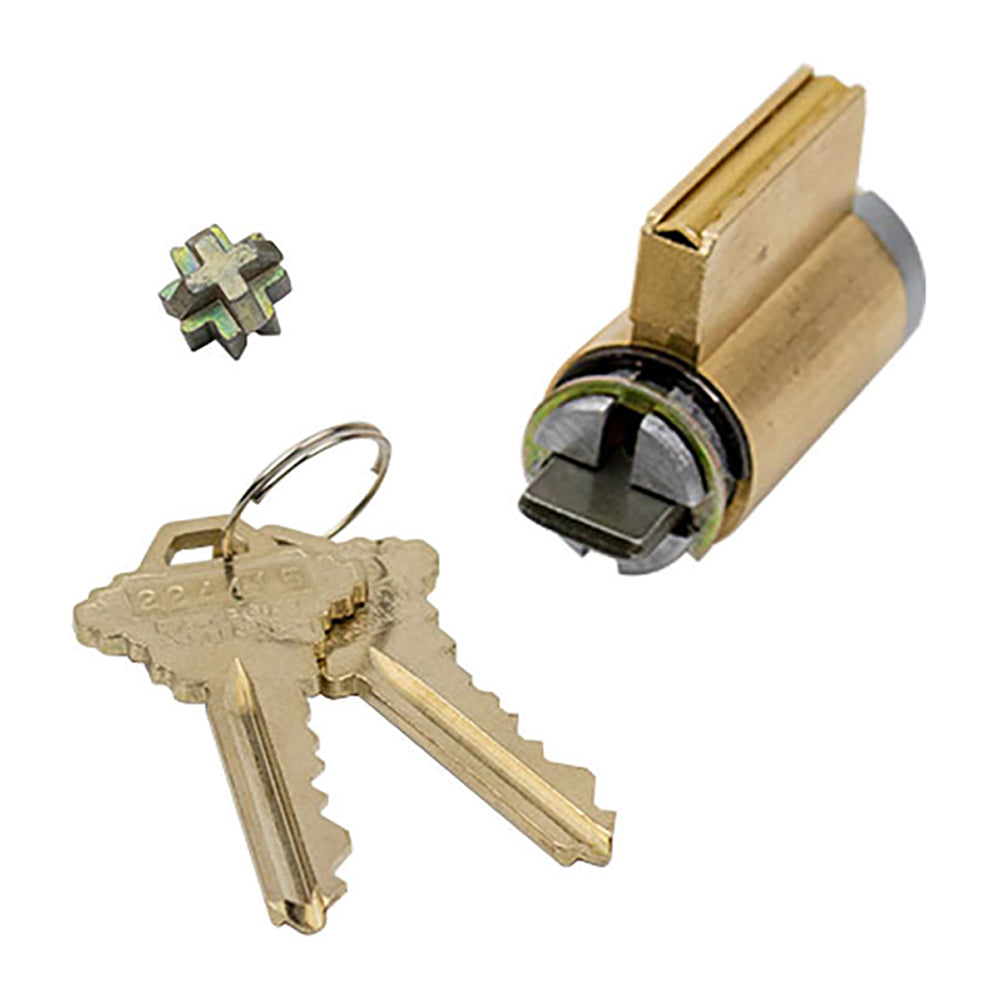

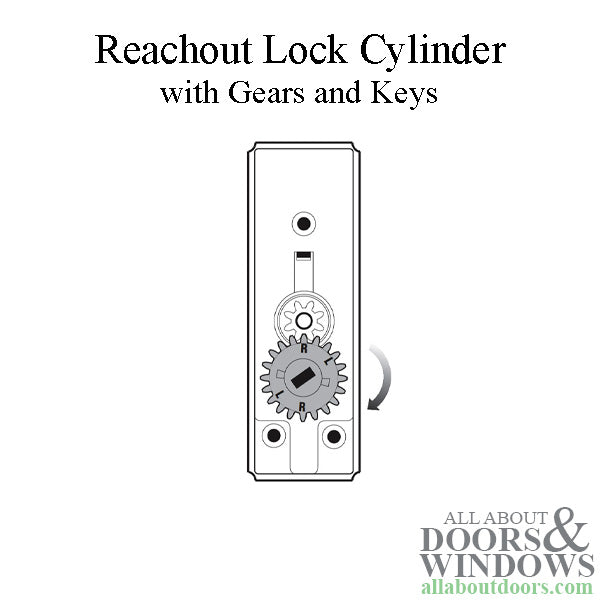

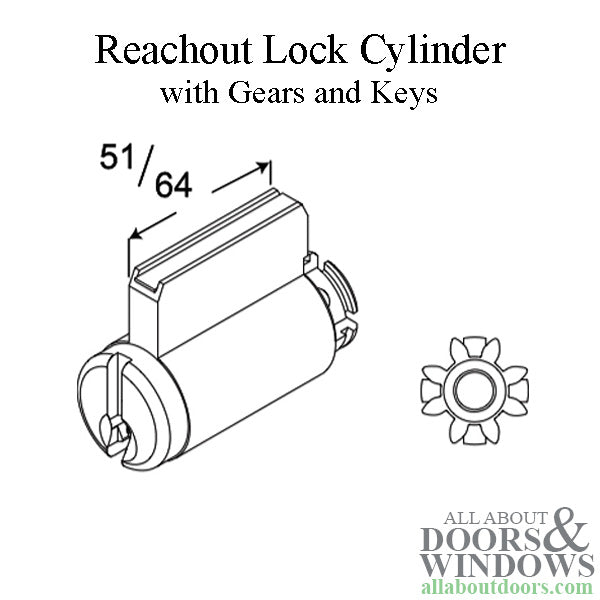

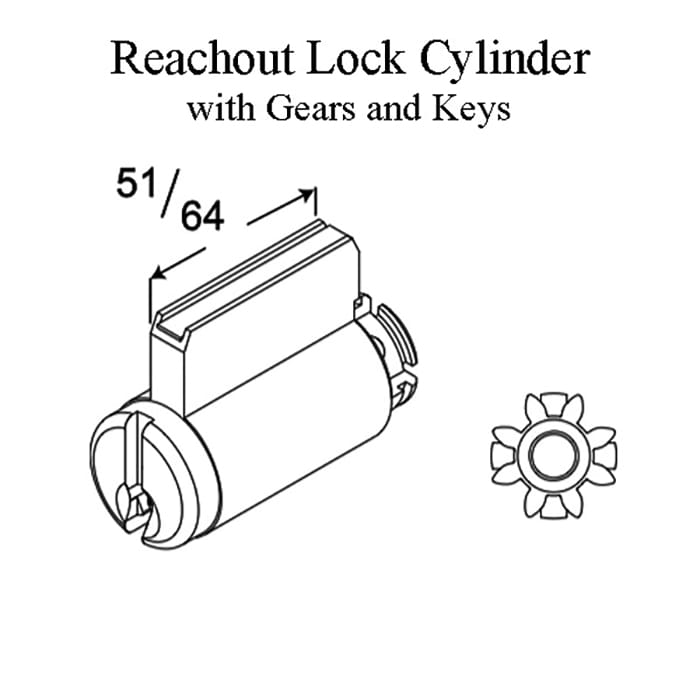

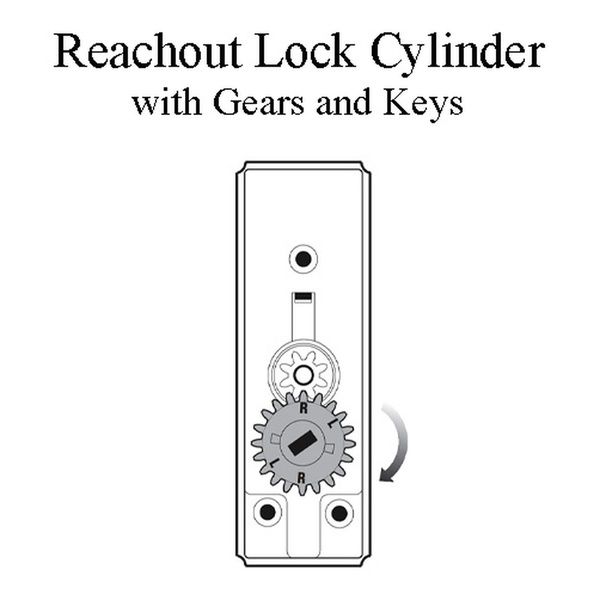

Andersen Reachout Lock Cylinder with Gears and 2 Keys, No Tail Piece
Fits 200 and 400 series gliding patio doors manufactured 1982 to present.
Specifications:
- Finish: Silver faceplate
- Keyway: Schlage 6 pin SC4
NOTE:
- Cylinder Includes small gear and two keys.
- For installation on gliding doors you do not need the C-ring or the flat cylinder tail piece tab.
- Remove C ring and flat cylinder tail piece tab prior to installation.
- Newbury lock assembly has used a 6 pin cylinder since January of 2004.
- Glass dates from panel do not always represent the vintage of the lock assembly or the replacement key cylinder needed.
Related Andersen Parts:
2500707 - Gear Kit - Keyed Lock - Exterior
Andersen reachout lock cylinder with gears and 2 keys, no tail piece. Fits 200 and 400 series gliding patio doors manufactured 1982 to present.
NOTE:
Cylinder Includes small gear and two keys.
For installation on gliding doors you do not need the C-ring or the flat cylinder tail piece tab.
Remove C ring and flat cylinder tail piece tab prior to installation.
Newbury lock assembly has used a 6 pin cylinder since January of 2004.
Glass dates from panel do not always represent the vintage of the lock assembly or the replacement key cylinder needed.
Finish: Silver faceplate
Keyway: Schlage 6 pin SC4
Related Andersen Parts:
2500707 - Gear Kit - Keyed Lock - Exterior
