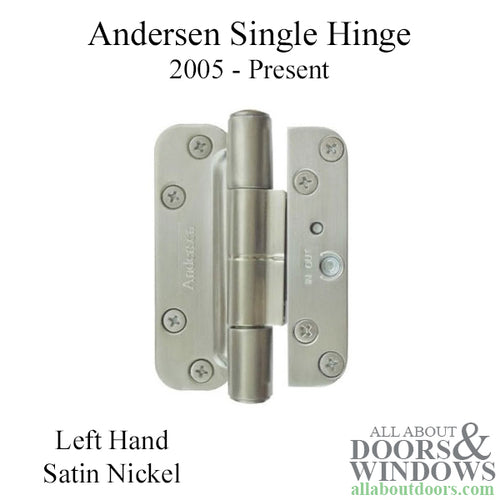

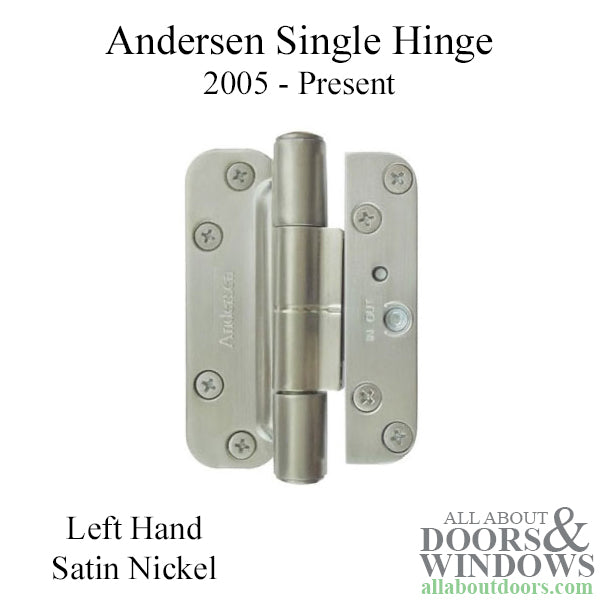

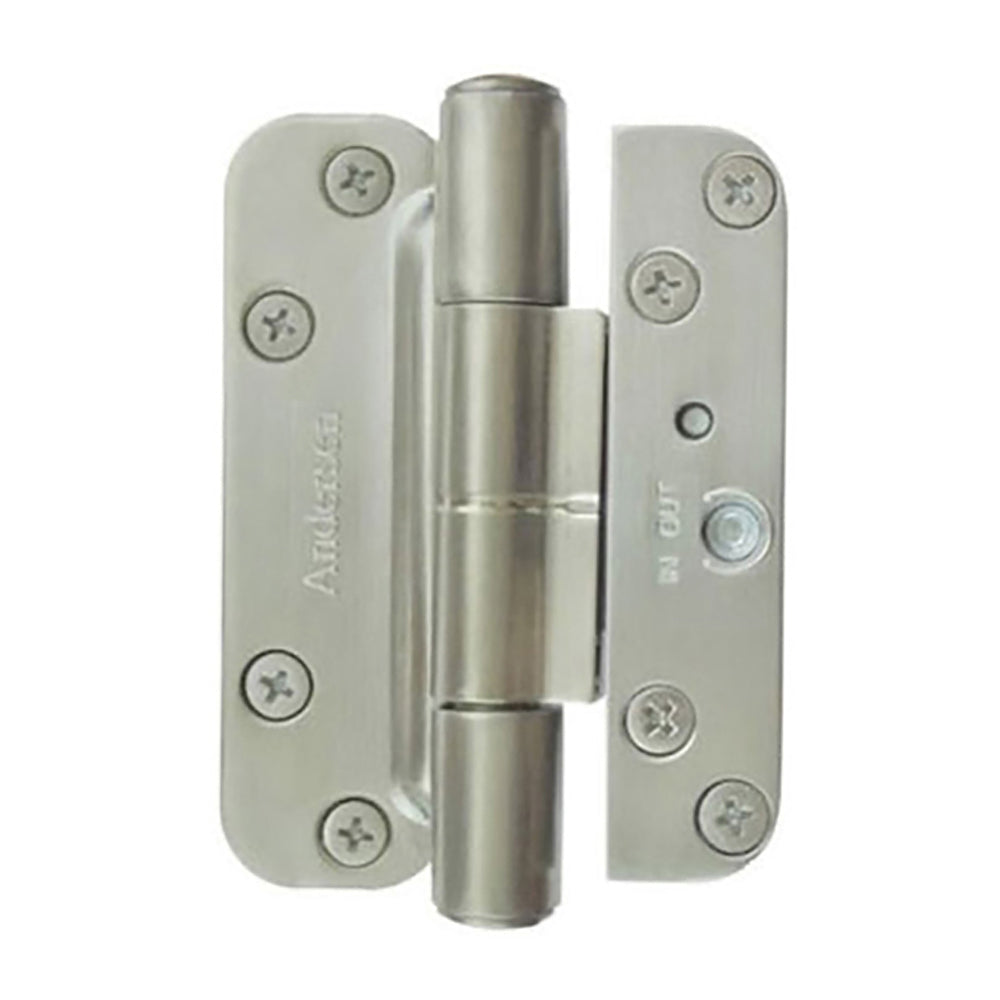

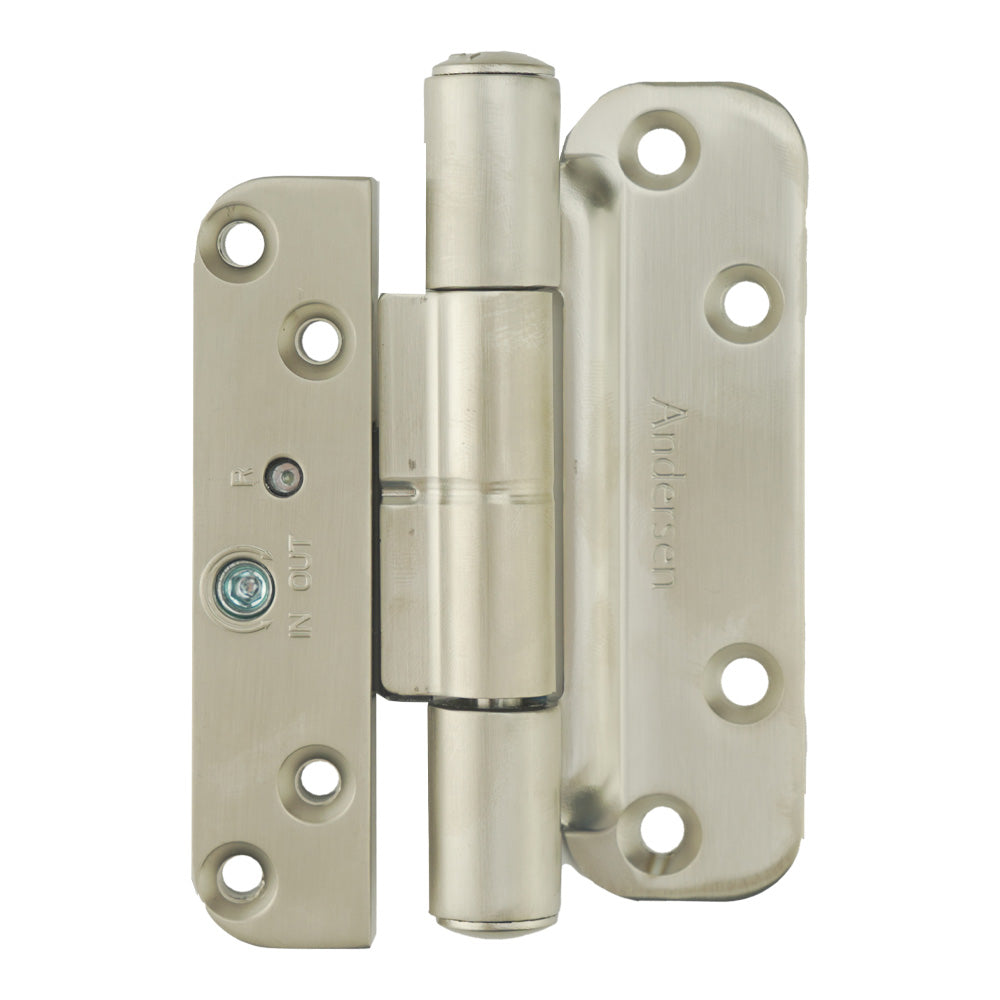

Left-hand Hinge for 400 Series Frenchwood Hinged Patio Doors in Satin Nickel Finish

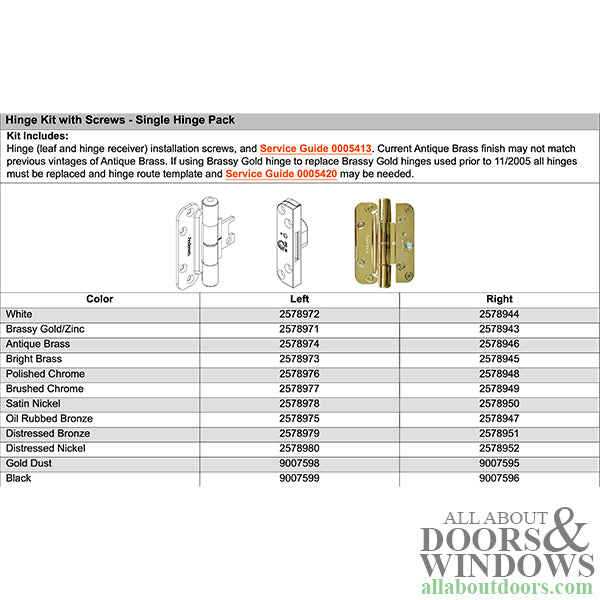

Contents: Includes single hinge (leaf and hinge receiver), screws, and instruction guide.

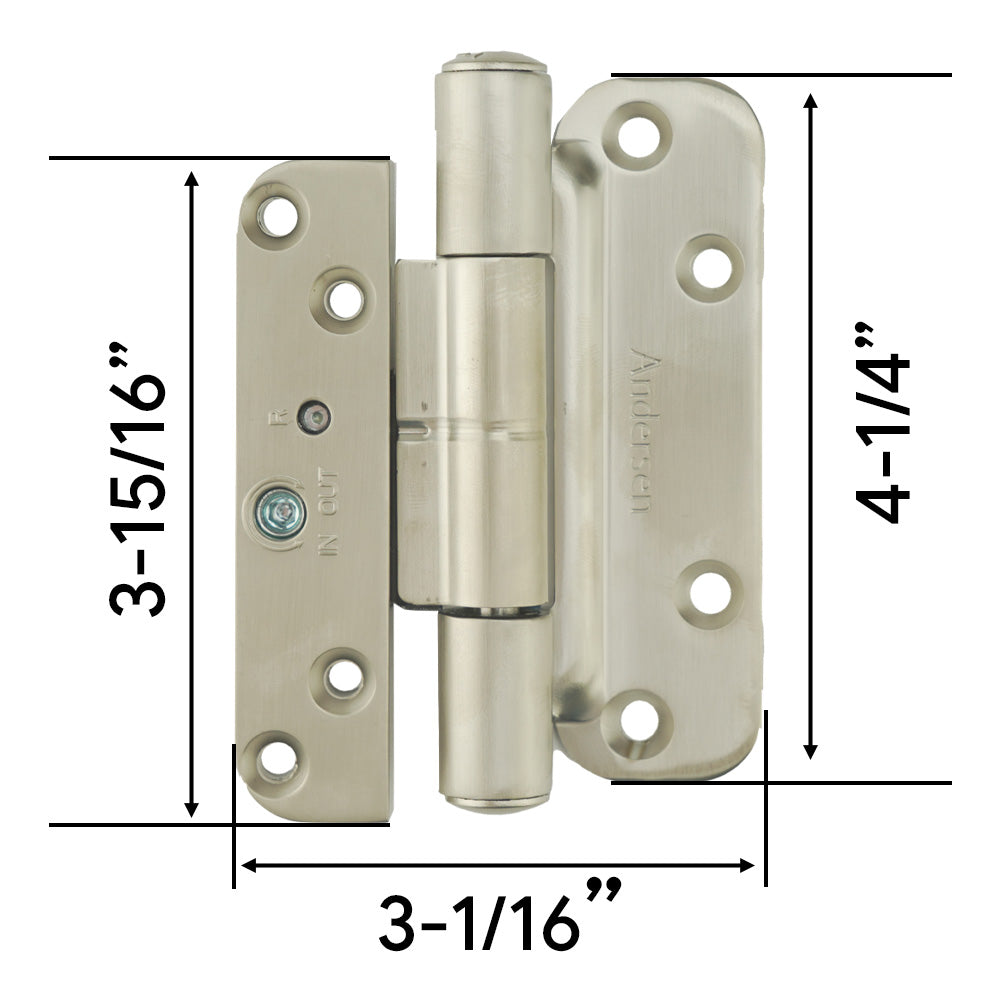

Specifications:
-
Overall Width: 3-1/16 Inches
-
Door Panel Length: 3-15/16 Inches
-
Door Jamb Length: 4-1/4 Inches
-
Handed: Yes
-
Color(s): Satin Nickel
NOTE:
If replacing one hinge, replace all hinges on the panel as well.
Andersen has 3 generations of hinges:
1. 1989-1991: These hinges had one hole in the center of the tab.
2. 1992 to November 2005: This generation had two holes.

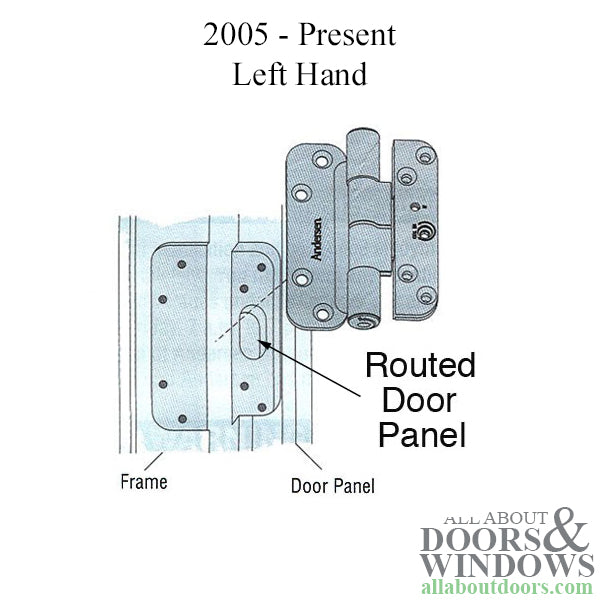

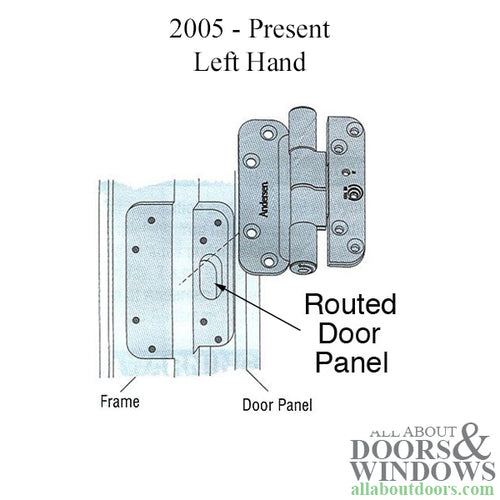

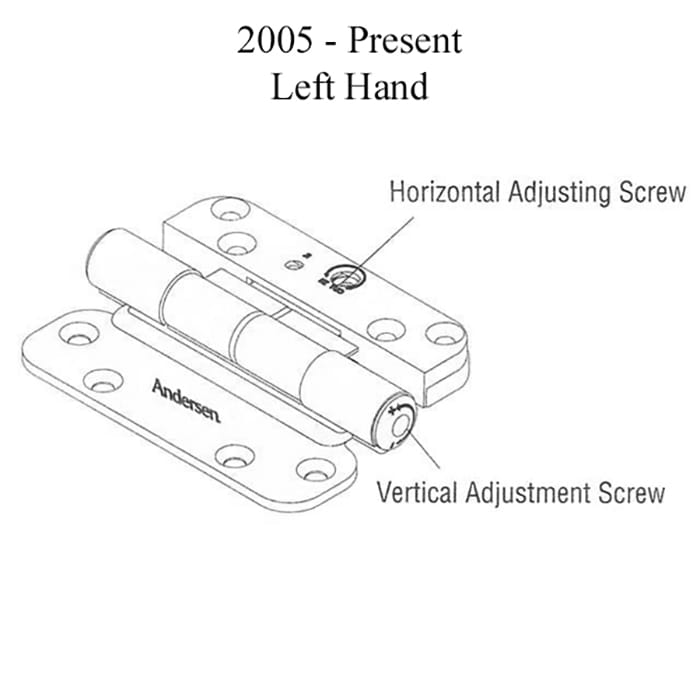

3. November 2005 to present: These hinges are totally different and require modification if being used to replace older hinges. See the first article below for more information.
All About Doors Guide:How to Replace Old-Style Andersen Hinges with New-Style
Manufacturer's Guide 0005105:Adjusting Andersen Hinges Made Pre-November 2005

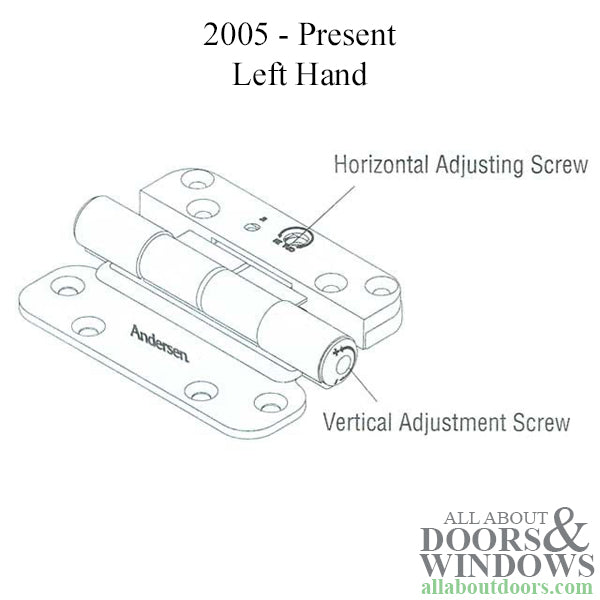

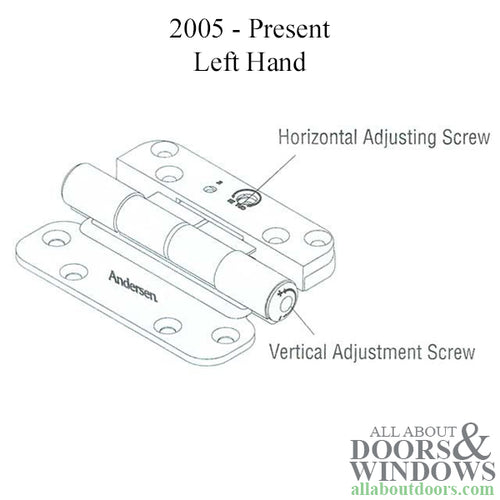

Manufacturer's Guide 0000127:Adjusting Andersen Hinges Made Post-November 2005
General Information:How to Identify Andersen Hinges

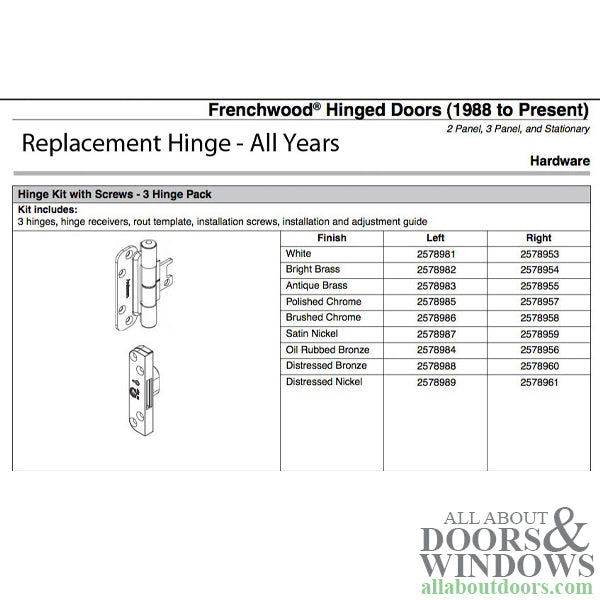

Left-hand hinge for 400 series Frenchwood hinged patio doors in Satin Nickel finish. Includes single hinge (leaf and hinge receiver), screws, and instruction guide. <br /><br />NOTE: If replacing one hinge, replace all hinges on the panel as well.<br /><br />Andersen has 3 generations of hinges:<br />1. 1989-1991: These hinges had one hole in the center of the tab.<br />2. 1992 to November 2005: This generation had two holes.<br />3. November 2005 to present: These hinges are totally different and require modification if being used to replace older hinges. See the first article below for more information.<br /><br />Related Hinges:<br />Satin Nickel 1-Pack - <a href="https://www.allaboutdoors.com/1-Hinge-Kit-2005-Present-Andersen-FWH-Left-Hand-Door-Brus_2">2578978</a> LH / <a href="https://www.allaboutdoors.com/1-Hinge-Kit-2005-Present-Andersen-FWH-Right-Hand-Door-Sat">2578950</a> RH<br />Satin Nickel 3-Pack - <a href="https://www.allaboutdoors.com/3-Hinge-Kit-2005-Present-Andersen-FWH-Left-Hand-Door-Brus_2">2578987</a> LH / <a href="https://www.allaboutdoors.com/3-Hinge-Kit-2005-Present-Andersen-FWH-Right-Hand-Door-Bru_2">2578959</a> RH<br />Satin Nickel 4-Pack - <a href="https://www.allaboutdoors.com/4-Hinge-Kit-2005-Present-Andersen-FWH-Left-Hand-Door-Satin-Nickel">2578996</a> LH / <a href="https://www.allaboutdoors.com/4-Hinge-Kit-2005-Present-Andersen-FWH-Right-Hand-Door-Satin-Nickel">2578968</a> RH<br /><br /><b>All About Doors Guide: </b> <a href="http://www.allaboutdoors.com/article_info.php?articles_id=112" target="_blank">How to Replace Old-Style Andersen Hinges with New-Style </a><br /><b>Manufacturer's Guide 0005105: </b> <a href="http://www.allaboutdoors.com/article_info.php?articles_id=76" target="_blank">Adjusting Andersen Hinges Made Pre-November 2005</a><br /><b>Manufacturer's Guide 0000127: </b> <a href="http://www.allaboutdoors.com/article_info.php?articles_id=77" target="_blank">Adjusting Andersen Hinges Made Post-November 2005</a><br /><b>General Information: </b><a href="http://www.allaboutdoors.com/article_info.php?articles_id=78" target="_blank">How to Identify Andersen Hinges</a>
