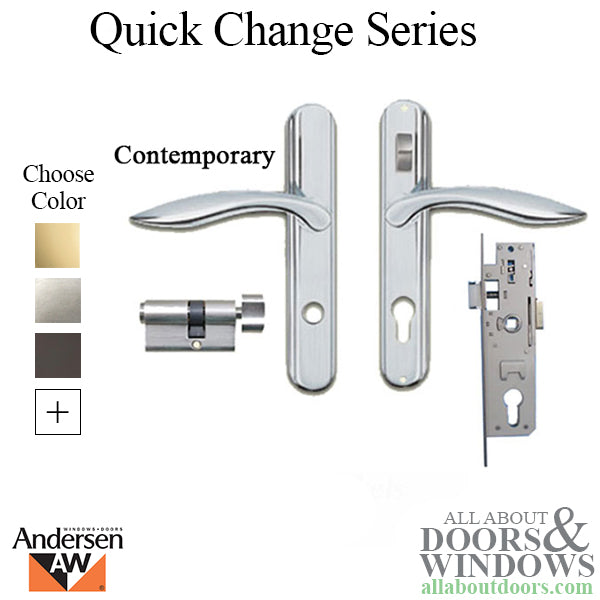

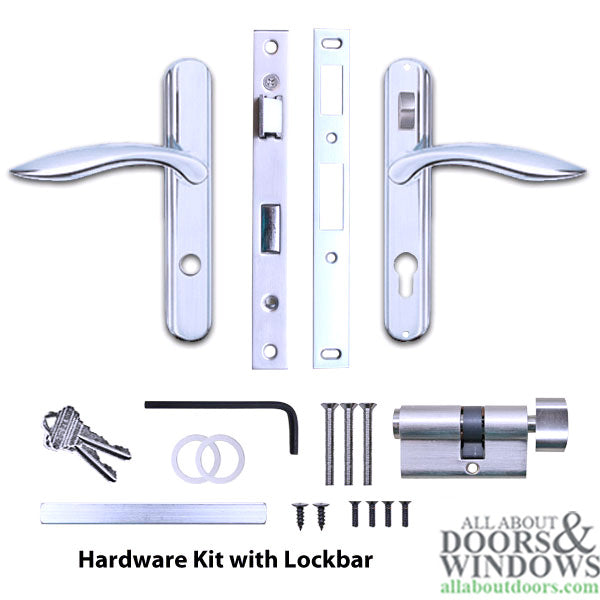

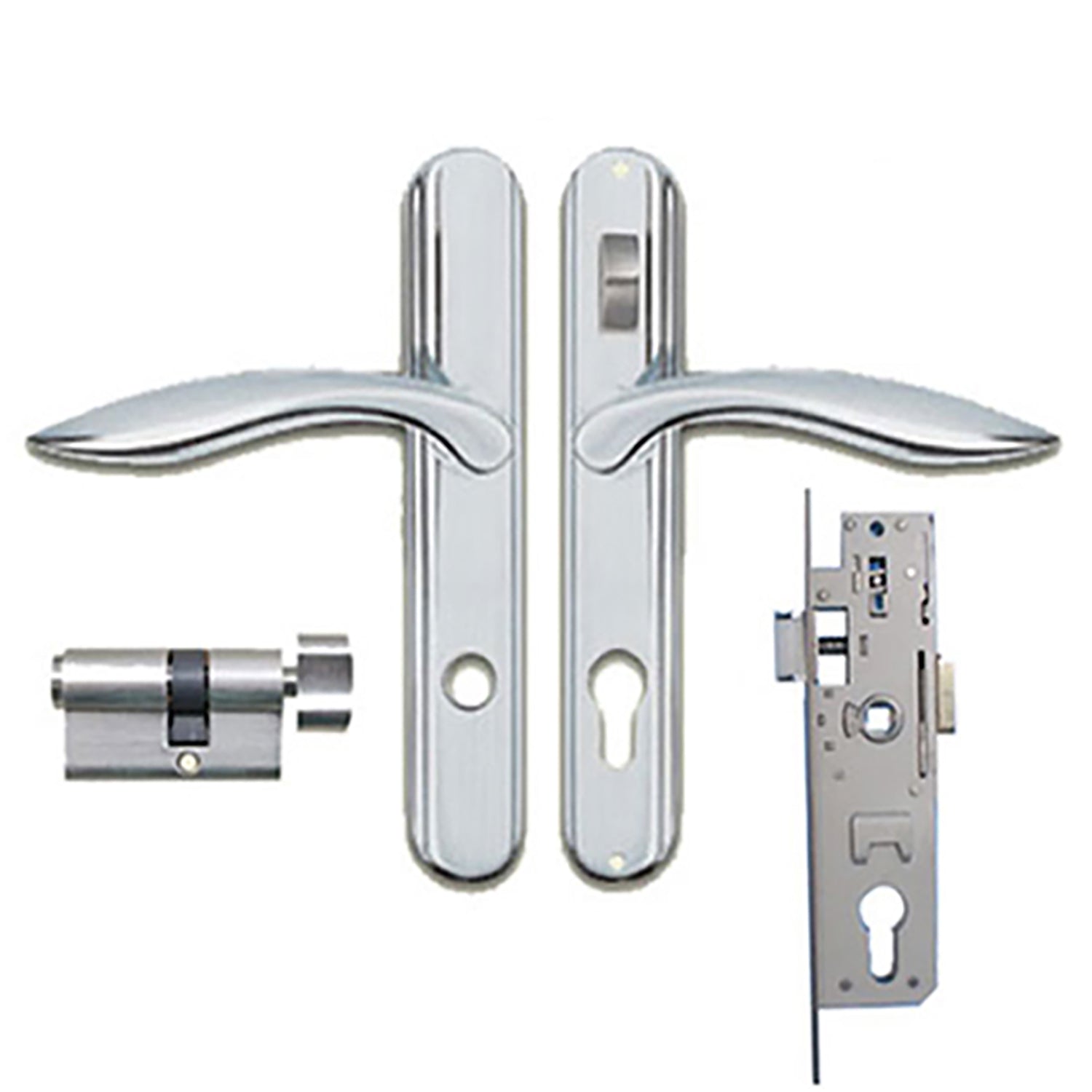

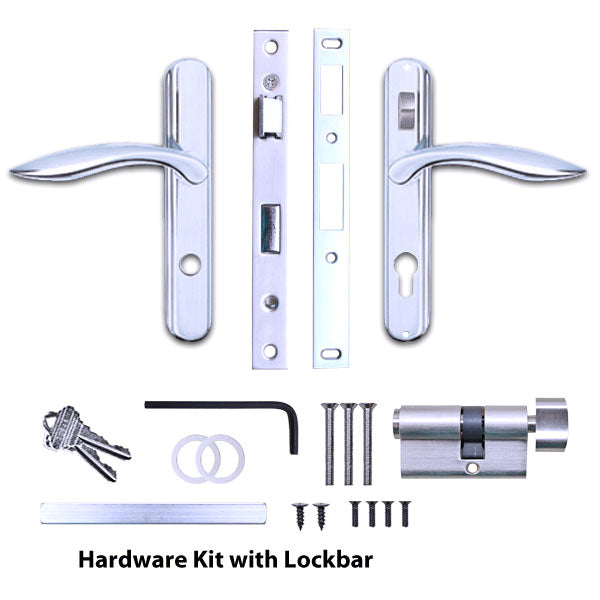

Andersen / Emco Contemprary Quick Change storm door mortise lock hardware with Lock bar.

Special Features:
Lock Bar Connector on lockcase; with Slide thumb button on inside plate
Off-center Euro-Style Profile cylinder with thumb turn on inside and round hole for outside plate.
Euro Style Key Cylinder - offset tail piece 1-7/32 to screw hole from key side; 15/16 inch from thumb side.

Door Thickness: 1-1/2 thick doors.
Key Cylinder Type: Euro-Style Profile cylinder with inside thumb turn
Key Cylinder Length: 2-1/8 off-center; 1-3/16 to screw hole from key side and 15/16 inch from thumb side.
Keyway: Kwikset 5 pin Rekeyable, 2 keys ( old style had Schlage )

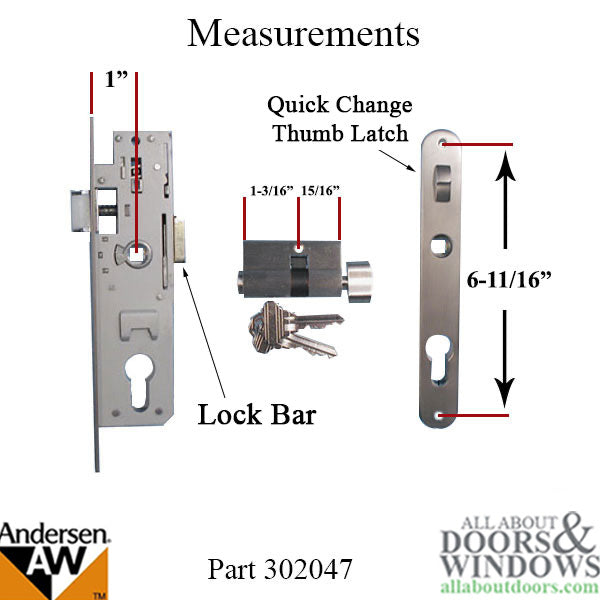

Mortise Lock Body Measurements:
Installation screw hole spacing (center-to-center): 6-15/16 inch
Backset: 1 inch (standard is 7/8 )
Backset is measured from edge of mortise lock to center of handle

Handle Style: Contemporary
Handle Diameter Hole: 9/16 inch (standard 5/8 inch)
Handle Spindle: 5/16 Square, 3-1/4 Length
Escutcheon trim plate mounting screw holes: 6-11/16 inch
Color / Finishes: Polished Brass, Satin Nickel or Oil Rubbed Bronze

NOTE:
To reverse the handing of the Mortise Lock, simply remove the Faceplate and rotate the Spring Latch 180 degrees, then reconnect the faceplate.

Details on Andersen's Oil Rubbed Bronze and Distressed Bronze Finishes
