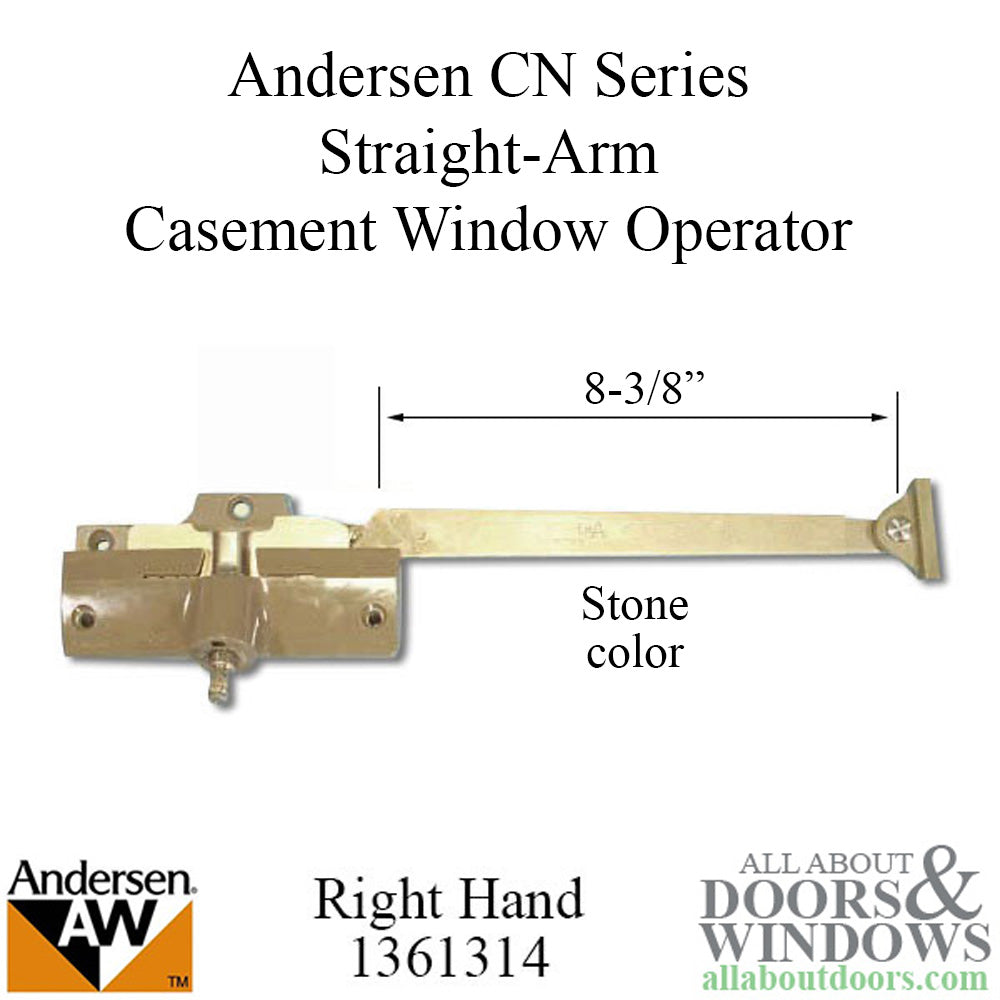

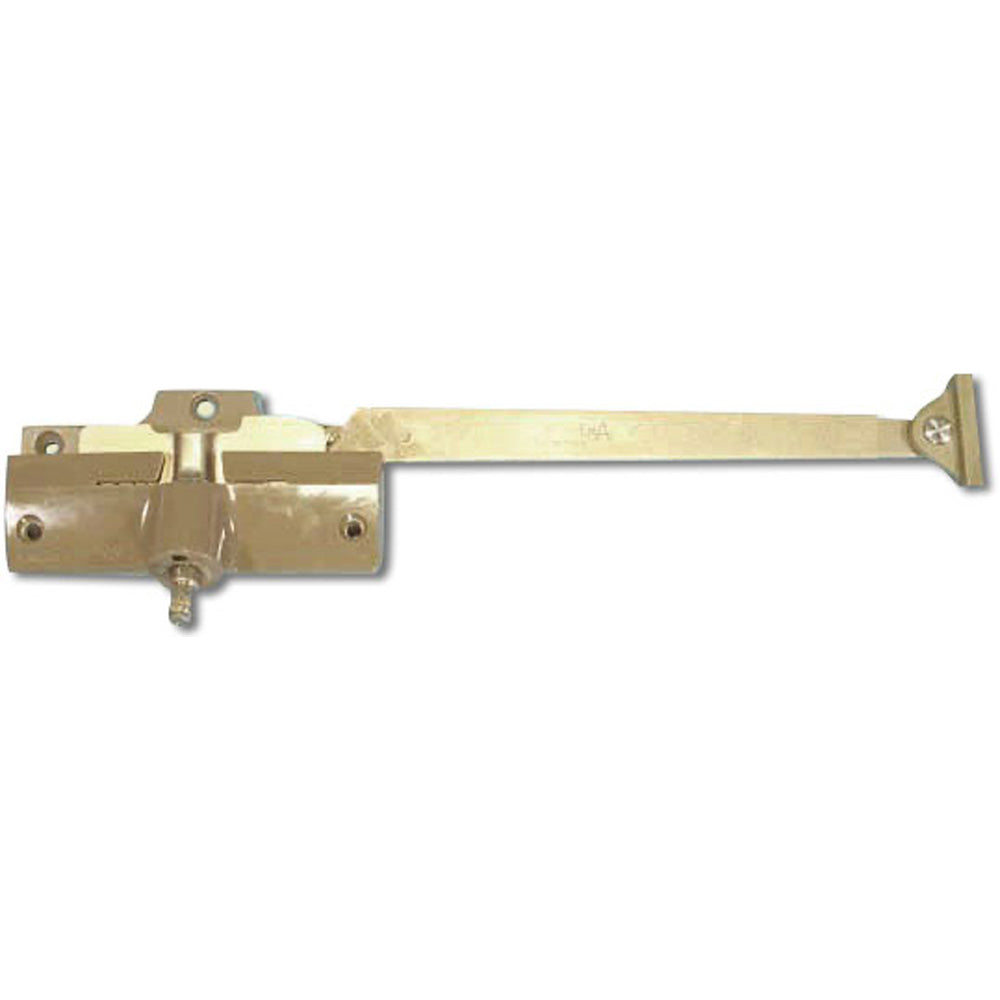

Andersen Window - Perma-Shield Casement Straight Arm Operator, 8-3/8 - RH

Part Number:1361314 Price: $56.30

Description
Additional Information

Andersen Perma-Shield Window casement manufactured from 1979 To 1995

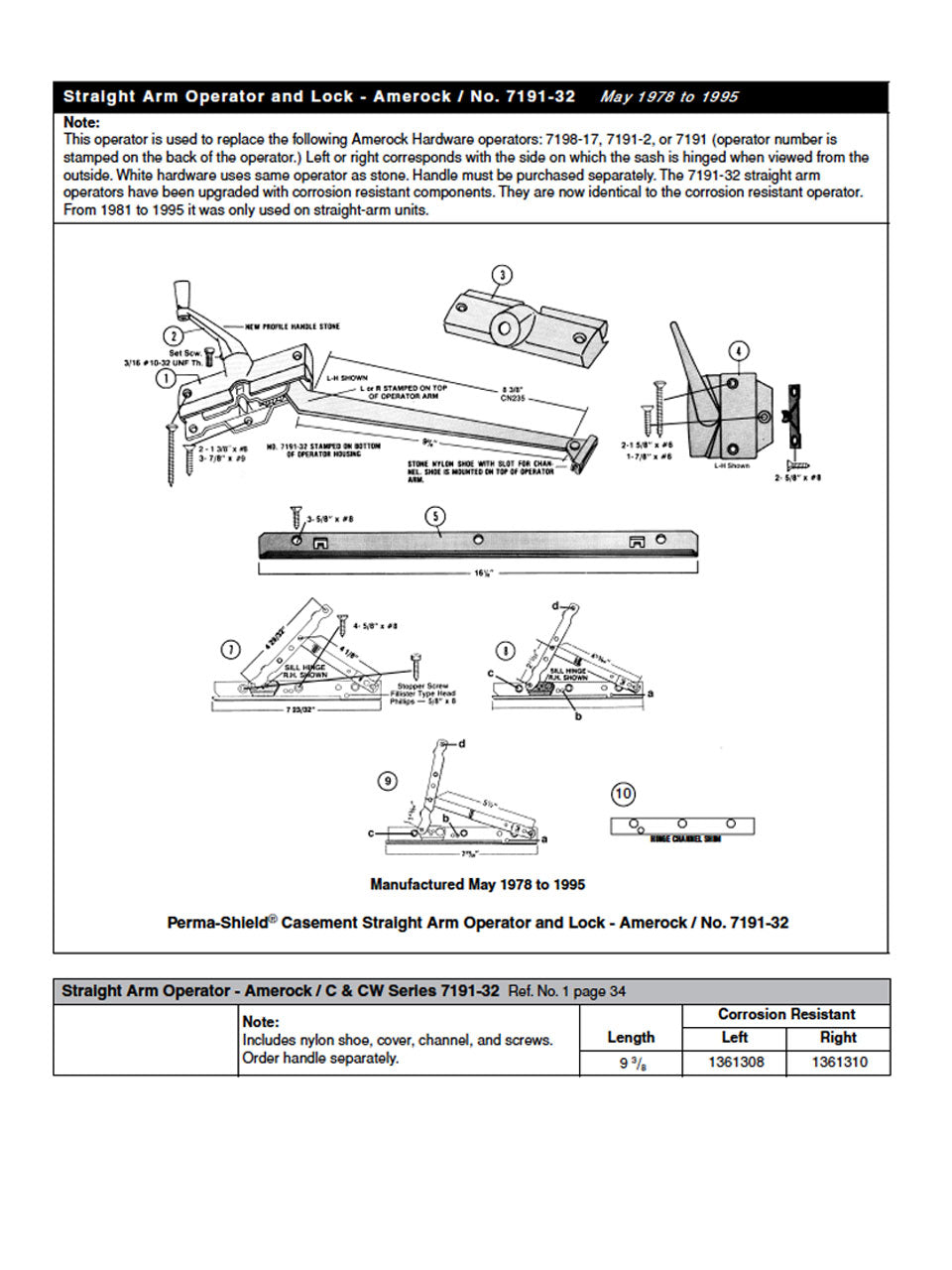

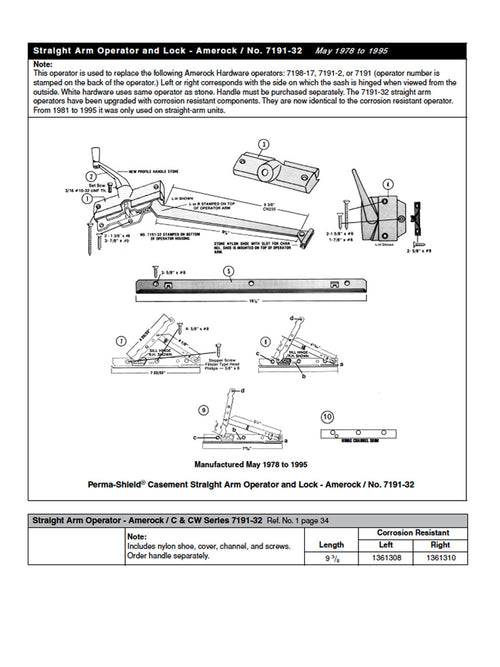

Operator No. 7191-32, CN Series with 8-3/8 inch arm.
Stone colored nylon shoe attached to top side of operator arm.
Parts include the stone color plastic cover. part does not include handle # 0532408

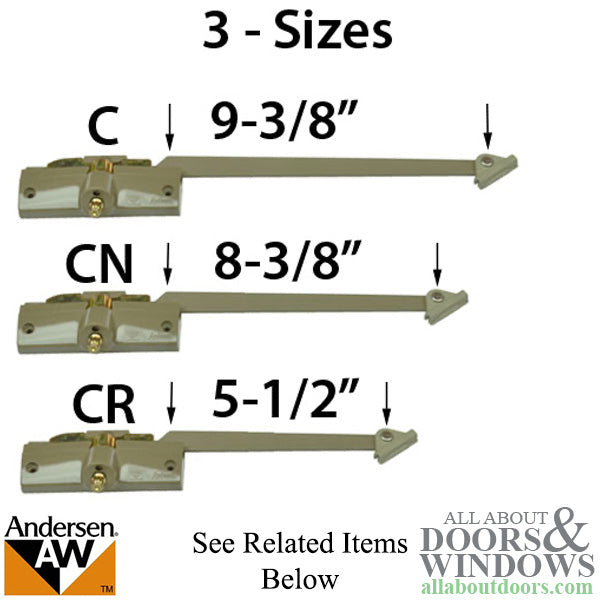

Related Andersen Casement window hardware:
1361312 - Straight Arm Operator - CN Series - left
1361314 - Straight Arm Operator - CN Series - right
1361122 - Straight Arm Operator - CR Series - left -
1361124 - Straight Arm Operator - CR Series - right

Written Article: Andersen Casement Window Operator Replacement
Video From Andersen:How to Replace Straight-Arm Operator

Andersen Perma-Shield Window casement manufactured from 1979 To 1995 Operator No. 7191-32, CN Series with 8-3/8 inch arm. Stone colored nylon shoe attached to top side of operator arm. Parts include the stone color plastic cover. part does not include handle #

<a href="http://www.allaboutdoors.com/Andersen-Window-Perma-Shield-Operator-Crank-Handle-Stone" target="_blank">0532408</a>

 Related Andersen Casement window hardware:

<a href="http://www.allaboutdoors.com/Andersen-Window-Perma-Shield-Casement-Straight-Arm-Operato" target="_blank">1361312</a> - Straight Arm Operator - CN Series - left

<a href="http://www.allaboutdoors.com/Andersen-Window-Perma-Shield-Casement-Straight-Arm-Operato_2" target="_blank">1361314</a> - Straight Arm Operator - CN Series - right

<a href="http://www.allaboutdoors.com/Andersen-Window-Perma-Shield-Casement-Window-Straight-Ar" target="_blank">1361122</a> - Straight Arm Operator - CR Series - left -

<a href="http://www.allaboutdoors.com/Andersen-Window-Perma-Shield-Casement-Window-Straight-Ar_2" target="_blank">1361124</a> - Straight Arm Operator - CR Series - right

Written Article: <a href="http://www.allaboutdoors.com/Articles/Windows-and-Their-Hardware/Andersen-Casement-Window-Operator-Replacement" target="_blank">Andersen Casement Window Operator Replacement</a>

 Video From Andersen:<a href="https://www.allaboutdoors.com/Article-VIDEO-FROM-MANUFACTURER-Replacing-a-Straight-Arm-Operator-in-Andersen-Window" target="_self">How to Replace Straight-Arm Operator</a><a href="http://www.allaboutdoors.com/Articles/Videos/VIDEO-FROM-MANUFACTURER-Replacing-a-Straight-Arm-Operator-in-Andersen-Window"></a>
