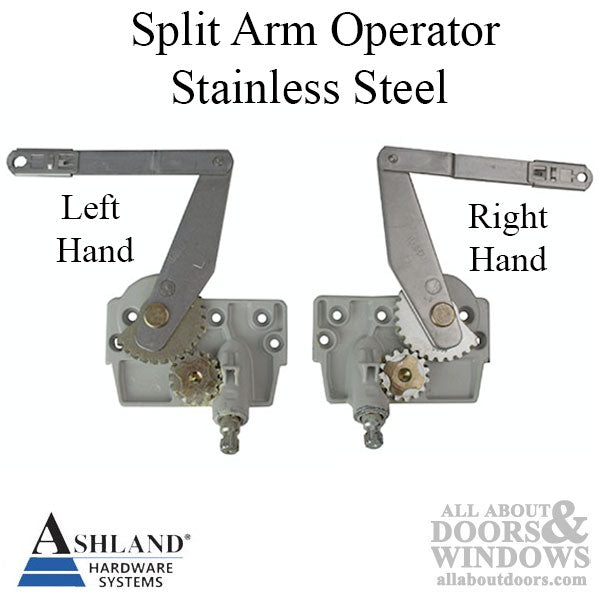

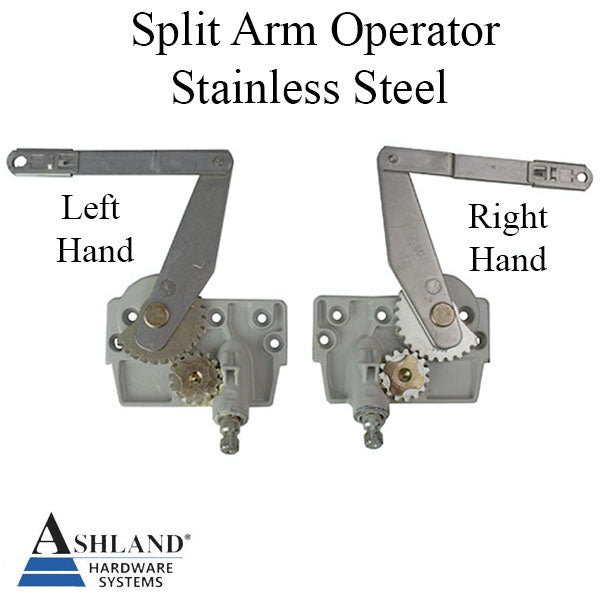

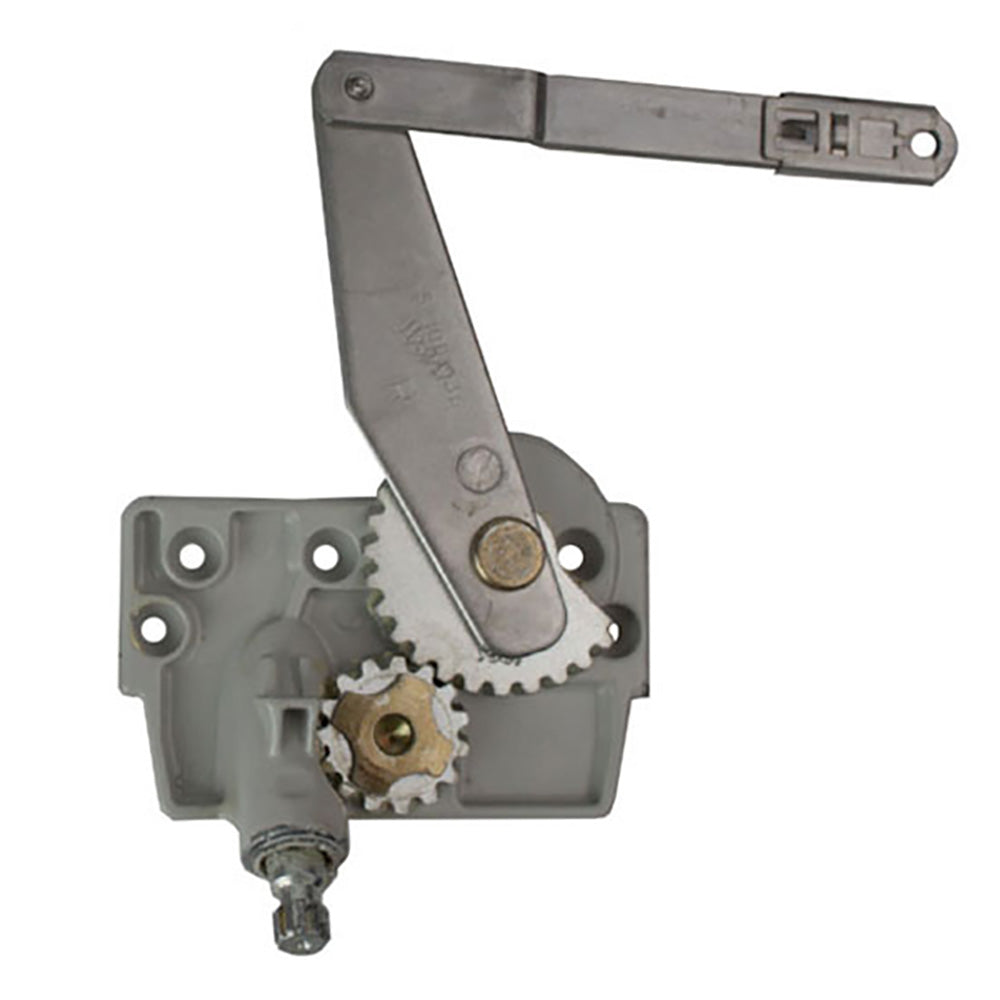

Ashland casement split arm operator, left and right handed.
Used by Eagle, Marvin and others
Application: Casement Window
Type: Dyad, Split Arm, Surface mount

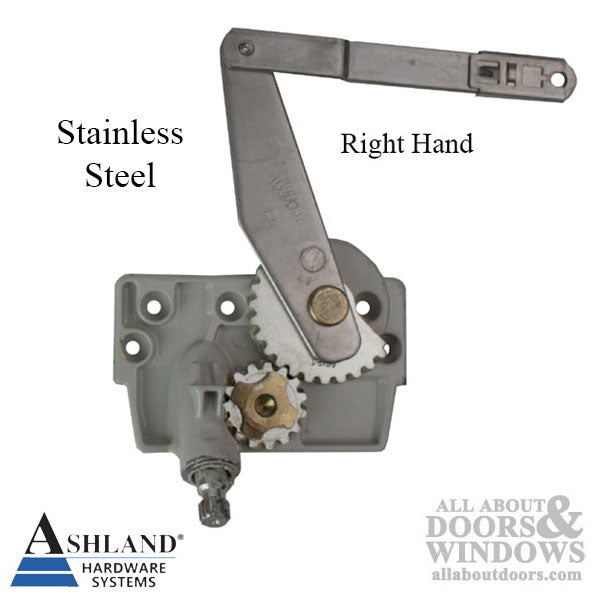

Handed: Yes, Left and Right as shown
Arm Link Length: 4-1/2 inch
Base Dimensions: 3-1/2 x 2-1/16 inch
Arm Markings: S-1081-66, S-1081-36, R
Base Markings: Ashland Logo, C-1081-211
Spline Diameter: 3/8 inch
Priced and sold each.
