Ashland Optima Short Dual-Arm Casement Window Operator, Stainless Steel

Ashland Optima – Short Arm Version

Stainless Steel Dual-Arm Casement Window Operator

Water resistant system is equipped with o-ring seal technology integrated within the operator. New composite assembly that insulates the operator thermally and reduces transfer of heat and cold into the home. AAMA Commercial grade 901-96 cycle test; 101 load rating; DP70 rating. Dual-Arm Operators are designed to work on windows from 20 inches (508 mm) in width up to 24 inches (609 mm) in height. It is used in conjunction with the sash bracket and track assembly shown.

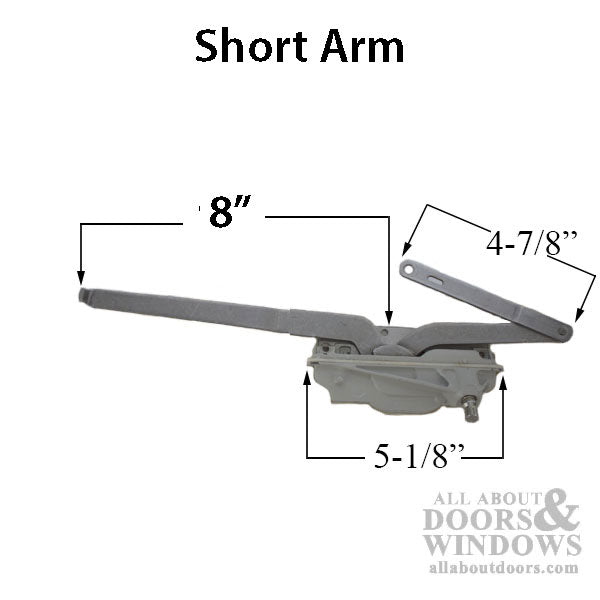

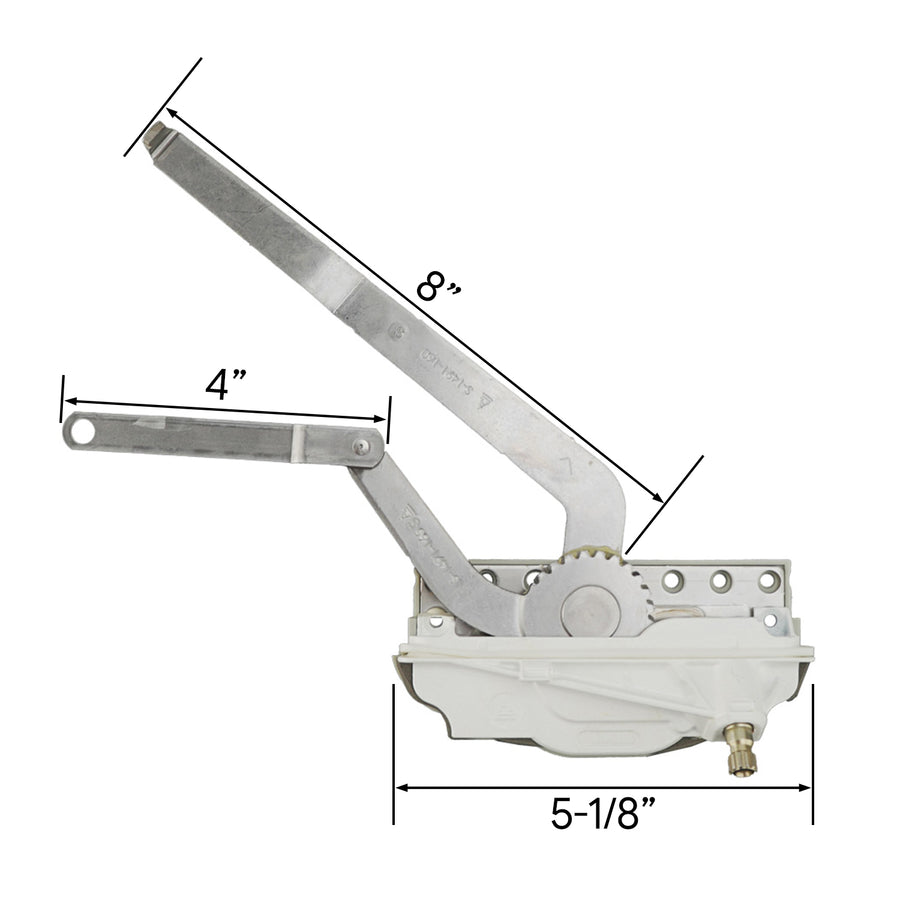

Specifications:

• Spline Diameter: 3/8 inch
• Arm Length: 10 inch
• Short Link Length: 4 inch
• Base Width: 5-1/8 inch at Cover

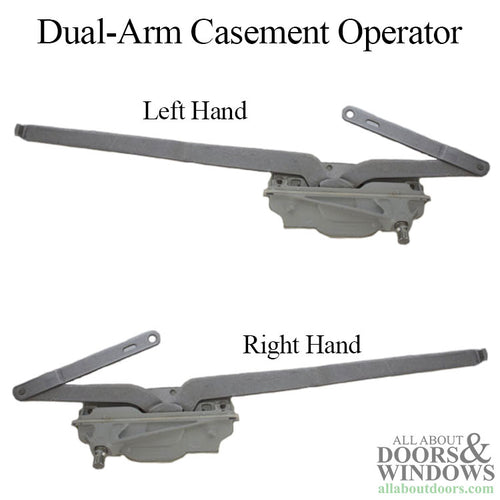

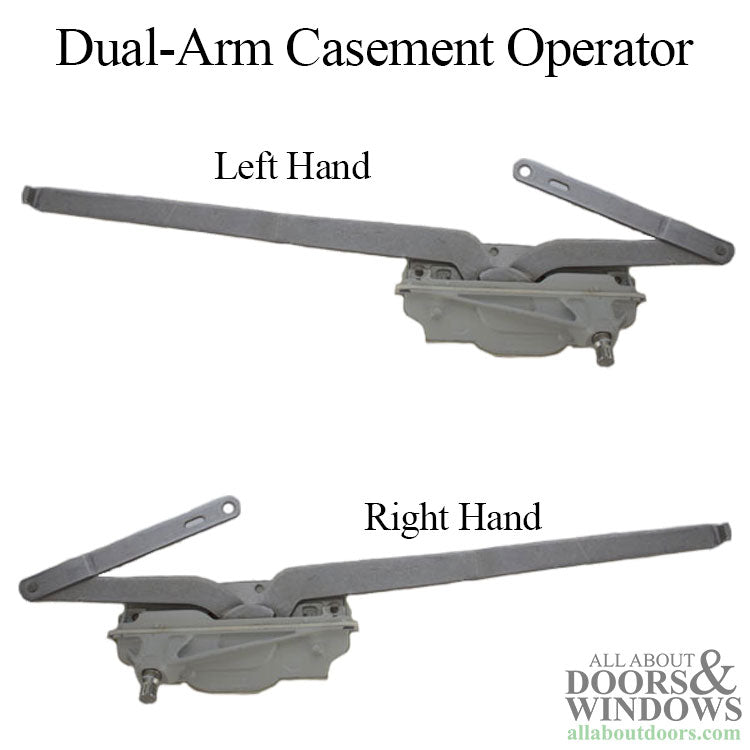

• Handing: Yes, choose left or right (see images)

Markings:

• 1491-120B Housing
• S-1081-71 on Short 4-7/8 link
• S-1491-160 on Straight Main Arm

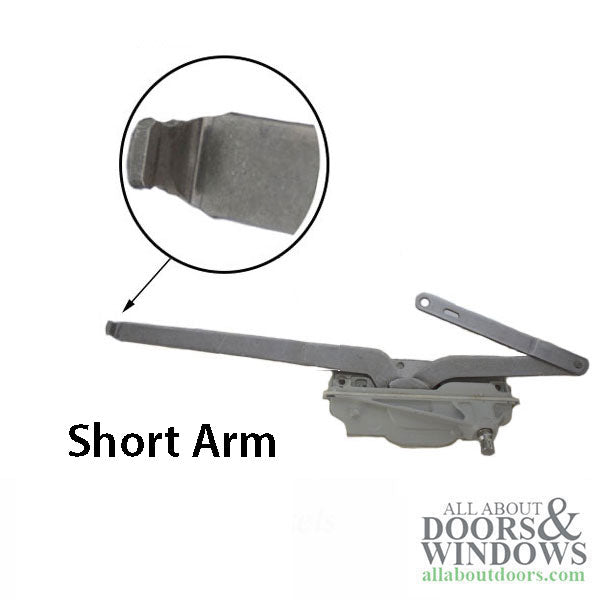

• S-1491-165 on Short Main Arm

Priced and sold each.
