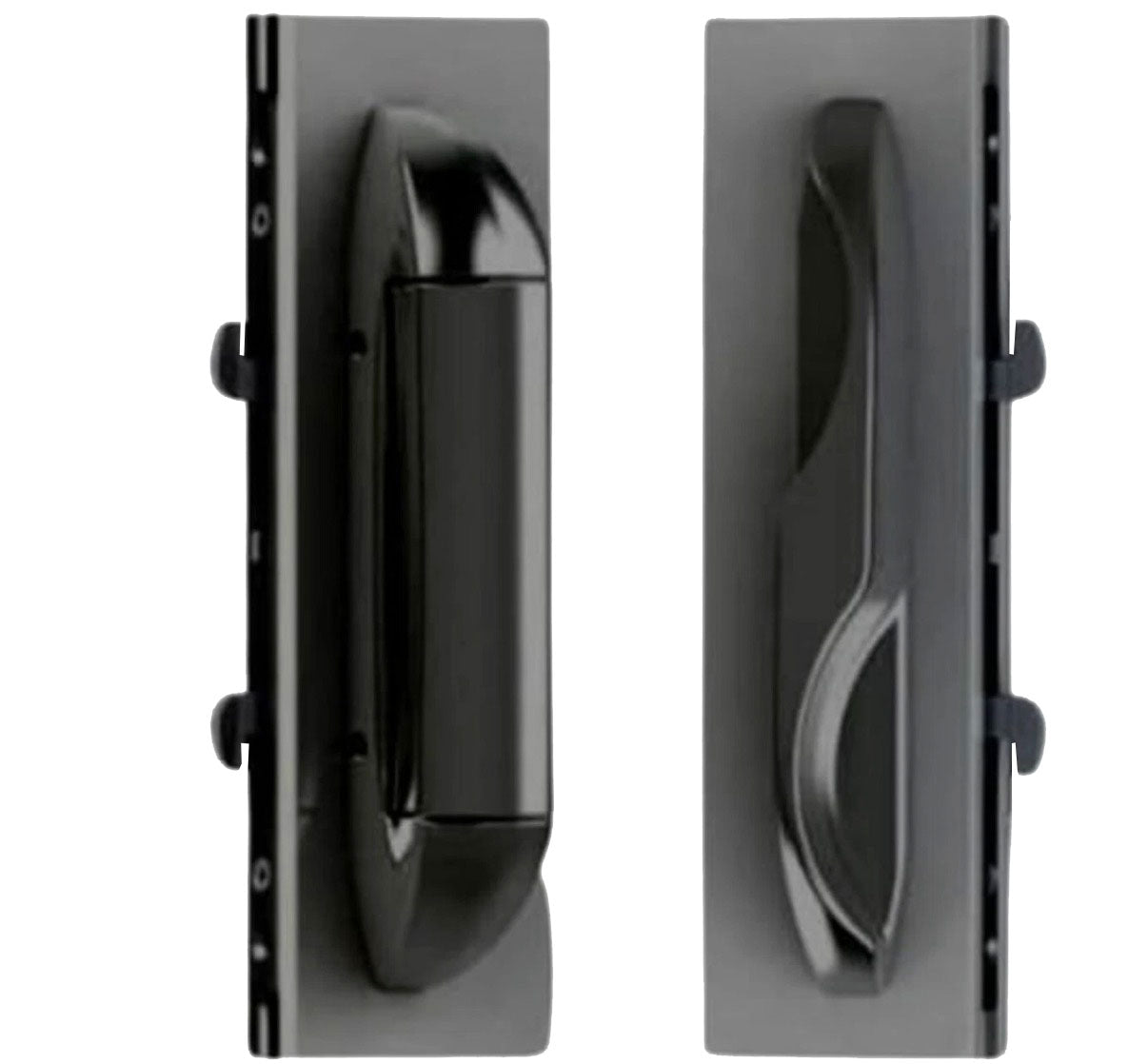

Assa Abloy Interlock Modern Push Pull Sliding Door Lock with Keyed Cylinder
Used with 15137 2-hook patio sliding door mortise lock

Application: Sliding Doors

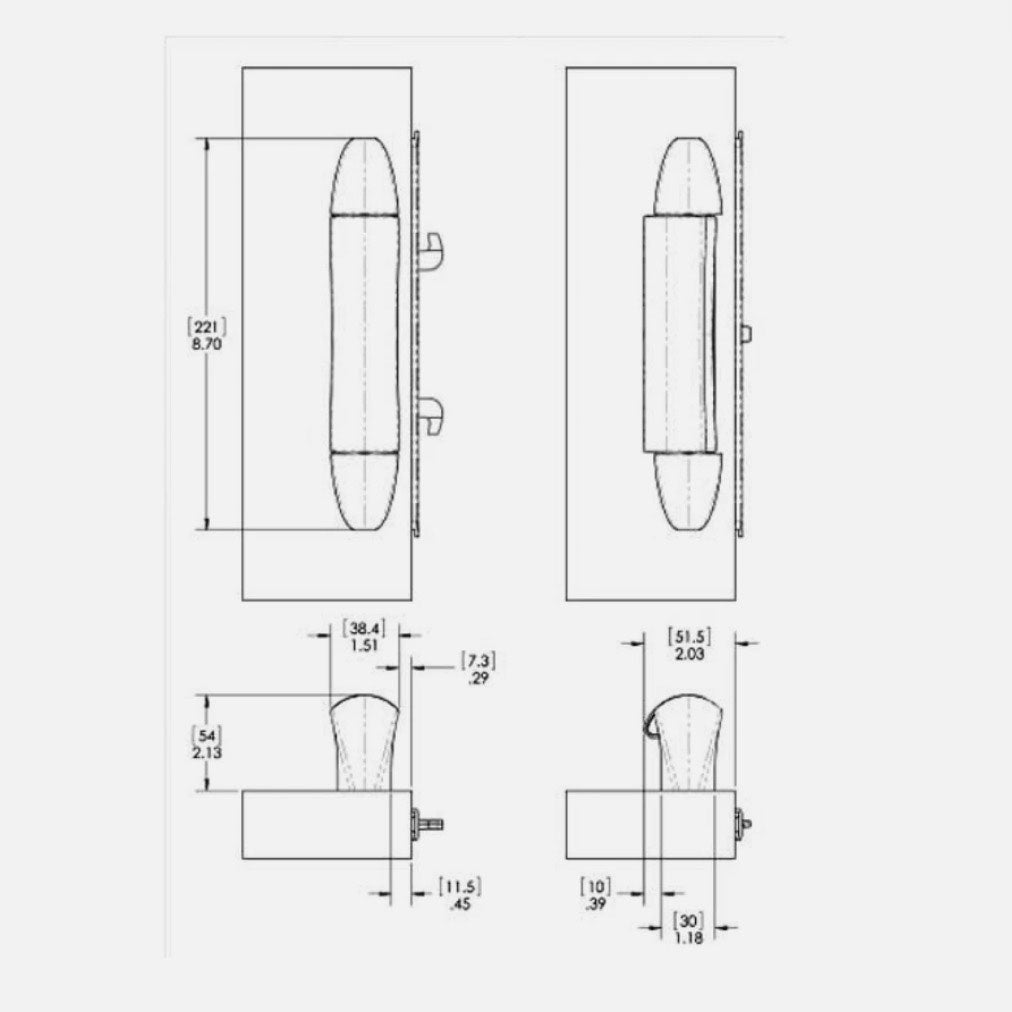

Width: 1-3/16"
Length: 8-11/16"
Keyed: Yes
Cylinder Type: American, 2-1/2" scored flat tail piece
Keyway: Schalge SC1, 5 pin with 2 keys
Door Thickness: 1-5/16 to 2-3/32"
Handle Screws 2 each: M4x40mm, M4x45mm, M4x50mm, M4x55mm
Material: Zinc
Color: Black

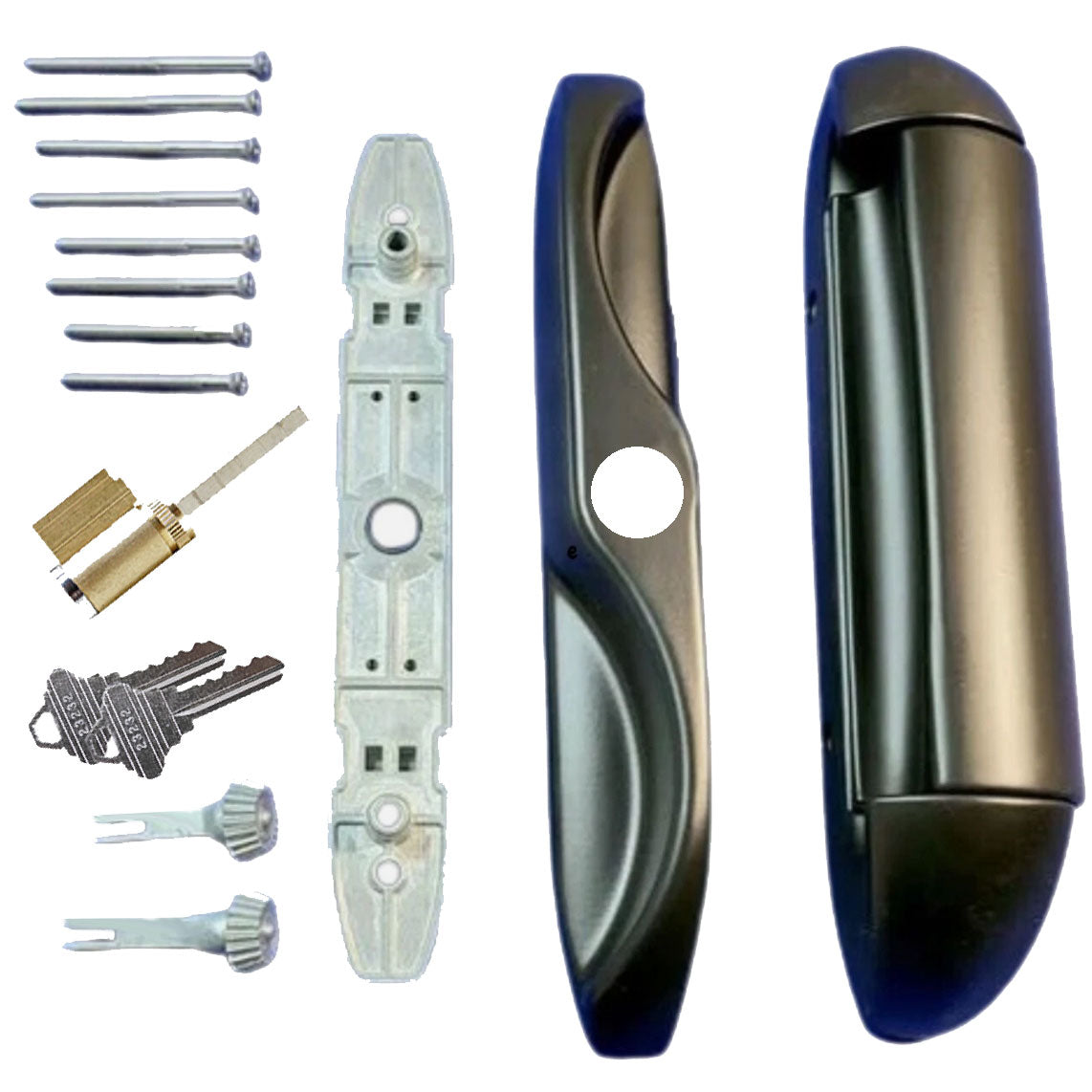

Contents: Interior / Exterior pulls, Mounting Plate, Pinion Gear, Keyed Cylinder and Installation Screws

Additional Information:
Innovative design and modern engineering have come together to produce the most ergonomic, intuitive solution for sliding doors ever invented. Featuring our state-of-the- art ONE-MOTION® operation, the patented INTUITION® sliding door handle offers the ultimate in comfort and convenience for the homeowner. Unlike any other sliding door solution, the INTUITION® features an ergonomic ONE-MOTION® operation – it allows the homeowner to unlock and open the door in a single fluid motion; in reverse, the door closes and locks in the same single fluid motion.

Smooth, intuitive, comfort operation
Innovative mechanism eliminates separate lever
Modern handle design does not extend into glass area
Designed for single and multi-panel applications
Fits INTERLOCK® slim backset mortise locking system
