Atrium 16mm Manual Tongue Version

Multipoint Lock Replacement Kit for Old-Style G-U Tripact Locks

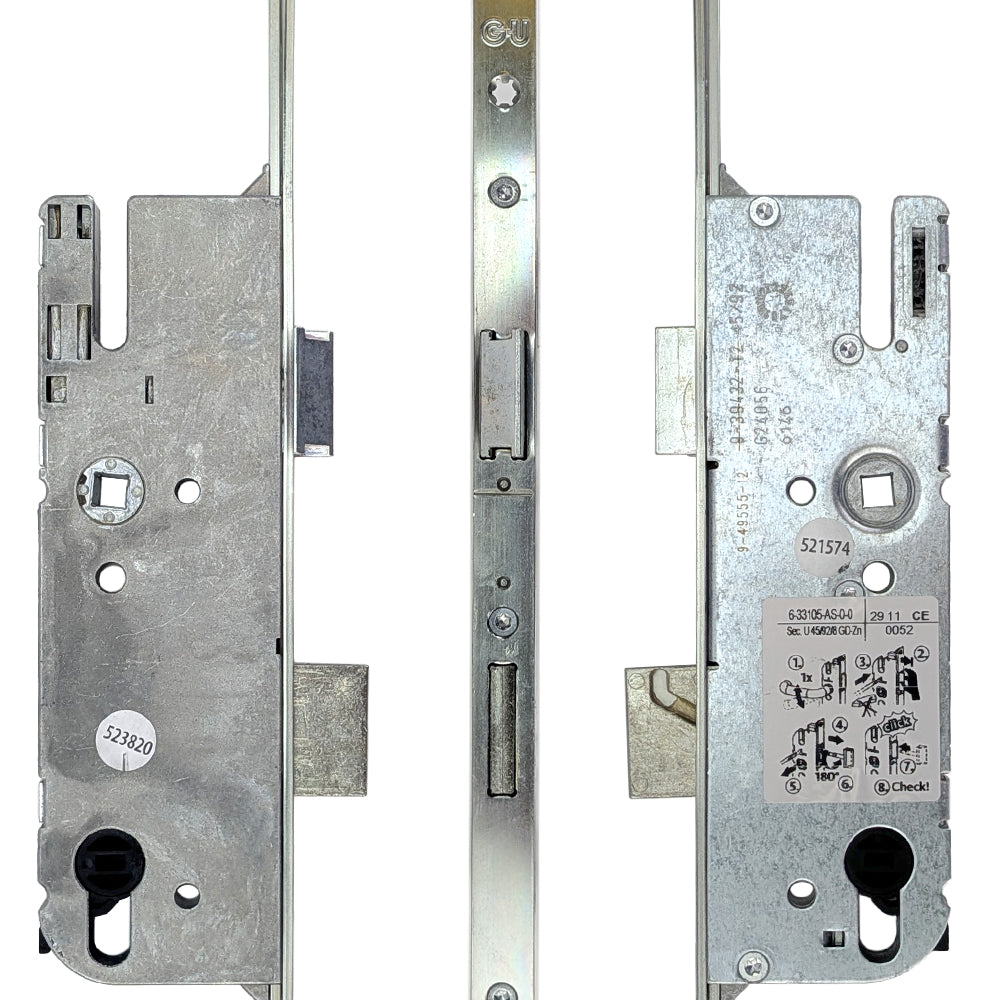

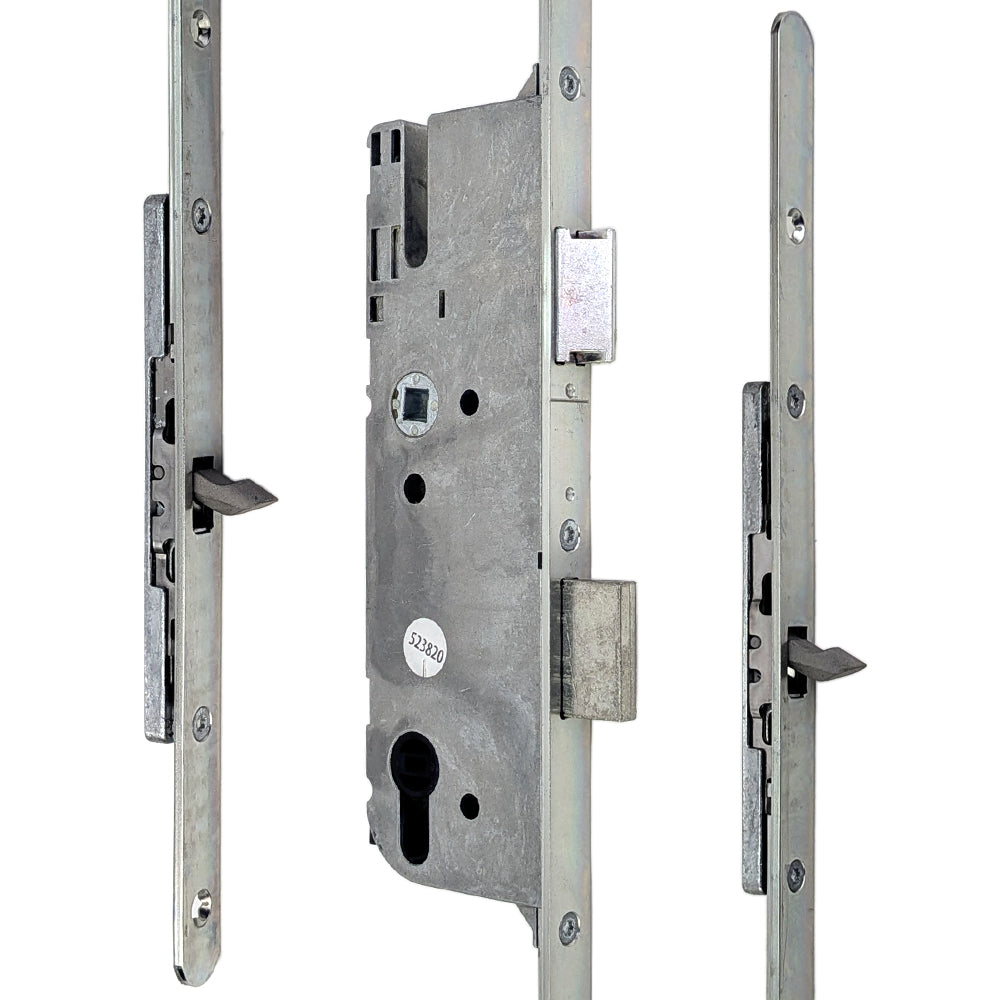

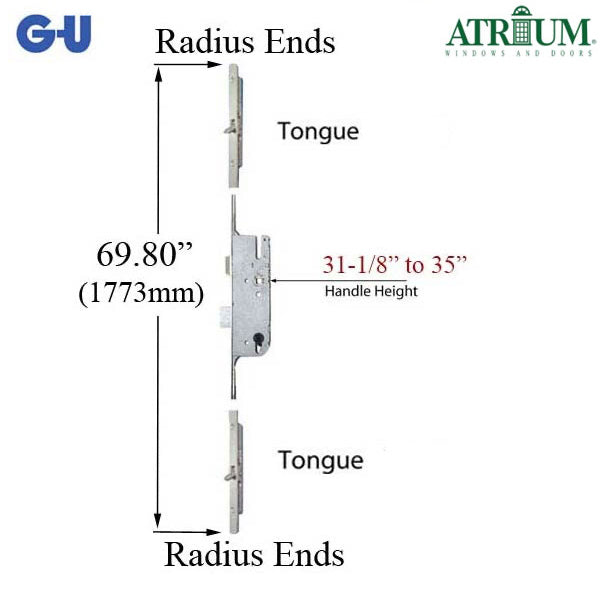

This is a 3-point locking system that features two tongue latches and a deadbolt. All three locking points are engaged by lifting the handle.

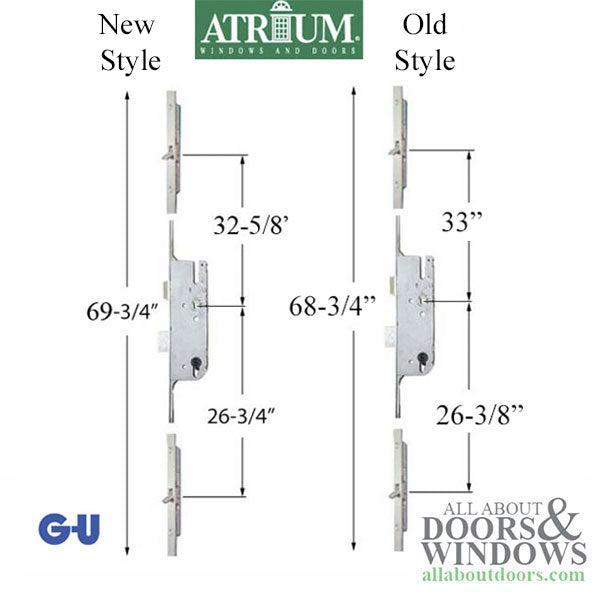

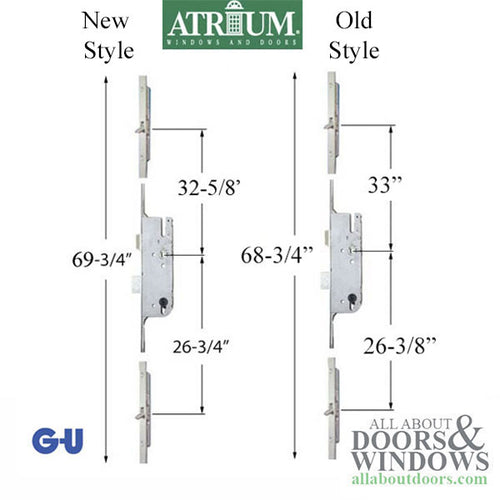

This is NOT a direct replacement for the Atrium door lock. It requires minor modifications. See additional pictures of Atrium old-style and Atrium replacement lock comparisons.

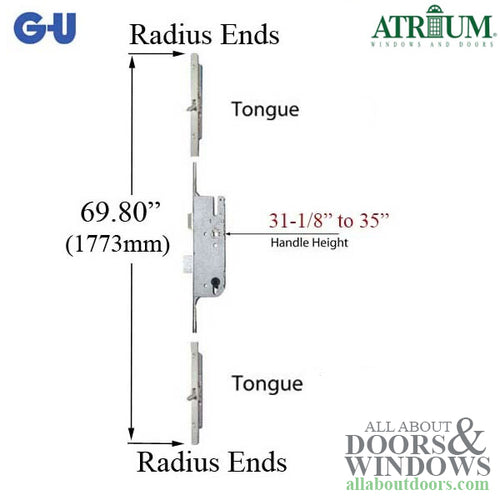

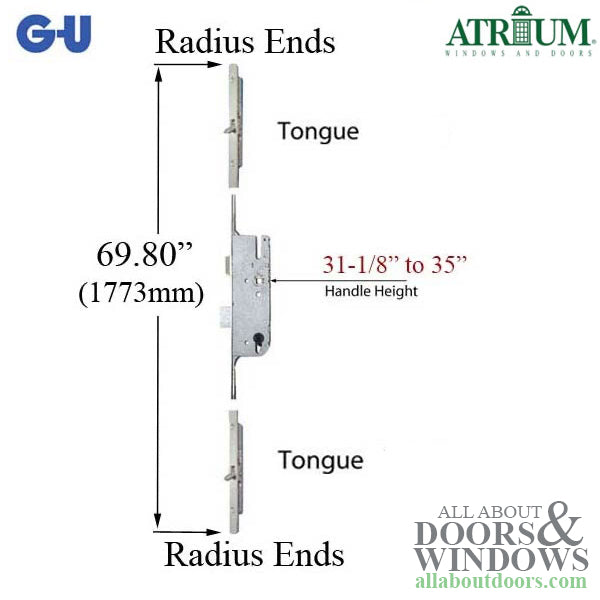

Replacement Locks Measurements:

• Backset: 45mm (1-3/8 inch)
• PZ (Distance from center of handle to center of cylinder): 92mm (3-5/8)
• Handing: Non-handed/Reversible
• Handle Height: 31-1/8 inch
• Overall Length: 69-3/4 Inch
• Tongue Positions:
  • Top: 32-1/2 inch above handle
  • Bottom: 26-3/4 inch below handle
• End shape: Radius/Rounded
• Faceplate Finish: Silver Ferguard

Priced and sold as a package.

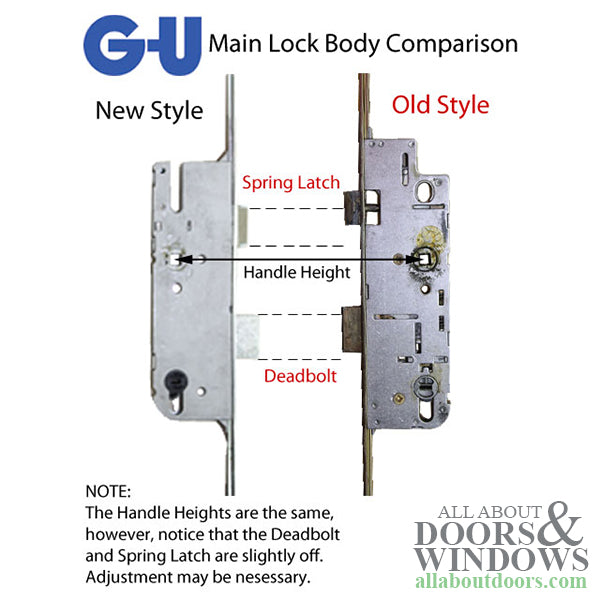

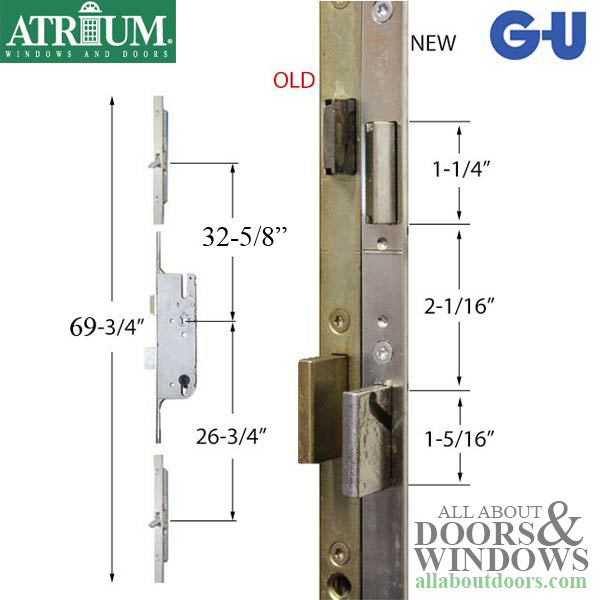

Note: This replacement was developed to replace the discontinued G-U Tripact tongue version lock. It may not work as a replacement for other locks. Although the measurements for the two locks are nearly the same, the deadbolt and spring latch strike plates may need to be adjusted on the door jamb. In addition to relocating the strike(s), you may need to chisel out a small portion of the door jamb to accommodate the deadbolt and spring latch.
