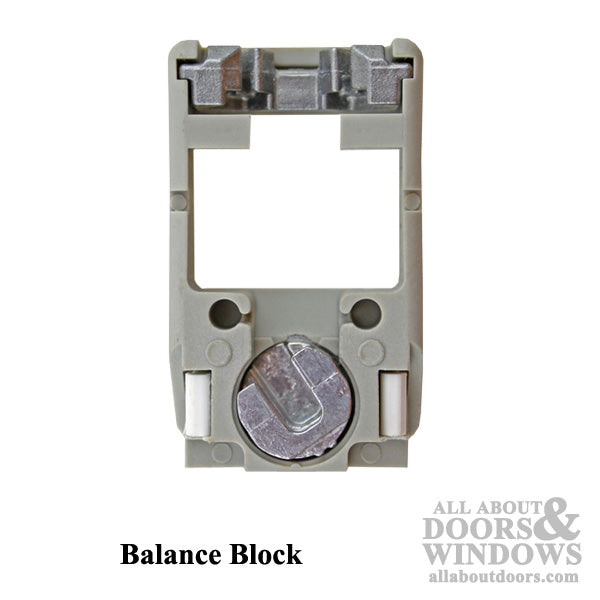

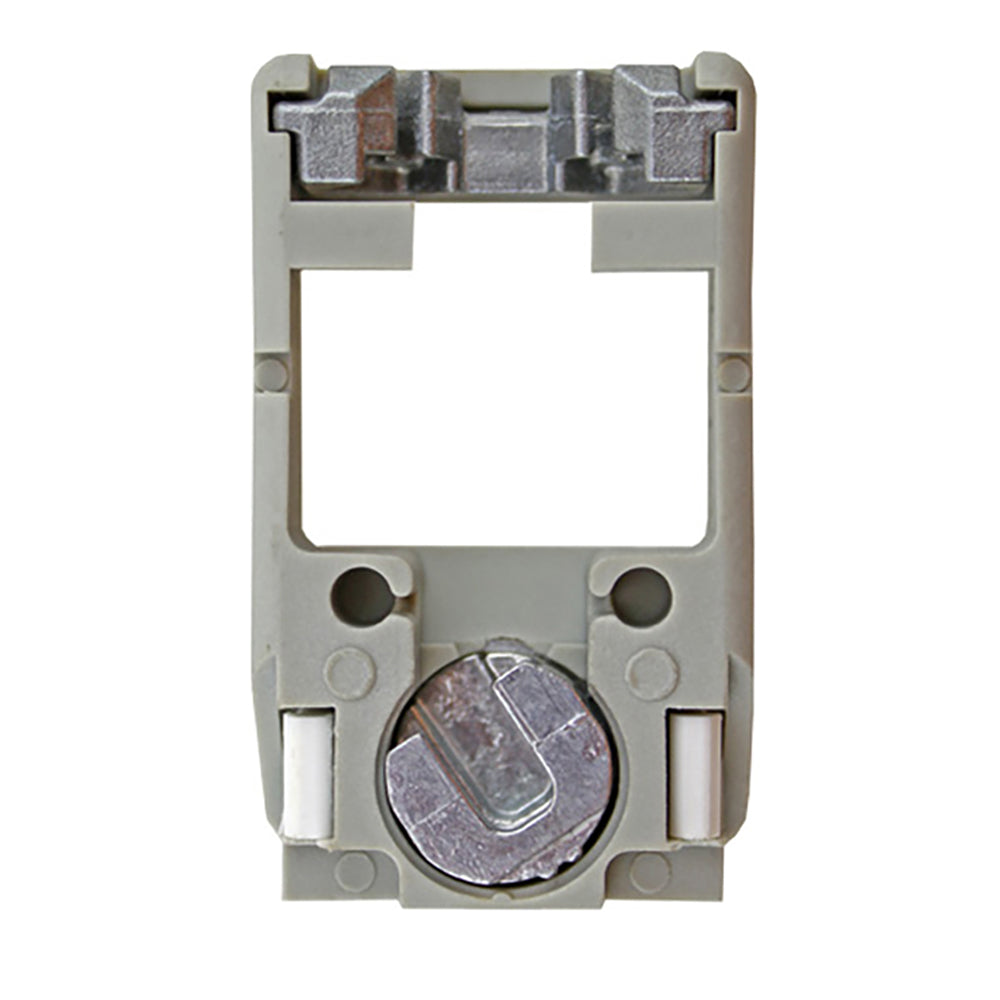

Balance Block for 5/8" Spiral Balance Rod
Part Number: Price: $5.95Pivot Lock Balance Shoe for Tilt in Window with 5/8 Inch Tilt Spiral Balance

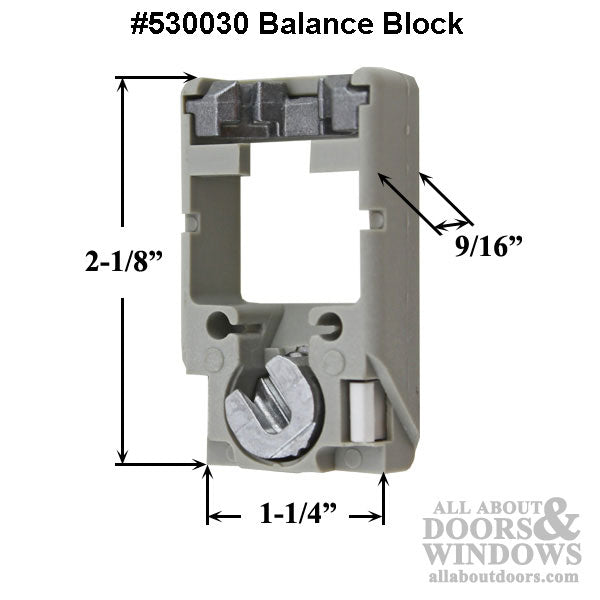

Height: 2-1/8 Inch
Width: 1-1/4 Inch
Thickness: 9/16 Inch
Cam Type: Open
Cam Opening Height: 7/8 Inch
Cam Opening Width: 1-1/16 Inch
Cam: Zinc

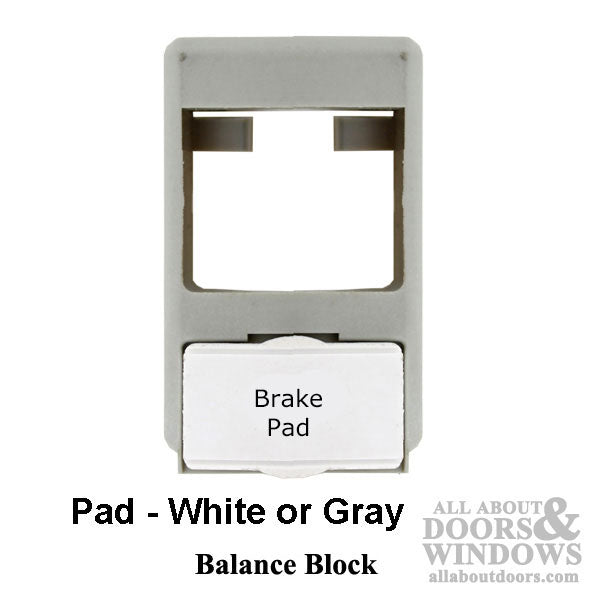

Pad color: White or Gray
Priced and sold each.
Related Parts:
530030 - Balance Block, 5/8" Spiral Rod

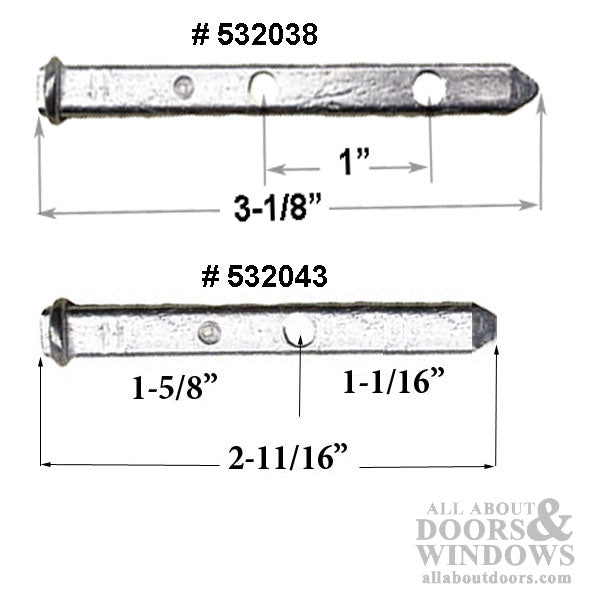

532043 - Pivot Bar, Short - 2-11/16 inch, 1 hole
532038 - Pivot Bar, Long - 3-1/8 inch, 2 hole
Height: 2-1/8 Inch
Width: 1-1/4 Inch
Thickness: 9/16 Inch
Cam Type: Open
Cam Opening Height: 7/8 Inch
Cam Opening Width: 1-1/16 Inch
Cam: Zinc
Pad color: White or Gray
Priced and sold each.
Related Parts:
530030 - Balance Block, 5/8" Spiral Rod
532043 - Pivot Bar, Short - 2-11/16 inch, 1 hole
532038 - Pivot Bar, Long - 3-1/8 inch, 2 hole
